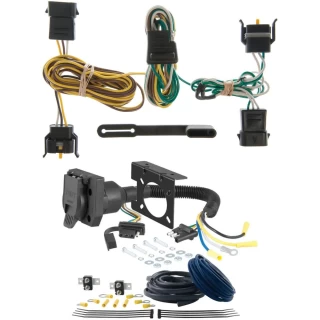

- Includes: Custom Wiring Harness, Dual-Output Electrical Adapter, Trailer Brake Controller Wiring Kit, 30-Amp Universal Circuit Breaker
Compatibility Chart
Get Expert Help
For 2000-2003 Ford Excursion Trailer Wiring 7 Way Trailer Wiring Plug w/ Bracket Fits All Models Curt Install Notes
Installation Instructions for Ford Econoline, Ford Escort Sedan, Ford Escort ZX2, Ford Excursion, Ford Expedition, Ford Explorer Sport, Ford Explorer (4-door), Ford Explorer Sport Trac, Ford F-150 Flareside, and Ford F-150 Crew Cab
Part Number:
- 55344
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Step-by-Step Instructions:
-
Remove Taillight Assemblies:
- Remove the driver and passenger side taillight assemblies to locate the vehicle's taillight wiring harness connectors.
- The connectors will be similar to those on the custom wiring harness.
-
Access Taillight Openings:
- Vans / Expedition / Navigator:
- Partially remove the rear interior plastic trim panels on the driver side and open the vehicle jack storage compartment to expose the openings to the taillight assemblies.
- Remove the threshold cover plate between the rear doors.
- Escort / Tracker:
- Partially remove the trunk lining to expose the grommets accessing the taillights.
- Remove and slit the grommet to allow wires to pass into taillight openings.
- F-150 Flareside Only:
- From underneath the vehicle, locate the access hole into the taillight openings.
- There will be an access hole on each side of the vehicle.
- Vans / Expedition / Navigator:
-
Route the Custom Wiring Harness:
- From the passenger side, route the custom wiring harness end containing the green wire out from inside the vehicle through the taillight opening.
-
Connect the Wiring Harness:
- Disconnect the vehicle's center black wiring harness connector from the taillight assembly, being careful not to damage the locking tabs.
- Plug the custom wiring harness connector containing the green wire between the separated halves.
-
Route and Connect the Yellow Wire:
- Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the custom wiring harness ends containing the yellow wire out from inside the vehicle through the taillight opening.
- Repeat step 4 using the connector containing the yellow wire.
- Reseat the grommet and use the provided sealant to seal the cut in the grommet and around all the wires.
-
Secure the Wiring:
- Tuck the yellow wire under the threshold panel and secure.
- Reinstall the plastic trim panel, jack storage panel grommets, and taillights.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Finalize Installation:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Installation Instructions for Ford Econoline, Ford Escort Sedan, Ford Escort ZX2, Ford Excursion, Ford Expedition, Ford Explorer Sport, Ford Explorer (4-door), Ford Explorer Sport Trac, Ford F-150 Flareside, and Ford F-150 Crew Cab
Part Number:
- 55344
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
- Panel trim removal tool
Step-by-Step Instructions:
-
Remove Taillight Assemblies:
- Remove the driver and passenger side taillight assemblies to locate the vehicle's taillight wiring harness connectors.
- The connectors will be similar to those on the custom wiring harness.
-
Access Taillight Openings:
- Vans / Expedition / Navigator:
- Partially remove the rear interior plastic trim panels on the driver side and open the vehicle jack storage compartment to expose the openings to the taillight assemblies.
- Remove the threshold cover plate between the rear doors.
- Escort / Tracker:
- Partially remove the trunk lining to expose the grommets accessing the taillights.
- Remove and slit the grommet to allow wires to pass into taillight openings.
- F-150 Flareside Only:
- From underneath the vehicle, locate the access hole into the taillight openings.
- There will be an access hole on each side of the vehicle.
- Vans / Expedition / Navigator:
-
Route the Custom Wiring Harness:
- From the passenger side, route the custom wiring harness end containing the green wire out from inside the vehicle through the taillight opening.
-
Connect the Wiring Harness:
- Disconnect the vehicle's center black wiring harness connector from the taillight assembly, being careful not to damage the locking tabs.
- Plug the custom wiring harness connector containing the green wire between the separated halves.
-
Route and Connect the Yellow Wire:
- Route the yellow wire across the vehicle under the threshold cover removed in step 2.
- Route the custom wiring harness ends containing the yellow wire out from inside the vehicle through the taillight opening.
- Repeat step 4 using the connector containing the yellow wire.
- Reseat the grommet and use the provided sealant to seal the cut in the grommet and around all the wires.
-
Secure the Wiring:
- Tuck the yellow wire under the threshold panel and secure.
- Reinstall the plastic trim panel, jack storage panel grommets, and taillights.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Finalize Installation:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Warranty Information:
- This product comes with a warranty of [Insert Duration] covering defects in material and workmanship.
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Note: This document is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
