For 2001‑2010 Chrysler PT Cruiser Trailer Hitch + Wiring 5 Pin Fits All Models Curt 11132 1‑1/4 Tow Receiver
Model: 11132 55532 57187 58303-CH724This Trailer Tow Hitch + 5-Flat Fits The Following Vehicles:
2001 - 2010 Chrysler PT Cruiser All Models

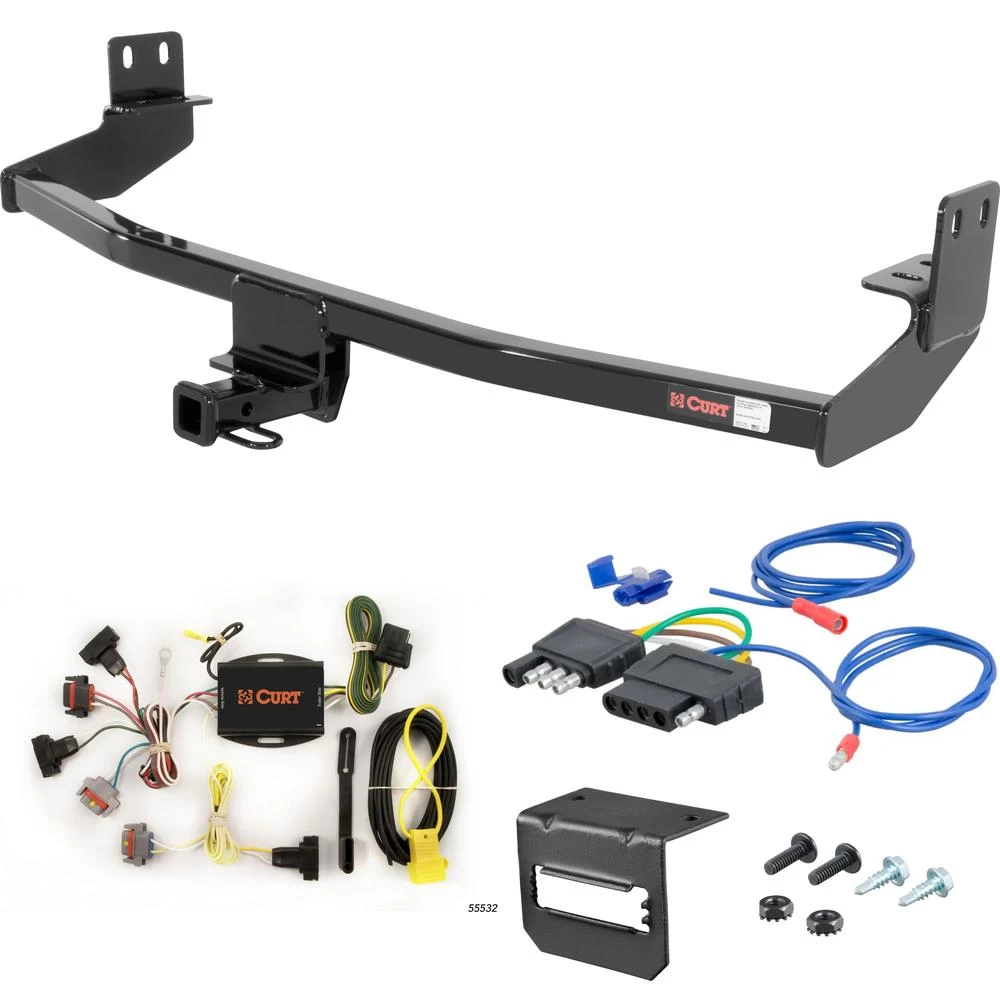

This Trailer Tow Hitch + 5-Flat Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Easy Bolt-On, No Drilling)
- Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
- 4-Way to 5-Way Flat Install Kit for Boat Trailer Surge and Connector Mounting Bracket for 5-Way Flat
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

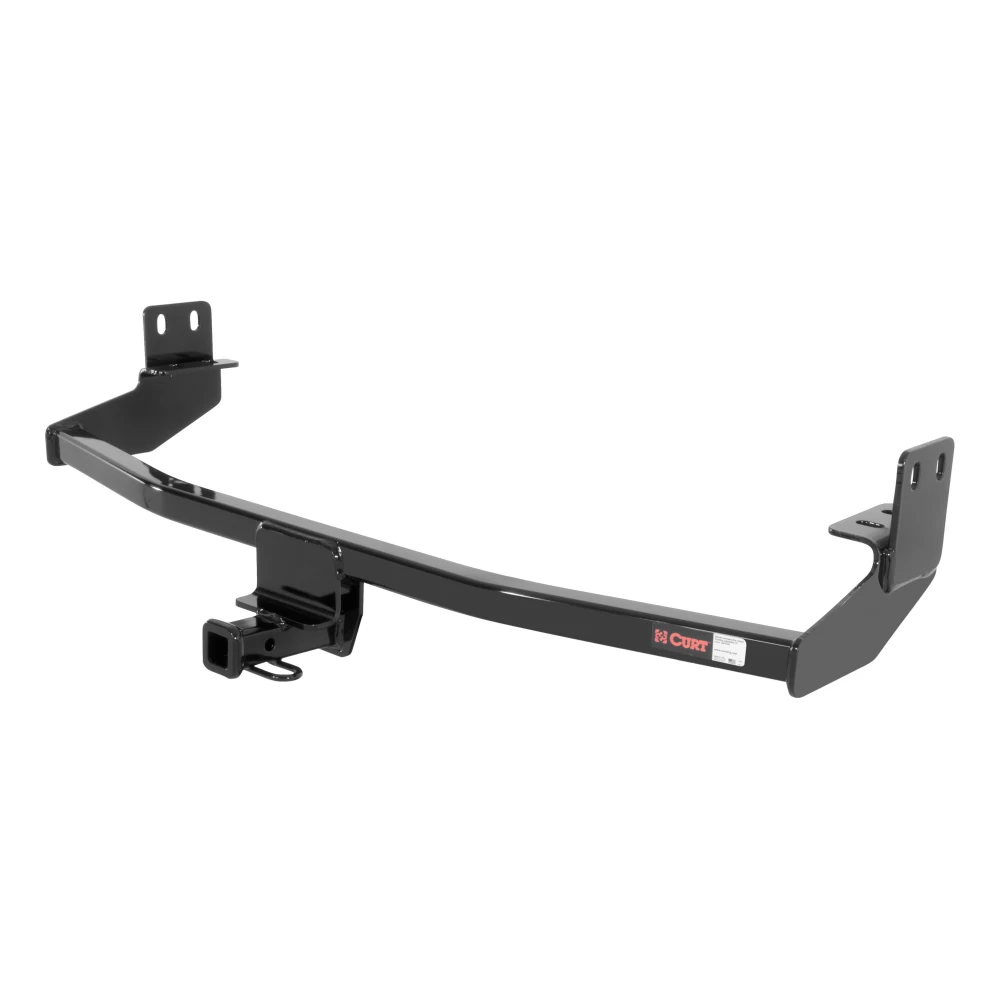

CURT 11132 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Chrysler PT Cruiser (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.
TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..
Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

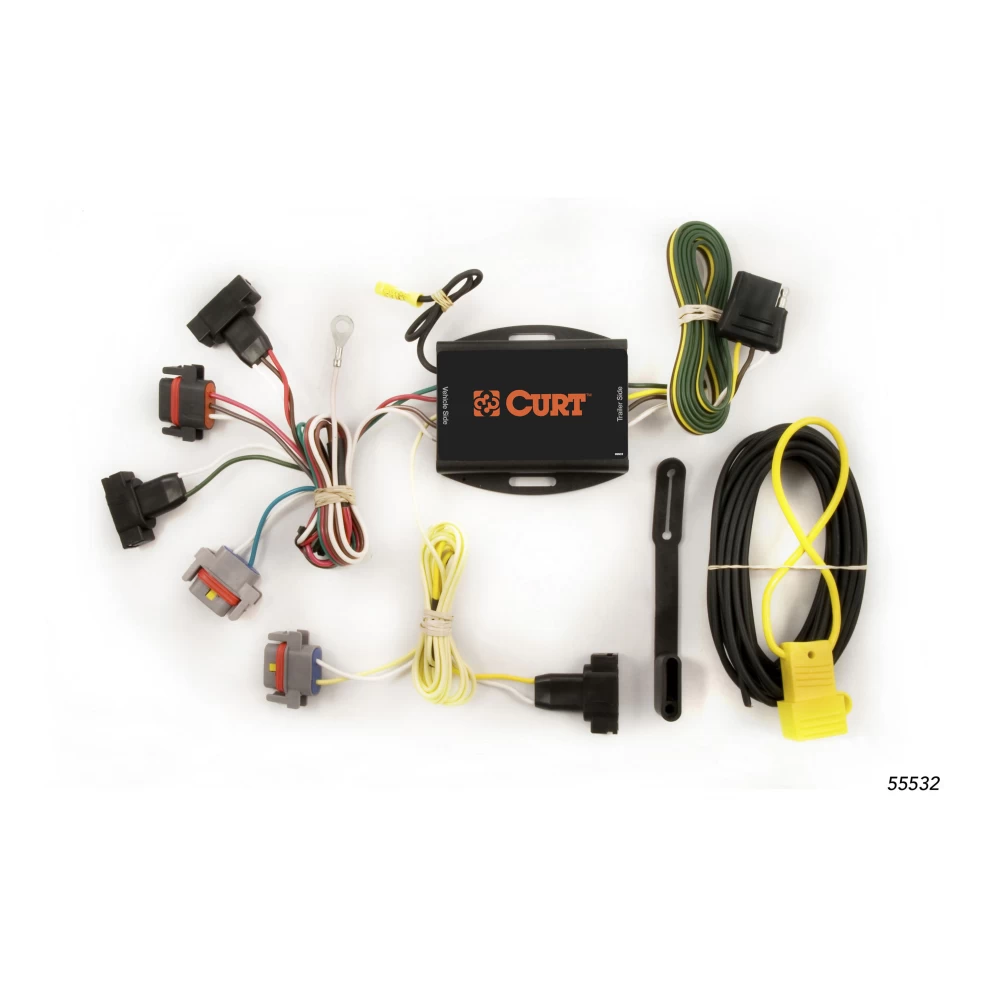

CURT 55532 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chrysler PT Cruiser (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
CURT 57187 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes and CURT 58303 Vehicle-Side Trailer Wiring Harness Mounting Bracket for 5-Way Flat
Manufactured by: Curt
CURT electrical connector brackets provide a simple solution for mounting wiring to your trailer hitch on the rear of your vehicle Connector wires can be a nuisance when they are just lying around; they can get tangled up with cargo and even damaged An electrical connector left to hang off the back end of your vehicle is an even greater hazard.
Secure, protect, and optimize the use of your electrical connector by mounting it with a CURT connector bracket This trailer wire connector bracket is designed to hold a 5-way flat socket It features sturdy steel construction with a black finish and can be mounted on your vehicle or trailer hitch using the included hardware.
This electrical adapter is designed to adapt a 4-way flat vehicle socket to fit a 5-way flat trailer plug It is specifically intended for boat trailers with surge brakes, adding in a fifth wire for the reverse lights and allowing your vehicle's 4-way flat to easily plug into your boat trailer 5-way flat This boat trailer wiring adapter features durable molded plastic construction and requires some splicing.
All CURT wiring and electrical products come with a one-year limited warranty to give you the assurance you need to tow with confidence..
Features:
- Adapts vehicle 4-way flat to plug into boat trailer 5-way flat
- Intended for boat trailers with surge brakes
- Fifth wire splices in to connect reverse lights
- Adapts 4-way flat vehicle socket to fit 5-way flat trailer plugs
- Durable molded plastic housing resists corrosion
- Securely mounts a 5-way flat connector socket
- Allows for attachment to the vehicle or trailer hitch
- Constructed from high-strength steel
- Protected by a durable black powder coat finish
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$310 95 $438.80 29% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$438.80 $310 95
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $77.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Each may be shipped from a separate location, and therefore, may arrive at different times
Product Details
- Brand: Curt
- Model: 11132 55532 57187 58303-CH724
- Includes: Class 1 Trailer Tow Hitch, Custom Wiring Harness, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Description
Each may be shipped from a separate location, and therefore, may arrive at different times
Get Expert Help
For 2001-2010 Chrysler PT Cruiser Trailer Hitch + Wiring 5 Pin Fits All Models Curt 11132 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2001-2010 Chrysler PT Cruiser
Part Numbers:
- 11132
Tools Required:
- Torque wrench
- Ratchet
- 17mm socket
Step-by-Step Instructions:
-
Remove Tow Hook Brackets:
- Remove the tow hook brackets from the vehicle frame.
- Return the brackets to the vehicle owner.
- Note: You may need to temporarily lower the spare tire carrier for easier installation.
-
Lower the Exhaust:
- Temporarily lower the exhaust system at two hangers:
- One hanger at the front of the muffler
- One hanger at the rear of the muffler.
- Temporarily lower the exhaust system at two hangers:
-
Raise the Hitch into Position:
- Position the hitch so the mounting holes align with the existing holes in the vehicle frame.
-
Install Fasteners:
- Use the provided M10 hex bolts and 7/16" conical washers to secure the hitch to the frame weldnuts.
- Torque all M10 fasteners to 45 ft-lbs.
-
Reattach the Exhaust:
- Reattach the exhaust hangers that were lowered in Step 2.
-
Final Inspection:
- Ensure all fasteners are properly torqued and the hitch is securely mounted.
Hardware List:
- Hex Bolt, M10 x 1.5 x 45, Class 10.9, YZ: Qty 8 (Part No. 10-10414)
- Conical Washer, 7/16, YZ: Qty 8 (Part No. 30-00163)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Important: All non-trailer loads must be supported by auxiliary stabilizing straps.
- Periodically inspect the hitch to ensure all fasteners remain tight and all components are sound.
Specifications:
- Hitch Weight: 24 lbs
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
- Drilling Required: No
Manufacturer Notes:
- Designed for use with Ball Mount #D-20 / 45520.
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Vehicle Applications:
- Fits 2001-2010 Chrysler PT Cruiser
Revision History:
- 6/20/2007: Generic instruction sheet created.
- 8/3/2020: Updated hardware descriptions and torque specs.
- 7/13/2012: Changed to Grade 8 torque specs.
- 8/24/2009: Updated to current standards.
- 7/21/2008: Added weldnut cleaning note.
Installation Instructions for 2001-2010 Chrysler PT Cruiser
Part Numbers:
- 11132
Tools Required:
- Torque wrench
- Ratchet
- 17mm socket
Step-by-Step Instructions:
-
Remove Tow Hook Brackets:
- Remove the tow hook brackets from the vehicle frame.
- Return the brackets to the vehicle owner.
- Note: You may need to temporarily lower the spare tire carrier for easier installation.
-
Lower the Exhaust:
- Temporarily lower the exhaust system at two hangers:
- One hanger at the front of the muffler
- One hanger at the rear of the muffler.
- Temporarily lower the exhaust system at two hangers:
-
Raise the Hitch into Position:
- Position the hitch so the mounting holes align with the existing holes in the vehicle frame.
-
Install Fasteners:
- Use the provided M10 hex bolts and 7/16" conical washers to secure the hitch to the frame weldnuts.
- Torque all M10 fasteners to 45 ft-lbs.
-
Reattach the Exhaust:
- Reattach the exhaust hangers that were lowered in Step 2.
-
Final Inspection:
- Ensure all fasteners are properly torqued and the hitch is securely mounted.
Hardware List:
- Hex Bolt, M10 x 1.5 x 45, Class 10.9, YZ: Qty 8 (Part No. 10-10414)
- Conical Washer, 7/16, YZ: Qty 8 (Part No. 30-00163)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,000 lbs (trailer weight), 200 lbs (tongue weight).
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity.
- Important: All non-trailer loads must be supported by auxiliary stabilizing straps.
- Periodically inspect the hitch to ensure all fasteners remain tight and all components are sound.
Specifications:
- Hitch Weight: 24 lbs
- Installation Time:
- Professional: 30 minutes
- Novice (DIY): 60 minutes
- Drilling Required: No
Manufacturer Notes:
- Designed for use with Ball Mount #D-20 / 45520.
- Warranty covers defects in material and workmanship at the time of purchase.
- For complete warranty instructions, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Vehicle Applications:
- Fits 2001-2010 Chrysler PT Cruiser
Revision History:
- 6/20/2007: Generic instruction sheet created.
- 8/3/2020: Updated hardware descriptions and torque specs.
- 7/13/2012: Changed to Grade 8 torque specs.
- 8/24/2009: Updated to current standards.
- 7/21/2008: Added weldnut cleaning note.
Installation Instructions for Chrysler PT Cruiser
Part Number:
- 55532
Tools Required:
- Ratchet
- 10mm socket
- T-30 Torx bit
- Flat blade screwdriver
- Panel trim removal tool
- Wire stripper
- Wire crimper
- Cutting tool
- Fishwire
Step-by-Step Instructions:
-
Remove Taillight Assemblies:
- Remove the T-30 Torx screw securing the driver-side taillight assembly.
- Carefully pull the taillight rearward, taking care not to damage the locking tabs.
- Repeat this process on the passenger side.
-
Access Taillight Wiring Harness:
- Behind each removed taillight, locate the vehicle's taillight wiring harness connectors, which will resemble those on the custom wiring harness.
- Separate the connectors from the taillight housing, ensuring not to damage the locking tabs.
-
Install Custom Wiring Harness:
- On the driver side, insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- The area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route Wiring to Passenger Side:
- Route the custom wiring harness end with the green wire to the passenger side.
- Repeat steps 2 and 3 on the passenger side using the harness end with the green wire.
-
Secure Converter Box:
- Locate a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Install Fuse:
- Insert the provided 10-amp fuse into the in-line fuse holder.
-
Reassemble Vehicle Components:
- Reinstall all items removed during the installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- If using the converter as a powered module for a two-wire system, the red brake wire must be grounded.
- The battery connection must be fuse-protected (10-amp max). Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Electrical System Load:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Ensure all steps are followed to guarantee the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Installation Instructions for Chrysler PT Cruiser
Part Number:
- 55532
Tools Required:
- Ratchet
- 10mm socket
- T-30 Torx bit
- Flat blade screwdriver
- Panel trim removal tool
- Wire stripper
- Wire crimper
- Cutting tool
- Fishwire
Step-by-Step Instructions:
-
Remove Taillight Assemblies:
- Remove the T-30 Torx screw securing the driver-side taillight assembly.
- Carefully pull the taillight rearward, taking care not to damage the locking tabs.
- Repeat this process on the passenger side.
-
Access Taillight Wiring Harness:
- Behind each removed taillight, locate the vehicle's taillight wiring harness connectors, which will resemble those on the custom wiring harness.
- Separate the connectors from the taillight housing, ensuring not to damage the locking tabs.
-
Install Custom Wiring Harness:
- On the driver side, insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Establish Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- The area should be free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route Wiring to Passenger Side:
- Route the custom wiring harness end with the green wire to the passenger side.
- Repeat steps 2 and 3 on the passenger side using the harness end with the green wire.
-
Secure Converter Box:
- Locate a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Install Fuse:
- Insert the provided 10-amp fuse into the in-line fuse holder.
-
Reassemble Vehicle Components:
- Reinstall all items removed during the installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- If using the converter as a powered module for a two-wire system, the red brake wire must be grounded.
- The battery connection must be fuse-protected (10-amp max). Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Specifications:
- Electrical System Load:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Ensure all steps are followed to guarantee the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
