For 2003‑2008 Pontiac Vibe Trailer Hitch + Wiring 4 Pin Fits GT Curt 12221 55057 1‑1/4 Tow Receiver
Model: 12221 55057-CH3190This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2003 - 2008 Pontiac Vibe GT

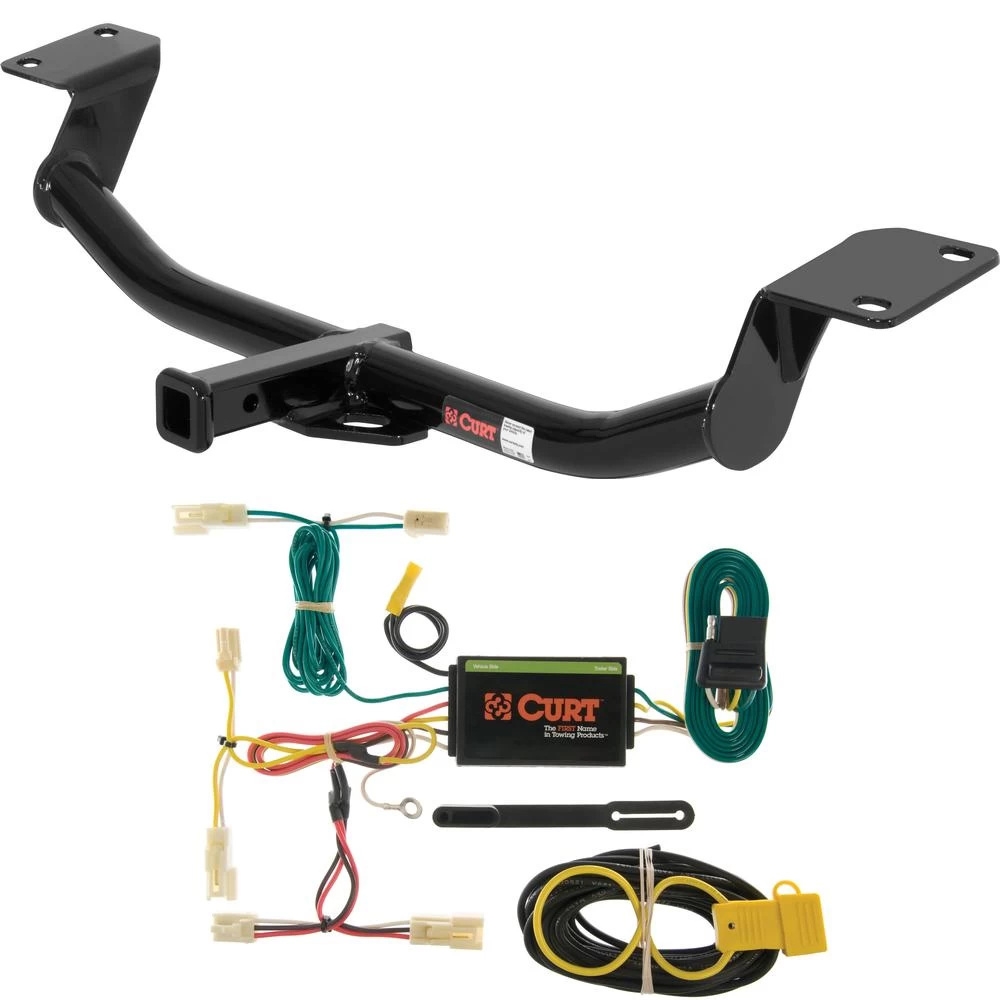

This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 2 Hitch, 1-1/4" (Easy Bolt-On, No Drilling)
- Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2003, 2004, 2005, 2006, 2007, 2008

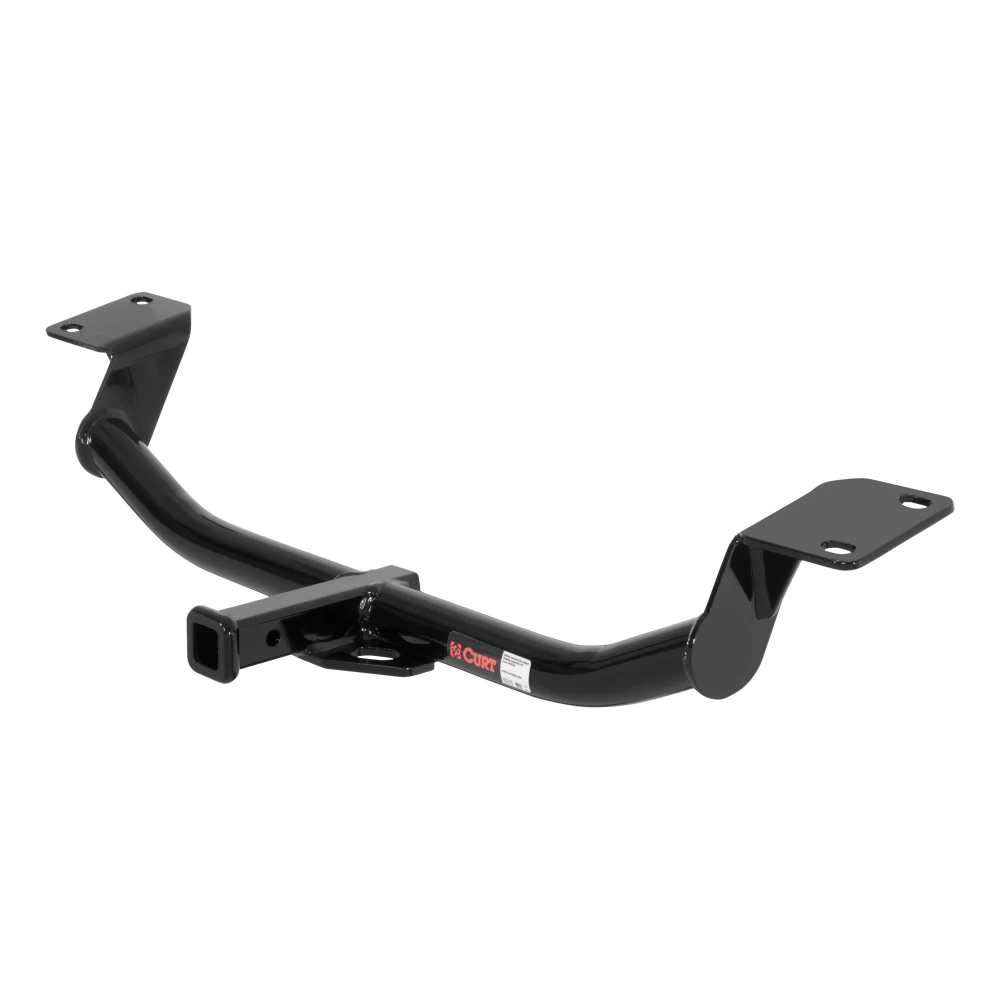

CURT 12221 Class 2 Trailer Hitch, 1-1/4-Inch Receiver, Exposed Body
Manufactured by: Curt
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles.
This particular class 2 hitch is made to be a custom hitch for certain years of the Pontiac Vibe and Toyota Matrix (to verify vehicle compatibility, see application info) It offers a weight carrying capacity of 2,500 lbs GTW and 250 lbs.
TW Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component) They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier.
This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory For safety, it is tested in accordance with SAE J684 A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research.
We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance..
Features:
- Rated to 2,500 lbs. gross trailer weight and 250 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

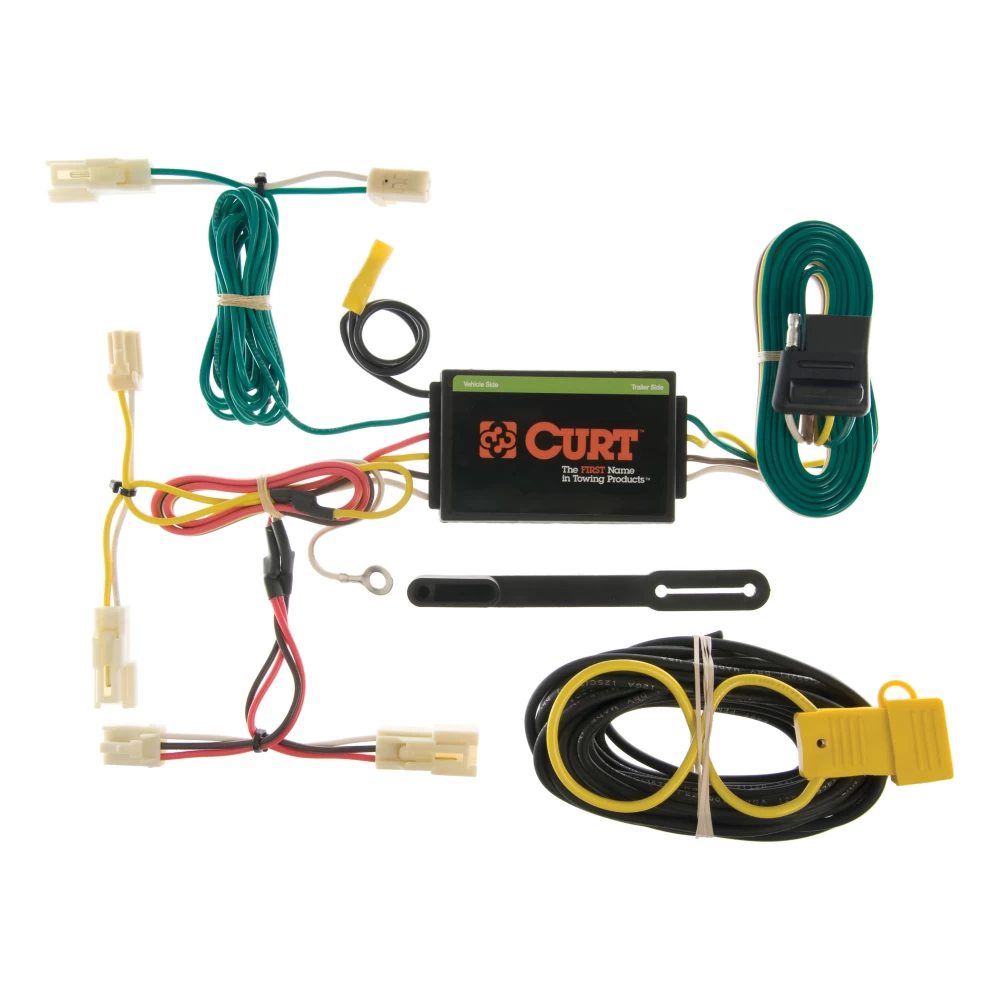

CURT 55057 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Pontiac Vibe (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Equipped with tail light converter for vehicle-trailer compatibility
- Constructed with SMT circuitry for better performance and durability
- Dust cover included to keep connector clean when not in use
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$249 76 $413.90 40% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$413.90 $249 76
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 12221 55057-CH3190
- Includes: Class 2 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Description
Get Expert Help
For 2003-2008 Pontiac Vibe Trailer Hitch + Wiring 4 Pin Fits GT Curt 12221 55057 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2003-2008 Pontiac Vibe & Toyota Matrix (All Models)
Part Numbers:
- 12221
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
- 10" extension
Step-by-Step Instructions:
-
Raise Hitch into Position:
- Raise the hitch into position over the exhaust system.
- Align the slots in the hitch with the weld nuts located in the frame rails closest to the rear end of the vehicle.
-
Install Hardware:
- Install the provided M12 hex bolts and 1/2" conical toothed washers into the weld nuts.
- Hand-tighten the bolts initially.
-
Torque Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
-
Check for Clearance and Adjust as Needed:
- On Toyota Matrix XR and XRS models, minor trimming of the lower valance may be required for proper clearance.
- Verify that the hitch does not interfere with the exhaust or heat shield. Adjust if necessary.
Hardware List:
- Hex Bolt, M12 x 1.25 x 30, Grade 10.9, YZ: Qty 4 (Part No. 10-10419)
- Conical Toothed Washer, 1/2, YZ: Qty 4 (Part No. 30-00149)
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,500 lbs (trailer weight), 250 lbs (tongue weight).
- Warning: Non-trailer loads must be supported with auxiliary stabilizing straps to prevent damage.
- Failure to properly support non-trailer loads will void the product warranty.
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 15 minutes
- Novice (DIY): 21 minutes
- Drilling Required: No
- Heat Shield Modification: May be required
Manufacturer Notes:
- Designed for use with Ball Mount #D-55001 / 45501.
- Warranty covers defects in material and workmanship at the time of purchase.
- For technical support, call Curt Manufacturing at 1-877-287-8634.
Vehicle Applications:
- Fits 2003-2008 Pontiac Vibe (All Models)
- Fits 2003-2008 Toyota Matrix (All Models)
Revision History:
- 07/02/2020: Initial version released.
Installation Instructions for Vehicle
Part Numbers:
- 12221
Tools Required:
- Torque wrench
- Ratchet
- 19mm socket
- 10" extension
Step-by-Step Instructions:
-
Raise Hitch into Position:
- Raise the hitch into position over the exhaust system.
- Align the slots in the hitch with the weld nuts located in the frame rails closest to the rear end of the vehicle.
-
Install Hardware:
- Install the provided M12 hex bolts and 1/2" conical toothed washers into the weld nuts.
- Hand-tighten the bolts initially.
-
Torque Fasteners:
- Torque all M12 fasteners to 86 lb-ft.
-
Check for Clearance and Adjust as Needed:
- On Toyota Matrix XR and XRS models, minor trimming of the lower valance may be required for proper clearance.
- Verify that the hitch does not interfere with the exhaust or heat shield. Adjust if necessary.
Hardware List:
- Hex Bolt, M12 x 1.25 x 30, Grade 10.9, YZ: Qty 4
- Conical Toothed Washer, 1/2, YZ: Qty 4
Safety Notes:
- Gross Load Capacity (Weight Carrying Hitch): 2,500 lbs (trailer weight), 250 lbs (tongue weight).
- Warning: Non-trailer loads must be supported with auxiliary stabilizing straps to prevent damage.
- Failure to properly support non-trailer loads will void the product warranty.
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Periodically inspect the hitch to ensure all fasteners remain tight and structural components remain sound.
Specifications:
- Hitch Weight: Not specified
- Installation Time:
- Professional: 15 minutes
- Novice (DIY): 21 minutes
- Drilling Required: No
- Heat Shield Modification: May be required
Important Notice:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
- For warranty information, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Vehicle Applications:
- Fits 2003-2008 Pontiac Vibe (All Models)
- Fits 2003-2008 Toyota Matrix (All Models)
Revision History:
- 07/02/2020: Initial version released.
Installation Instructions for Pontiac Vibe
Part Number:
- 55057
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
Step-by-Step Instructions:
-
Prepare the Cargo Area:
- Open the vehicle's tailgate.
- Remove the driver and passenger side wiring access panels located in the cargo area.
- Remove the following items: carpet, spare tire retaining cap, tire jack storage tray, spare tire retaining nut, and spare tire.
-
Locate and Disconnect Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle's taillight wiring harness connectors, which resemble those on the custom wiring harness.
- Carefully separate the connectors from the taillight housing, ensuring not to damage the locking tabs.
-
Install the Custom Wiring Harness (Driver Side):
- On the driver side, route the custom wiring harness ends with the red and brown wires, as well as the yellow wire, through the opening below the side cargo storage area behind the panel to the wiring access area.
- Insert the custom wiring harness adapter between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Install the Custom Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Establish Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Vehicle:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Specifications:
- Electrical Load Capacity:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- Fuse Protection: The battery connection must be fuse-protected, 10-amp max.
Installation Instructions for Pontiac Vibe
Part Number:
- 55057
Tools Required:
- Phillips screwdriver
- Flat blade screwdriver
Step-by-Step Instructions:
-
Prepare the Cargo Area:
- Open the vehicle's tailgate.
- Remove the driver and passenger side wiring access panels located in the cargo area.
- Remove the following items: carpet, spare tire retaining cap, tire jack storage tray, spare tire retaining nut, and spare tire.
-
Locate and Disconnect Taillight Wiring Harness:
- On both the driver and passenger sides, locate the vehicle's taillight wiring harness connectors, which resemble those on the custom wiring harness.
- Carefully separate the connectors from the taillight housing, ensuring not to damage the locking tabs.
-
Install the Custom Wiring Harness (Driver Side):
- On the driver side, route the custom wiring harness ends with the red and brown wires, as well as the yellow wire, through the opening below the side cargo storage area behind the panel to the wiring access area.
- Insert the custom wiring harness adapter between the separated connectors.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Install the Custom Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side.
- Repeat the connection process on the passenger side using the harness end with the green wire.
-
Establish Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Before drilling, check for any items that may be hidden behind or under any surface to avoid damage and/or personal injury.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll up and store it in a convenient, out-of-the-way location inside the trunk.
- Secure any loose wires with the provided cable ties.
-
Reassemble the Vehicle:
- Reinstall all items removed during installation.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Specifications:
- Electrical Load Capacity:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
- Fuse Protection: The battery connection must be fuse-protected, 10-amp max.
