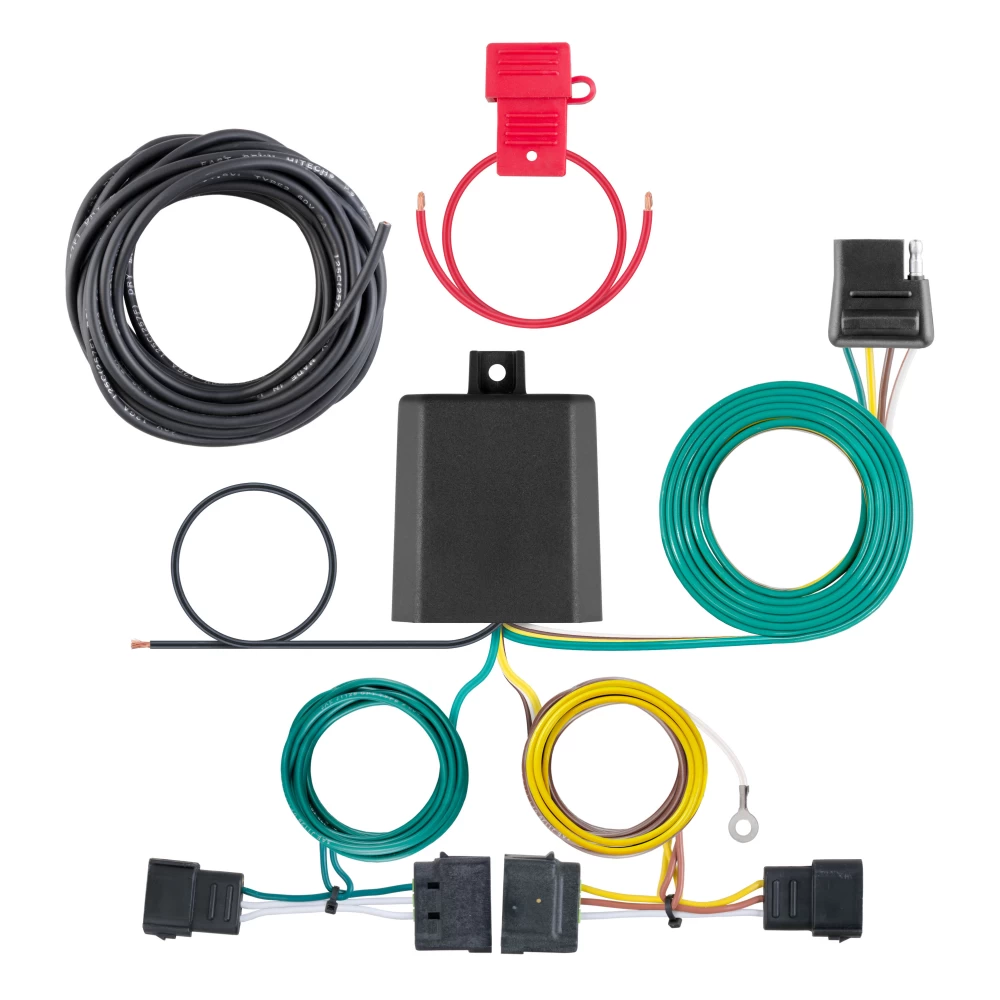

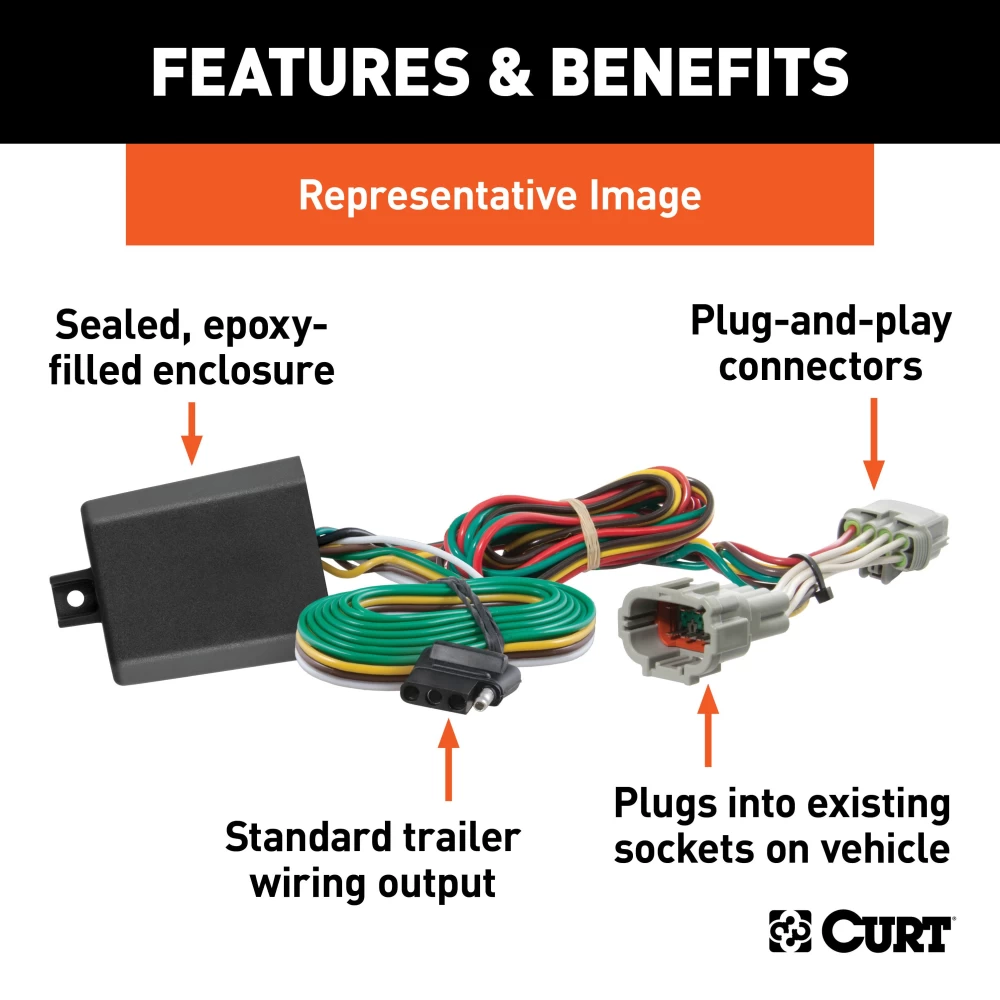

For 2008-2012 Ford Escape Trailer Wiring 4 Way Fits All Models Curt 56329 Install Notes
Installation Instructions for Ford Edge, Ford Escape, Ford Freestar, Lincoln MKX, Mazda Tribute, and Mercury Mariner
Part Number:
- 56329
Tools Required:
- 10mm socket
- Ratchet
Wiring Access Locations:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Step-by-Step Instructions:
-
Disconnect the Negative Battery Terminal:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove the Driver Side Taillight Assembly:
- Open the vehicle's tailgate.
- Remove the two Phillips screws securing the driver side taillight assembly.
- Gently pull out the taillight assembly, taking care not to damage the alignment tabs.
-
Access the Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the removed taillight assembly.
- These connectors will resemble those on the custom wiring harness.
-
Route the Wiring Harness (Driver Side):
- From underneath the vehicle, locate the access hole leading to the taillight wiring harness under the taillight.
- Route the custom wiring harness end with the yellow wire up through this body opening to the driver side taillight housing.
-
Connect the Wiring Harness (Driver Side):
- Separate the vehicle's connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Route the Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side, behind the removed scuff panels.
- Repeat steps 4 and 5 on the passenger side using the harness end with the green wire.
-

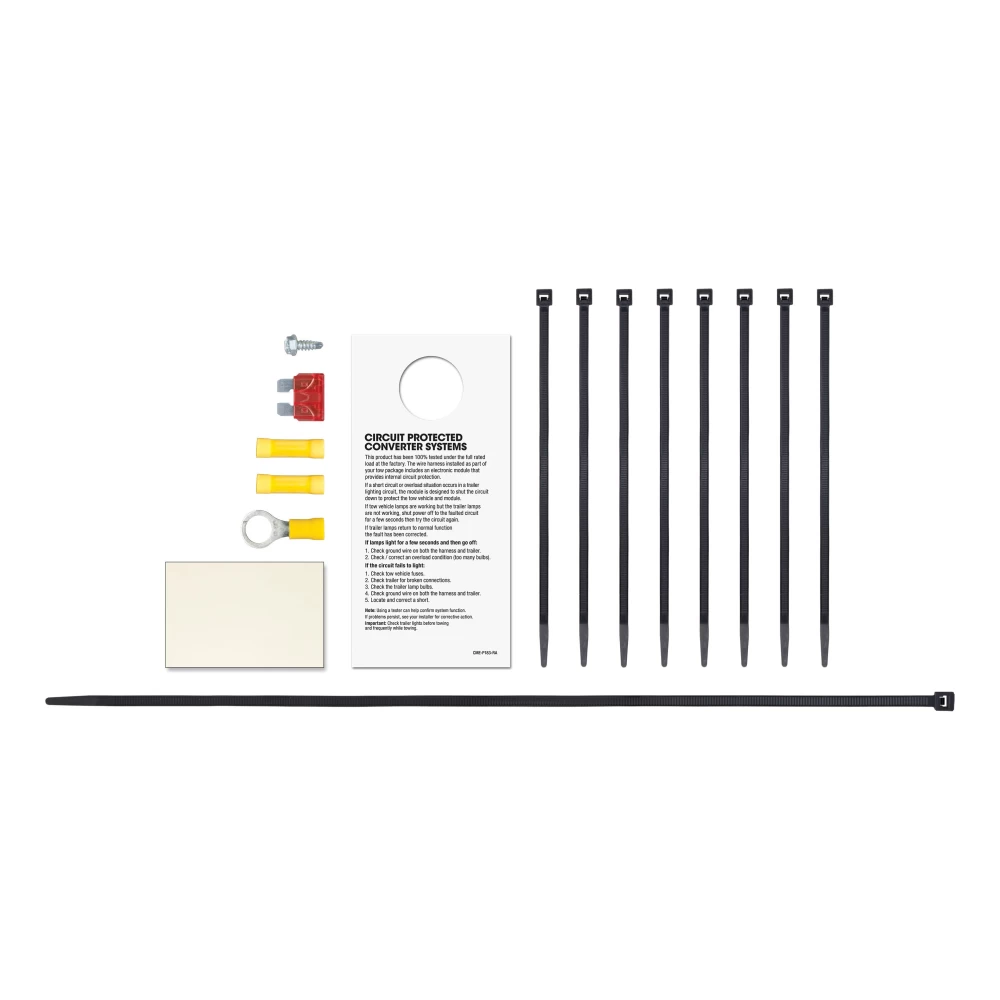

Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-

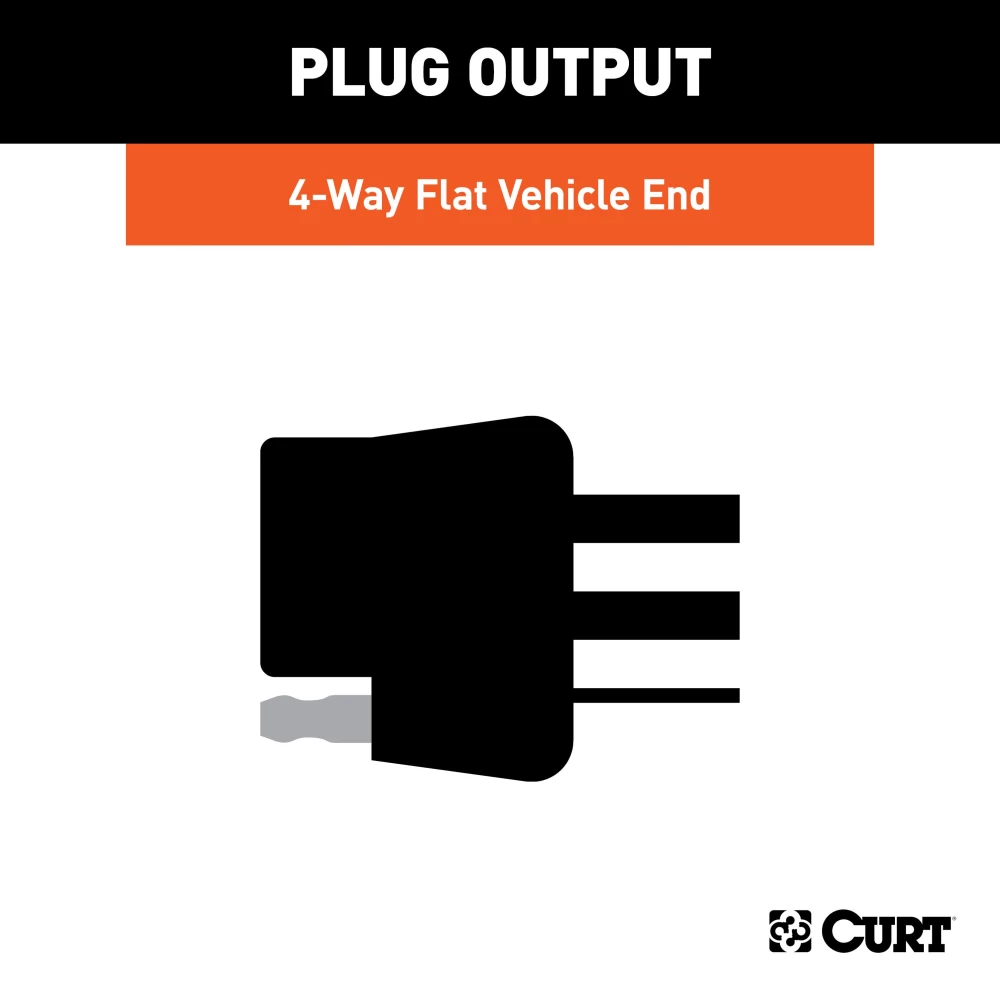

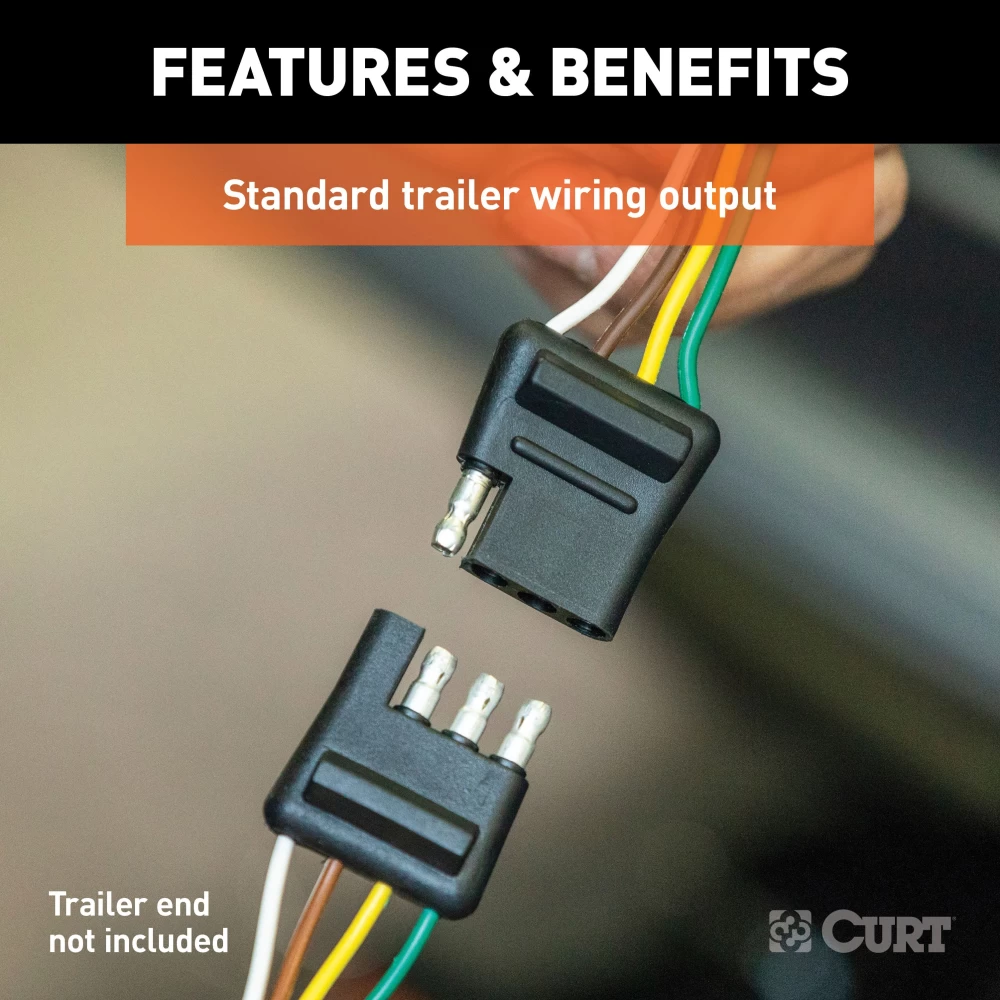

Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.

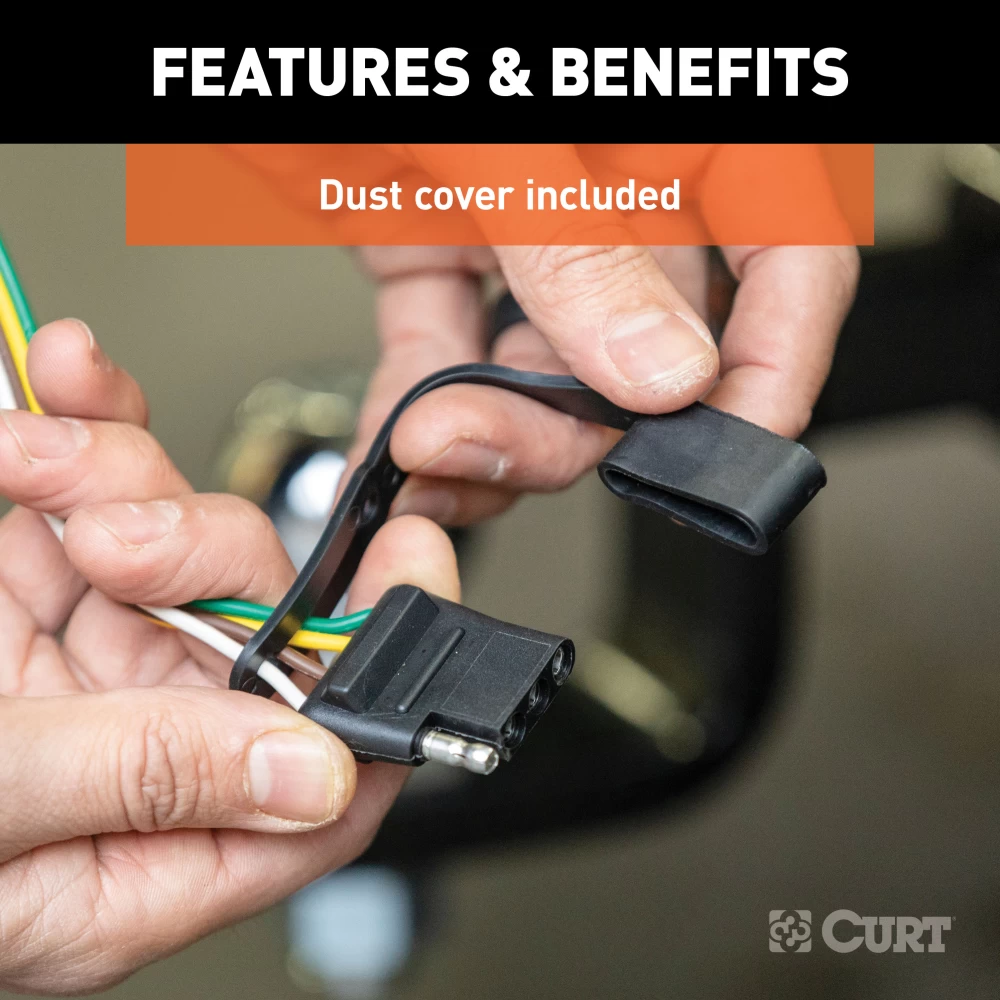

- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to avoid contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: For more information, refer to the vehicle owner's manual or contact the vehicle manufacturer.
Installation Instructions for Ford Edge, Ford Escape, Ford Freestar, Lincoln MKX, Mazda Tribute, and Mercury Mariner
Part Number:
- 56329
Tools Required:
- 10mm socket
- Ratchet
Wiring Access Locations:
- S1: Behind driver side taillight housing
- S2: Behind passenger side taillight housing
- S3: Behind driver side rear access panel
- S4: Behind passenger side rear access panel
Step-by-Step Instructions:
-
Disconnect the Negative Battery Terminal:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal to ensure safety during installation.
-
Remove the Driver Side Taillight Assembly:
- Open the vehicle's tailgate.
- Remove the two Phillips screws securing the driver side taillight assembly.
- Gently pull out the taillight assembly, taking care not to damage the alignment tabs.
-
Access the Taillight Wiring Harness:
- Locate the vehicle's taillight wiring harness connectors behind the removed taillight assembly.
- These connectors will resemble those on the custom wiring harness.
-
Route the Wiring Harness (Driver Side):
- From underneath the vehicle, locate the access hole leading to the taillight wiring harness under the taillight.
- Route the custom wiring harness end with the yellow wire up through this body opening to the driver side taillight housing.
-
Connect the Wiring Harness (Driver Side):
- Separate the vehicle's connectors from the taillight housing, ensuring the locking tabs are not damaged.
- Insert the custom wiring harness end with the yellow wire between the separated connectors.
- Ensure all connectors are fully inserted with locking tabs in place.
-
Route the Wiring Harness (Passenger Side):
- Route the custom wiring harness end with the green wire to the passenger side, behind the removed scuff panels.
- Repeat steps 4 and 5 on the passenger side using the harness end with the green wire.
-
Establish a Ground Connection:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame.
- If no suitable grounding point is available, drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Route the Black Power Wire:
- Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet.
-
Mount the Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Position the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll up and store it in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Removed Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
Safety Notes:
- Ensure all connectors are fully inserted with locking tabs in place to prevent disconnection.
- Secure loose wires to avoid contact with moving parts or hot surfaces.
- Avoid routing wires through areas that may cut or pinch them.
Warning: Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Exceeding these ratings can cause loss of warranty, overheating, and potential fire.
Note: For more information, refer to the vehicle owner's manual or contact the vehicle manufacturer.
Important Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.
