For 2010‑2019 Subaru Outback Trailer Hitch Fits All Models Curt 13410 2 inch Tow Receiver
Model: 13410-CH3483This Trailer Tow Hitch Fits The Following Vehicles:
2010 - 2019 Subaru Outback All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

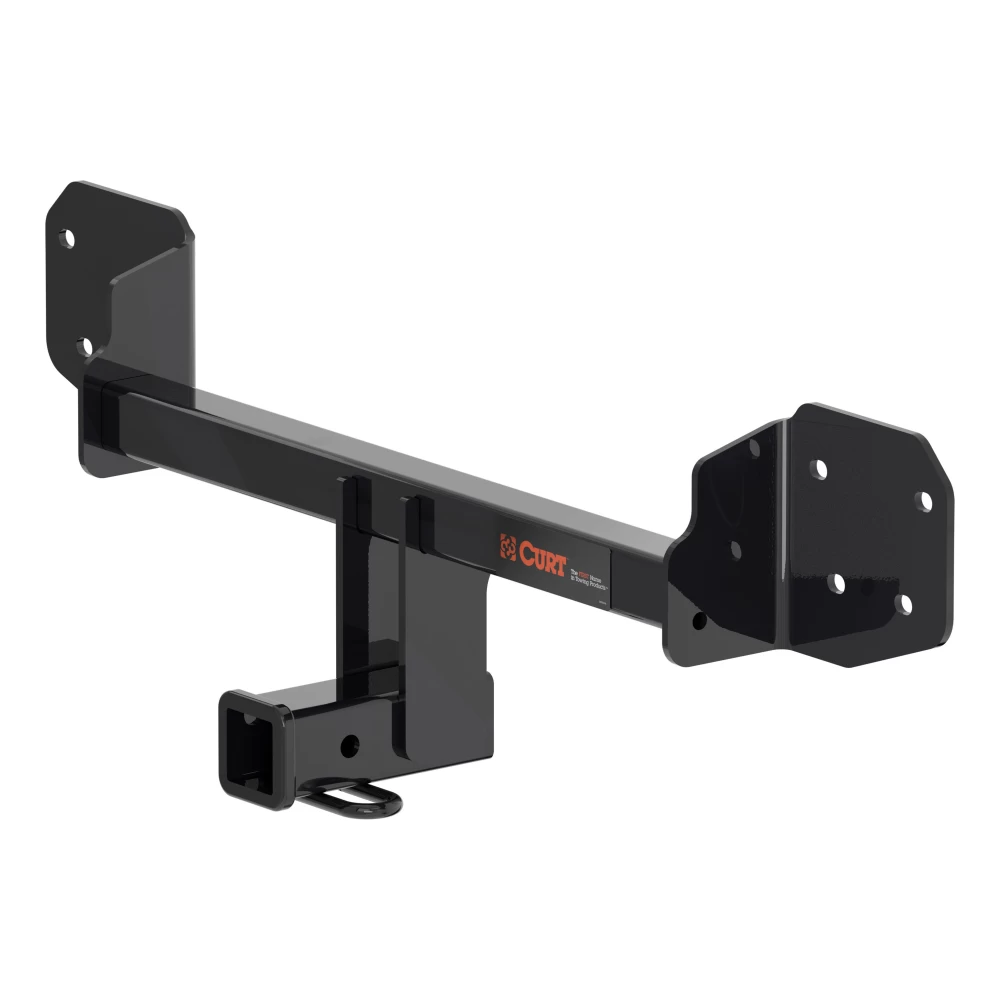

CURT 13410 Class 3 Trailer Hitch, 2-In Receiver, Concealed Main Body
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Subaru Outback (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 600 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 4,000 lbs. gross trailer weight and 600 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

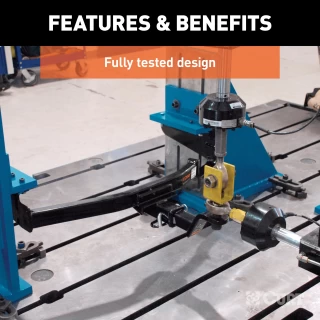

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$231 99 $347.95 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$347.95 $231 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $57.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13410-CH3483
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2010-2019 Subaru Outback Trailer Hitch Fits All Models Curt 13410 2 inch Tow Receiver Install Notes
Installation Instructions for Subaru Outback (Excluding Sport Models)
Part Numbers:
- 13410
Tools Required:
- Ratchet
- 10mm Socket
- 14mm Socket
- Torque Wrench
- Flat-Head Screwdriver
- Phillips-Head Screwdriver
- Aviation Shears
- Masking Tape
- Tape Measure
- Safety Glasses
Step-by-Step Instructions:
-
Remove the Tail Lights:
- Remove the plastic push fasteners using a flat-head screwdriver and Phillips-head screwdriver.
- Remove the (2) screws securing each tail light with a 10mm socket.
- Pull the tail lights rearward and disconnect the wiring connectors to remove the lenses.
-
Detach the Rear Bumper Cover:
- Remove the (3) push fasteners in the wheel wells on each side using a screwdriver.
- If mud flaps are present, remove the (3) screws holding each mud flap.
- Remove the (7) push fasteners along the edge of the bumper cover using a flat-head screwdriver.
- Starting from one side, gently pull the bumper cover away from the vehicle.
-
Remove the Bumper Beam:
- Remove the foam from the bumper beam to access the bolts.
- Using a 14mm socket, remove the (8) bumper beam bolts.
- Carefully remove the bumper beam and set it aside.
-
Prepare for Hitch Installation:
- Fold the center bumper cover mounting tab flat against the rear bulkhead of the vehicle.
-
Install the Hitch:
- Raise the hitch and bumper beam back into position over the existing studs.
- Center the hitch and loosely reinstall the 10mm flange nuts removed earlier.
-
Torque Fasteners:
- Torque all 10mm fasteners to 48 lb-ft using a torque wrench.
-
Reinstall the Bumper Beam Foam:
- If necessary, trim the bumper cover as per the Bumper Cover Trim Diagram:
- Trim dimensions: 4 inches wide x 2 inches tall.
- Use aviation shears for clean cuts.
- If necessary, trim the bumper cover as per the Bumper Cover Trim Diagram:
-
Reinstall the Bumper Cover and Tail Lights:
- Reattach the bumper cover, mud flaps (if applicable), and tail lights.
- Reconnect the tail light wiring connectors.
Hardware List:
- Re-use Existing Vehicle Hardware
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 4,000 lbs. Trailer Weight
- 600 lbs. Tongue Weight
- Professional Install Time: 45 minutes
- Novice (DIY) Install Time: 90 minutes
Manufacturer Notes:
- No drilling is required.
- Removal of the bumper and tail lights is necessary.
- Trimming of the bumper cover may be required for clearance.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Subaru Outback (Excluding Sport Models)
Part Numbers:
- 13410
Tools Required:
- Ratchet
- 10mm Socket
- 14mm Socket
- Torque Wrench
- Flat-Head Screwdriver
- Phillips-Head Screwdriver
- Aviation Shears
- Masking Tape
- Tape Measure
- Safety Glasses
Step-by-Step Instructions:
-
Remove the Tail Lights:
- Remove the plastic push fasteners using a flat-head screwdriver and Phillips-head screwdriver.
- Remove the (2) screws securing each tail light with a 10mm socket.
- Pull the tail lights rearward and disconnect the wiring connectors to remove the lenses.
-
Detach the Rear Bumper Cover:
- Remove the (3) push fasteners in the wheel wells on each side using a screwdriver.
- If mud flaps are present, remove the (3) screws holding each mud flap.
- Remove the (7) push fasteners along the edge of the bumper cover using a flat-head screwdriver.
- Starting from one side, gently pull the bumper cover away from the vehicle.
-
Remove the Bumper Beam:
- Remove the foam from the bumper beam to access the bolts.
- Using a 14mm socket, remove the (8) bumper beam bolts.
- Carefully remove the bumper beam and set it aside.
-
Prepare for Hitch Installation:
- Fold the center bumper cover mounting tab flat against the rear bulkhead of the vehicle.
-
Install the Hitch:
- Raise the hitch and bumper beam back into position over the existing studs.
- Center the hitch and loosely reinstall the 10mm flange nuts removed earlier.
-
Torque Fasteners:
- Torque all 10mm fasteners to 48 lb-ft using a torque wrench.
-
Reinstall the Bumper Beam Foam:
- If necessary, trim the bumper cover as per the Bumper Cover Trim Diagram:
- Trim dimensions: 4 inches wide x 2 inches tall.
- Use aviation shears for clean cuts.
- If necessary, trim the bumper cover as per the Bumper Cover Trim Diagram:
-
Reinstall the Bumper Cover and Tail Lights:
- Reattach the bumper cover, mud flaps (if applicable), and tail lights.
- Reconnect the tail light wiring connectors.
Hardware List:
- Re-use Existing Vehicle Hardware
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: Do not exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 4,000 lbs. Trailer Weight
- 600 lbs. Tongue Weight
- Professional Install Time: 45 minutes
- Novice (DIY) Install Time: 90 minutes
Manufacturer Notes:
- No drilling is required.
- Removal of the bumper and tail lights is necessary.
- Trimming of the bumper cover may be required for clearance.
- For installation questions, call Technical Support at 1-877-287-8634.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
End of Instructions
