For 2010‑2011 Mercedes GL350 Trailer Hitch Fits BlueTEC Curt 13102 2 inch Tow Receiver
Model: 13102-CH2882This Trailer Tow Hitch Fits The Following Vehicles:
2010 - 2011 Mercedes-Benz GL350 BlueTEC
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2010, 2011

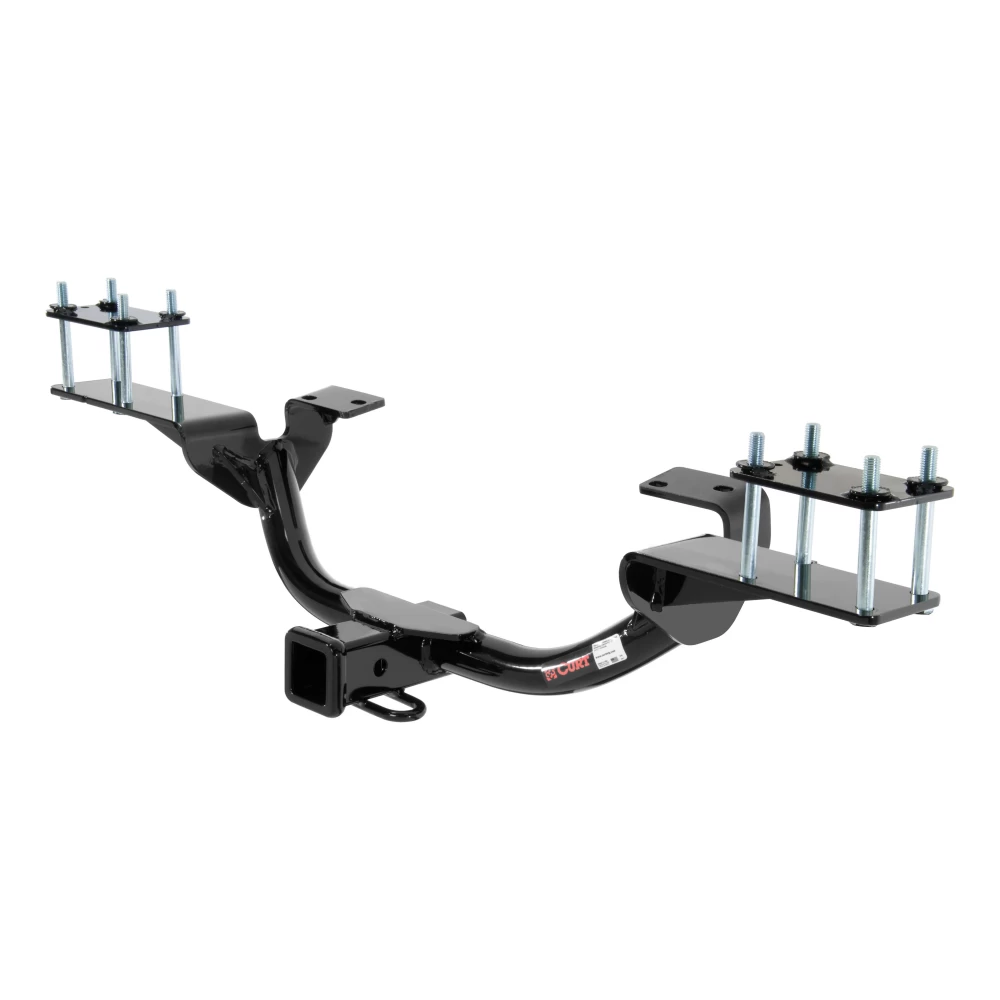

CURT 13102 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.

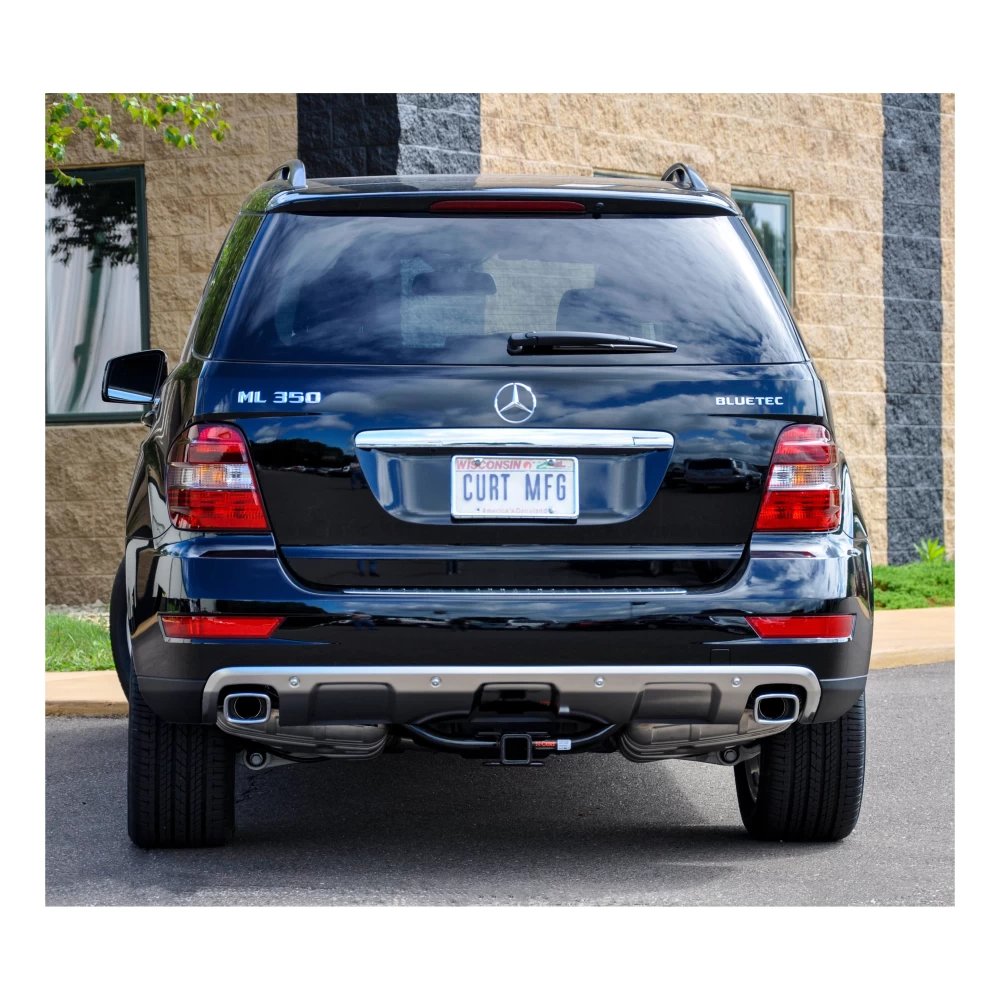

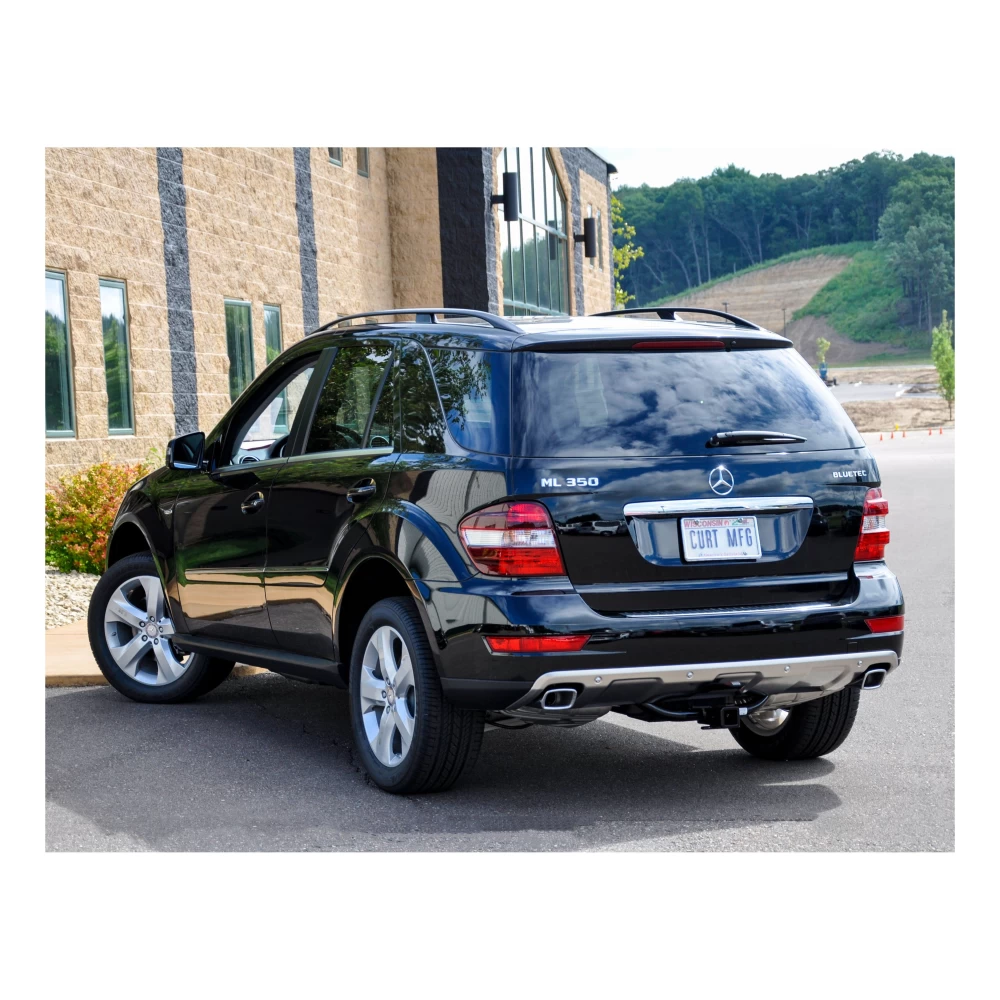

Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Mercedes-Benz GL350, GL450, GL500 and ML350 (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 350 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

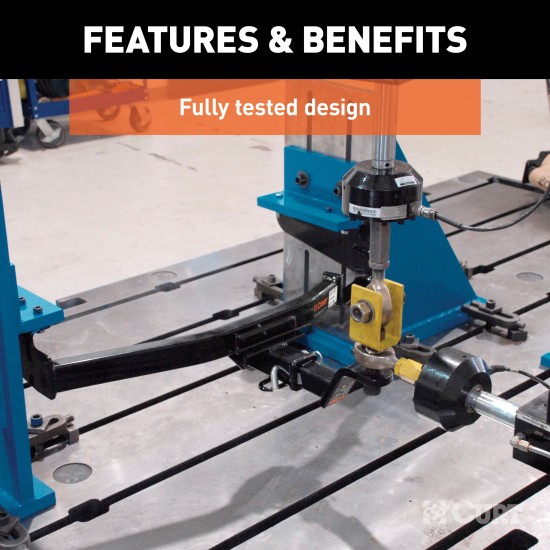

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$318 31 $502.95 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$502.95 $318 31
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $79.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13102-CH2882
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Get Expert Help
For 2010-2011 Mercedes GL350 Trailer Hitch Fits BlueTEC Curt 13102 2 inch Tow Receiver Install Notes
Installation Instructions for Mercedes-Benz ML350 BlueTEC, GL350 BlueTEC AWD, GL450 & GL550
Part Numbers:
- 13102
Tools Required:
- Ratchet
- Torque Wrench
- 8mm Socket
- 10mm Socket
- 13mm Socket
- 3/4" Socket
- T25 Torx Bit
- Socket Extension (3", 6", 9")
- Aviation Shears
- Safety Glasses
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the (4) rubber exhaust isolators:
- (2) on the inside of the mufflers
- (2) on the outside of the mufflers.
- Note: On some models, remove the exhaust tips:
- Remove (2) screws securing each tip.
- Slide the tips towards the front of the vehicle to release.
- Remove the (4) rubber exhaust isolators:
-
Remove Rear Fascia Bracket:
- Remove the screws securing the rear fascia bracket.
- Tuck the bracket onto the reinforcement bumper beam.
- Note: Some models may have (2) individual brackets – temporarily remove these and reinstall after hitch installation.
-
Remove Rubber Isolator Brackets:
- Remove the (2) bolts on each rubber isolator bracket (located inside the mufflers).
- Return the bolts to the vehicle owner.
-
Install Nut Plates:
- Place the supplied nut plates over the bumper beam.
-
Raise the Hitch into Position:
- Pull down on the fascia to allow clearance.
- Slide the hitch into position.
- Note: Heat shields may need to be bent slightly for the hitch to fit.
-
Secure the Hitch:
- Clamp the hitch between the inside isolator brackets and underbody.
- Loosely install the supplied M8 bolts and 3/8" lock washers.
- Slide the hitch forward until it is near the weld seam (but not resting on it).
-
Insert Spacers:
- Insert CM-13102-S spacers above each hitch side plate.
-
Secure Hitch to Nut Plates:
- Install the supplied 1/2" x 5-1/2" hex bolts with 1/2" conical toothed washers.
- Install bolts in the following order:
- Front outside bolt
- Front inside bolt
- Rear outside bolt
- Rear inside bolt.
- Repeat for the other side.
-
Torque Fasteners:
- Torque all 1/2" hardware to 75 lb-ft.
- Torque all 8mm hardware to 23 lb-ft.
-
Reinstall Rear Fascia Bracket:
- Reattach the fascia bracket with the screws removed in Step 2.
- Note: Some models require the bracket to be installed behind the hitch mounting flange for clearance.
-
Trim Heat Shields:
- If the heat shields contact the hitch, trim them to allow 1/8" clearance.
-
Raise Exhaust Back into Position:
- Reattach the exhaust hangers to their original positions.
-
Reinstall Exhaust Tips (If Removed):
- Slide the exhaust tips back into place and secure them with the screws removed earlier.
Hardware List:
- (4) M8 x 1.25 x 30 Hex Bolts
- (4) 3/8" Lock Washers
- (4) 1/2" x 5-1/2" Hex Bolts (Grade 5)
- (4) 1/2" Conical Toothed Washers
- (2) CM-13102-S Spacers
- (2) CM-13102-NP Nut Plate Weldments
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: All non-trailer loads must be supported by auxiliary stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Professional Install Time: 120 minutes
- Novice (DIY) Install Time: 180 minutes
Manufacturer Notes:
- Lowering the exhaust and trimming heat shields may be required.
- No drilling is necessary for this installation.
- For installation questions, call Technical Support at 1-877-287-8634.
End of Instructions
Installation Instructions for Vehicle Models
Part Numbers:
- 13102
Tools Required:
- Ratchet
- Torque Wrench
- 8mm Socket
- 10mm Socket
- 13mm Socket
- 3/4" Socket
- T25 Torx Bit
- Socket Extension (3", 6", 9")
- Aviation Shears
- Safety Glasses
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the (4) rubber exhaust isolators:
- (2) on the inside of the mufflers
- (2) on the outside of the mufflers.
- Note: On some models, remove the exhaust tips:
- Remove (2) screws securing each tip.
- Slide the tips towards the front of the vehicle to release.
- Remove the (4) rubber exhaust isolators:
-
Remove Rear Fascia Bracket:
- Remove the screws securing the rear fascia bracket.
- Tuck the bracket onto the reinforcement bumper beam.
- Note: Some models may have (2) individual brackets – temporarily remove these and reinstall after hitch installation.
-
Remove Rubber Isolator Brackets:
- Remove the (2) bolts on each rubber isolator bracket (located inside the mufflers).
- Return the bolts to the vehicle owner.
-
Install Nut Plates:
- Place the supplied nut plates over the bumper beam.
-
Raise the Hitch into Position:
- Pull down on the fascia to allow clearance.
- Slide the hitch into position.
- Note: Heat shields may need to be bent slightly for the hitch to fit.
-
Secure the Hitch:
- Clamp the hitch between the inside isolator brackets and underbody.
- Loosely install the supplied M8 bolts and 3/8" lock washers.
- Slide the hitch forward until it is near the weld seam (but not resting on it).
-
Insert Spacers:
- Insert CM-13102-S spacers above each hitch side plate.
-
Secure Hitch to Nut Plates:
- Install the supplied 1/2" x 5-1/2" hex bolts with 1/2" conical toothed washers.
- Install bolts in the following order:
- Front outside bolt
- Front inside bolt
- Rear outside bolt
- Rear inside bolt.
- Repeat for the other side.
-
Torque Fasteners:
- Torque all 1/2" hardware to 75 lb-ft.
- Torque all 8mm hardware to 23 lb-ft.
-
Reinstall Rear Fascia Bracket:
- Reattach the fascia bracket with the screws removed in Step 2.
- Note: Some models require the bracket to be installed behind the hitch mounting flange for clearance.
-
Trim Heat Shields:
- If the heat shields contact the hitch, trim them to allow 1/8" clearance.
-
Raise Exhaust Back into Position:
- Reattach the exhaust hangers to their original positions.
-
Reinstall Exhaust Tips (If Removed):
- Slide the exhaust tips back into place and secure them with the screws removed earlier.
Hardware List:
- (4) M8 x 1.25 x 30 Hex Bolts
- (4) 3/8" Lock Washers
- (4) 1/2" x 5-1/2" Hex Bolts (Grade 5)
- (4) 1/2" Conical Toothed Washers
- (2) CM-13102-S Spacers
- (2) CM-13102-NP Nut Plate Weldments
Safety Notes:
- Periodically check this receiver hitch to ensure all fasteners are tight and structural components are sound.
- Warning: All non-trailer loads must be supported by auxiliary stabilizing straps.
- Failure to properly support non-trailer loads will void the product warranty.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- 3,500 lbs. Trailer Weight
- 350 lbs. Tongue Weight
- Professional Install Time: 120 minutes
- Novice (DIY) Install Time: 180 minutes
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information: For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
End of Instructions
