For 2011‑2019 Ford Explorer Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13386 56172 2 inch Tow Receiver

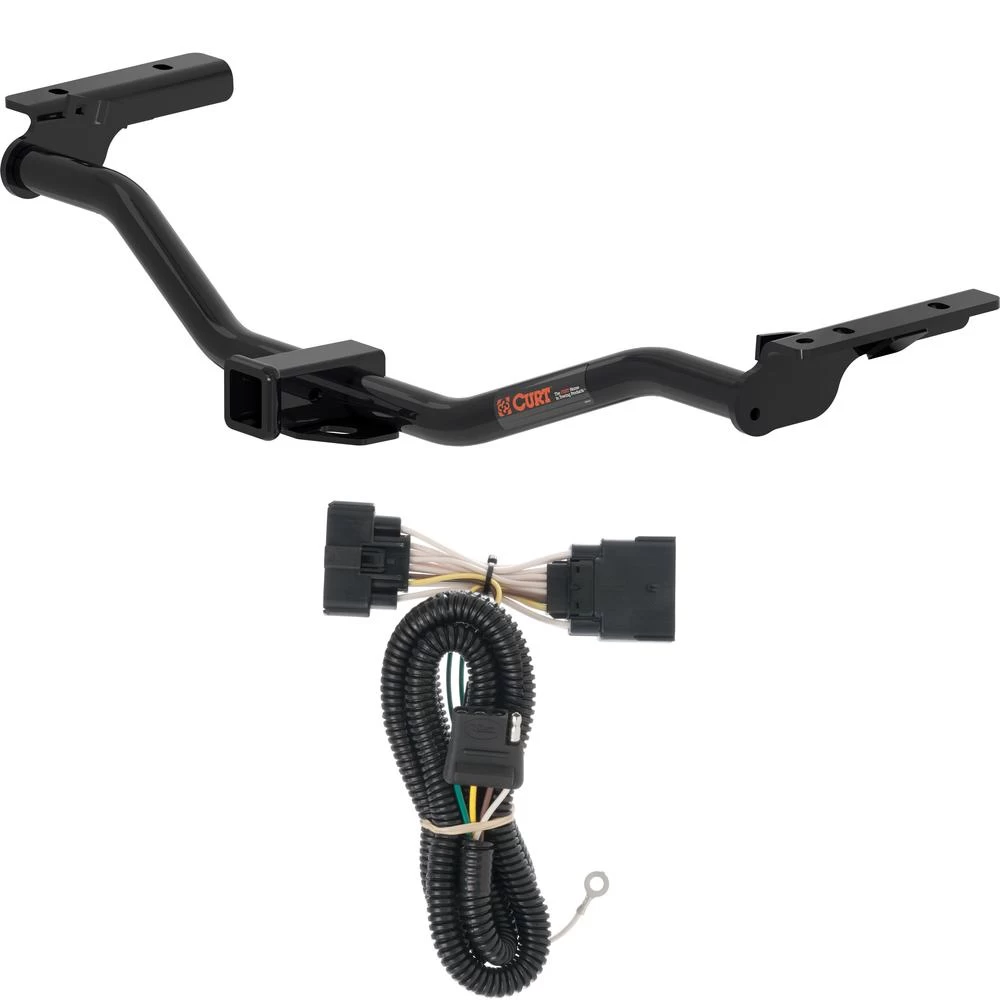

Model: 13386 56172-CH1260This Trailer Tow Hitch + 4-Flat Fits The Following Vehicles:
2011 - 2019 Ford Explorer All Models
This Trailer Tow Hitch + 4-Flat Includes the Following Parts:
- Class 3 Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Custom Wiring Harness, 4-Way Flat Output (Plug & Play)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019
CURT 13386 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Ford Explorer and Ford Police Interceptor Utility (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 400 lbs TW.
It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs WD and 500 lbs WDTW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 4,000 lbs. gross trailer weight and 400 lbs. tongue weight
- Compatible with weight distribution hitch (5,000 lbs. WD / 500 lbs. WDTW)
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)

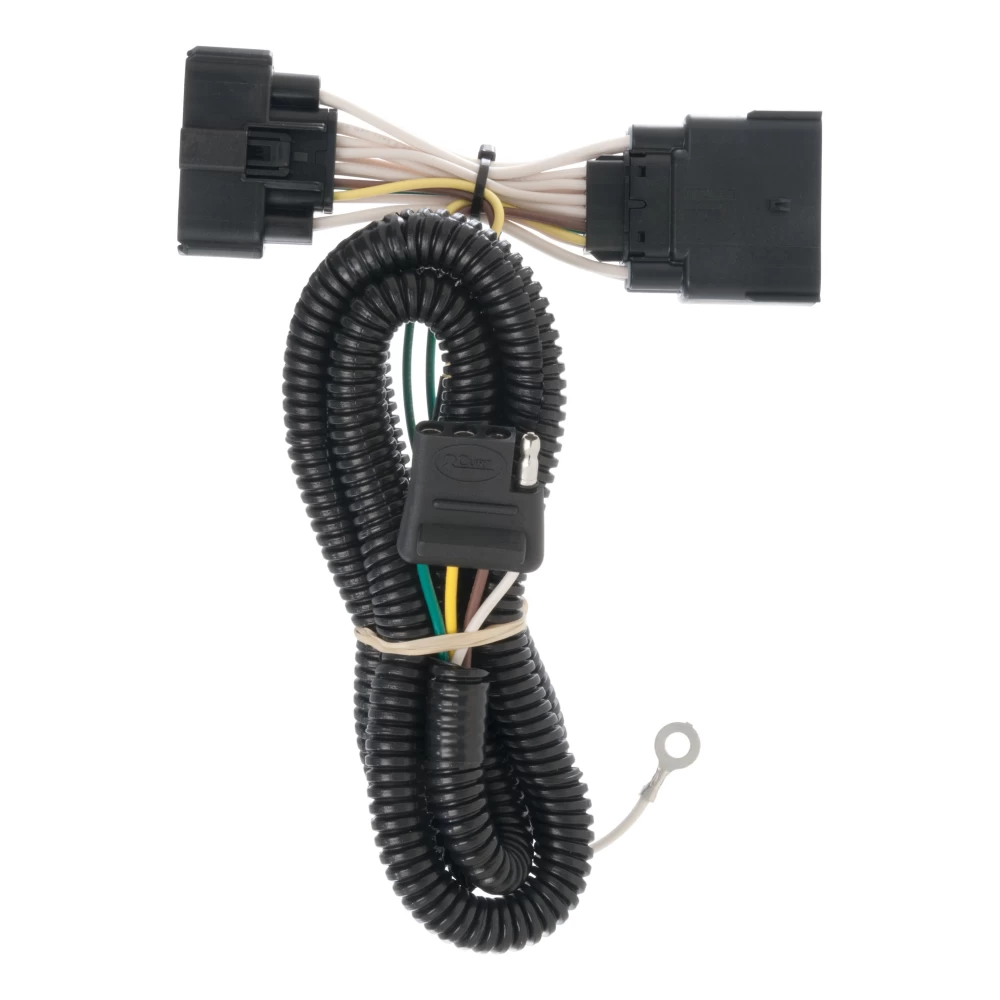

CURT 56172 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
Manufactured by: Curt
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation.
Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Explorer (to verify your vehicle compatibility, see application info) It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use.
You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite However, turning that picture into a reality takes more than just daydreaming It takes a solid connection and the right amount of power.
CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup..
Features:
- Plugs into vehicle tail light assembly to provide a 4-way flat socket
- Simple plug-and-play design eliminates the need for cutting or splicing
- 4-way flat output connects tail lights, brake lights and turn signals
- Dust cover included to keep connector clean when not in use
- Slit loom keeps wires contained and well protected
- Backed by a limited one-year warranty
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$202 34 $332.90 39% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Each may be shipped from a separate location, and therefore, may arrive at different times
Verify Fitment
$332.90 $202 34
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $50.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13386 56172-CH1260
- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Get Expert Help
For 2011-2019 Ford Explorer Trailer Hitch + Wiring 4 Pin Fits All Models Curt 13386 56172 2 inch Tow Receiver Install Notes
Installation Instructions for 2020-Present Ford Explorer and Police Interceptor Utility
Part Numbers:
- 13386
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 18mm Socket
- 3/4" Socket
- 19mm Socket
- 5/8" Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the exhaust
- Remove three rubber isolators to lower the exhaust.
- Support the exhaust during installation to prevent damage.
- Refer to the "Rubber Isolator Removal Diagram" for guidance:
- Use a 5/8" wrench to cradle the hanger rod.
- Insert a pry bar between the wrench and hanger stop to remove the isolator.
- Apply lubricant or soapy water for easier removal.
Step 2: Remove muffler isolators and tow loop
- Remove two rubber isolators from the muffler.
- Remove the exhaust hanger and/or tow loop if present.
- Return hangers and hardware to the vehicle owner.
Step 3: Attach isolators to the hitch
- Install the rubber isolators removed in Step 2 onto the trailer hitch using the provided 7/16" hex bolts (#9).
- Secure with 7/16" flat washers (#7) and nylock nuts (#8).
Step 4: Fishwire carriage bolt and spacer
- Use the reverse fishwire technique to guide a 1/2" carriage bolt (#6) and square-hole spacer (#5) through the existing hole in the passenger-side frame rail:
- Attach the fishwire to the carriage bolt and slide the spacer onto it.
- Push the bolt and spacer through the hole and pull the bolt back into position.
Step 5: Raise the hitch into position
- Position the hitch and secure it to the vehicle using:
- M12 hex bolts (#1) and 1/2" conical-toothed washers (#2) into existing vehicle weldnuts.
- Secure the 1/2" carriage bolt with the serrated-flange nut (#4).
Step 6: Torque all hardware and reinstall exhaust
- Torque M12 hardware to 79 lb-ft.
- Torque 1/2" hardware to 110 lb-ft.
- Raise the exhaust back into its original position.
Hardware List:
- (4) M12-1.75 x 40mm Hex Bolts
- (4) 1/2" Conical-Toothed Washers
- (1) 1/2" Fishwire
- (1) Serrated-Flange Nut, 1/2"-13
- (1) Square-Hole Spacer, 1/4" x 1" x 2-1/2"
- (1) Carriage Bolt, 1/2"-13 x 1-1/2"
- (4) Flat Washers, 7/16"
- (2) Nylock Nuts, 7/16"-14
- (2) Hex Bolts, 7/16"-14 x 2-1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Specifications:
- Weight Carrying Capacity:
- Gross Trailer Weight: 4,000 lbs
- Tongue Weight: 400 lbs
- Weight Distribution Capacity:
- Gross Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
For additional support, contact Technical Support at 877-287-8634.

Installation Instructions for 2020-Present Ford Explorer and Police Interceptor Utility
Part Numbers:
- 13386
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- 18mm Socket
- 3/4" Socket
- 19mm Socket
- 5/8" Socket
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the exhaust
- Remove three rubber isolators to lower the exhaust.
- Support the exhaust during installation to prevent damage.
- Refer to the "Rubber Isolator Removal Diagram" for guidance:
- Use a 5/8" wrench to cradle the hanger rod.
- Insert a pry bar between the wrench and hanger stop to remove the isolator.
- Apply lubricant or soapy water for easier removal.
Step 2: Remove muffler isolators and tow loop
- Remove two rubber isolators from the muffler.
- Remove the exhaust hanger and/or tow loop if present.
- Return hangers and hardware to the vehicle owner.
Step 3: Attach isolators to the hitch
- Install the rubber isolators removed in Step 2 onto the trailer hitch using the provided 7/16" hex bolts (#9).
- Secure with 7/16" flat washers (#7) and nylock nuts (#8).
Step 4: Fishwire carriage bolt and spacer
- Use the reverse fishwire technique to guide a 1/2" carriage bolt (#6) and square-hole spacer (#5) through the existing hole in the passenger-side frame rail:
- Attach the fishwire to the carriage bolt and slide the spacer onto it.
- Push the bolt and spacer through the hole and pull the bolt back into position.
Step 5: Raise the hitch into position
- Position the hitch and secure it to the vehicle using:
- M12 hex bolts (#1) and 1/2" conical-toothed washers (#2) into existing vehicle weldnuts.
- Secure the 1/2" carriage bolt with the serrated-flange nut (#4).
Step 6: Torque all hardware and reinstall exhaust
- Torque M12 hardware to 79 lb-ft.
- Torque 1/2" hardware to 110 lb-ft.
- Raise the exhaust back into its original position.
Hardware List:
- (4) M12-1.75 x 40mm Hex Bolts
- (4) 1/2" Conical-Toothed Washers
- (1) 1/2" Fishwire
- (1) Serrated-Flange Nut, 1/2"-13
- (1) Square-Hole Spacer, 1/4" x 1" x 2-1/2"
- (1) Carriage Bolt, 1/2"-13 x 1-1/2"
- (4) Flat Washers, 7/16"
- (2) Nylock Nuts, 7/16"-14
- (2) Hex Bolts, 7/16"-14 x 2-1/2"
Safety Notes:
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Specifications:
- Weight Carrying Capacity:
- Gross Trailer Weight: 4,000 lbs
- Tongue Weight: 400 lbs
- Weight Distribution Capacity:
- Gross Trailer Weight: 5,000 lbs
- Tongue Weight: 500 lbs
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Ford Explorer
Part Numbers:
- 56172
Wiring Access Location:
For pickup trucks, refer to the location outlined below:
- T3: Behind the driver-side rear bumper.
Tools Required:
- None
Step-by-Step Instructions:
-
Locate the Vehicle Wiring Connector
- Locate the vehicle's taillight wiring connector behind the rear tire on the passenger side.
- The vehicle connector will resemble the custom wiring connector.
- Separate the connectors, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Harness
- Insert the custom wiring connector end between the separated vehicle connectors.
- Ensure the connectors are fully inserted with the locking tabs secured.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole.
- Secure the white ground wire using the provided ring terminal and screw.
Warning: Check for miscellaneous items hidden behind or under any surface before drilling to avoid damage or personal injury.
-
Secure and Store the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it securely in a convenient location.
- Secure any loose wires with the provided cable ties.
-
Install the Dust Cover
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- CURT wiring harness
- Ring terminal
- Ground screw
- Cable ties
- 4-flat dust cover
Safety Notes:
- Do not exceed the product rating or the tow vehicle lamp load rating.
- Inspect all wiring periodically to ensure there are no damages or loose connections.
Specifications:
- Signal Circuits: Not specified
- Tail/Running Circuits: Not specified
Installation Instructions for Vehicle Models
Part Numbers:
- 56172
Wiring Access Location:
For pickup trucks, refer to the location outlined below:
- T3: Behind the driver-side rear bumper.
Tools Required:
- None
Step-by-Step Instructions:
-
Locate the Vehicle Wiring Connector
- Locate the vehicle's taillight wiring connector behind the rear tire on the passenger side.
- The vehicle connector will resemble the custom wiring connector.
- Separate the connectors, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Harness
- Insert the custom wiring connector end between the separated vehicle connectors.
- Ensure the connectors are fully inserted with the locking tabs secured.
-
Ground the White Wire
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole.
- Secure the white ground wire using the provided ring terminal and screw.
Warning: Check for miscellaneous items hidden behind or under any surface before drilling to avoid damage or personal injury.
-
Secure and Store the 4-Flat Connector
- When in use, route the 4-flat connector to the center of the vehicle.
- When not in use, roll it up and store it securely in a convenient location.
- Secure any loose wires with the provided cable ties.
-
Install the Dust Cover
- Install the provided 4-flat dust cover to help prevent corrosion.
Hardware List:
- Custom wiring harness
- Ring terminal
- Ground screw
- Cable ties
- 4-flat dust cover
Safety Notes:
- Do not exceed the product rating or the tow vehicle lamp load rating.
- Inspect all wiring periodically to ensure there are no damages or loose connections.
Specifications:
- Signal Circuits: Not specified
- Tail/Running Circuits: Not specified
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
