For 2012 Honda Civic Trailer Hitch Fits Sedan Hybrid Curt 11391 1‑1/4 Tow Receiver
Model: 11391-CH2262This Trailer Tow Hitch Fits The Following Vehicles:
2012 - 2012 Honda Civic Sedan Hybrid
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Trailer Hitch, 1-1/4" Receiver (Drilling Required)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2012

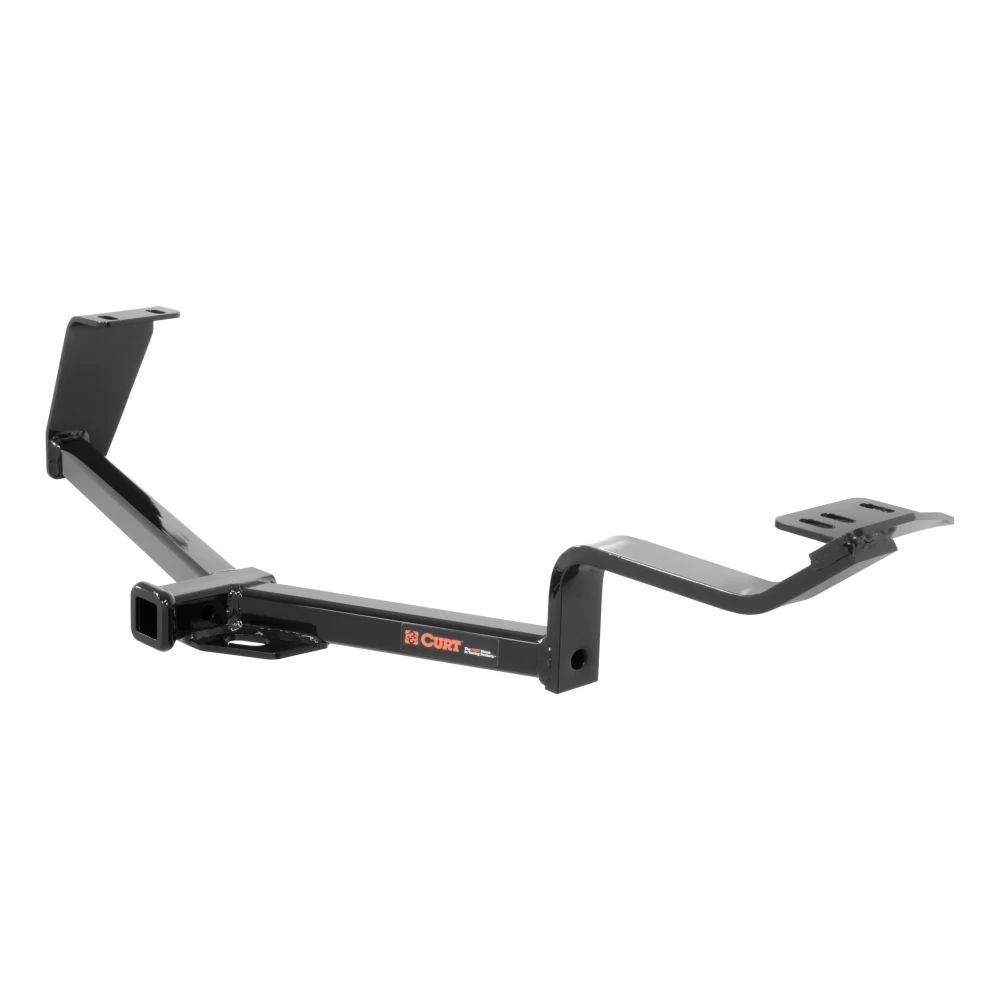

CURT 11391 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Honda Civic, Acura CSX and Acura ILX (to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.
TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..

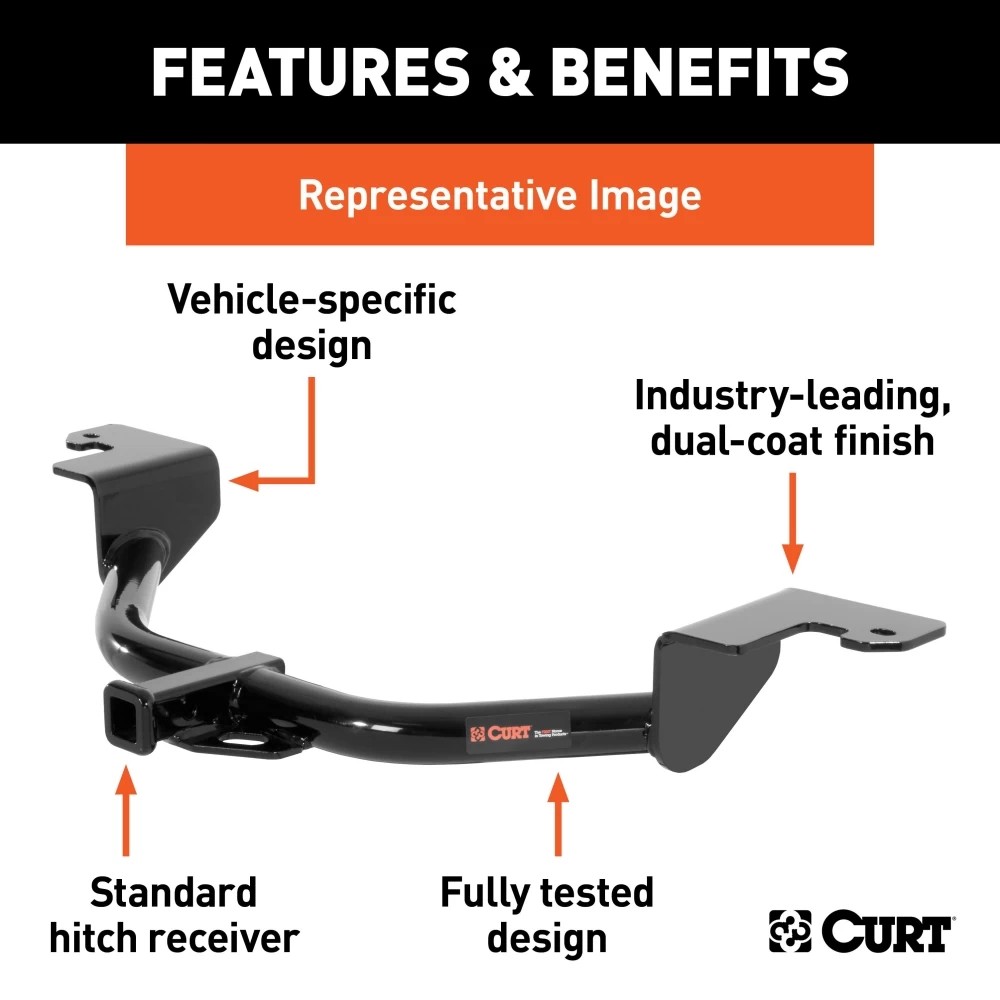

Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out

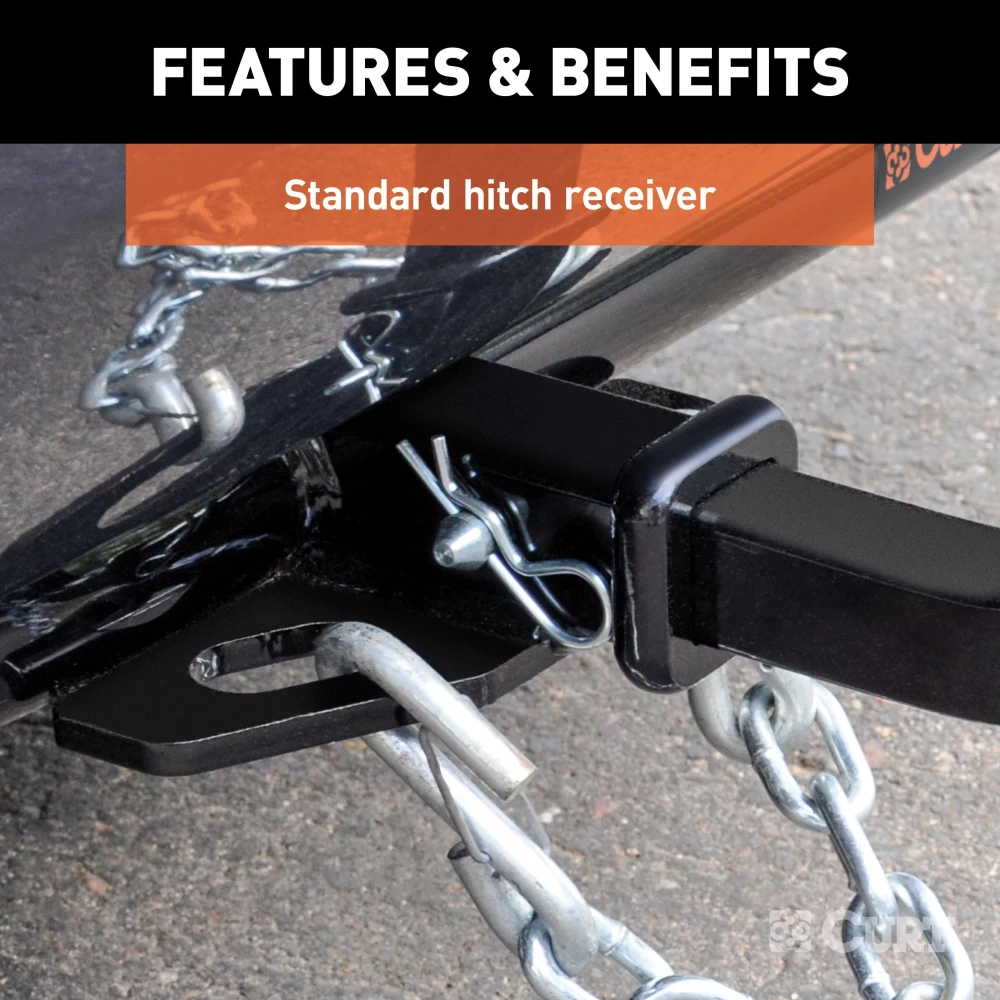

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$197 36 $306.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$306.95 $197 36
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $49.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11391-CH2262
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2012 Honda Civic Trailer Hitch Fits Sedan Hybrid Curt 11391 1-1/4 Tow Receiver Install Notes
Installation Instructions for Honda Civic (Including Si and Hybrid), Acura CSX (Canada Only), and Acura ILX
Part Numbers:
- 11391
Tools Required:
- Torque Wrench
- Ratchet
- Socket Set: 10mm, 9/16", 11/16", 3/4"
- Flat Screwdriver
- Pry Bar
- Aviation Shears
- Power Drill
- 17/32" Drill Bit
Hardware List:
- Carriage Bolt: 7/16-14 UNC, 1-1/2", Grade 8, YZ (Qty: 2)
- Square Hole Spacer: 0.250 x 0.88 x 2.25" (Qty: 2)
- Hex Handle Nut: 1/2-13 UNC, Grade 8, CZ (Qty: 2)
- Hex Bolt: 1/2-13 UNC, 1-1/4", Grade 8, YZ (Qty: 2)
- U-Bolt: 3/8-16 x 1.00 x 1.88" (Qty: 1)
- Flange Nut: 7/16-14 UNC, Grade 8, YZ (Qty: 2)
- Flange Nut: 3/8-16 UNC, Grade 5, CZ (Qty: 2)
- Conical Washer: 1/2" (Qty: 2)
- Fishwire: 7/16" (Qty: 1)
Step-by-Step Instructions:
-
Lower Rear Exhaust Hanger:
- Remove the rear rubber exhaust hanger from the frame attachment to lower the exhaust.
- Refer to the Rubber Isolator Removal Diagram for guidance.
-
Remove Underbody Panel and Heat Shield:
- Remove the underbody panel by taking out the retaining fasteners. Trim the panel as required and set it aside for reinstallation.
- Remove the four (4) fasteners attaching the muffler heat shield and set it aside. Trim the heat shield using aviation shears as shown in the Trim Diagram.
-
Install U-Bolt in Tow Loop:
- Insert the 3/8" U-bolt through the vehicle’s tow loop as shown.
-
Fishwire Carriage Bolts and Spacers:
- Fishwire the 7/16" carriage bolts and square hole spacers through the existing holes in the vehicle frame.
- Note: If needed, enlarge the forwardmost holes in the frame using a 17/32" drill bit.
-
Insert Handle Nuts:
- Insert the 1/2" handle nuts through the access holes in the frame rails on both sides.
-
Reattach Trimmed Components:
- Reinstall the trimmed heat shield and underbody panel using the original fasteners.
-
Raise Hitch and Exhaust Simultaneously:
- Raise the hitch into position while supporting the exhaust system. Loosely secure the hitch to the vehicle frame and tow loop using the provided hardware.
-
Torque Fasteners:
- Torque the 3/8" hardware to 45 ft-lbs.
- Torque the 7/16" hardware to 70 ft-lbs.
- Torque the 1/2" hardware to 75 ft-lbs.
-
Reinstall Exhaust:
- Reattach the exhaust hanger removed in Step 1.
Safety Notes:
- Drilling Required: Some models require enlarging holes in the frame.
- Trimming Required: Trim the heat shield and underbody panel for clearance.
- Periodically check all fasteners to ensure they remain tight.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 2,000 lbs
- Tongue Weight: 200 lbs
- Hitch Weight: 29 lbs
Installation Time:
- Professional: 60 minutes
- Novice (DIY): 120 minutes
Manufacturer Notes:
- Designed for use with Ball Mount #45501.
- Euro Mount options:
- #45571 (1-7/8" Ball)
- #45572 (2" Ball)
- For installation questions, contact Technical Support at 1-877-287-8634.
- Product Warranty: Curt Manufacturing Inc. guarantees this product to be free from defects in material and workmanship.
Installation Instructions for Honda Civic (Including Si and Hybrid), Acura CSX (Canada Only), and Acura ILX
Part Numbers:
- 11391
Tools Required:
- Torque Wrench
- Ratchet
- Socket Set: 10mm, 9/16", 11/16", 3/4"
- Flat Screwdriver
- Pry Bar
- Aviation Shears
- Power Drill
- 17/32" Drill Bit
Hardware List:
- Carriage Bolt: 7/16-14 UNC, 1-1/2", Grade 8, YZ (Qty: 2)
- Square Hole Spacer: 0.250 x 0.88 x 2.25" (Qty: 2)
- Hex Handle Nut: 1/2-13 UNC, Grade 8, CZ (Qty: 2)
- Hex Bolt: 1/2-13 UNC, 1-1/4", Grade 8, YZ (Qty: 2)
- U-Bolt: 3/8-16 x 1.00 x 1.88" (Qty: 1)
- Flange Nut: 7/16-14 UNC, Grade 8, YZ (Qty: 2)
- Flange Nut: 3/8-16 UNC, Grade 5, CZ (Qty: 2)
- Conical Washer: 1/2" (Qty: 2)
- Fishwire: 7/16" (Qty: 1)
Step-by-Step Instructions:
-
Lower Rear Exhaust Hanger:
- Remove the rear rubber exhaust hanger from the frame attachment to lower the exhaust.
- Refer to the Rubber Isolator Removal Diagram for guidance.
-
Remove Underbody Panel and Heat Shield:
- Remove the underbody panel by taking out the retaining fasteners. Trim the panel as required and set it aside for reinstallation.
- Remove the four (4) fasteners attaching the muffler heat shield and set it aside. Trim the heat shield using aviation shears as shown in the Trim Diagram.
-
Install U-Bolt in Tow Loop:
- Insert the 3/8" U-bolt through the vehicle’s tow loop as shown.
-
Fishwire Carriage Bolts and Spacers:
- Fishwire the 7/16" carriage bolts and square hole spacers through the existing holes in the vehicle frame.
- Note: If needed, enlarge the forwardmost holes in the frame using a 17/32" drill bit.
-
Insert Handle Nuts:
- Insert the 1/2" handle nuts through the access holes in the frame rails on both sides.
-
Reattach Trimmed Components:
- Reinstall the trimmed heat shield and underbody panel using the original fasteners.
-
Raise Hitch and Exhaust Simultaneously:
- Raise the hitch into position while supporting the exhaust system. Loosely secure the hitch to the vehicle frame and tow loop using the provided hardware.
-
Torque Fasteners:
- Torque the 3/8" hardware to 45 ft-lbs.
- Torque the 7/16" hardware to 70 ft-lbs.
- Torque the 1/2" hardware to 75 ft-lbs.
-
Reinstall Exhaust:
- Reattach the exhaust hanger removed in Step 1.
Safety Notes:
- Drilling Required: Some models require enlarging holes in the frame.
- Trimming Required: Trim the heat shield and underbody panel for clearance.
- Periodically check all fasteners to ensure they remain tight.
Specifications:
- Gross Load Capacity (Weight Carrying Hitch):
- Trailer Weight: 2,000 lbs
- Tongue Weight: 200 lbs
- Hitch Weight: 29 lbs
Installation Time:
- Professional: 60 minutes
- Novice (DIY): 120 minutes
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product comes with a limited warranty covering defects in material and workmanship for the specified duration. For complete warranty instructions, please download the full installation PDF.
Manufacturer Notes:
- Designed for use with Ball Mount #45501.
- Euro Mount options:
- #45571 (1-7/8" Ball)
- #45572 (2" Ball)
- Warning: Do not exceed the vehicle manufacturer's recommended towing capacity. Periodically check all hardware for proper torque to ensure safe operation.
