Product Details
- Brand: Curt
- Model: 13186-CH1221

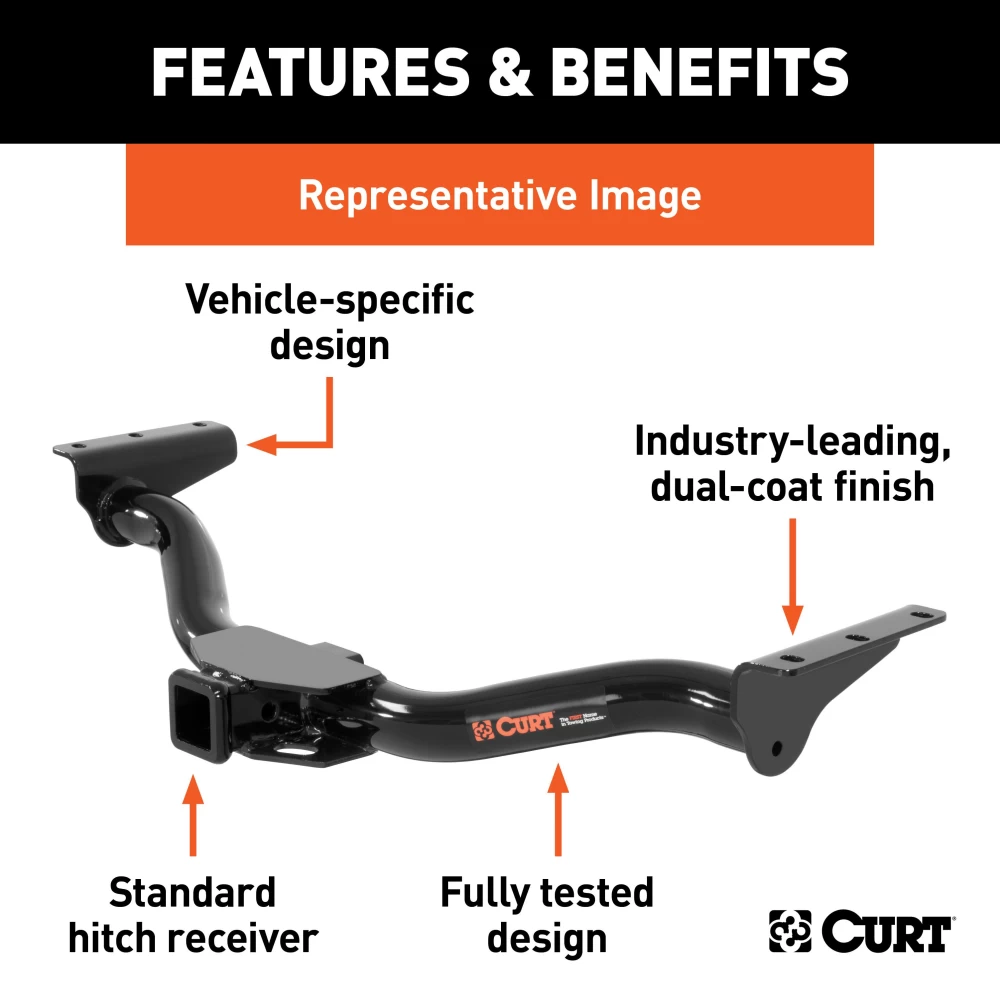

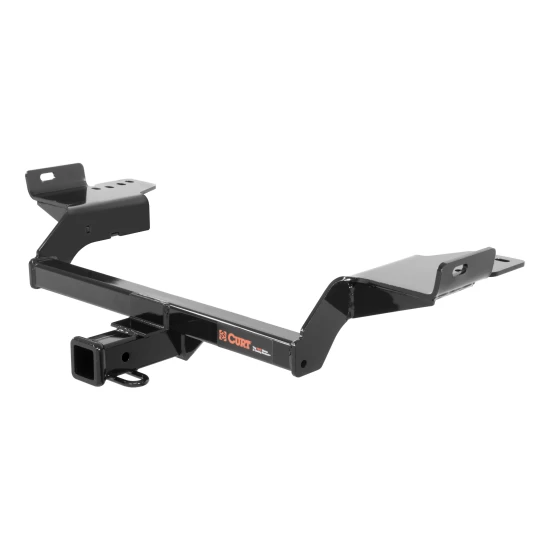

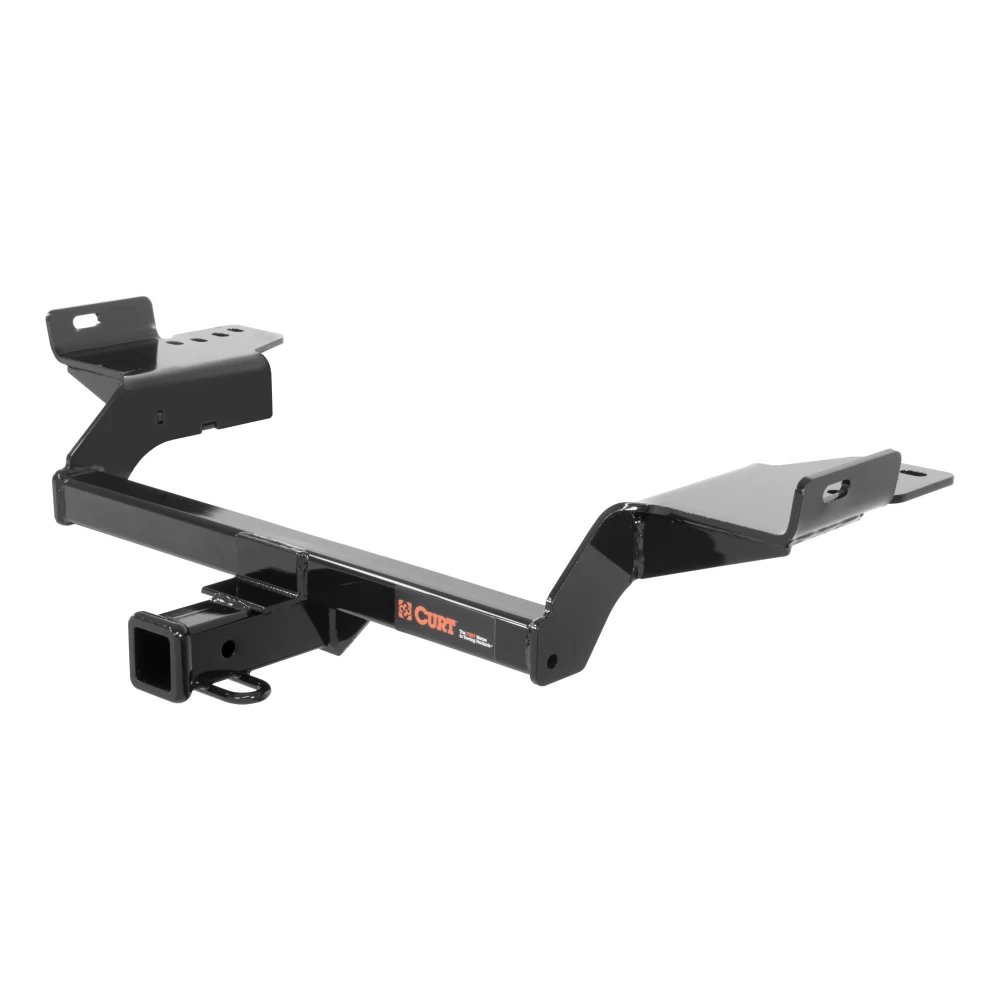

- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help

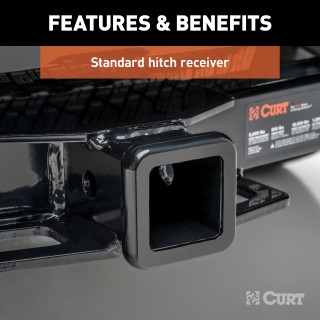

For 2013-2016 Ford Escape Trailer Hitch Fits All Models Curt 13186 2 inch Tow Receiver Install Notes
Installation Instructions for 2013-Present Ford Escape SUV
Part Numbers:
- 13186
Tools Required:
- Torque Wrench
- Ratchet
- 6" Socket Extension
- 13mm Socket
- 10mm Socket
- 11/16" Socket
- Die Grinder
- Aviation Shears
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Exhaust
- Remove (4) 8mm bolts from the muffler brackets and the forward rubber isolator.
- Return the (4) 8mm bolts to the owner.
Step 2: Trim Heat Shield
- Remove (1) fastener securing the heat shield to the bottom of the driver-side frame rail.
- Trim the heat shield to clear the mounting areas on the driver and passenger-side frame rails (refer to the trim diagram).
- Reattach the heat shield to the bottom of the driver-side frame rail after trimming.
Step 3: Enlarge Access Holes
- Enlarge the access holes on both sides of the frame to allow 7/16" carriage bolts to pass through.
Step 4: Fishwire Hardware
- Fishwire the 7/16" carriage bolts and SP7 spacers through the enlarged access holes and out the two rear-most mounting holes on both sides.
- Reverse fishwire the 7/16" carriage bolt and SP7 spacer into the enlarged access holes on both sides.
Note: Leave the fishwires attached to prevent losing the hardware into the frame rails.
Step 5: Position the Hitch
- Slide the hitch into position from the rear passenger side, guiding it over the exhaust.
- Feed the fishwires through the mounting holes while raising the hitch.
Step 6: Secure the Hitch
- Remove the fishwires from the carriage bolts in the bottom of the frame rails and loosely secure the hitch with 7/16" flange nuts.
- Pull the fishwires through the side mounting holes and secure them with 7/16" flange nuts.
Step 7: Attach Muffler Brackets
- Reattach the muffler brackets to the hitch's bottom using the provided M8-1.25 hex bolts and 5/16" washers.
Step 8: Torque Hardware
- Torque all 7/16" hardware to 70 ft-lbs.
- Torque all M8 hardware to 23 ft-lbs.
Step 9: Reattach Exhaust
- Reattach the rubber isolator removed in Step 1.
Hardware List:
- (6) 7/16" Fishwires
- (6) 7/16"-14 x 1-1/2" Carriage Bolts
- (6) .250 x 1.00 x 2.00" Square Hole Spacers (Part Number: CM-SP7)
- (6) 7/16"-14 Hex Flange Nuts
- (4) 5/16" Washers
- (4) M8-1.25 x 30mm Hex Bolts
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity:
- Maximum Trailer Weight: 3,500 lbs
- Maximum Tongue Weight: 350 lbs
- Weight Distribution Capacity:
- Maximum Trailer Weight: 5,000 lbs
- Maximum Tongue Weight: 500 lbs

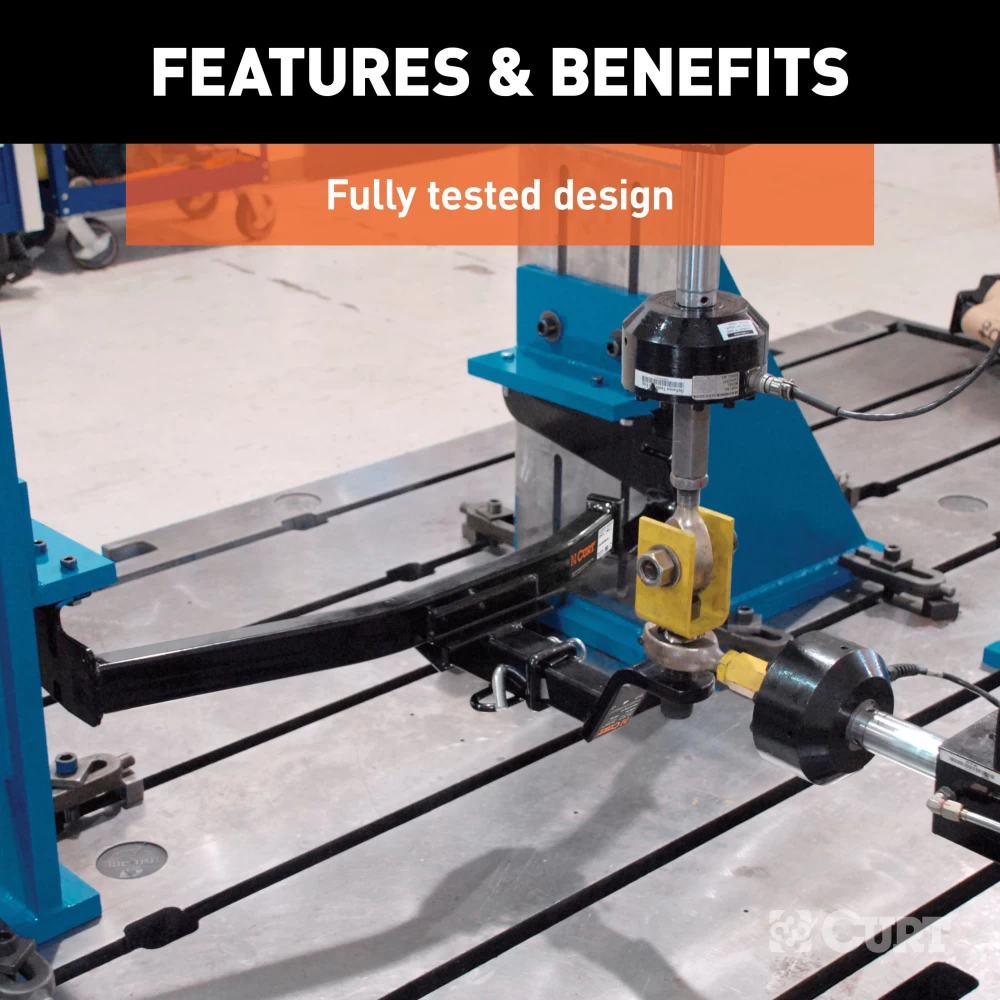

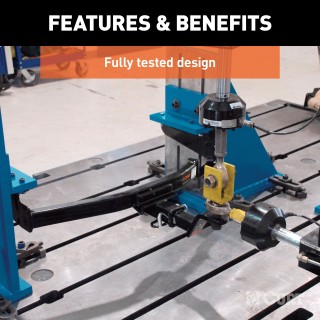

- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- Temporarily lower the exhaust.
- Trim the heat shield as necessary.
- Fishwire hardware installation is required.
- Enlarge access holes to accommodate bolts.
Warning:
All non-trailer loads must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Installation Instructions for 2013-Present Ford Escape SUV
Part Numbers:
- 13186
Tools Required:
- Torque Wrench
- Ratchet
- 6" Socket Extension
- 13mm Socket
- 10mm Socket
- 11/16" Socket
- Die Grinder
- Aviation Shears
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Exhaust
- Remove (4) 8mm bolts from the muffler brackets and the forward rubber isolator.
- Return the (4) 8mm bolts to the owner.
Step 2: Trim Heat Shield
- Remove (1) fastener securing the heat shield to the bottom of the driver-side frame rail.
- Trim the heat shield to clear the mounting areas on the driver and passenger-side frame rails (refer to the trim diagram).
- Reattach the heat shield to the bottom of the driver-side frame rail after trimming.
Step 3: Enlarge Access Holes
- Enlarge the access holes on both sides of the frame to allow 7/16" carriage bolts to pass through.
Step 4: Fishwire Hardware
- Fishwire the 7/16" carriage bolts and SP7 spacers through the enlarged access holes and out the two rear-most mounting holes on both sides.
- Reverse fishwire the 7/16" carriage bolt and SP7 spacer into the enlarged access holes on both sides.
Note: Leave the fishwires attached to prevent losing the hardware into the frame rails.
Step 5: Position the Hitch
- Slide the hitch into position from the rear passenger side, guiding it over the exhaust.
- Feed the fishwires through the mounting holes while raising the hitch.
Step 6: Secure the Hitch
- Remove the fishwires from the carriage bolts in the bottom of the frame rails and loosely secure the hitch with 7/16" flange nuts.
- Pull the fishwires through the side mounting holes and secure them with 7/16" flange nuts.
Step 7: Attach Muffler Brackets
- Reattach the muffler brackets to the hitch's bottom using the provided M8-1.25 hex bolts and 5/16" washers.
Step 8: Torque Hardware
- Torque all 7/16" hardware to 70 ft-lbs.
- Torque all M8 hardware to 23 ft-lbs.
Step 9: Reattach Exhaust
- Reattach the rubber isolator removed in Step 1.
Hardware List:
- (6) 7/16" Fishwires
- (6) 7/16"-14 x 1-1/2" Carriage Bolts
- (6) .250 x 1.00 x 2.00" Square Hole Spacers
- (6) 7/16"-14 Hex Flange Nuts
- (4) 5/16" Washers
- (4) M8-1.25 x 30mm Hex Bolts
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Weight Carrying Capacity:
- Maximum Trailer Weight: 3,500 lbs
- Maximum Tongue Weight: 350 lbs
- Weight Distribution Capacity:
- Maximum Trailer Weight: 5,000 lbs
- Maximum Tongue Weight: 500 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
Installation Notes:
- Temporarily lower the exhaust.
- Trim the heat shield as necessary.
- Fishwire hardware installation is required.
- Enlarge access holes to accommodate bolts.
Warning:
All non-trailer loads must be supported by stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
General Information:
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
