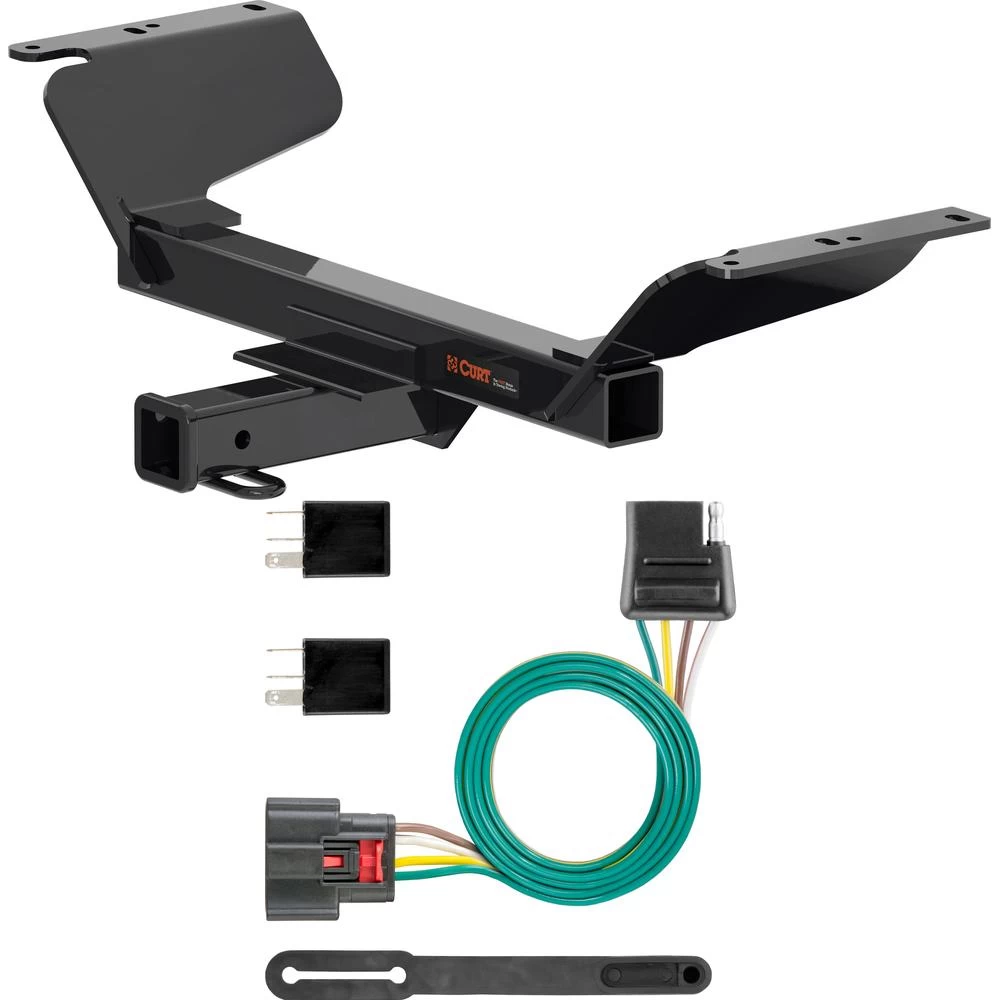

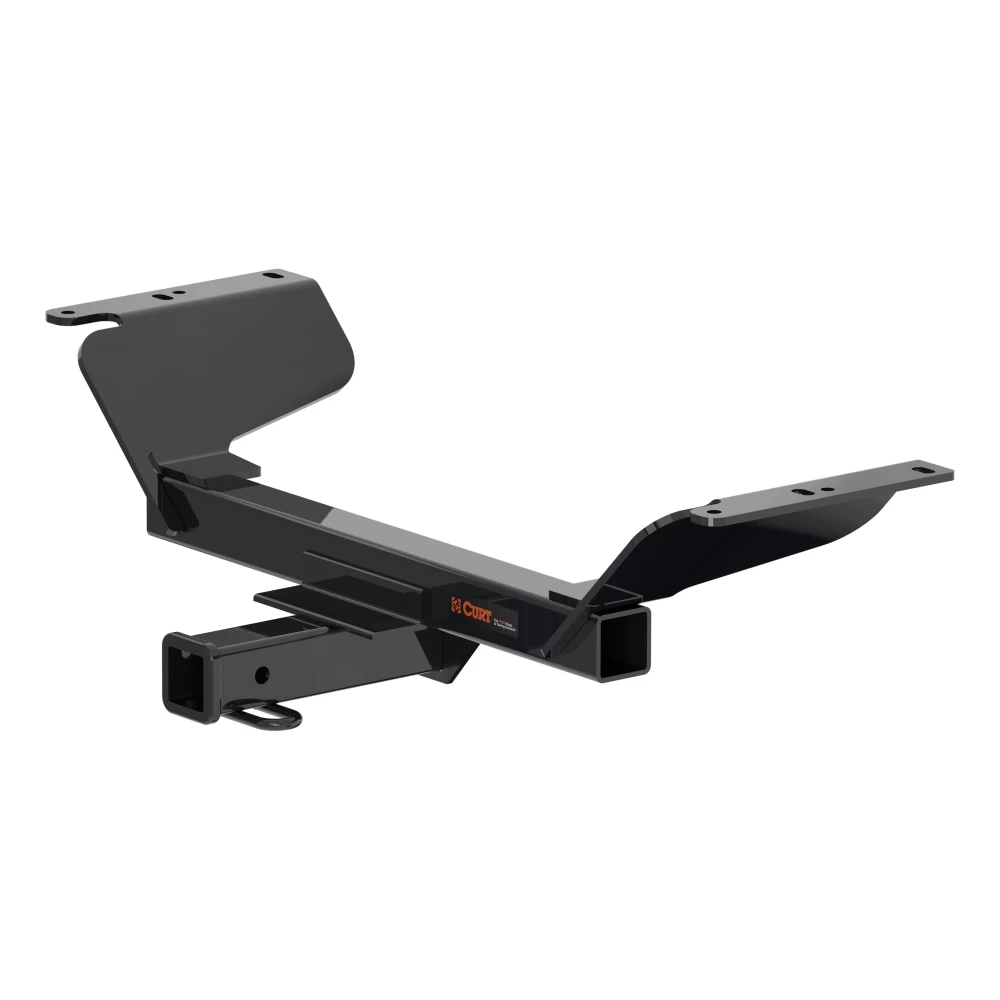

For 2018-2024 GMC Terrain Trailer Hitch + Wiring 4 Pin Fits Models w/ factory 7-Way Except Diesel Curt 13439 56375 2 inch Tow Receiver Install Notes
Installation Instructions for Chevrolet Equinox / GMC Terrain (2018-Present)
Part Numbers:
- 13439
Tools Required:
- Ratchet
- 15mm and 3/4" Sockets
- 6" Socket Extension
- T15 Torx Bit
- Torque Wrench
- Rotary Tool
- Pry Bar
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the rear fascia screws.
- Locate and remove the two Torx screws securing the rear fascia using a T15 Torx bit.
- Set the screws aside for reinstallation.
Step 2: Lower the exhaust system.
- Use a 15mm socket to remove the four bolts (two per side) securing the rear exhaust hanger brackets.
- Support the exhaust system before proceeding to prevent damage.
Step 3: Enlarge the access holes.
- Remove the exhaust rubber isolator in front of the muffler to lower the exhaust further.
- Slightly enlarge the access holes on both the driver and passenger side frame rails using a rotary tool to fit the hardware.
Step 4: Fishwire the hardware.
- Using the provided fishwire tools:
- Guide one 1/2" carriage bolt and one square-hole spacer through the enlarged access hole to each of the three mounting holes on both frame rails.
- Leave the fishwires attached for alignment during hitch installation.
Step 5: Position and secure the hitch.
- Raise the hitch into position, aligning it with the mounted hardware.
- Secure the hitch using six 1/2" hex flange nuts.
- Remove the fishwires carefully to avoid dislodging the bolts.
Step 6: Torque the hardware.
- Tighten all 1/2" hardware to 110 ft-lbs using a torque wrench.
Step 7: Reinstall components.
- Raise the exhaust back into position and reattach the exhaust hanger brackets.
- Reinstall the Torx screws removed in Step 1.
Hardware List:
- (6) 1/2"-13 x 1-1/2" Carriage Bolts
- (6) 0.250 x 1.00 x 3.00" Square-Hole Spacers
- (6) 1/2"-13 Hex Flange Nuts
- (6) 1/2" Fishwire Tools
Safety Notes:
- Always wear safety glasses during installation to protect your eyes.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components remain secure.
- Warning: Never exceed the vehicle manufacturer’s recommended towing capacity.
Specifications:
- Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 4,500 lbs
- Tongue Weight (TW): 675 lbs
- Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 4,500 lbs
- Tongue Weight (TW): 675 lbs
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- For Technical Support: Our team of experts is available to help. You can reach tech support by visiting www.trailerjacks.com or calling 877-869-6690.
- Warranty Information: For complete warranty instructions, please download the full installation PDF.

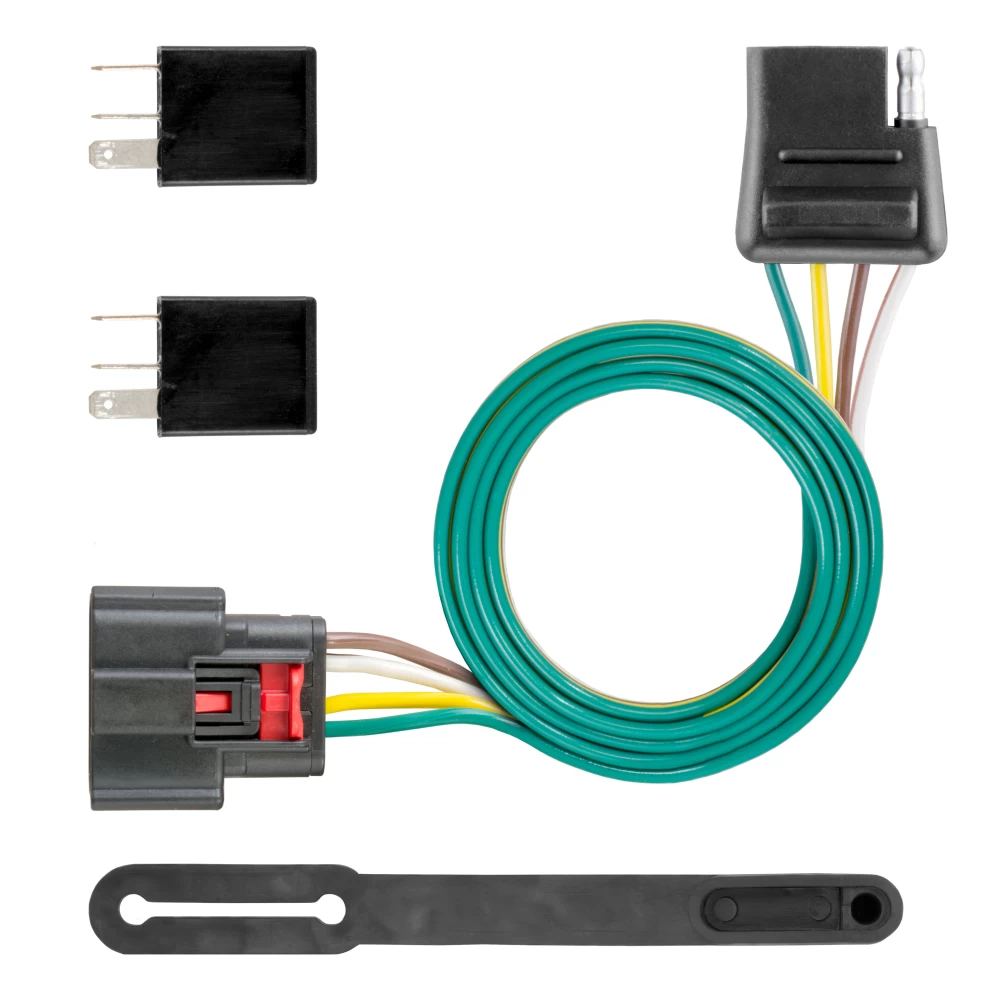

Installation Instructions for Chevrolet Equinox
Part Numbers:
- 56375
Wiring Access Location:
- S6: Behind center of rear bumper
Tools Required:
- Flat blade screwdriver
- Cutting tool
Step-by-Step Instructions:
-
Locate the Vehicle Wiring Connector:
- Identify the vehicle wiring connector along the rear bumper. The connector will resemble the one on the custom wiring connector.
- Separate the vehicle connector from the weather seal connector, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Connector:
- Insert the custom wiring connector into the vehicle connector.
- Ensure the connectors are fully inserted and the locking tabs are engaged.
-
Route the 4-Flat Wiring:
- When in use, route the 4-flat wiring out from the vehicle.
- When not in use, roll up the wiring and store it in a convenient location.
- Secure any loose wires with the provided cable ties.
-
Install the Dust Cover:
- Attach the provided 4-flat dust cover to prevent corrosion.
-
Access the Fuse Panel:
- Open the vehicle tailgate.
- Locate and remove the fuse access panel cover on the driver side trim.
-
Install the Relays:
- On the fuse panel, locate positions K2 and K3 as indicated on the fuse cover.
- Install the provided relays in the identified positions.
-
Reassemble Components:
- Reinstall all items that were removed during the installation process.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Test the system after installation using a test light or properly wired trailer to confirm functionality.
Specifications:
- Signal circuits: 7.5 amps per side
- Tail/Running circuits: 7.5 amps total
Manufacturer Notes:
- Follow all steps carefully to ensure proper installation and functionality.
- Test the wiring connector with a circuit tester or trailer after installation.
Installation Instructions for Vehicle
Part Numbers:
- 56375
Wiring Access Location:
- S6: Behind center of rear bumper
Tools Required:
- Flat blade screwdriver
- Cutting tool
Step-by-Step Instructions:
-
Locate the Vehicle Wiring Connector:
- Identify the vehicle wiring connector along the rear bumper. The connector will resemble the one on the custom wiring connector.
- Separate the vehicle connector from the weather seal connector, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Connector:
- Insert the custom wiring connector into the vehicle connector.
- Ensure the connectors are fully inserted and the locking tabs are engaged.
-
Route the 4-Flat Wiring:
- When in use, route the 4-flat wiring out from the vehicle.
- When not in use, roll up the wiring and store it in a convenient location.
- Secure any loose wires with the provided cable ties.
-
Install the Dust Cover:
- Attach the provided 4-flat dust cover to prevent corrosion.
-
Access the Fuse Panel:
- Open the vehicle tailgate.
- Locate and remove the fuse access panel cover on the driver side trim.
-
Install the Relays:
- On the fuse panel, locate positions K2 and K3 as indicated on the fuse cover.
- Install the provided relays in the identified positions.
-
Reassemble Components:
- Reinstall all items that were removed during the installation process.
Safety Notes:
- Warning: Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Test the system after installation using a test light or properly wired trailer to confirm functionality.
Specifications:
- Signal circuits: 7.5 amps per side
- Tail/Running circuits: 7.5 amps total
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered by a limited warranty for a period of 1 year from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For complete warranty instructions, please download the full installation PDF.
