Product Details
- Brand: Curt
- Model: 11576 56493-CH3542

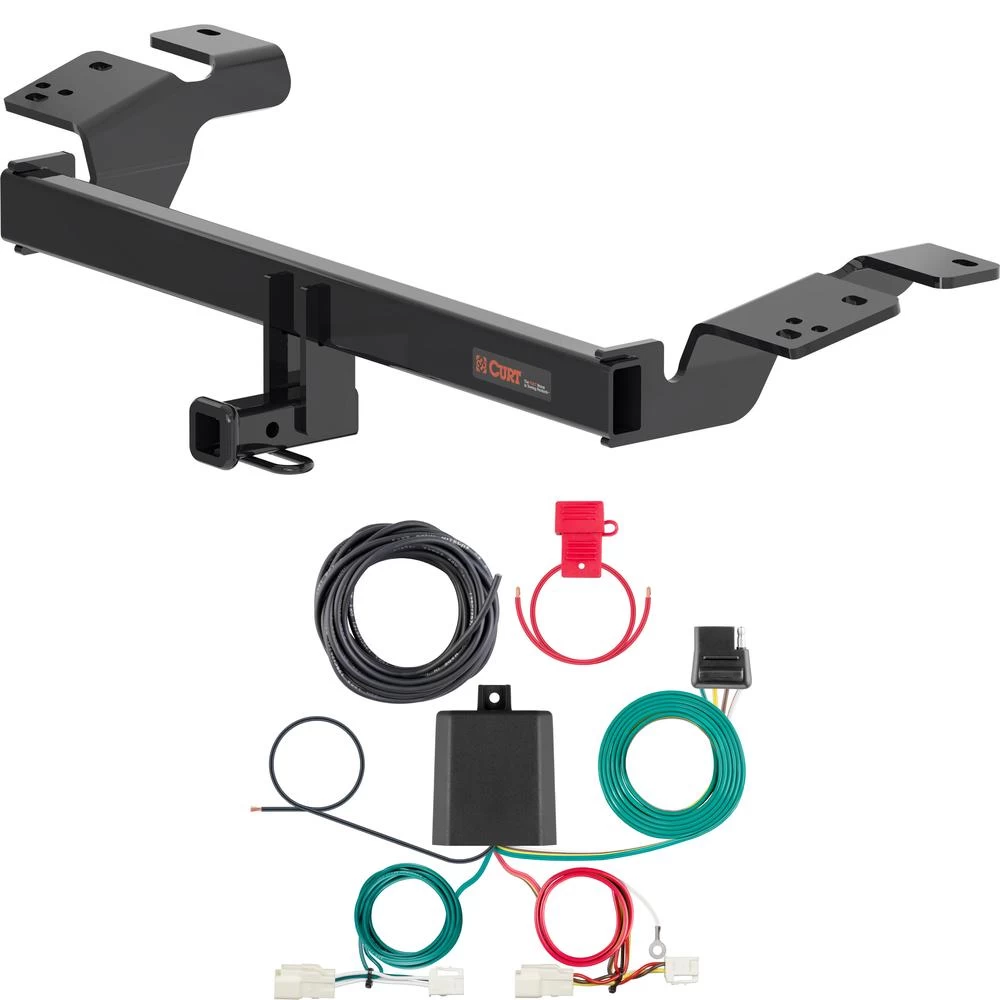

- Includes: Class 1 Trailer Tow Hitch, Custom Wiring Harness
Compatibility Chart
Get Expert Help
For 2018-2024 Toyota Camry Trailer Hitch + Wiring 4 Pin Fits All Models Curt 11576 56493 1-1/4 Tow Receiver Install Notes

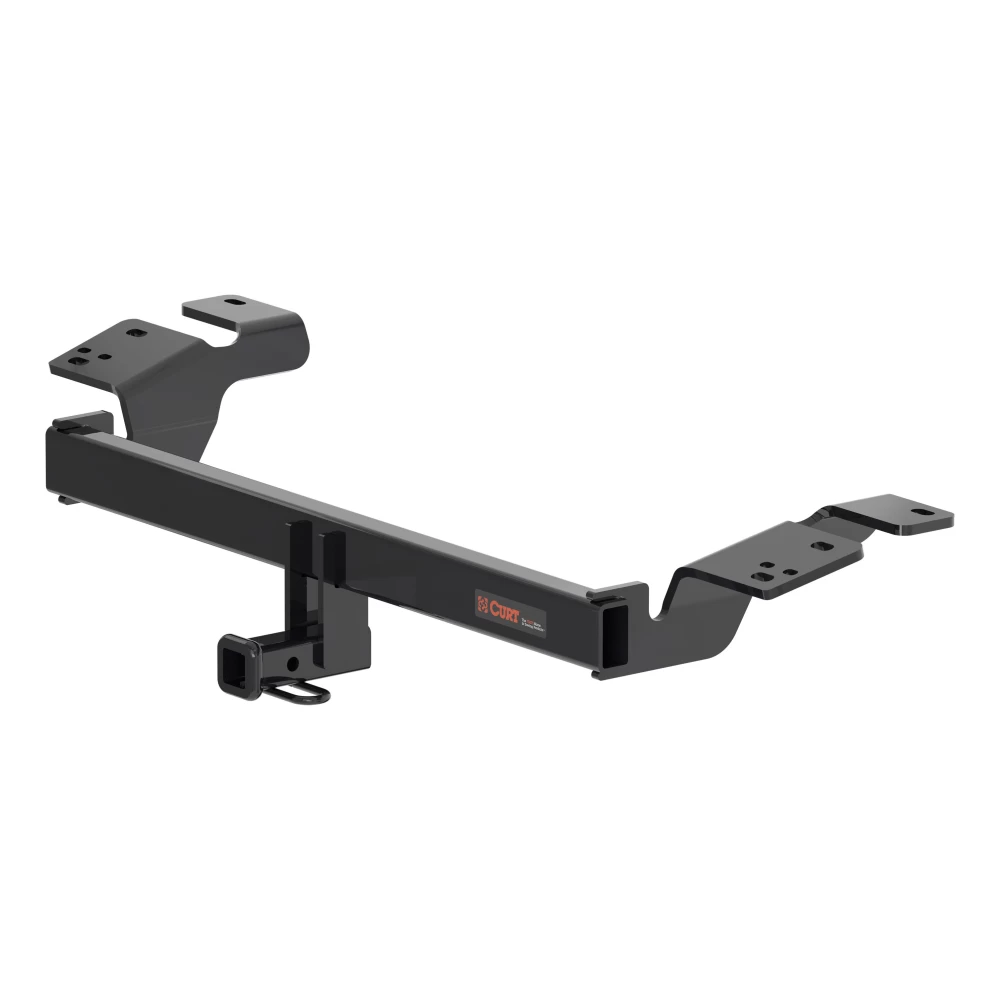

Installation Instructions for Toyota Camry & Avalon Sedans (2018-Present)
Part Numbers:
- 11576
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 10mm, 12mm, 13mm, 17mm, 19mm
- Die Grinder with Cutoff Wheel
- Masking Tape
- Tape Measure
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Exhaust
- Remove (2) rubber isolators per muffler and (1) rubber isolator forward of the muffler to lower the exhaust.
- For Japan-built vehicles: Remove the tie-down bracket from the passenger-side frame rail.
- For USA-built vehicles: Remove the rear exhaust hanger from the driver-side frame rail.
- For dual-exhaust vehicles: Remove the rear exhaust hanger from both frame rails.
- Note: Support the exhaust to prevent damage during this step.
Step 2: Trim and Remove Panels
- Remove the heat shields and trim them using the Heat Shield Trim Diagram as a reference. Reinstall the trimmed heat shields.
- Remove the plastic underbody panel and trim it according to the Panel Trim Diagram. Save the panel and fasteners for reinstallation.
Step 3: Enlarge Access Holes
- Enlarge the access holes in both frame rails using a die grinder.
- Use a reverse fishwire technique to guide a 1/2" carriage bolt and CM-SP10 spacer through the enlarged access hole on each side.
Step 4: Position Hitch and Secure Hardware
- Raise the hitch into position, aligning it with the frame rail and existing weld nuts.
- Secure the hitch using the provided hardware:
- Torque M12 hardware to 79 ft-lbs.
- Torque M8 hardware to 23 ft-lbs.
- Torque 1/2” hardware to 110 ft-lbs.
- Reinstall any removed exhaust hangers and the plastic underbody panel from Step 2.
- Note: For hybrid vehicles, relocation of the backup alarm may be required.
Hardware List:
- (2) 1/2-13 UNC x 1-1/2" Carriage Bolts
- (2) M12 x 1.25 x 45mm Hex Head Cap Screws
- (2) M8 x 1.25 x 35mm Flange Bolts
- (2) 1/2-13 UNC Hex Flange Nuts
- (2) 1/2" Conical Washers
- (2) .250 x 1.00 x 2.50" Square Hole Spacers
- (1) 1/2" Fishwire
Warnings and Safety Information:
- WARNING: Never exceed the vehicle manufacturer's recommended towing capacity.
- WARNING: All non-trailer (wheel-less) loads applied to this product must be supported by stabilizing straps (#18050). Failure to properly support such loads will void the product warranty.
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and all structural components are sound.
Specifications:
- Trailer Weight (GTW): 2,000 lbs
- Tongue Weight (TW): 200 lbs
- Compliance: Meets SAE J684 and VESC Regulation V-5 standards.
Need Assistance? For support or questions, call technical support at 877-287-8634.
Installation Instructions for Toyota Camry & Avalon Sedans (2018-Present)
Part Numbers:
- 11576
Tools Required:
- Ratchet
- Torque Wrench
- Sockets: 10mm, 12mm, 13mm, 17mm, 19mm
- Die Grinder with Cutoff Wheel
- Masking Tape
- Tape Measure
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Exhaust
- Remove (2) rubber isolators per muffler and (1) rubber isolator forward of the muffler to lower the exhaust.
- For Japan-built vehicles: Remove the tie-down bracket from the passenger-side frame rail.
- For USA-built vehicles: Remove the rear exhaust hanger from the driver-side frame rail.
- For dual-exhaust vehicles: Remove the rear exhaust hanger from both frame rails.
- Note: Support the exhaust to prevent damage during this step.
Step 2: Trim and Remove Panels
- Remove the heat shields and trim them using the Heat Shield Trim Diagram as a reference. Reinstall the trimmed heat shields.
- Remove the plastic underbody panel and trim it according to the Panel Trim Diagram. Save the panel and fasteners for reinstallation.
Step 3: Enlarge Access Holes
- Enlarge the access holes in both frame rails using a die grinder.
- Use a reverse fishwire technique to guide a 1/2" carriage bolt and CM-SP10 spacer through the enlarged access hole on each side.
Step 4: Position Hitch and Secure Hardware
- Raise the hitch into position, aligning it with the frame rail and existing weld nuts.
- Secure the hitch using the provided hardware:
- Torque M12 hardware to 79 ft-lbs.
- Torque M8 hardware to 23 ft-lbs.
- Torque 1/2” hardware to 110 ft-lbs.
- Reinstall any removed exhaust hangers and the plastic underbody panel from Step 2.
- Note: For hybrid vehicles, relocation of the backup alarm may be required.
Hardware List:
- (2) 1/2-13 UNC x 1-1/2" Carriage Bolts
- (2) M12 x 1.25 x 45mm Hex Head Cap Screws
- (2) M8 x 1.25 x 35mm Flange Bolts
- (2) 1/2-13 UNC Hex Flange Nuts
- (2) 1/2" Conical Washers
- (2) .250 x 1.00 x 2.50" Square Hole Spacers
- (1) 1/2" Fishwire
Warnings and Safety Information:
- WARNING: Never exceed the vehicle manufacturer's recommended towing capacity.
- WARNING: All non-trailer (wheel-less) loads applied to this product must be supported by stabilizing straps. Failure to properly support such loads will void the product warranty.
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and all structural components are sound.
Specifications:
- Trailer Weight (GTW): 2,000 lbs
- Tongue Weight (TW): 200 lbs
- Compliance: Meets SAE J684 and VESC Regulation V-5 standards.
Notes:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
End of Instructions

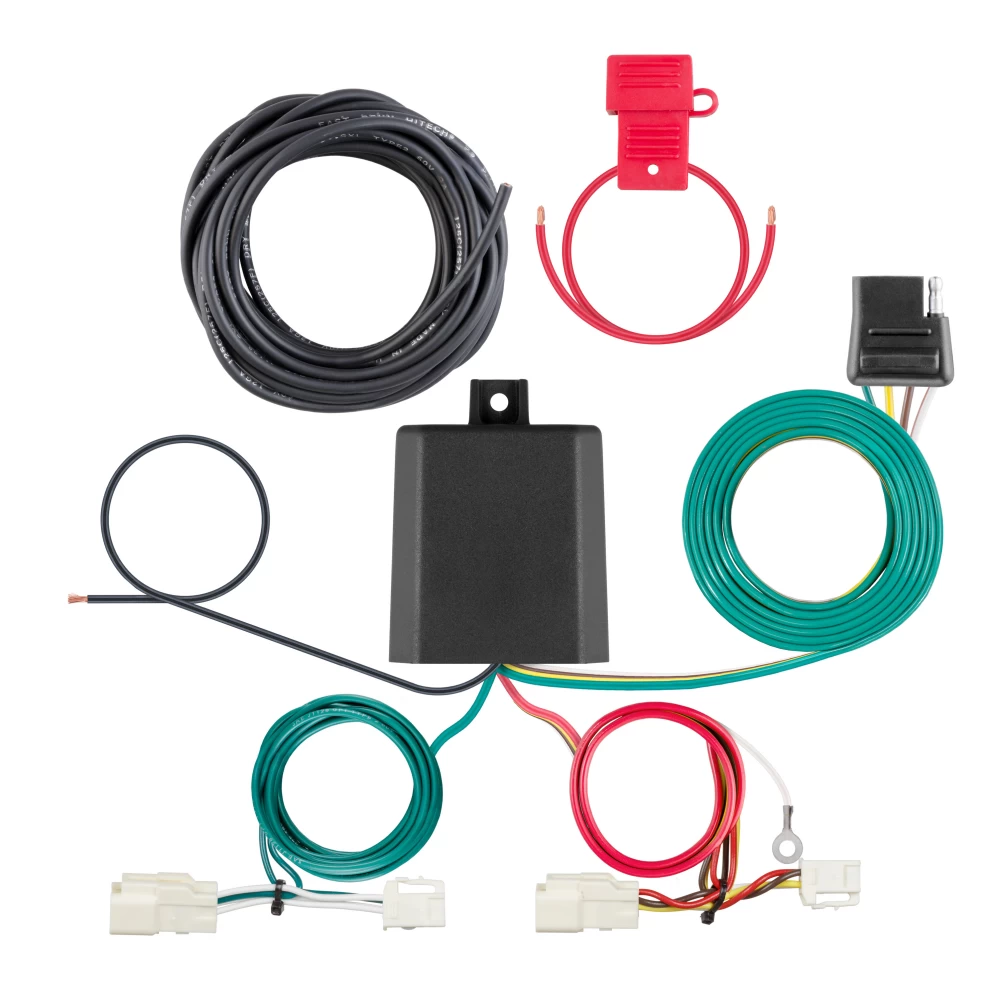

Installation Instructions for Toyota Camry
Part Numbers:
- 56493
Wiring Access Locations:
- P3: Behind driver side taillight housing, inside of trunk
- P4: Behind passenger side taillight housing, inside of trunk
Tools Required:
- Ratchet
- 10mm socket
- Socket extension
- Wire crimper
- Wire stripper
- Panel trim removal tool
- Wire cutter
- Electrical tape
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle's battery using the owner’s manual.
- Disconnect the negative battery terminal and secure it away during the installation process.
-
Prepare the Trunk:
- Open the vehicle’s trunk and remove all trunk floor coverings.
- Use the panel trim removal tool to release four push fasteners securing the scuff panel, then remove the panel.
-
Access the Taillight Wiring:
- Starting on the driver’s side, locate the taillight wiring connectors near the trunk wall liner.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector with the yellow wire between the separated connectors on the driver’s side.
- Run the green wire along the back of the trunk, below the skid plate, to the passenger’s side.
- Insert the custom wiring connector with the green wire between the separated connectors on the passenger’s side.
-
Ground the Converter:
- Locate the white wire with a ring terminal on the converter box and place it on a grounding bolt.
- Ensure no other ground rings are displaced to maintain proper vehicle electrical function.
-
Mount the Converter Box:
- Find a flat spot inside the vehicle near the taillight.
- Secure the black converter box using the provided double-sided tape.
- Route the black power wire from the vehicle battery as described in the "Powered Converter Lead Instruction Sheet."
-
Route and Secure the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it inside the trunk.
- Secure any loose wires using the provided cable ties.
-
Reinstall Components:
- Reinstall all removed items, including the scuff panel and trunk floor coverings.
- Reconnect the negative battery terminal.
-
Test the Installation:
- Use a test light, 4-flat tester, or functioning trailer to verify the system.
- Install the provided 4-flat dust cover to prevent corrosion.
Safety Notes:
- Warning: Check for hidden items behind or under any surface before drilling to avoid damage or personal injury.
- Do not exceed the product rating or tow vehicle lamp load rating.
Specifications:
- Signal circuits: 3.0 amps per side
- Tail/Running circuits: 6.0 amps total
- Use only with 12-volt negative ground systems.
Maintenance:
- Periodically inspect all wires and connections to ensure there is no visible damage or loose connections.
Manufacturer Notes:
- Follow all steps thoroughly to ensure proper functionality and safe installation.
Installation Instructions
Part Number:
- 56493
Wiring Access Locations:
- P3: Behind driver side taillight housing, inside of trunk
- P4: Behind passenger side taillight housing, inside of trunk
Tools Required:
- Ratchet
- 10mm socket
- Socket extension
- Wire crimper
- Wire stripper
- Panel trim removal tool
- Wire cutter
- Electrical tape
Step-by-Step Instructions:
-
Disconnect the Battery:
- Locate the vehicle's battery using the owner’s manual.
- Disconnect the negative battery terminal and secure it away during the installation process.
-
Prepare the Trunk:
- Open the vehicle’s trunk and remove all trunk floor coverings.
- Use the panel trim removal tool to release four push fasteners securing the scuff panel, then remove the panel.
-
Access the Taillight Wiring:
- Starting on the driver’s side, locate the taillight wiring connectors near the trunk wall liner.
- Separate the connectors from the taillight housing, taking care not to damage the locking tabs.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector with the yellow wire between the separated connectors on the driver’s side.
- Run the green wire along the back of the trunk, below the skid plate, to the passenger’s side.
- Insert the custom wiring connector with the green wire between the separated connectors on the passenger’s side.
-
Ground the Converter:
- Locate the white wire with a ring terminal on the converter box and place it on a grounding bolt.
- Ensure no other ground rings are displaced to maintain proper vehicle electrical function.
-
Mount the Converter Box:
- Find a flat spot inside the vehicle near the taillight.
- Secure the black converter box using the provided double-sided tape.
- Route the black power wire from the vehicle battery as described in the "Powered Converter Lead Instruction Sheet."
-
Route and Secure the 4-Flat Connector:
- When in use, route the 4-flat connector to the center of the vehicle and out of the trunk.
- When not in use, roll it up and store it inside the trunk.
- Secure any loose wires using the provided cable ties.
-
Reinstall Components:
- Reinstall all removed items, including the scuff panel and trunk floor coverings.
- Reconnect the negative battery terminal.
-
Test the Installation:
- Use a test light, 4-flat tester, or functioning trailer to verify the system.
- Install the provided 4-flat dust cover to prevent corrosion.
Safety Notes:
- Warning: Check for hidden items behind or under any surface before drilling to avoid damage or personal injury.
- Do not exceed the product rating or tow vehicle lamp load rating.
Specifications:
- Signal circuits: 3.0 amps per side
- Tail/Running circuits: 6.0 amps total
- Use only with 12-volt negative ground systems.
Maintenance:
- Periodically inspect all wires and connections to ensure there is no visible damage or loose connections.
Product Registration and Warranty:
- This product is backed by a comprehensive warranty. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
