For 2019‑2024 Ford Edge Trailer Hitch Fits Titanium or ST Curt 13234 2 inch Tow Receiver
Model: 13234-CH1204This Trailer Tow Hitch Fits The Following Vehicles:
2019 - 2024 Ford Edge Titanium or ST
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2019, 2020, 2021, 2022, 2023, 2024

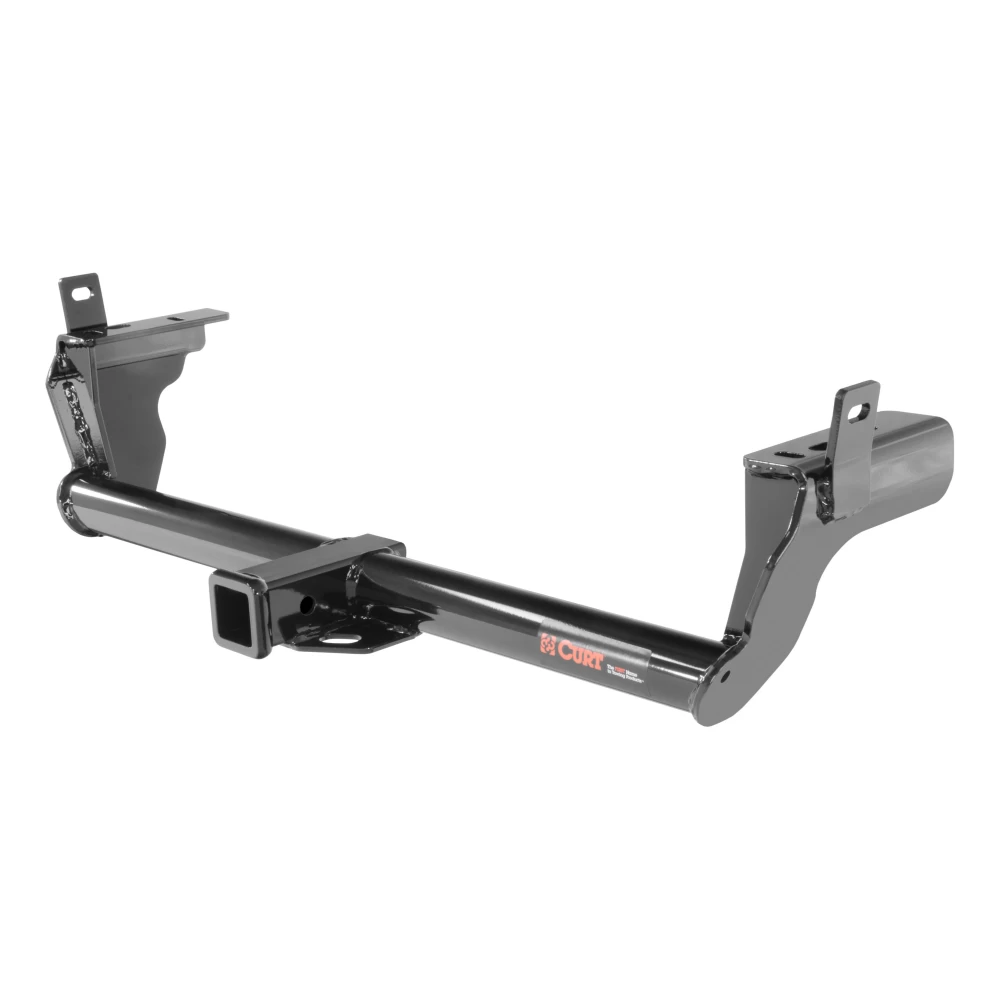

CURT 13234 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Ford Edge (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 600 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.

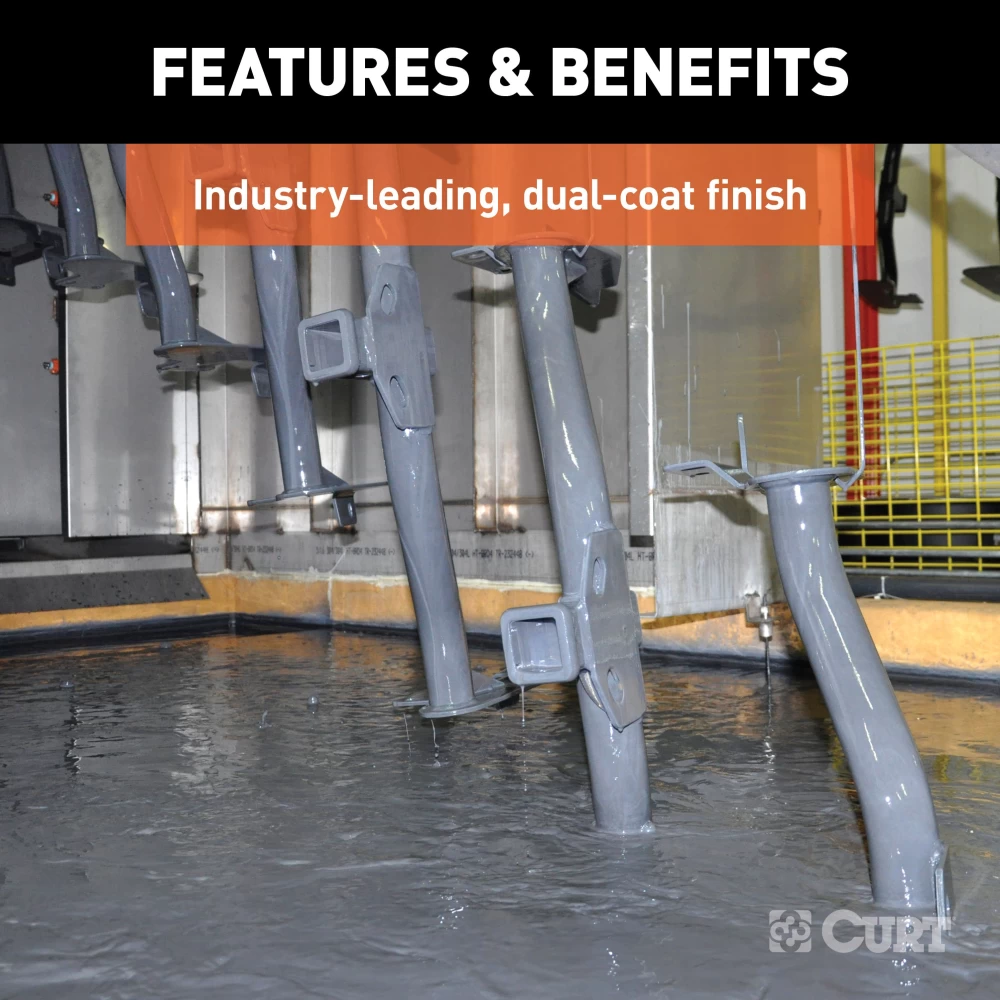

We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

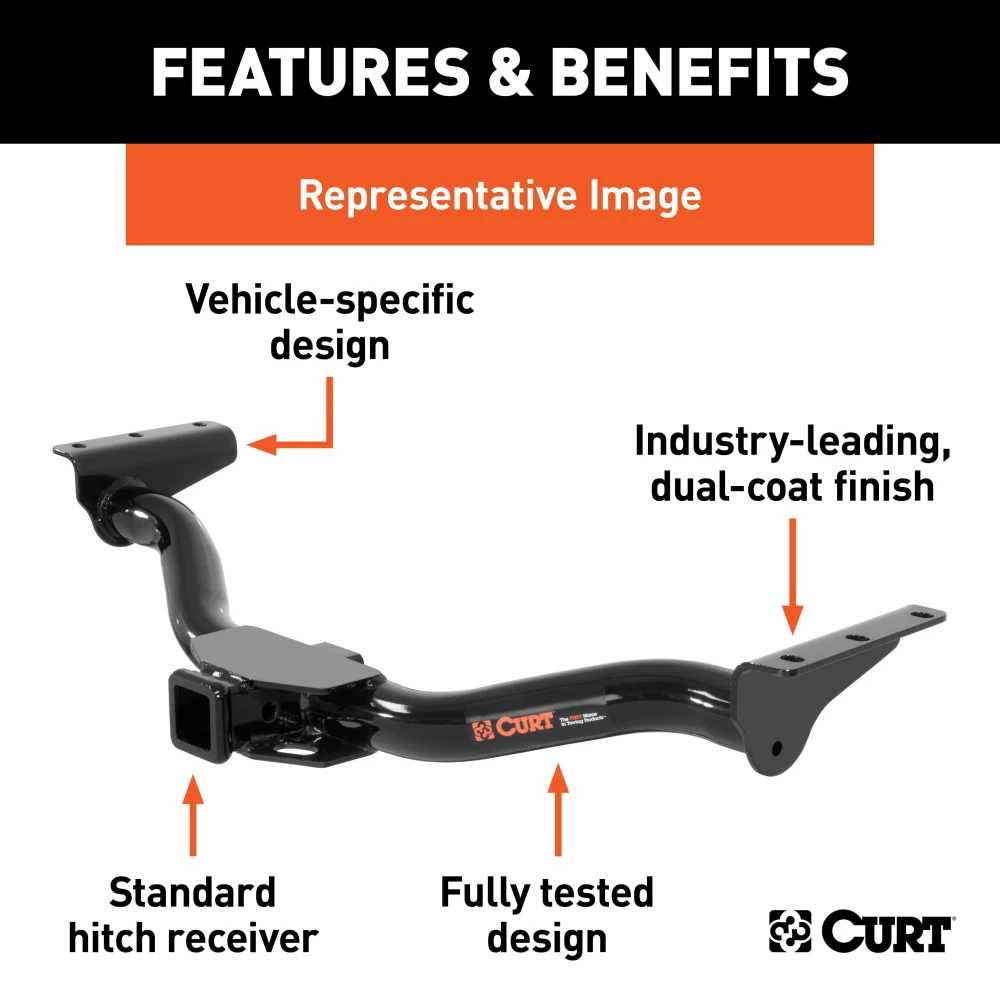

Features:
- Rated to 4,000 lbs. gross trailer weight and 600 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

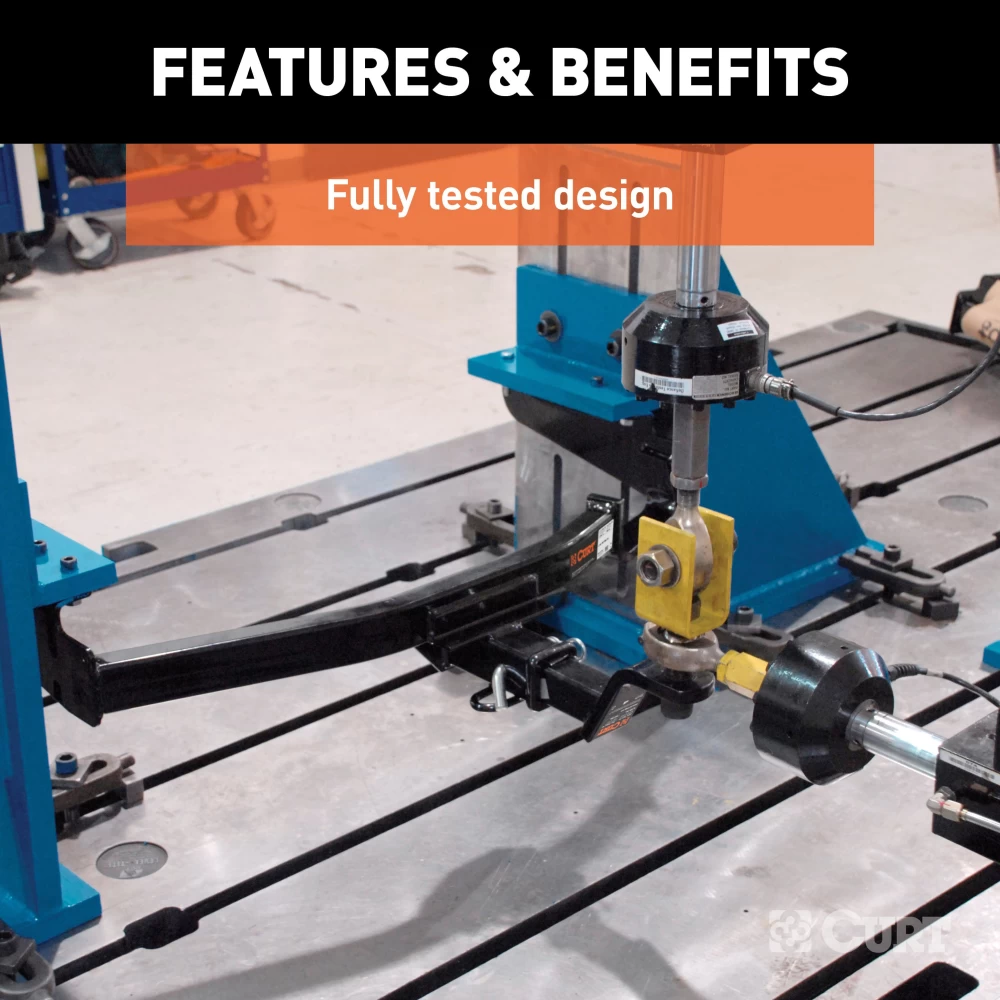

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out

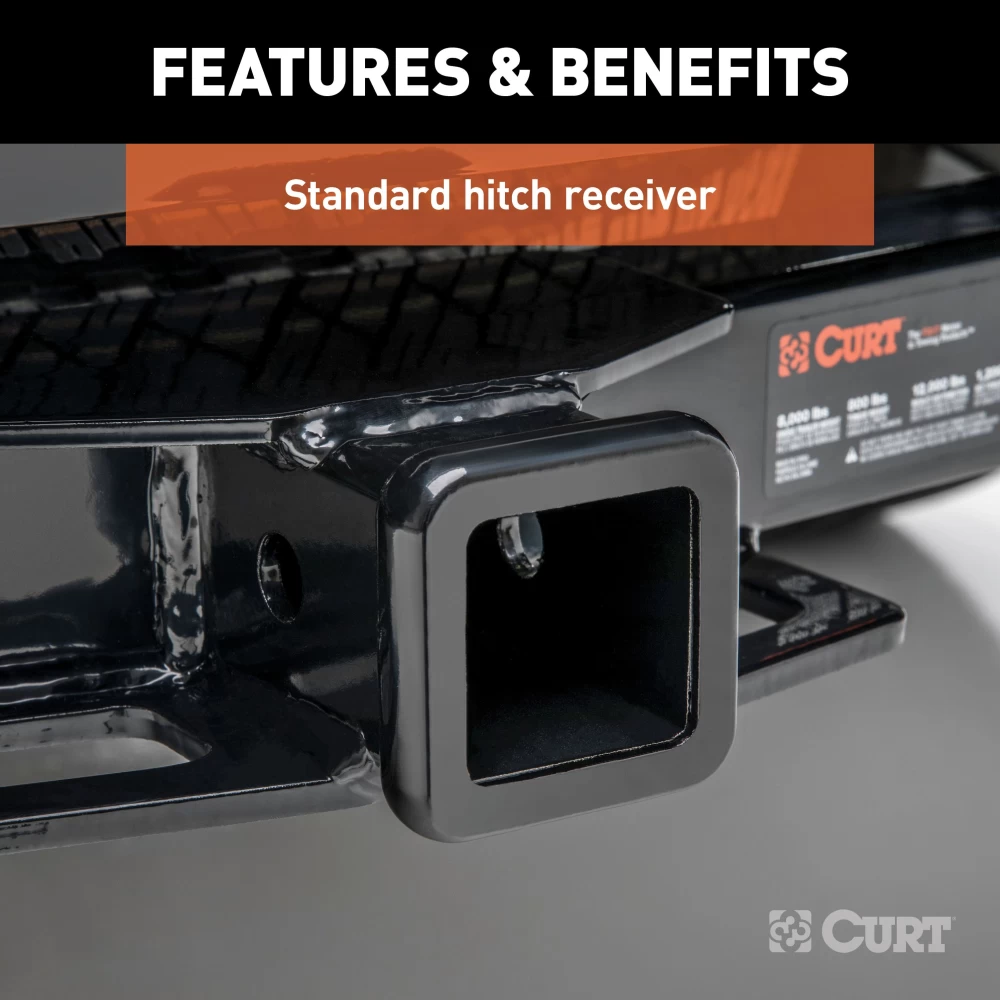

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$198 72 $308.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$308.95 $198 72
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $49.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13234-CH1204
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2019-2024 Ford Edge Trailer Hitch Fits Titanium or ST Curt 13234 2 inch Tow Receiver Install Notes
Installation Instructions for Ford Edge (2016-Present)
Part Numbers:
- 13234
Tools Required:
- Ratchet
- Torque Wrench
- 3/4" Socket
- 10mm Socket
- 5.5mm Socket (Sport Model)
- T20 Torx Bit
- 7/32" Socket
- Aviation Shears
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the Exhaust
- Support and lower the exhaust by removing (2) rubber isolators mounted to the muffler.
- For Sport models, remove the exhaust bezels using a 5.5mm socket and a T20 Torx bit.
Step 2: Remove Rear Panels
- Remove the panels from behind the rear wheels by removing (2) hex nuts with a 10mm socket and (2) screws with a 7/32" socket.
- Set the panels aside for reinstallation.
Step 3: Fishwire the Hardware
- Fishwire (3) CM-SP4 spacers and (3) 1/2" carriage bolts into the mounting holes for both frame rails.
Step 4: Trim the Underbody Panels
- Trim the center underbody panel tabs as per the provided diagram to allow easier hitch mounting.
- Trim the underbody side panels to allow for reinstallation.
Step 5: Mount the Hitch
- Raise the hitch over the exhaust and thread the fishwires into the mounting holes.
- Remove the fishwires and install (6) supplied 1/2" hex flange nuts.
- Note: The hitch side plates should be located between the center underbody panel tabs and the frame rails.
Step 6: Torque the Hardware
- Torque all 1/2" fasteners to 110 lb-ft.
Step 7: Reinstall Components
- Reinstall the trimmed underbody panels using the hardware removed in Step 2.
- If necessary, trim the washers to fit the reinstallation process.
- Raise the exhaust back into position and reinstall the rubber isolators and exhaust bezels if removed.
Note: On vehicles equipped with a hands-free liftgate, perform the kick motion on the left or right side of the receiver tube.
Trim Diagram:
- Center Underbody Panel:
- Trim Dimensions: 1.88" x 0.75" x 0.38"
- Underbody Side Panel:
- Trim Dimensions: 7.25" x 3.5"
Hardware List:
- (6) 1/2"-13 UNC Carriage Bolts, 1-1/2" (Part #10-10287)
- (6) .250 x 1.50 x 3.00" Square Hole Spacers (Part #CM-SP4)
- (6) 1/2"-13 UNC Hex Flange Nuts (Part #20-00062)
- (6) 1/2" Fishwire (Part #1_2 FISHWIRE)
Safety Notes:
- Wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Use stabilizing straps (Part #18050) for all non-trailer loads to avoid damage and voiding the warranty.
Specifications:
- Weight Carrying:
- Gross Trailer Weight: 4,000 lbs
- Tongue Weight: 600 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5
Manufacturer Notes:
- For installation questions, contact CURT Technical Support at 877-287-8634.
- Visit www.curtmfg.com for additional information and towing tips. Installation Instructions for Ford Edge (2016-Present)
Part Numbers:
- 13234
Tools Required:
- Ratchet
- Torque Wrench
- 3/4" Socket
- 10mm Socket
- 5.5mm Socket (Sport Model)
- T20 Torx Bit
- 7/32" Socket
- Aviation Shears
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower the Exhaust
- Support and lower the exhaust by removing (2) rubber isolators mounted to the muffler.
- For Sport models, remove the exhaust bezels using a 5.5mm socket and a T20 Torx bit.
Step 2: Remove Rear Panels
- Remove the panels from behind the rear wheels by removing (2) hex nuts with a 10mm socket and (2) screws with a 7/32" socket.
- Set the panels aside for reinstallation.
Step 3: Fishwire the Hardware
- Fishwire (3) square-hole spacers and (3) 1/2" carriage bolts into the mounting holes for both frame rails.
Step 4: Trim the Underbody Panels
- Trim the center underbody panel tabs as per the provided diagram to allow easier hitch mounting.
- Trim the underbody side panels to allow for reinstallation.
Step 5: Mount the Hitch
- Raise the hitch over the exhaust and thread the fishwires into the mounting holes.
- Remove the fishwires and install (6) supplied 1/2" hex flange nuts.
- Note: The hitch side plates should be located between the center underbody panel tabs and the frame rails.
Step 6: Torque the Hardware
- Torque all 1/2" fasteners to 110 lb-ft.
Step 7: Reinstall Components
- Reinstall the trimmed underbody panels using the hardware removed in Step 2.
- If necessary, trim the washers to fit the reinstallation process.
- Raise the exhaust back into position and reinstall the rubber isolators and exhaust bezels if removed.
Note: On vehicles equipped with a hands-free liftgate, perform the kick motion on the left or right side of the receiver tube.
Trim Diagram:
- Center Underbody Panel:
- Trim Dimensions: 1.88" x 0.75" x 0.38"
- Underbody Side Panel:
- Trim Dimensions: 7.25" x 3.5"
Hardware List:
- (6) 1/2"-13 UNC Carriage Bolts, 1-1/2"
- (6) .250 x 1.50 x 3.00" Square Hole Spacers
- (6) 1/2"-13 UNC Hex Flange Nuts
- (6) 1/2" Fishwire
Safety Notes:
- Wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- Use stabilizing straps for all non-trailer loads to avoid damage and ensure safety.
Specifications:
- Weight Carrying:
- Gross Trailer Weight: 4,000 lbs
- Tongue Weight: 600 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5
General Notes:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Warranty Information:
For warranty coverage details, including duration and terms, please download the full installation PDF. For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
