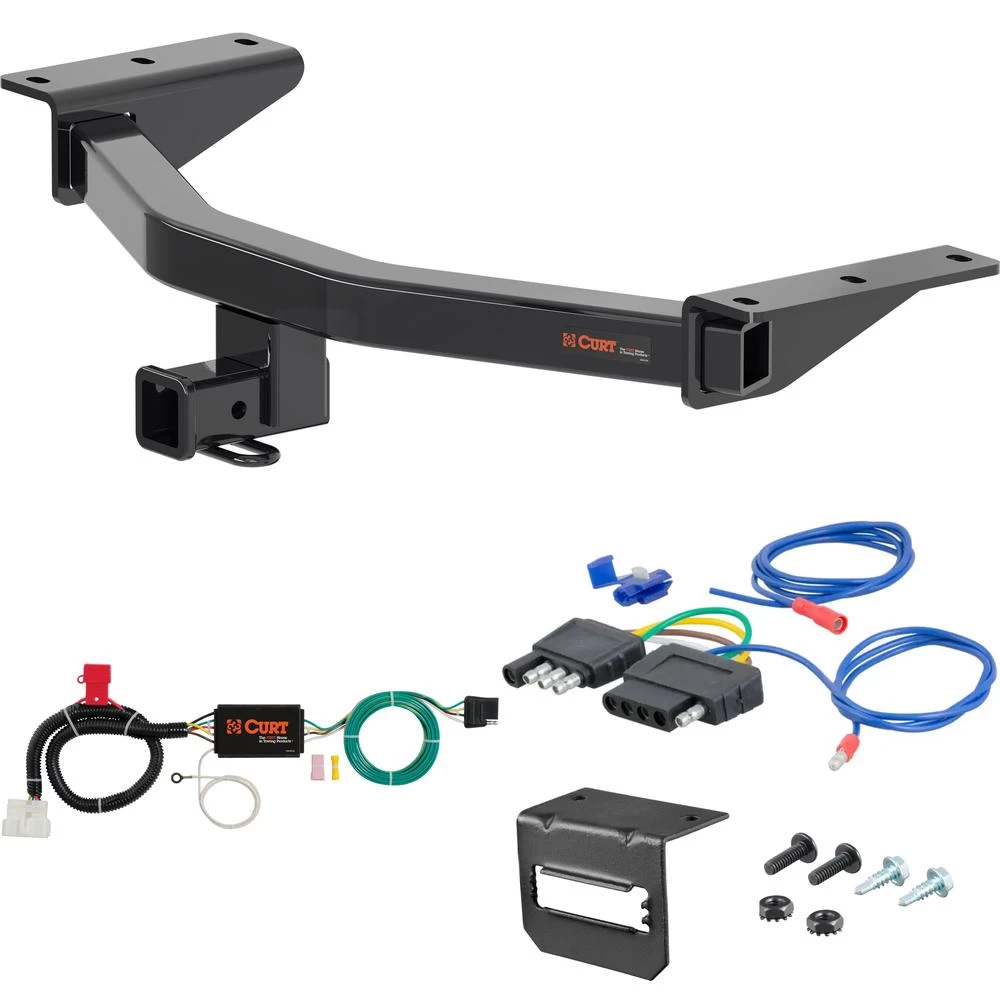

- Includes: Class 3 Trailer Tow Hitch, Custom Wiring Connector, 4-Way to 5-Way Flat Adapter for Boat Trailer Surge Brakes, Connector Mounting Bracket for 5-Way Flat
Compatibility Chart
Get Expert Help
For 2019-2024 Honda Passport Trailer Hitch + Wiring 5 Pin Fits All Models Curt 13421 2 inch Tow Receiver Install Notes
Installation Instructions for Honda Passport (2019-Present)
Part Numbers:
- 13421
Tools Required:
- Ratchet
- Torque Wrench
- Socket, 22mm
- 6" Socket Extension
- Wire or Pipe Brush
- Safety Glasses
Step-by-Step Instructions:
Step 1: Clean Weldnuts
- Inspect the existing weldnuts in the frame rails.
- If necessary, use a wire or pipe brush to remove debris. Spray lubricant or compressed air into the weldnuts for additional cleaning.
Step 2: Install Hitch
- Raise the hitch into position, aligning the holes in the hitch with the existing weldnuts in the frame rails.
- Secure the hitch using the provided M14x1.5 bolts (#1) and 9/16" conical-toothed washers (#2). Ensure the toothed side of the washers faces the hitch.
Step 3: Torque Hardware
- Torque all M14 bolts to 136 lb-ft using a torque wrench.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs.
- Tongue Weight (TW): 750 lbs.
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs.
- Tongue Weight (TW): 750 lbs.
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (2) Hex Bolts, M14x1.5x40mm, CL10.9
- (2) Conical-Toothed Washers, 9/16"
Important Notice:
- This installation does not require drilling.
- Read all instructions thoroughly before starting the installation.
- For assistance, contact technical support at 877-287-8634.
Installation Instructions for Honda Passport (2019-Present)
Part Numbers:
- 13421
Tools Required:
- Ratchet
- Torque Wrench
- Socket, 22mm
- 6" Socket Extension
- Wire or Pipe Brush
- Safety Glasses
Step-by-Step Instructions:
Step 1: Clean Weldnuts
- Inspect the existing weldnuts in the frame rails.
- If necessary, use a wire or pipe brush to remove debris.
- Spray lubricant or compressed air into the weldnuts for additional cleaning.
Step 2: Install Hitch
- Raise the hitch into position, aligning the holes in the hitch with the existing weldnuts in the frame rails.
- Secure the hitch using the provided M14x1.5 bolts (#1) and 9/16" conical-toothed washers (#2).
- Ensure the toothed side of the washers faces the hitch.
Step 3: Torque Hardware
- Torque all M14 bolts to 136 lb-ft using a torque wrench.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 5,000 lbs
- Tongue Weight (TW): 750 lbs
Weight Distribution Capacity:
- Gross Trailer Weight (GTW): 6,000 lbs
- Tongue Weight (TW): 750 lbs
Safety Notes:
- Safety glasses must be worn during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and structural components are secure.
- Warning: Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- (2) Hex Bolts, M14x1.5x40mm, CL10.9
- (2) Conical-Toothed Washers, 9/16"
Important Notice:
- This installation does not require drilling.
- Read all instructions thoroughly before starting the installation.
Need Assistance? For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
The product is covered under warranty for the duration specified. For complete warranty instructions, please download the full installation PDF.
End of Instructions

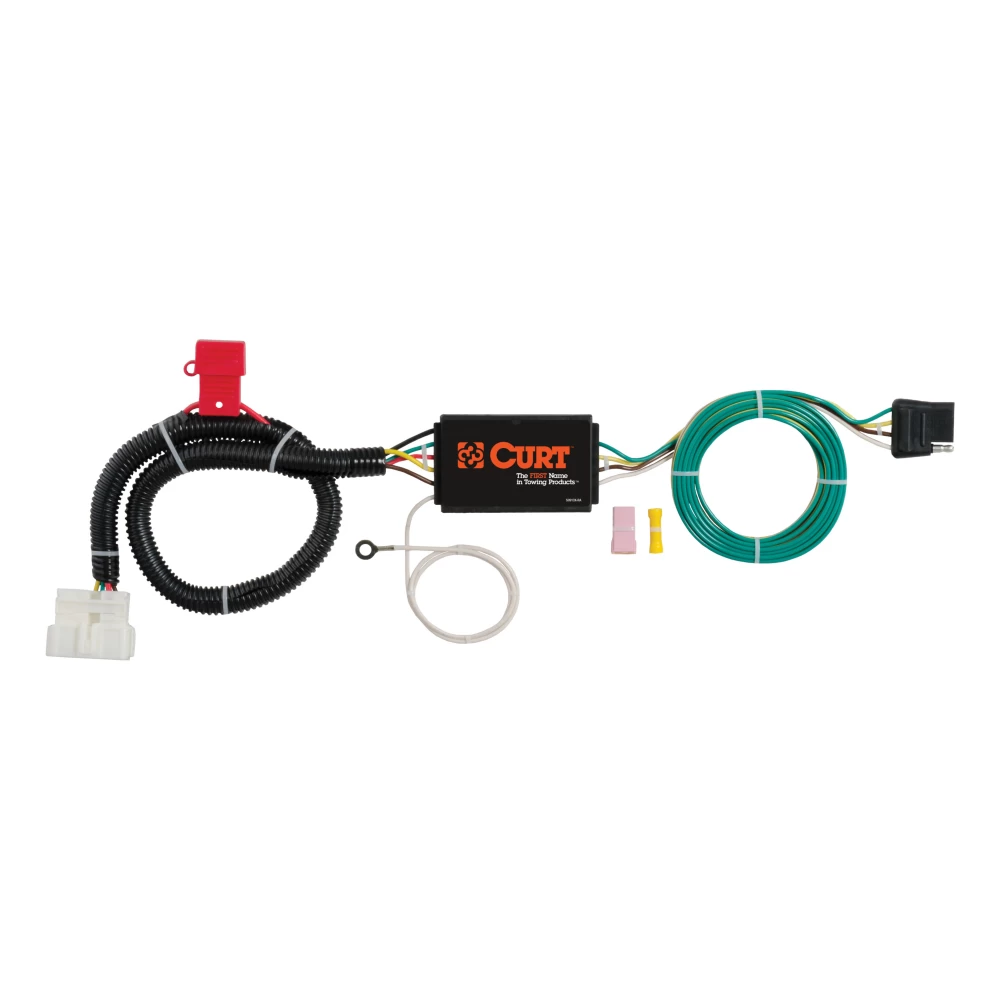

Installation Instructions for Honda Pilot
Part Number:
- 56291
Wiring Access Location:
- S3: Behind driver side rear access panel
Tools Required:
- 8mm socket
- Ratchet
- Phillips screwdriver
- Flat blade screwdriver
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal.
-
Prepare Cargo Area:
- Open the vehicle tailgate.
- Fold down the rear driver and passenger side seats.
- Remove all trunk floor coverings and storage trays.
-
Remove Rear Seat Trim Panel:
- Locate the trim panel on the back of the rear seats towards the bottom.
- Remove the panel by pulling upward.
-
Remove Rear Scuff Panel:
- Remove the center trim piece of the rear scuff panel by pulling upward.
- Remove the scuff panel by pulling out on the bottom and then up.
- Take care not to damage the alignment tabs on the back.
-
Remove Driver Side Cargo Holder:
- On the driver side, remove the Phillips screw holding the cargo holder in place.
- Remove the cargo holder.
-
Remove Side Trim Panel Bolt:
- Locate the bolt under the cover of the cargo holder holding the side trim panel in place.
- Remove the bolt.
-
Access Vehicle Connector:
- Pull outward on the side trim panel to locate the white vehicle connector housing.
- The connector housing will be similar to that on the custom wiring connector.
-
Connect Custom Wiring Harness:
- Insert the custom wiring connector into the white vehicle connector housing.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
- Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Mount Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Install Fuse:
- Install the 10-amp fuse into the red fuse holder on the converter harness.
-
Position 4-Flat Connector:
- When in use, route the 4-flat to the center of the vehicle.
- When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble Vehicle Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
-
Install Tow/Trailer Fuse:
- Locate the vehicle fuse box in the engine compartment on the driver side.
- Insert the provided 30-amp tow/trailer fuse.
- Check the vehicle owner's manual for the exact location or contact the vehicle manufacturer for more information.
Hardware List:
- Custom wiring harness with 4-flat connector
- Black converter module
- Double-sided tape
- Ring terminal
- Ground screw
- Cable ties
- 10-amp fuse (for fuse holder on converter harness)
- 30-amp tow/trailer fuse
- 4-flat dust cover
Safety Notes:
- Battery Connection: The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Drilling Caution: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
(Refer to the vehicle owner's manual or contact the vehicle manufacturer for more information.)
Installation Instructions for Vehicles
Part Number:
- 56291
Wiring Access Location:
- S3: Behind driver side rear access panel
Tools Required:
- 8mm socket
- Ratchet
- Phillips screwdriver
- Flat blade screwdriver
Step-by-Step Instructions:
-
Disconnect Battery:
- Locate the vehicle battery on the driver side under the hood.
- Disconnect the negative battery terminal.
-
Prepare Cargo Area:
- Open the vehicle tailgate.
- Fold down the rear driver and passenger side seats.
- Remove all trunk floor coverings and storage trays.
-
Remove Rear Seat Trim Panel:
- Locate the trim panel on the back of the rear seats towards the bottom.
- Remove the panel by pulling upward.
-
Remove Rear Scuff Panel:
- Remove the center trim piece of the rear scuff panel by pulling upward.
- Remove the scuff panel by pulling out on the bottom and then up.
- Take care not to damage the alignment tabs on the back.
-
Remove Driver Side Cargo Holder:
- On the driver side, remove the Phillips screw holding the cargo holder in place.
- Remove the cargo holder.
-
Remove Side Trim Panel Bolt:
- Locate the bolt under the cover of the cargo holder holding the side trim panel in place.
- Remove the bolt.
-
Access Vehicle Connector:
- Pull outward on the side trim panel to locate the white vehicle connector housing.
- The connector housing will be similar to that on the custom wiring connector.
-
Connect Custom Wiring Harness:
- Insert the custom wiring connector into the white vehicle connector housing.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing screw with a nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw.
- Ensure the area is free of rust, dirt, and paint.
- Secure the white ground wire using the ring terminal and provided screw.
- Warning: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
-
Mount Converter Box:
- Locate a flat spot inside the vehicle, near the taillight.
- Adhere the black converter box using the provided double-sided tape.
-
Install Fuse:
- Install the 10-amp fuse into the red fuse holder on the converter harness.
-
Position 4-Flat Connector:
- When in use, route the 4-flat to the center of the vehicle.
- When not in use, roll up and store in a convenient, out-of-the-way location.
- Secure any loose wires with the provided cable ties.
-
Reassemble Vehicle Components:
- Reinstall all items removed during installation.
- Reconnect the negative battery terminal.
- Install the provided 4-flat dust cover to help prevent corrosion.
-
Install Tow/Trailer Fuse:
- Locate the vehicle fuse box in the engine compartment on the driver side.
- Insert the provided 30-amp tow/trailer fuse.
- Check the vehicle owner's manual for the exact location or contact the vehicle manufacturer for more information.
Hardware List:
- Custom wiring harness with 4-flat connector
- Black converter module
- Double-sided tape
- Ring terminal
- Ground screw
- Cable ties
- 10-amp fuse (for fuse holder on converter harness)
- 30-amp tow/trailer fuse
- 4-flat dust cover
Safety Notes:
- Battery Connection: The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
- Drilling Caution: Check for miscellaneous items that may be hidden behind or under any surface before drilling to avoid damage and/or personal injury.
Specifications:
- Signal Circuits: 3.0 amps per side
- Tail/Running Circuits: 6.0 amps total
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
- This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Installation Instructions for 4-Way to 5-Way Adapter
Tools Required:
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Quick Splice Connector (provided)
- Additional Wire (if needed for reverse light connection)
- Cable Ties (optional)
- Silicone Sealant (optional)
Overview:
This adapter converts your 4-way flat trailer connector to a 5-way flat, adding reverse light functionality for trailers with reverse lights or surge brake lockout systems.
Step-by-Step Instructions:
1. Mount the Adapter:
- Select a suitable mounting location near the hitch and securely install the adapter.
2. Connect the 4-Way Plug:
- Plug the 4-way flat connector from the adapter into the existing 4-way flat connector on your vehicle.
- This connection provides tail lights, left turn, right turn, and brake light functions.
3. Ground the Adapter:
- Locate a solid ground point near the adapter, such as the vehicle frame.
- Clean the surface to ensure proper contact.
- Secure the white ground wire from the adapter using the provided eyelet and a self-tapping screw.
4. Connect the Reverse Light Circuit:
-
Locate the Reverse Light Wire:
- Identify the reverse light circuit on your vehicle, typically found near the tail light assembly.
- Use the provided quick splice connector to attach the adapter's blue wire to the vehicle’s reverse light circuit.
-
Extend the Blue Wire (If Needed):
- If the adapter's blue wire is too short, splice in additional wire to reach the reverse light circuit.
- Route the wire safely, avoiding hot or moving parts, and secure it with cable ties.
-
Seal the Connection:
- If routing the wire through a grommet, seal any openings with silicone to prevent water ingress.
5. Secure the Wiring:
- Use cable ties to secure all wires and prevent them from hanging loosely or contacting sharp edges.
6. Test the Adapter:
- Plug the adapter into your trailer’s 5-way flat connector or use a test light to verify functionality:
- Brown Wire: Tail lights (solid when headlights are on).
- Yellow Wire: Left turn signal and brake light (flashes with turn signal).
- Green Wire: Right turn signal and brake light (flashes with turn signal).
- Blue Wire: Reverse light (active when the vehicle is in reverse).
- White Wire: Ground (continuity with the vehicle's ground).
Notes:
- This adapter is designed specifically for trailers requiring a reverse light or surge brake lockout circuit.
- Ensure all connections are secure to avoid intermittent functionality.
- Always follow safety guidelines during installation and verify all circuits before use.
Warning: Improper installation or overloaded circuits can result in damage or fire. Test all connections carefully.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
