For 2020‑2023 Tesla Y Trailer Hitch Fits All Models Curt 13598 2 inch Tow Receiver
Model: 13598-CH3518This Trailer Tow Hitch Fits The Following Vehicles:
2020 - 2023 Tesla Y All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2020, 2021, 2022, 2023

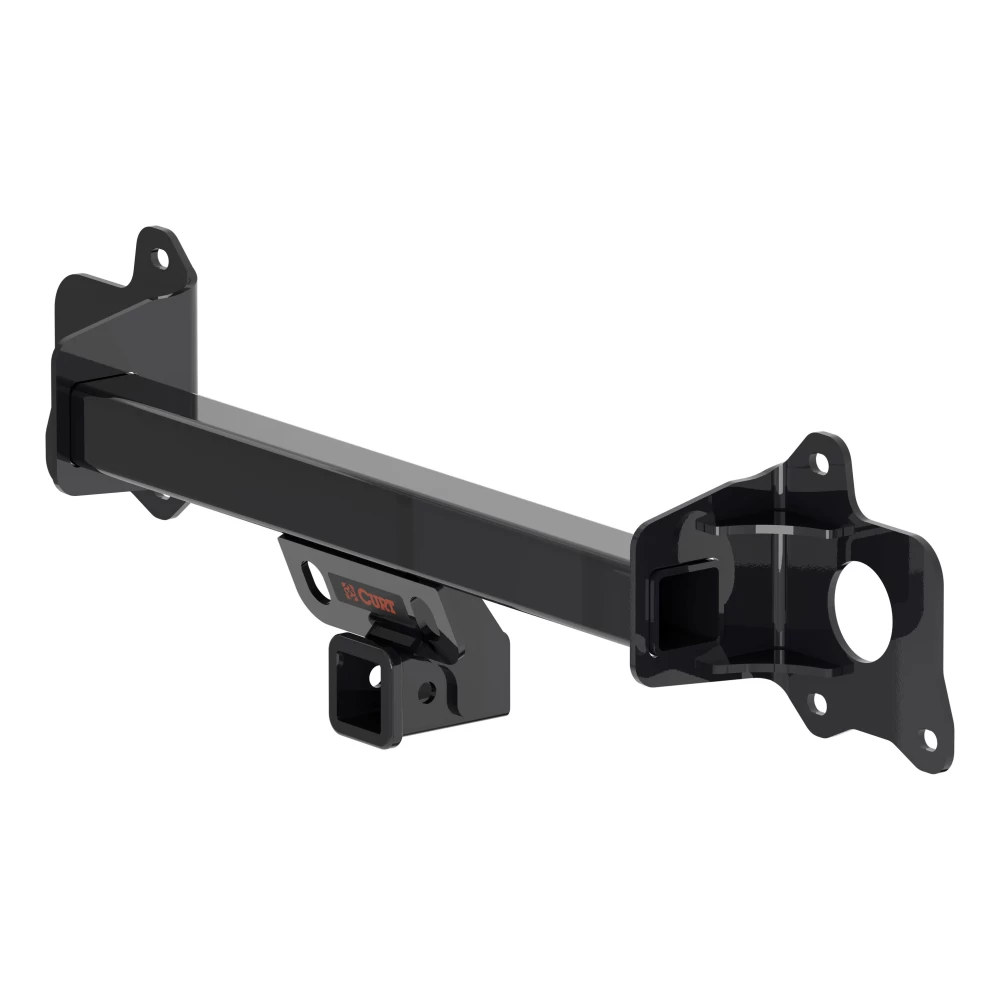

CURT 13598 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Tesla Model Y (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 3,500 lbs GTW and 525 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..

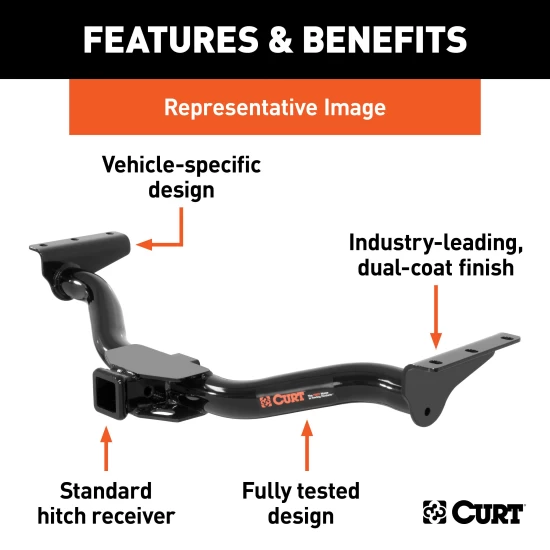

Features:
- Rated to 3,500 lbs. gross trailer weight and 525 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle

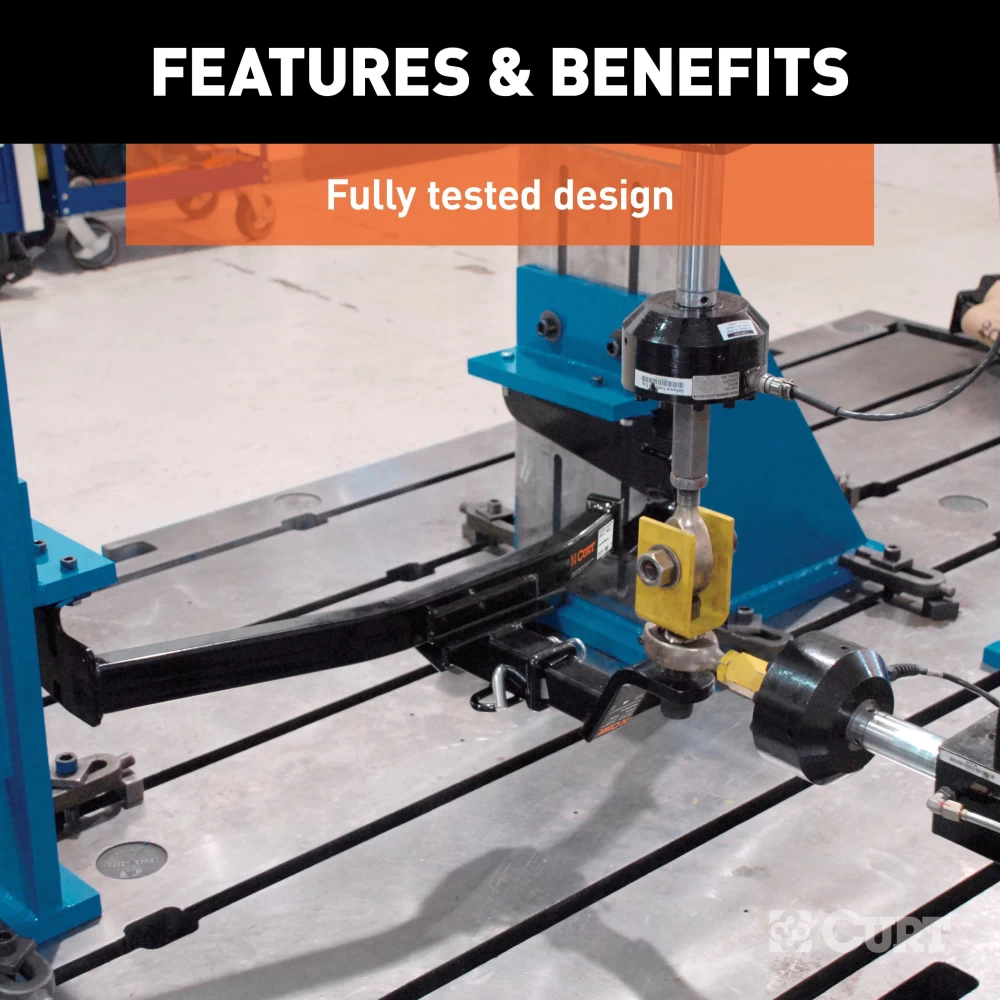

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish

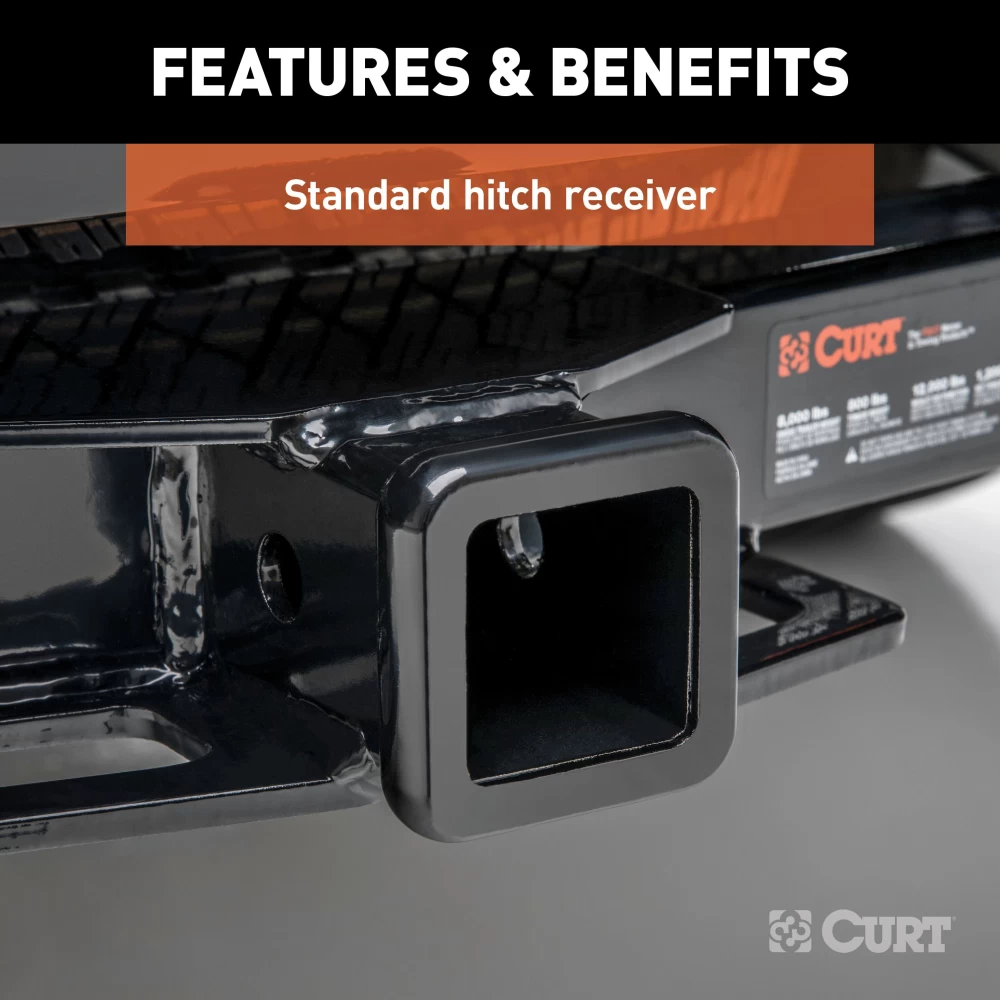

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$240 57 $376.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$376.95 $240 57
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $60.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13598-CH3518
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2020-2023 Tesla Y Trailer Hitch Fits All Models Curt 13598 2 inch Tow Receiver Install Notes
Installation Instructions for Tesla Model Y
Part Numbers:
- 13598
Tools Required:
- Ratchet
- Torque Wrench
- 6" Socket Extension
- T-25 Torx Bit
- Flathead Screwdriver
- Panel Trim Removal Tool
- Socket, 8mm
- Socket, 10mm
- Socket, 15mm
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove Rearmost Underbody Panel
- Use a 10mm socket and T-25 Torx bit to remove eleven screws.
- Use a flathead screwdriver to remove three plastic push fasteners along the outer edges and four push fasteners along the lower edge of the wheel well liner.
Step 2: Loosen Wheel Well Trim
- Use a plastic trim pry tool to remove two clips from the lower end of the wheel well trim and four clips along the side. Repeat for both sides.
Step 3: Loosen Wheel Well Liners
- Remove the plastic fastener in the middle of each wheel well liner by hand.
Step 4: Remove Bolts Behind Wheel Well Liners
- Use a 10mm socket to remove one bolt from each side behind the wheel well liners.
Step 5: Remove Carpet and Trunk Panels
- Open the rear hatch and remove the carpet panel.
- Carefully pry between the trunk panel and rubber trim to access the taillight wiring and fasteners.
- Remove two nuts with a 10mm socket and unclip the taillight wiring for each taillight.
Step 6: Remove Bumper Cover
- Remove one bolt under each taillight opening attaching the bumper cover.
- Starting from the wheel well, unclip the edge of the bumper cover and disconnect any sensor wiring behind the passenger side.
- Place the bumper cover in a safe location.
Step 7: Loosen Sensor Bar
- Temporarily remove the four bolts securing the sensor bar above the aluminum bumper using a 10mm socket.
- Set the sensor bar in the vehicle hatch opening.
Step 8: Remove Aluminum Bumper Beam
- Use a 15mm socket to remove six flange nuts securing the aluminum bumper beam.
- Return the bumper beam to the vehicle owner.
Step 9: Install Hitch
- Raise the hitch into position and loosely secure it using the factory nuts removed in Step 8.
Step 10: Torque Hitch Fasteners
- Torque all fasteners to 42 ft-lbs.
Step 11: Reassemble Vehicle
- Reassemble the vehicle in reverse order of disassembly, ensuring all wiring is connected and functioning properly.
Weight Carrying Capacity:
- Gross Trailer Weight (GTW): 3,500 lbs.
- Tongue Weight (TW): 525 lbs.
Safety Notes:
- Safety glasses should be worn at all times during installation.
- Periodically inspect the hitch to ensure all fasteners are tight and components are secure.
- Never exceed the vehicle manufacturer's recommended towing capacity.
Hardware List:
- Uses factory hardware for installation (no additional hardware provided with the hitch).
Important Notice:
- This installation does not require drilling but does require removing the taillights, underbody panel, bumper cover, and bumper beam.
- Read all instructions thoroughly before beginning the installation.
- For assistance, contact technical support at 877-287-8634.
