For 2020‑2022 Buick Encore Trailer Hitch Except Encore GX Curt 11527 1‑1/4 Tow Receiver
Model: 11527-CH183This Trailer Tow Hitch Fits The Following Vehicles:
2020 - 2022 Buick Encore Except Encore GX
This Trailer Tow Hitch Includes the Following Parts:
- Class 1 Hitch, 1-1/4" (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2020, 2021, 2022

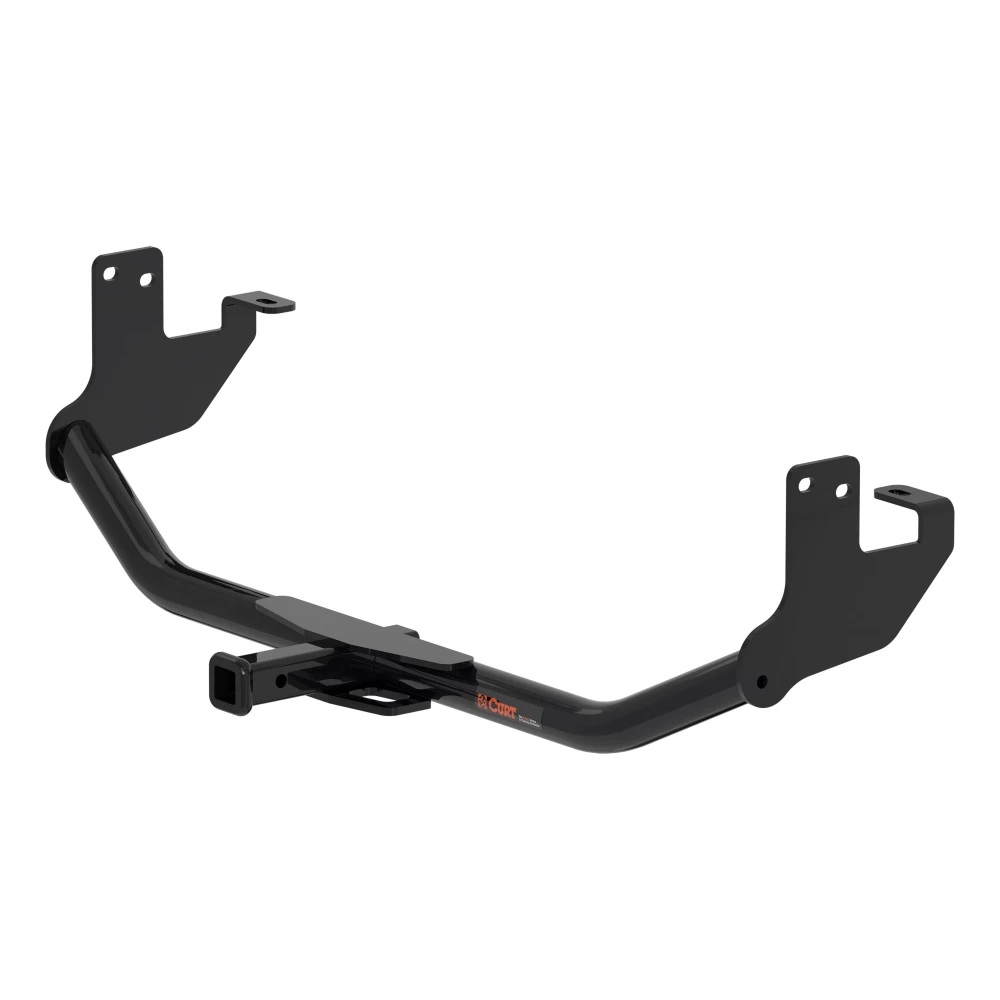

CURT 11527 Class 1 Trailer Hitch, 1-1/4-Inch Receiver
Manufactured by: Curt
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV.
This particular class 1 hitch is designed to be a custom hitch for certain years of the Buick Encore and Chevy Trax (excluding GX; to verify vehicle compatibility, see the CURT fitment guide at trailerjacks.com) Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs GTW and 200 lbs.
TW It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount This class 1 hitch also comes with all necessary mounting hardware.
With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e the vehicle, hitch, trailer, etc).
Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays..

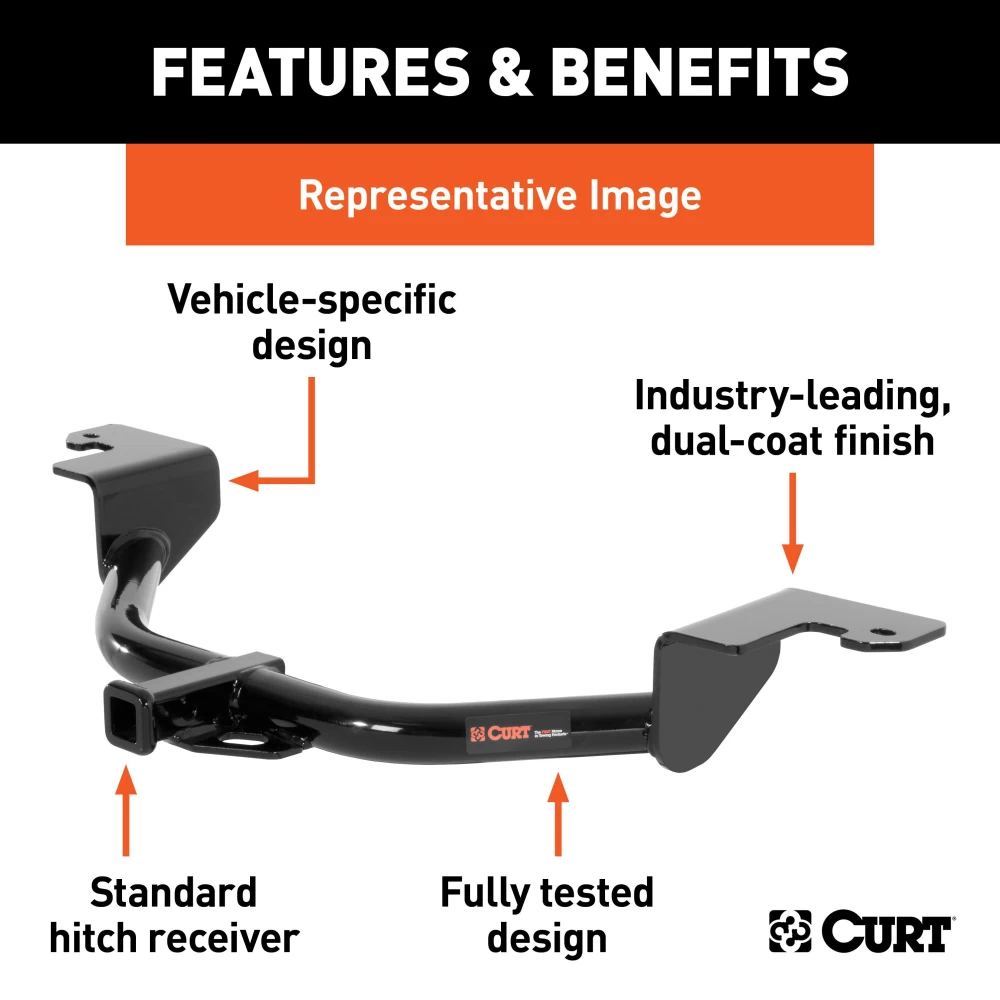

Features:
- Rated to 2,000 lbs. gross trailer weight and 200 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit

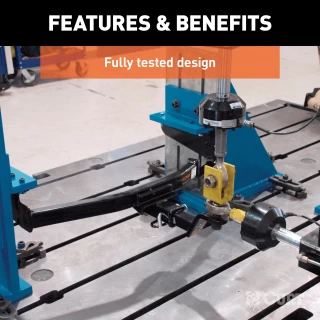

- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out

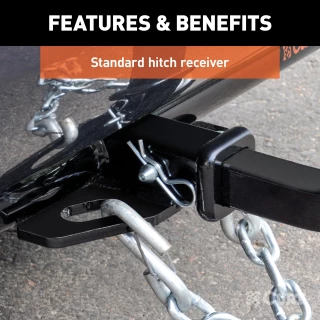

- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$234 74 $367.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$367.95 $234 74
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $58.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 11527-CH183
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2020-2022 Buick Encore Trailer Hitch Except Encore GX Curt 11527 1-1/4 Tow Receiver Install Notes
Installation Instructions for 2013-Present Buick Encore and Chevrolet Trax Crossover
Part Numbers:
- 11527
Tools Required:
- Ratchet
- Torque Wrench
- 11/16" and 3/4" Sockets
- Socket Extension
- Die Grinder
- Spray Lubricant
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Exhaust
- Lower the rear exhaust hangers on both sides of the vehicle.
- For ease of installation, lower the exhaust at the front center location, supporting it from underneath.
- Trim any caulking around the side mounting holes if necessary.
Step 2: Trim Wheel Well Plastic (If Needed)
- On certain model years, trim the wheel well plastic near the frame rails to allow a flush fit for the hitch side plates.
Caution: Avoid cutting into the vehicle brake lines while trimming.
Step 3: Enlarge Access Holes
- Use a die grinder to enlarge the access holes in the vehicle frame to fit the SP2 spacers provided.
Caution: Avoid damaging vehicle brake lines during this step.
Step 4: Fishwire Hardware
- Fishwire the spacers and 7/16" bolts through the access holes and into the bottom mounting holes of the frame.
- Raise the hitch into position and loosely secure it in place using the 7/16" nuts provided.
Step 5: Secure Hitch (Two Scenarios):
a. No Weldnuts in Frame: Fishwire the hardware for the side mounting points through the frame rail and the hitch side plates. Secure all 7/16" hardware.
b. Weldnuts in Frame: Secure the hitch with M12 bolts and 1/2" conical washers in the side mounting points.
Step 6: Torque Hardware
- Torque all 7/16" hardware to 59 ft-lbs.
- Torque all M12-1.25 hardware to 86 ft-lbs.
- Torque all M12-1.75 hardware to 79 ft-lbs.
Step 7: Reinstall Exhaust
- Raise the exhaust hangers back into position.
Hardware List:
- (1) 7/16-14 x 1-1/4" Carriage Bolt (Part Number: 10-102816)
- (2) M12 x 1.25 x 30mm Hex Bolts (Part Number: 10-104194)
- (2) M12 x 1.75 x 30mm Hex Bolts (Part Number: 10-104324)
- (2) 7/16-14 Hex Flange Nuts (Part Number: 20-001036)
- (2) 1/2" Conical Toothed Washers (Part Number: 30-001494)
- (2) .250 x .88 x 2.25" Square Hole Spacers (Part Number: CM-SP2)
- (2) 7/16" Fishwires (Part Number: 7_16 FISHWIRE)
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Maximum Trailer Weight: 2,000 lbs
- Maximum Tongue Weight: 200 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
- Designed for use with Ball Mount #45520
- Optional Euro Mounts: #45561 (1-7/8") and #45562 (2" Ball)
Installation Notes:
- Fishwiring and hole enlargement are required.
- Lowering the exhaust is necessary.
- Trimming of wheel well plastic may be required for certain models.
Warning:
All non-trailer loads must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Installation Instructions for 2013-Present Buick Encore and Chevrolet Trax Crossover
Part Numbers:
- 11527
Tools Required:
- Ratchet
- Torque Wrench
- 11/16" and 3/4" Sockets
- Socket Extension
- Die Grinder
- Spray Lubricant
- Safety Glasses
Step-by-Step Instructions:
Step 1: Lower Exhaust
- Lower the rear exhaust hangers on both sides of the vehicle.
- For ease of installation, lower the exhaust at the front center location, supporting it from underneath.
- Trim any caulking around the side mounting holes if necessary.
Step 2: Trim Wheel Well Plastic (If Needed)
- On certain model years, trim the wheel well plastic near the frame rails to allow a flush fit for the hitch side plates.
Caution: Avoid cutting into the vehicle brake lines while trimming.
Step 3: Enlarge Access Holes
- Use a die grinder to enlarge the access holes in the vehicle frame to fit the spacers provided.
Caution: Avoid damaging vehicle brake lines during this step.
Step 4: Fishwire Hardware
- Fishwire the spacers and 7/16" bolts through the access holes and into the bottom mounting holes of the frame.
- Raise the hitch into position and loosely secure it in place using the nuts provided.
Step 5: Secure Hitch (Two Scenarios):
a. No Weldnuts in Frame: Fishwire the hardware for the side mounting points through the frame rail and the hitch side plates. Secure all hardware.
b. Weldnuts in Frame: Secure the hitch with bolts and conical washers in the side mounting points.
Step 6: Torque Hardware
- Torque all 7/16" hardware to 59 ft-lbs.
- Torque all M12-1.25 hardware to 86 ft-lbs.
- Torque all M12-1.75 hardware to 79 ft-lbs.
Step 7: Reinstall Exhaust
- Raise the exhaust hangers back into position.
Hardware List:
- (1) 7/16-14 x 1-1/4" Carriage Bolt
- (2) M12 x 1.25 x 30mm Hex Bolts
- (2) M12 x 1.75 x 30mm Hex Bolts
- (2) 7/16-14 Hex Flange Nuts
- (2) 1/2" Conical Toothed Washers
- (2) .250 x .88 x 2.25" Square Hole Spacers
- (2) 7/16" Fishwires
Safety Notes:
- Safety glasses must be worn at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Specifications:
- Maximum Trailer Weight: 2,000 lbs
- Maximum Tongue Weight: 200 lbs
- Compliant with SAE J684 and V.E.S.C. Regulation V-5
- Designed for use with Ball Mount #45520
- Optional Euro Mounts: #45561 (1-7/8") and #45562 (2" Ball)
Installation Notes:
- Fishwiring and hole enlargement are required.
- Lowering the exhaust is necessary.
- Trimming of wheel well plastic may be required for certain models.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Warning:
All non-trailer loads must be supported by stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
