For 2022‑2024 Jeep Compass Trailer Hitch Fits All Models Curt 13363 2 inch Tow Receiver
Model: 13363-CH2479This Trailer Tow Hitch Fits The Following Vehicles:
2022 - 2024 Jeep Compass All Models
This Trailer Tow Hitch Includes the Following Parts:
- Class 3 Trailer Hitch, 2" Receiver (Easy Bolt-On, No Drilling)
- Installation instructions, schematics, diagrams, and hardware (if required).
List of Fitment Years:
2022, 2023, 2024

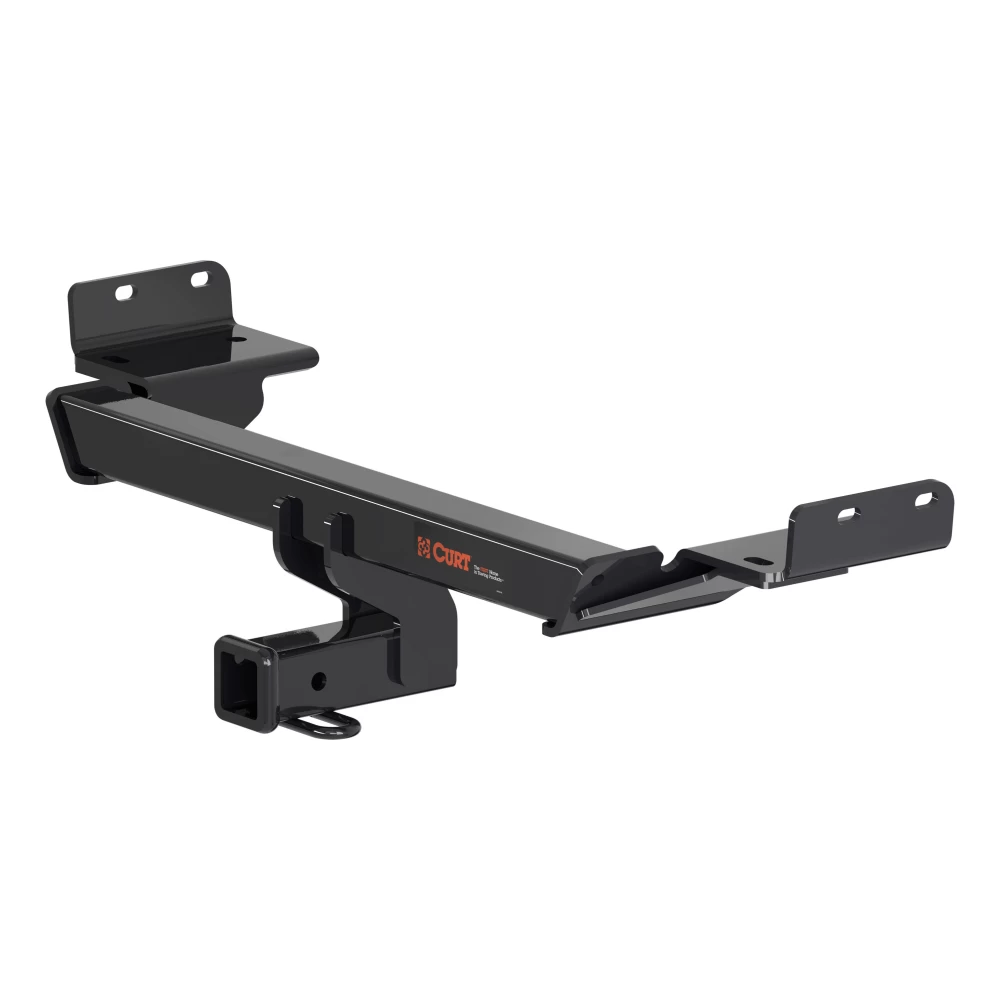

CURT 13363 Class 3 Trailer Hitch, 2-Inch Receiver
Manufactured by: Curt
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs.
Because of their weight range, they are also found on full-size cars, crossovers and minivans Each custom-fit class 3 hitch package is made for vehicle-specific mounting This particular kit fits certain years of the Jeep Compass (see application info to verify vehicle compatibility).
It provides a weight carrying capacity of 4,000 lbs GTW and 600 lbs TW.
CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component) Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding.
We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage..
Features:
- Rated to 4,000 lbs. gross trailer weight and 600 lbs. tongue weight
- Engineered with a vehicle-specific design for a custom fit
- Concealed main body for OE look and seamless integration with the vehicle
- Tested for safety in accordance with SAE J684
- Precisely welded for superior strength and fit
- Protected by a durable high-gloss black powder coat finish
- Co-cured in a rust-resistant liquid A-coat, inside and out
- Equipped with an open-back receiver for easy cleaning
- Limited lifetime warranty (one-year finish, one-year parts)
- Made in USA (may include imported hardware)
Hitches Near Me: We operate out of several warehouses across the country, ensuring faster delivery to your location.
$218 14 $340.95 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$340.95 $218 14
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 13363-CH2479
- Includes: Class 3 Trailer Tow Hitch
Compatibility Chart
Description
Get Expert Help
For 2022-2024 Jeep Compass Trailer Hitch Fits All Models Curt 13363 2 inch Tow Receiver Install Notes
Installation Instructions for Jeep Compass SUV (2017.5-Present)
Part Numbers:
- 13363
Tools Required:
- Ratchet
- Torque Wrench
- T30 Torx Bit
- 11mm Socket
- 13mm Socket
- 15mm Socket
- 21mm Socket
- 3/4" Socket
- 6" Socket Extension
- Masking Tape
- Tape Measure
- Aviation Shears
- Die Grinder
- Marker
- Pliers
- Safety Glasses
Step-by-Step Instructions:
Step 1: Remove the Bumper Fascia Screws
- Use a T30 Torx bit to remove two screws attaching the bumper fascia to the body mounts.
- Save the screws for reinstallation later.
Step 2: Lower the Exhaust
- Use a 13mm socket to remove one bolt from each of the two rearmost exhaust hanger brackets.
- Support the exhaust before removing the bolts to prevent damage.
- (Optional) Temporarily remove the exhaust by loosening the nut at the bolted connection in the middle of the vehicle using a 15mm socket.
Step 3: Remove and Trim the Heat Shield
- Use an 11mm socket to remove three sheet metal nuts holding the heat shield.
- Remove the heat shield and trim the exhaust attachment tabs from it.
- Reinstall the center of the heat shield onto the vehicle.
Step 4: Enlarge Frame Holes and Fishwire Hardware
- Remove six plastic hole covers if present.
- Use a die grinder to enlarge the rearward-most holes in the bottom of the frame to allow the supplied carriage bolts and spacers to pass through.
- Fishwire six 1/2" carriage bolts and CM-SP10 spacers into the mounting positions as shown in the diagram.
Step 5: Trim the Bumper Cover
- Use tape, a marker, and a measuring tape to mark a 3 3/8" side-to-side and 2 5/8" lengthwise cutout in the center of the vehicle.
- Trim the marked area using tin snips or aviation shears. Verify the hitch location before trimming.
Step 6: Modify the Exhaust Brackets
- Use pliers to bend the two small locator tabs flat on each exhaust bracket, or remove them entirely.
Step 7: Mount the Hitch
- Thread fishwires into the hitch mounting holes and raise the hitch into position, placing the main body on the rearward side of the bumper fascia body mounts.
- Pull downward on the rear bumper cover approximately 5" to position the hitch.
- Remove the fishwires and install six 1/2" hex flange nuts.
Step 8: Torque the Fasteners
- Torque all 1/2" fasteners to 110 lb-ft.
- Torque all M14 fasteners to 126 lb-ft.
Step 9: Reinstall Components
- Reinstall or raise the exhaust back into position and secure with the bolts removed in Step 2.
- Reinstall the rear bumper cover screws removed in Step 1.
Hardware List:
- (6) 1/2-13 UNC Carriage Bolts, 1-3/4"
- (2) M8-1.25 Hex Bolts, 45mm
- (6) 1/2-13 UNC Flange Nuts
- (6) .250 x 1.00 x 2.50" Square Hole Spacers
- (6) 1/2" Fishwire Tools
- (6) 3/8" Conical Washers
Safety Notes:
- Wear safety glasses at all times during installation.
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
Warnings:
- Do not exceed the vehicle manufacturer's recommended towing capacity.
- All non-trailer loads must be supported by stabilizing straps to prevent damage and voiding the warranty.
- Hitch may interfere with the lift gate kick sensor.
Specifications:
- Gross Trailer Weight: 4,000 lbs
- Tongue Weight: 600 lbs
- Complies with SAE J684 and V.E.S.C. Regulation V-5
Additional Notes:
