Product Details
- Brand: Curt
- Model: 56393 58290-CW659

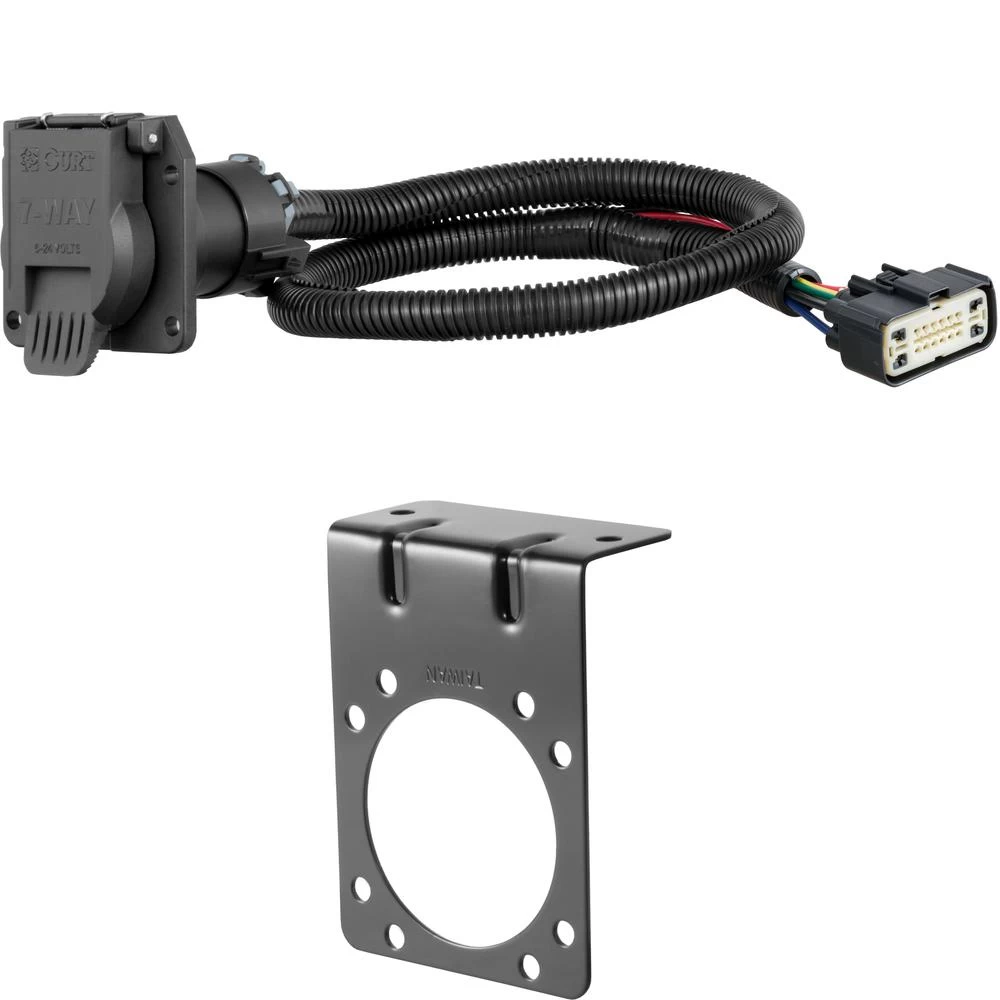

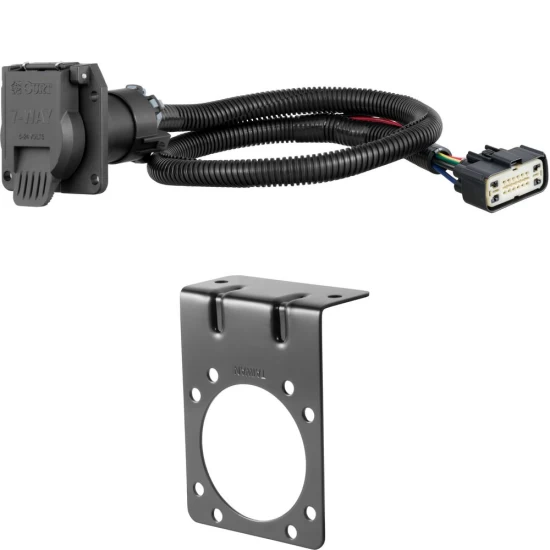

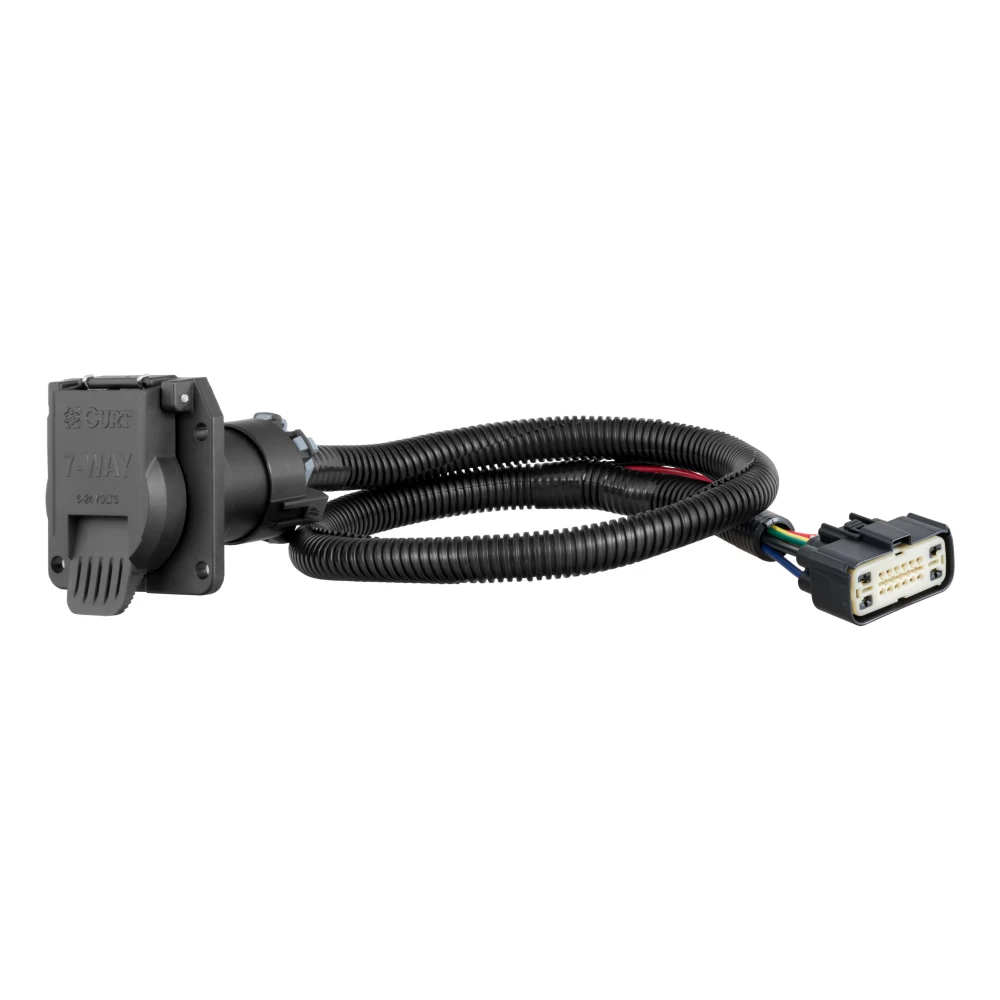

- Includes: Custom Wiring Connector, Connector Mounting Bracket for 7-Way RV Blade Black)
Compatibility Chart
Description
Get Expert Help
For 2024 Chevy Traverse Limited Trailer Wiring 7 Way Trailer Wiring Plug w/ Bracket Fits All Models Curt Install Notes
Installation Instructions for Chevrolet Traverse
Part Numbers:
- 56393
Wiring Access Locations:
- S5: Behind driver-side rear bumper
Tools Required:
- Ratchet
- 15mm socket
- Socket extension
- Flat blade screwdriver
- Panel trim removal tool
- Cutting tool
Electrical Ratings:
- Stop/Turn Light: 10.0 amps total
- Taillights: 10.0 amps total
- Backup: 10.0 amps total
- Power Circuit: 30.0 amps total
- Trailer Brakes (3 axles/6 brakes): 20.0 amps total
Step-by-Step Instructions:
-
Access the Vehicle Taillight Wiring:
- Above the muffler on the driver side, locate the vehicle’s taillight wiring.
- Lower the muffler to gain access to the wiring connector.
- If needed, use a panel trim removal tool to carefully pry the connector away from the vehicle frame.
- If there is insufficient space, remove the bolts securing the muffler bracket to create additional clearance.
-
Disconnect the Vehicle Connector:
- Locate the vehicle wiring connector, which will resemble the custom wiring connector.
- Separate the connectors from the taillight housing, ensuring the locking tabs are not damaged.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle’s wiring connector.
- Ensure the connectors are fully inserted and the locking tabs are properly engaged.
-
Route the Wiring Harness:
- Determine a mounting location for the 7-way connector.
- Route the other end of the custom wiring connector along the inside of the bumper toward the center of the vehicle and the mounting location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components:
- Reinstall all items that were removed during the installation process, including the muffler and its bracket.
-
Test the Installation:
- Ensure all connections are complete before testing.
- For vehicles equipped with a brake control unit, use a properly wired trailer or brake control tester to verify functionality.
- For vehicles without a brake control unit, use a properly wired trailer or test lamps.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Verify the positive battery (+) output by starting the vehicle and depressing the brake pedal with the trailer connected.
Safety Notes:
- Route the wiring away from hot surfaces such as the muffler, heat pipes, and heat shields.
- Do not exceed product or tow vehicle lamp load ratings.
- Periodically inspect all connections for visible damage or looseness.
Manufacturer Notes:
- Follow all instructions thoroughly to ensure proper installation.
- Test the harness using a test light or a properly wired trailer.
- Secure all wiring with cable ties to prevent interference or damage during vehicle operation.
Installation Instructions for Chevrolet Traverse
Part Numbers:
- 56393
Wiring Access Locations:
- S5: Behind driver-side rear bumper
Tools Required:
- Ratchet
- 15mm socket
- Socket extension
- Flat blade screwdriver
- Panel trim removal tool
- Cutting tool
Electrical Ratings:
- Stop/Turn Light: 10.0 amps total
- Taillights: 10.0 amps total
- Backup: 10.0 amps total
- Power Circuit: 30.0 amps total
- Trailer Brakes (3 axles/6 brakes): 20.0 amps total
Step-by-Step Instructions:
-
Access the Vehicle Taillight Wiring:
- Above the muffler on the driver side, locate the vehicle’s taillight wiring.
- Lower the muffler to gain access to the wiring connector.
- If needed, use a panel trim removal tool to carefully pry the connector away from the vehicle frame.
- If there is insufficient space, remove the bolts securing the muffler bracket to create additional clearance.
-
Disconnect the Vehicle Connector:
- Locate the vehicle wiring connector, which will resemble the custom wiring connector.
- Separate the connectors from the taillight housing, ensuring the locking tabs are not damaged.
-
Connect the Custom Wiring Harness:
- Insert the custom wiring connector into the vehicle’s wiring connector.
- Ensure the connectors are fully inserted and the locking tabs are properly engaged.
-
Route the Wiring Harness:
- Determine a mounting location for the 7-way connector.
- Route the other end of the custom wiring connector along the inside of the bumper toward the center of the vehicle and the mounting location.
- Secure any loose wires with the provided cable ties.
-
Reinstall Components:
- Reinstall all items that were removed during the installation process, including the muffler and its bracket.
-
Test the Installation:
- Ensure all connections are complete before testing.
- For vehicles equipped with a brake control unit, use a properly wired trailer or brake control tester to verify functionality.
- For vehicles without a brake control unit, use a properly wired trailer or test lamps.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
- Verify the positive battery (+) output by starting the vehicle and depressing the brake pedal with the trailer connected.
Safety Notes:
- Route the wiring away from hot surfaces such as the muffler, heat pipes, and heat shields.
- Do not exceed product or tow vehicle lamp load ratings.
- Periodically inspect all connections for visible damage or looseness.
Manufacturer Notes:
- Follow all instructions thoroughly to ensure proper installation.
- Test the harness using a test light or a properly wired trailer.
- Secure all wiring with cable ties to prevent interference or damage during vehicle operation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
