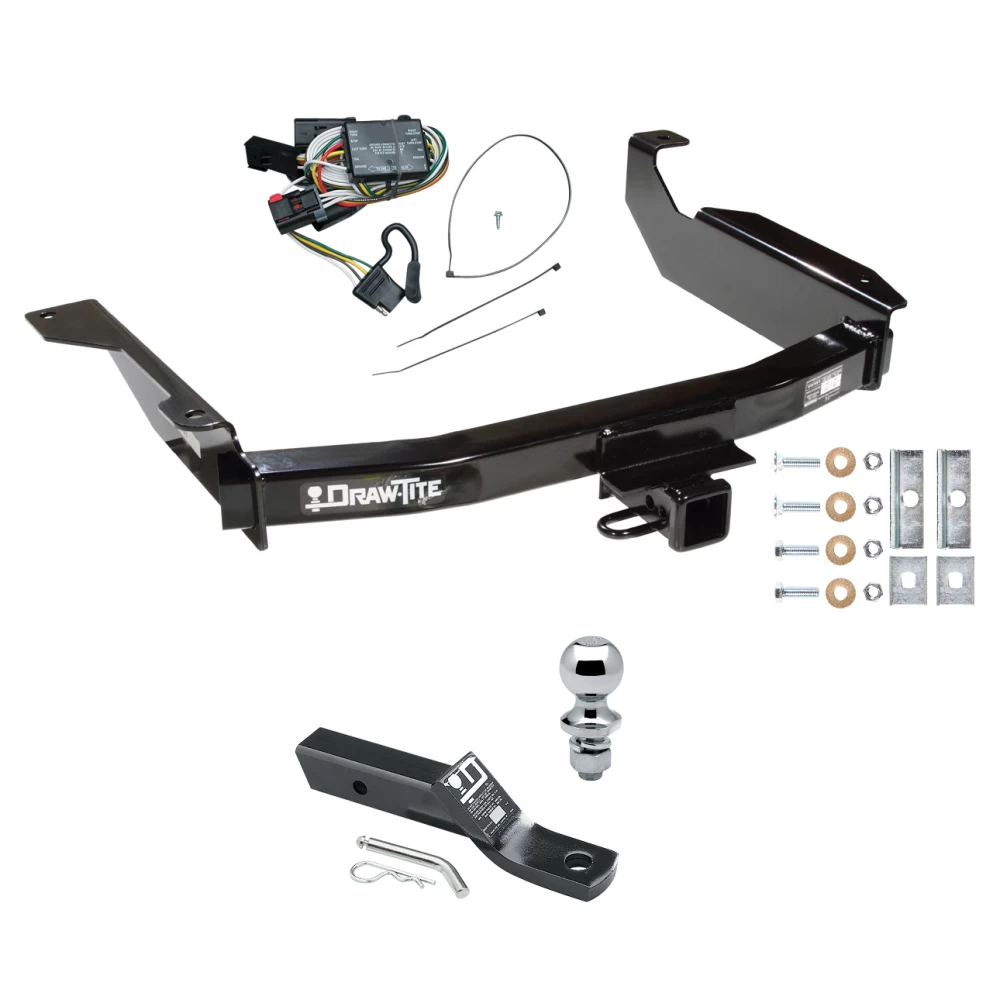

Trailer Tow Hitch For 98‑03 Dodge Durango Complete Package w/ Wiring and 1‑7/8" Ball
Model: 75081 118334 23 63816Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2003 Dodge, Durango, All Styles
Trailer Hitch Specs:
| Part Number | 75081 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118354 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 98 99 00 01 02 03 1998 1999 2000 2001 2002 2003
$304 66 $452.01 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$452.01 $304 66
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $76.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75081 118334 23 63816
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1998 - 2003 Dodge, Durango, All Styles
Trailer Hitch Specs:
| Part Number | 75081 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118354 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 98 99 00 01 02 03 1998 1999 2000 2001 2002 2003
Get Expert Help
Trailer Tow Hitch For 98-03 Dodge Durango Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Dodge Durango
Part Numbers:
- 75081
- 87572
- 44533
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position, aligning it with the mounting holes on the crossmembers.
-
Install Fasteners:
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
- 1/2"-13 x 1.75 GR5 carriage bolts
- 1/4" x 1-1/2" x 2" blocks
- Conical toothed washers
- Nuts
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
-
Reinforcement Bracket Installation:
- Ensure the flange of the reinforcement bracket is positioned toward the rear crossmember as shown in the diagram.
-
Adjust Spare Tire (If Needed):
- Some spare tires may need to be slightly loosened to accommodate the hitch installation. After installation, re-tighten the spare tire.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1.75" GR5
- (4) Blocks, 1/4" x 1-1/2" x 2"
- (4) Conical Toothed Washers
- (4) Nuts, 1/2"-13 GR5
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- Accessory Rating: Class D
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Dodge Durango
Part Numbers:
- 75081
- 87572
- 44533
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 3/4", 7/8"
Step-by-Step Instructions:
-
Raise Hitch:
- Lift the hitch into position, aligning it with the mounting holes on the crossmembers.
-
Install Fasteners:
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
- 1/2"-13 x 1.75 GR5 carriage bolts
- 1/4" x 1-1/2" x 2" blocks
- Conical toothed washers
- Nuts
- Secure the hitch to the forward and rear crossmembers using the provided fasteners:
-
Reinforcement Bracket Installation:
- Ensure the flange of the reinforcement bracket is positioned toward the rear crossmember as shown in the diagram.
-
Adjust Spare Tire (If Needed):
- Some spare tires may need to be slightly loosened to accommodate the hitch installation. After installation, re-tighten the spare tire.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) 1/2"-13 x 1.75" GR5 Carriage Bolts
- (4) 1/4" x 1-1/2" x 2" Blocks
- (4) Conical Toothed Washers
- (4) 1/2"-13 GR5 Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 500 lb (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Additional Notes:
- Accessory Rating: Class D
- This product complies with SAE J684 safety standards.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118334
Wiring Access Location:
- Tail light wiring harness near the rear of the vehicle.
Tools Required:
- Utility knife.
- Drill with a 3/32" drill bit.
- Screw or cable ties (provided in the kit).
Step-by-Step Instructions:
- Remove both of the vehicle’s rear tail lamp housings.
- Slide the red locking tab on the harness connector to the unlocked position.
- Disconnect the wire harness from both tail lamp sockets.
Vehicle-Specific Instructions:
2A. Minivans:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.
- Plug the T-Connector end with the yellow wire between the mating plug on the tail light socket and the vehicle wiring harness.
- Lock the connectors with the red locking tab.
- Repeat this procedure for the passenger’s side using the T-Connector end with the green wire.
2B. Durango:
- Temporarily remove the black air baffle below the rubber grommet on the driver’s side.
- Push the vehicle’s wiring and rubber grommet into the area behind the baffle.
- Place the T-Connector harness behind the air baffle and plug the T-Connector end with the yellow wire into the mating plug on the vehicle’s wiring harness.
- Lock the connectors with the red locking tabs.
- With the vehicle wiring and grommets exposed:
- Slit the grommet on the driver’s side using a utility knife.
- Unwrap or cut the tape around the grommet tabs and pull the wiring slightly out on the passenger’s side.
- Repeat this step on the passenger’s side.
4A. Minivans:
- Open the vehicle’s jack storage compartment on the driver’s side.
- Push the T-Connector 4-flat connector inside through the tail light wiring hole and into the storage compartment.
4B. Durango:
- Route the T-Connector end with the green wire and the 4-flat connector through the grommet hole from inside to outside.
- Route the green wire to the passenger’s side and secure the 4-flat underneath the bumper.
-
Reposition the rubber grommets on both sides over the T-Connector wiring.
- Push all existing wires back into the grommet holes and reseat the grommets.
-
Secure the black converter box and trailer wiring using double-sided tape, electrical tape, or cable ties.
- Place the converter box inside the jack storage compartment or behind the air baffle.
-
Replace all removed trim panels, air baffles, and tail lamp housings.
- Position the wire harness between the housing and the vehicle body.
- Secure the T-Connector harness under the bumper using the provided cable ties.
-
Test the installation with a test light or trailer.
- Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail light: (4.2 amps).
- Specifications:
Hardware List:
- T-Connector adapter.
- Black box.
- Cable ties.
- Double-sided tape.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Do not drill into exposed surfaces.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
- Overloading circuits can cause fires. Adhere to specified ratings.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118334
Wiring Access Location:
- Tail light wiring harness near the rear of the vehicle.
Tools Required:
- Utility knife
- Drill with a 3/32" drill bit
- Screw or cable ties (provided in the kit)
Step-by-Step Instructions:
- Remove Rear Tail Lamp Housings:
- Slide the red locking tab on the harness connector to the unlocked position.
- Disconnect the wire harness from both tail lamp sockets.
Vehicle-Specific Instructions:
2A. Minivans:
- Pull the vehicle’s wiring harness and rubber grommet slightly out on the driver’s side.
- Plug the T-Connector end with the yellow wire between the mating plug on the tail light socket and the vehicle wiring harness.
- Lock the connectors with the red locking tab.
- Repeat this procedure for the passenger’s side using the T-Connector end with the green wire.
2B. Durango:
- Temporarily remove the black air baffle below the rubber grommet on the driver’s side.
- Push the vehicle’s wiring and rubber grommet into the area behind the baffle.
- Place the T-Connector harness behind the air baffle and plug the T-Connector end with the yellow wire into the mating plug on the vehicle’s wiring harness.
- Lock the connectors with the red locking tabs.
- Expose Vehicle Wiring and Grommets:
- Slit the grommet on the driver’s side using a utility knife.
- Unwrap or cut the tape around the grommet tabs and pull the wiring slightly out on the passenger’s side.
- Repeat this step on the passenger’s side.
4A. Minivans:
- Open the vehicle’s jack storage compartment on the driver’s side.
- Push the T-Connector 4-flat connector inside through the tail light wiring hole and into the storage compartment.
4B. Durango:
- Route the T-Connector end with the green wire and the 4-flat connector through the grommet hole from inside to outside.
- Route the green wire to the passenger’s side and secure the 4-flat underneath the bumper.
-
Reposition Rubber Grommets:
- Push all existing wires back into the grommet holes and reseat the grommets on both sides over the T-Connector wiring.
-
Secure the Black Converter Box and Wiring:
- Use double-sided tape, electrical tape, or cable ties to secure the black converter box and trailer wiring.
- Place the converter box inside the jack storage compartment or behind the air baffle.
-
Reassemble the Vehicle:
- Replace all removed trim panels, air baffles, and tail lamp housings.
- Position the wire harness between the housing and the vehicle body.
- Secure the T-Connector harness under the bumper using the provided cable ties.
-
Test the Installation:
- Test the installation with a test light or trailer to ensure all connections function properly.
Specifications:
- Max. Stop/Turn Light: 1 per side (2.1 amps)
- Max. Tail Light: 4.2 amps
Hardware List:
- T-Connector adapter
- Black box
- Cable ties
- Double-sided tape
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Do not drill into exposed surfaces.
- Test the installation after completing all steps to verify functionality.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation. Overloading circuits can cause fires—adhere to specified ratings.
Related Products
