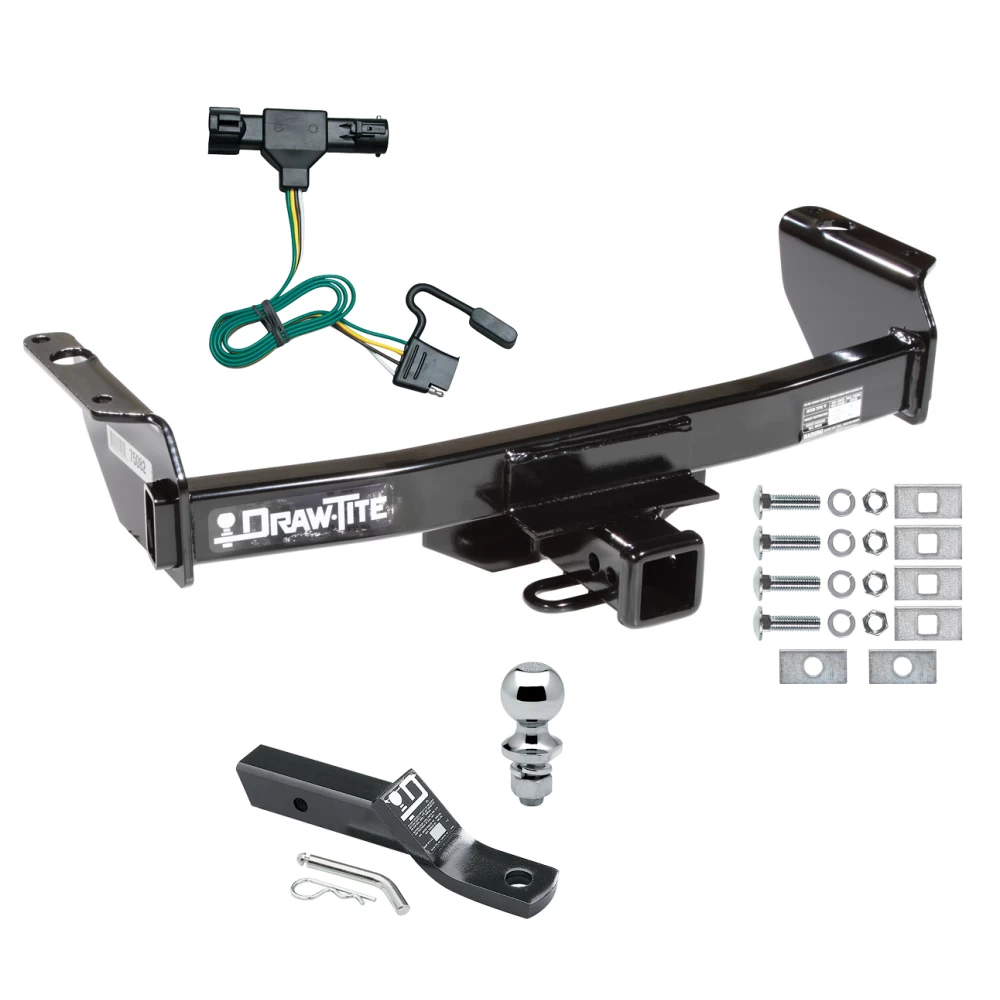

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 86-92 Ford Ranger Except GT Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Ford Ranger and Mazda B-Series (B2300, B3000, B4000)
Part Numbers:
- 75082
- 44101
- 78165
- 87161
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Rearmost Fasteners:
- For vehicles with a step bumper, remove the rearmost bumper bracket bolt and J-nut from both sides.
-
Position Hitch:
- Place the hitch on the vehicle, ensuring the bumper brackets (if present) are sandwiched between the hitch and the vehicle frame. Install the rearmost fasteners.
-
Drill Forward Holes:
- Using the hitch as a template, drill two (2) 1/2" holes into the frame at the forward end of the hitch.
- Note: On some models, the holes may already exist.
-
Install Remaining Fasteners:
- Secure the hitch using the provided hardware. For vehicles with a step bumper, place the 3/16" x 1" x 2" block between the frame and the side brackets at the forward attachment point.
-
Tighten Fasteners:
- Tighten all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) Carriage Bolts, 1/2"-13 x 1-3/4"
- (4) Blocks, 1/4" x 1" x 2"
- (2) Blocks, 3/16" x 1" x 2"
- (4) Lock Washers, 1/2"
- (4) Hex Nuts, 1/2"-13
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 4,000 lb (1,816 kg)
- Max Tongue Weight: 400 lb (182 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 750 lb (340.5 kg)
Additional Notes:
- A 19mm open-end wrench must be purchased to allow removal of the spare tire after hitch installation.
- This product complies with SAE J684 safety standards and V.E.S.C. Regulation V-5.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Ford Ranger and Mazda B-Series (B2300, B3000, B4000)
Part Numbers:
- 75082
- 44101
- 78165
- 87161
Wiring Access Location:
- PU3
Tools Required:
- Wrenches: 18mm, 19mm, 7/8"
- Drill Bits: 1/2"
Step-by-Step Instructions:
-
Remove Rearmost Fasteners:
- For vehicles with a step bumper, remove the rearmost bumper bracket bolt and J-nut from both sides.
-
Position Hitch:
- Place the hitch on the vehicle, ensuring the bumper brackets (if present) are sandwiched between the hitch and the vehicle frame. Install the rearmost fasteners.
-
Drill Forward Holes:
- Using the hitch as a template, drill two (2) 1/2" holes into the frame at the forward end of the hitch.
- Note: On some models, the holes may already exist.
-
Install Remaining Fasteners:
- Secure the hitch using the provided hardware. For vehicles with a step bumper, place the 3/16" x 1" x 2" block between the frame and the side brackets at the forward attachment point.
-
Tighten Fasteners:
- Tighten all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m).
Torque Specifications:
- 1/2"-13 GR5: 75 lb-ft (102 N*m)
Hardware List:
- (4) 1/2"-13 x 1-3/4" Carriage Bolts
- (4) 1/4" x 1" x 2" Blocks
- (2) 3/16" x 1" x 2" Blocks
- (4) 1/2" Lock Washers
- (4) 1/2"-13 Hex Nuts
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 4,000 lb (1,816 kg)
- Max Tongue Weight: 400 lb (182 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 6,000 lb (2,724 kg)
- Max Tongue Weight: 750 lb (340.5 kg)
Additional Notes:
- A 19mm open-end wrench must be purchased to allow removal of the spare tire after hitch installation.
- This product complies with SAE J684 safety standards and V.E.S.C. Regulation V-5.
- Ensure all fasteners are properly torqued before towing.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118314
Tools Required:
- Drill (3/32” Drill Bit)
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Tail Light Wiring Harness:
- Locate the vehicle’s tail light wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector adapter.
-
Separate the Harness Connectors:
- Carefully separate the harness connectors without breaking the locking tabs.
- Check that the mating surfaces of the connectors are clean and free of dirt. Clean if necessary.
-
Modify Connectors if Required:
- If the vehicle's harness connectors are gray, trim the alignment tabs from the male harness connector and the male end of the T-Connector adapter as indicated in the instructions.
-
Connect the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle cross member or other mounting point using electrical tape or tie straps.
-
Test the Installation:
- Verify that all connections are complete.
- Test the installation using a test light or trailer.
Warning:
- This unit is rated for 7.5 amps per circuit.
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and follow proper safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Manufacturer Notes:
- Store these instructions for future reference.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118314
Tools Required:
- Drill (3/32” Drill Bit)
- Electrical Tape or Tie Straps (not supplied)
Step-by-Step Instructions:
-
Locate the Tail Light Wiring Harness:
- Locate the vehicle’s tail light wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-Connector adapter.
-
Separate the Harness Connectors:
- Carefully separate the harness connectors without breaking the locking tabs.
- Check that the mating surfaces of the connectors are clean and free of dirt. Clean if necessary.
-
Modify Connectors if Required:
- If the vehicle's harness connectors are gray, trim the alignment tabs from the male harness connector and the male end of the T-Connector adapter as indicated in the instructions.
-
Connect the T-Connector Adapter:
- Insert the T-Connector adapter between the harness connectors and lock it into place.
- Ensure the connectors are fully inserted and the locking tabs are secured.
-
Route the T-Connector Harness:
- Route the T-Connector harness to the center of the vehicle.
- Secure the wire to the vehicle cross member or other mounting point using electrical tape or tie straps.
-
Test the Installation:
- Verify that all connections are complete.
- Test the installation using a test light or trailer.
Warning:
- This unit is rated for 7.5 amps per circuit.
- Overloading circuits can cause fires. Do not exceed the stated product ratings.
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
Safety Notes:
- Always wear safety glasses and follow proper safety precautions during installation.
- Avoid routing wires near sharp edges or hot components that may damage the harness.
- Follow all vehicle warnings and installation instructions carefully.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Store these instructions for future reference and consult the vehicle owner’s manual for additional details.
