Product Details
- Brand: Draw-Tite
- Model: 75916 118463 23 63845
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help

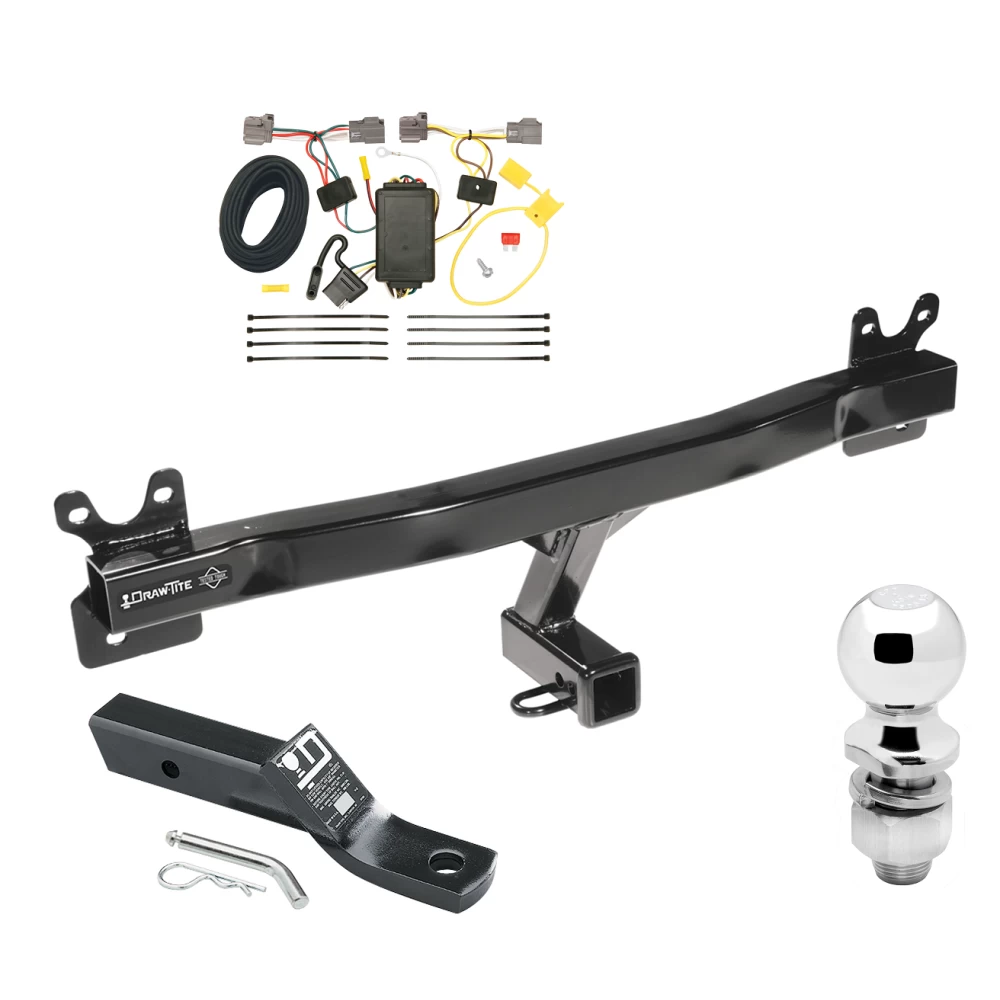

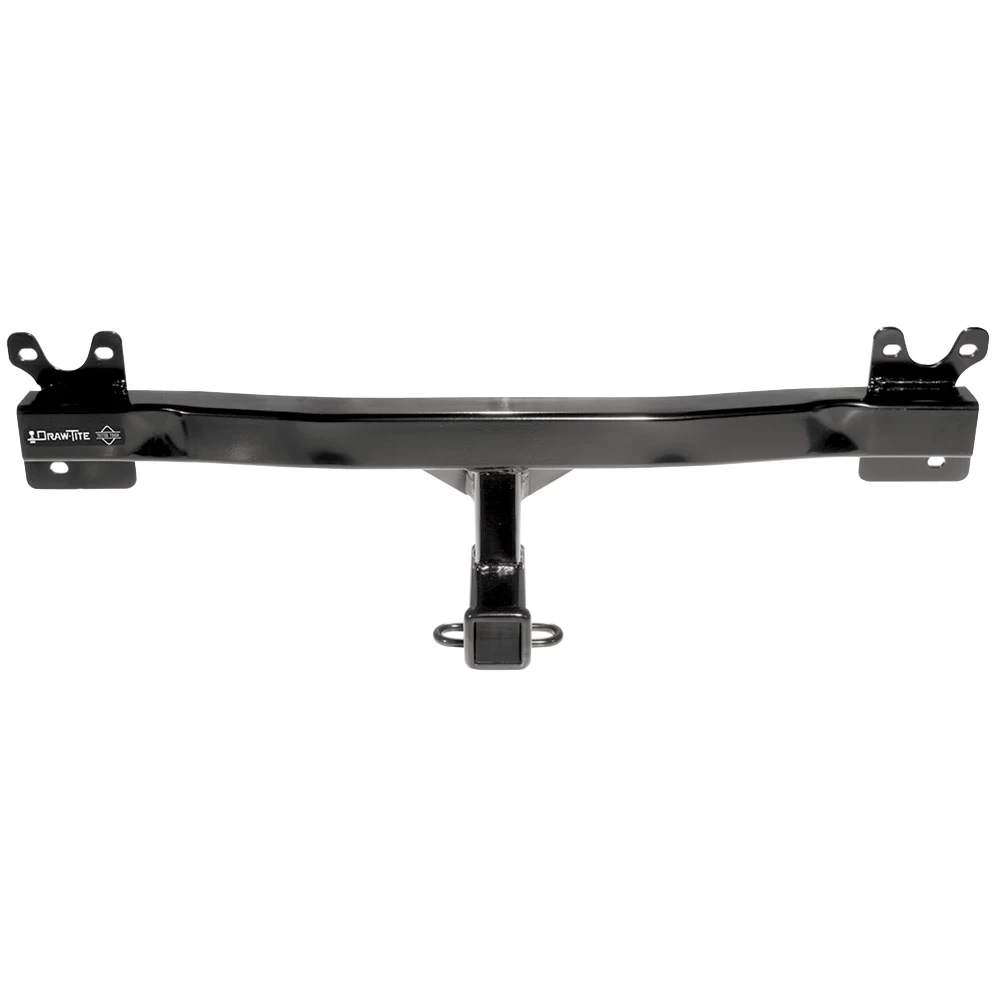

Trailer Tow Hitch For 08-10 Volvo V70 Wagon Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Volvo V70, XC70, S60, and V60
Part Numbers:
- 75916
- 87674
- 44999
- 75178 (U-Haul)
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Utility Knife
- Wrenches: 8mm, 10mm, 13mm, 17mm
- Torx Driver: T-25
Step-by-Step Instructions:
-
Remove Rear Bumper Fascia:
- Notify the vehicle owner that the fascia requires trimming for hitch installation.
- Remove the plastic fastener at the rear of the vehicle between the bottom of the fascia and the end panel.
- Open the tailgate and remove the two rubber tailgate stops.
- Remove screws (each side) from the plastic wheel well molding and gently pull the fascia away from the molding.
- At the tail light, pull gently rearward and continue until the fascia is completely removed.
-
Loosen Towing Eye:
- Remove the inside appearance panel at the rear of the tailgate and loosen the towing eye under the panel on the passenger side.
-
Remove Impact Bar:
- Continue loosening the towing eye as needed to remove the impact bar.
-
Install Hitch:
- Place the hitch into the impact bar and align the bolt holes.
- Attach conical washers to the hex bolts and insert them into the bolt holes.
- Slide 3/8” blocks onto the backside of the bolts on the hitch (only for models with raised end panels).
-
Secure Hitch and Reinstall Components:
- Raise the hitch and impact bar into position. Hand-tighten all bolts, including those for the towing eye.
- Reinstall the towing eye by sandwiching the hitch, impact bar, and towing eye. Tighten all bolts to the specified torque:
- M10 CL8.8 fasteners: 38 lb-ft (52 N*m).
- Retighten the towing eye from inside the vehicle trunk.
-
Trim Fascia:
- Use a utility knife to trim the fascia at the bottom center. The cut should be 2 1/2” wide and 2” long.
- Obtain the vehicle owner’s approval before cutting.
-
Reinstall Fascia:
- Carefully reinstall the fascia, ensuring it sits flat along the rear shelf of the trunk.
Hardware List:
- Qty (6): Hex Bolt – M10 x 1.5 x 45mm CL10.9
- Qty (6): Conical Washer – 7/16”
- Qty (6): Block – 3/8” (only for models with raised end panels)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,814 kg)
- Max Tongue Weight: 400 lbs (181 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicle
Part Numbers:
- 75916
- 87674
- 44999
- 75178 (U-Haul)
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Utility Knife
- Wrenches: 8mm, 10mm, 13mm, 17mm
- Torx Driver: T-25
Step-by-Step Instructions:
-
Remove Rear Bumper Fascia:
- Notify the vehicle owner that the fascia requires trimming for hitch installation.
- Remove the plastic fastener at the rear of the vehicle between the bottom of the fascia and the end panel.
- Open the tailgate and remove the two rubber tailgate stops.
- Remove screws (each side) from the plastic wheel well molding and gently pull the fascia away from the molding.
- At the tail light, pull gently rearward and continue until the fascia is completely removed.
-
Loosen Towing Eye:
- Remove the inside appearance panel at the rear of the tailgate and loosen the towing eye under the panel on the passenger side.
-
Remove Impact Bar:
- Continue loosening the towing eye as needed to remove the impact bar.
-
Install Hitch:
- Place the hitch into the impact bar and align the bolt holes.
- Attach conical washers to the hex bolts and insert them into the bolt holes.
- Slide 3/8” blocks onto the backside of the bolts on the hitch (only for models with raised end panels).
-
Secure Hitch and Reinstall Components:
- Raise the hitch and impact bar into position. Hand-tighten all bolts, including those for the towing eye.
- Reinstall the towing eye by sandwiching the hitch, impact bar, and towing eye. Tighten all bolts to the specified torque:
- M10 CL8.8 fasteners: 38 lb-ft (52 N*m).
- Retighten the towing eye from inside the vehicle trunk.
-
Trim Fascia:
- Use a utility knife to trim the fascia at the bottom center. The cut should be 2 1/2” wide and 2” long.
- Obtain the vehicle owner’s approval before cutting.
-
Reinstall Fascia:
- Carefully reinstall the fascia, ensuring it sits flat along the rear shelf of the trunk.
Hardware List:
- Qty (6): Hex Bolt – M10 x 1.5 x 45mm CL10.9
- Qty (6): Conical Washer – 7/16”
- Qty (6): Block – 3/8” (only for models with raised end panels)
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,814 kg)
- Max Tongue Weight: 400 lbs (181 kg)
- Weight Distributing: Not compatible with spring bars.
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.

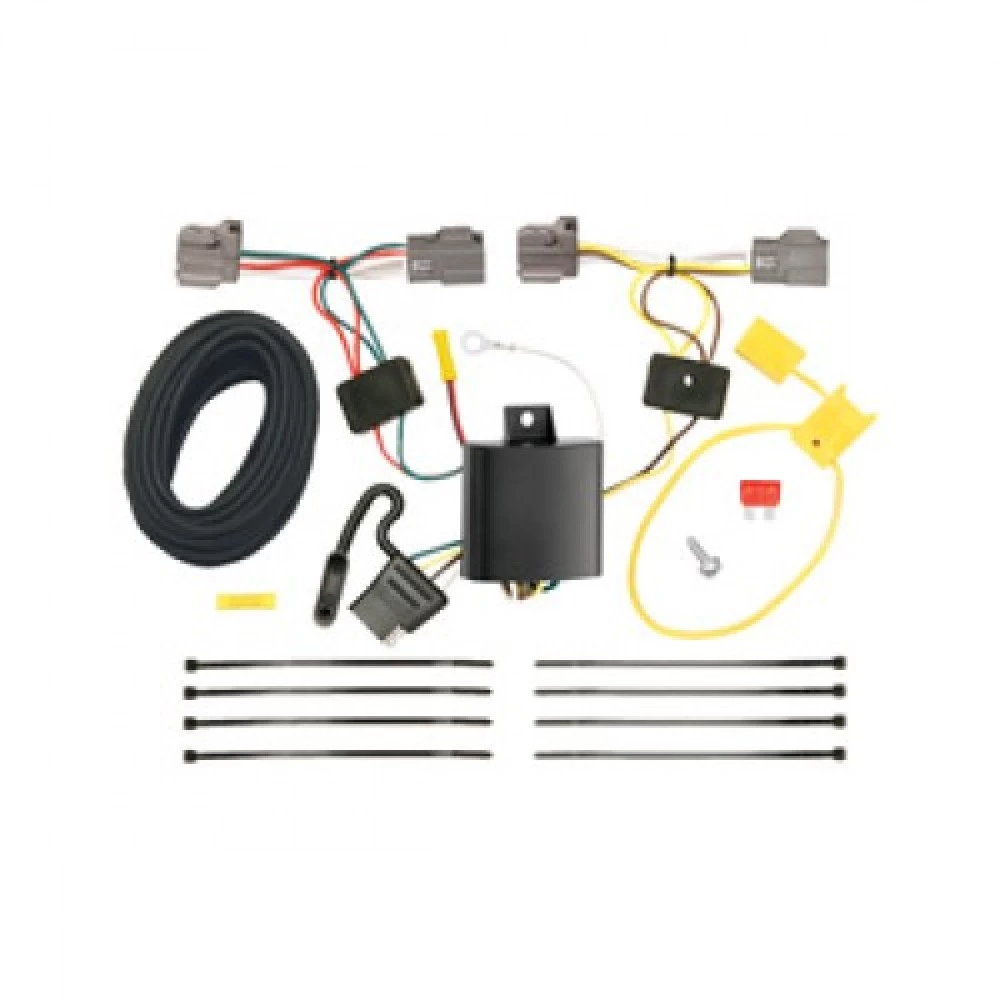

Installation Instructions for T-Connector Adapter for Volvo XC70
Part Numbers:
- 118463
Wiring Access Location:
- Rear taillight assemblies and under the vehicle near the frame rail.
Tools Required:
- Test probe.
- Trim panel puller.
- Drill with a 3/32” drill bit.
- 10mm socket and ratchet.
- Wire crimpers and cutters.
Step-by-Step Instructions:
-
Access Rear Taillights:
- Open the vehicle’s rear tailgate.
- Remove the access panel on the driver’s side and pull out foam from the opening to locate the rear of the taillight. Repeat on the passenger side.
- Remove the threshold, trunk floor panels, and trays. Set aside all items to prevent damage.
-
Locate Wiring Harness:
- Identify the vehicle’s taillight wiring harness connected to the taillight socket. This harness will have a connection point matching the T-Connector adapter.
- Separate the connectors carefully, ensuring no damage to the locking tabs. Verify that all surfaces are clean and free of dirt.
-
Connect T-Connector:
- On the driver’s side, insert the T-Connector with the yellow wire between the vehicle wiring connectors and lock into place. Ensure all connectors are secure.
- Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold. Repeat the connection process for the passenger side.
-
Ground Connection:
- Locate a suitable grounding point near the connectors, such as the vehicle’s frame or crossmember. Do not drill into exposed surfaces.
- Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
-
Connect Power:
- Inside the vehicle, connect the black 12-gauge wire from the T-Connector black box to the red wire using the supplied yellow butt connector.
- Route the black wire to the vehicle’s fuse box under the hood, avoiding areas that could pinch or damage the wire.
- Attach the yellow fuse holder’s ring terminal to the vehicle’s power cable stud and secure it with a 10mm nut. Connect the other end of the fuse holder to the black wire using the yellow butt connector.
-
Complete Installation:
- Reconnect the vehicle’s negative (-) battery cable and install the 10-amp fuse into the fuse holder.
- Secure the remaining T-Connector harness with the provided cable ties to prevent damage or rattling.
-
Test Functionality:
- Test the installation with a test light or trailer to confirm proper operation. For the initial test, temporarily remove the key from the ignition to reset the vehicle’s electrical system.
-
Reassembly:
- Reinstall the threshold, storage covers, floor covering, and any other items removed during installation. Ensure no wires are pinched or cut.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5.6 amps).
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Yellow butt connector.
- Yellow fuse holder with 10-amp fuse.
- Cable ties.
Safety Notes:
- Verify all connections are complete for the T-Connector to function properly.
- Do not overload circuits. Exceeding the unit’s specifications can cause fires.
- Use caution when drilling to avoid vehicle damage or injury.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional information.
Installation Instructions for T-Connector Adapter for Volvo XC70
Part Numbers:
- 118463
Wiring Access Location:
- Rear taillight assemblies and under the vehicle near the frame rail.
Tools Required:
- Test probe.
- Trim panel puller.
- Drill with a 3/32” drill bit.
- 10mm socket and ratchet.
- Wire crimpers and cutters.
Step-by-Step Instructions:
-
Access Rear Taillights:
- Open the vehicle’s rear tailgate.
- Remove the access panel on the driver’s side and pull out foam from the opening to locate the rear of the taillight. Repeat on the passenger side.
- Remove the threshold, trunk floor panels, and trays. Set aside all items to prevent damage.
-
Locate Wiring Harness:
- Identify the vehicle’s taillight wiring harness connected to the taillight socket. This harness will have a connection point matching the T-Connector adapter.
- Separate the connectors carefully, ensuring no damage to the locking tabs. Verify that all surfaces are clean and free of dirt.
-
Connect T-Connector:
- On the driver’s side, insert the T-Connector with the yellow wire between the vehicle wiring connectors and lock into place. Ensure all connectors are secure.
- Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold. Repeat the connection process for the passenger side.
-
Ground Connection:
- Locate a suitable grounding point near the connectors, such as the vehicle’s frame or crossmember. Do not drill into exposed surfaces.
- Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
-
Connect Power:
- Inside the vehicle, connect the black 12-gauge wire from the T-Connector black box to the red wire using the supplied yellow butt connector.
- Route the black wire to the vehicle’s fuse box under the hood, avoiding areas that could pinch or damage the wire.
- Attach the yellow fuse holder’s ring terminal to the vehicle’s power cable stud and secure it with a 10mm nut. Connect the other end of the fuse holder to the black wire using the yellow butt connector.
-
Complete Installation:
- Reconnect the vehicle’s negative (-) battery cable and install the 10-amp fuse into the fuse holder.
- Secure the remaining T-Connector harness with the provided cable ties to prevent damage or rattling.
-
Test Functionality:
- Test the installation with a test light or trailer to confirm proper operation. For the initial test, temporarily remove the key from the ignition to reset the vehicle’s electrical system.
-
Reassembly:
- Reinstall the threshold, storage covers, floor covering, and any other items removed during installation. Ensure no wires are pinched or cut.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps).
- Max. tail lights: (5.6 amps).
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Yellow butt connector.
- Yellow fuse holder with 10-amp fuse.
- Cable ties.
Safety Notes:
- Verify all connections are complete for the T-Connector to function properly.
- Do not overload circuits. Exceeding the unit’s specifications can cause fires.
- Use caution when drilling to avoid vehicle damage or injury.
Manufacturer Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
- Consult the vehicle owner’s manual for additional information.
Warranty Information:
- This product is covered by a warranty for X years from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
For Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
