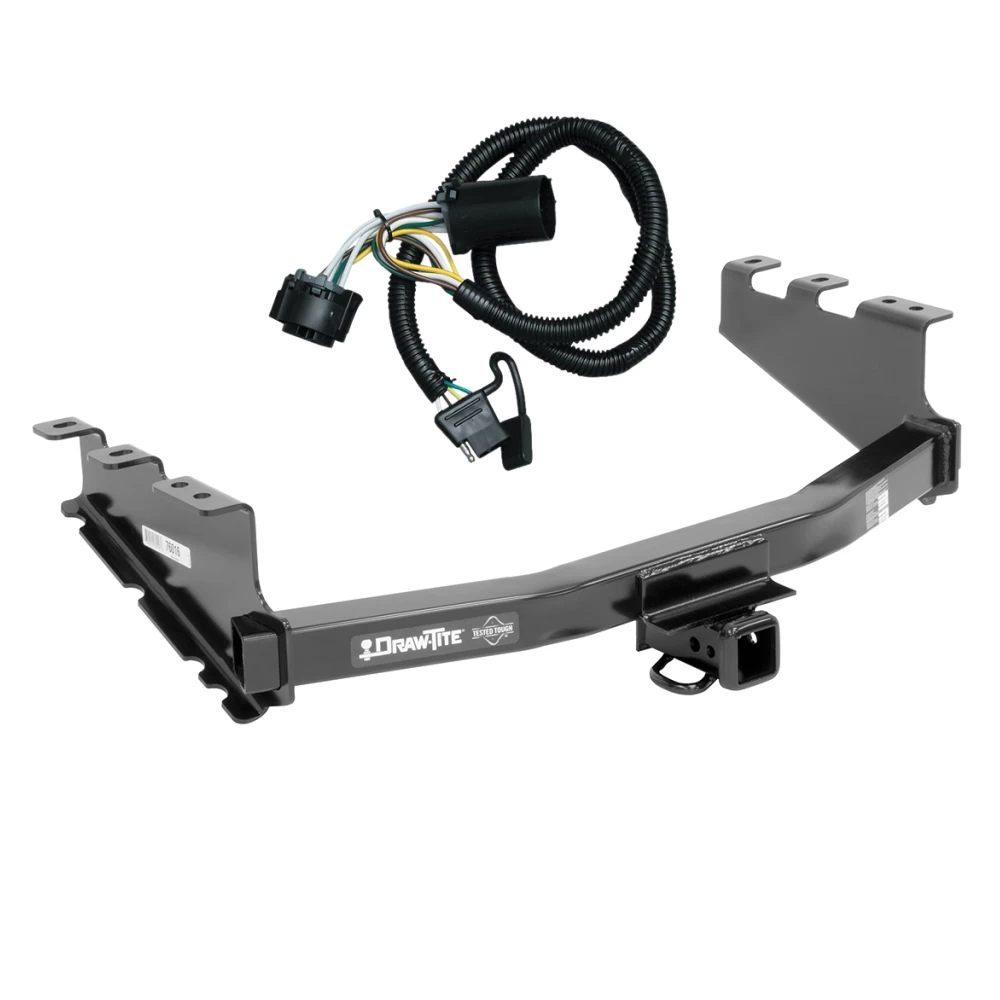

- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 14-18 Chevy Silverado GMC Sierra 2019 Old Body w/ Wiring Harness Kit Install Notes
Installation Instructions for GMC Sierra 1500 and Chevy Silverado 1500 (2014-Current)
Part Numbers:
- 76016
- 84016
- CQT76016
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4”, 22mm
- 6” Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Lower or Remove the Spare Tire:
- Lowering or removing the spare tire will provide easier access during the installation process.
-
Remove Existing M14 Bolts:
- Remove the factory-installed M14 bolts from the rear frame rail on each side of the vehicle.
- Return these bolts to the vehicle owner.
-
Install the Hitch:
- Raise the hitch into position.
- Insert one (1) supplied M14 bolt with a 9/16" lock washer and 9/16" flat washer into the rear-most weldnut on each side of the frame. Loosely secure the hitch.
-
Install Remaining Fasteners:
- Insert three (3) 1/2"-13 carriage bolts and three (3) 1/4" blocks inside each frame rail.
- Secure the hitch using three (3) 1/2" conical washers and three (3) 1/2"-13 hex nuts below the hitch on each side of the frame.
-
Tighten Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N·m).
- Torque all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
-
Re-Tighten or Re-Stow the Spare Tire:
- Reinstall the spare tire, ensuring that it is securely fastened.

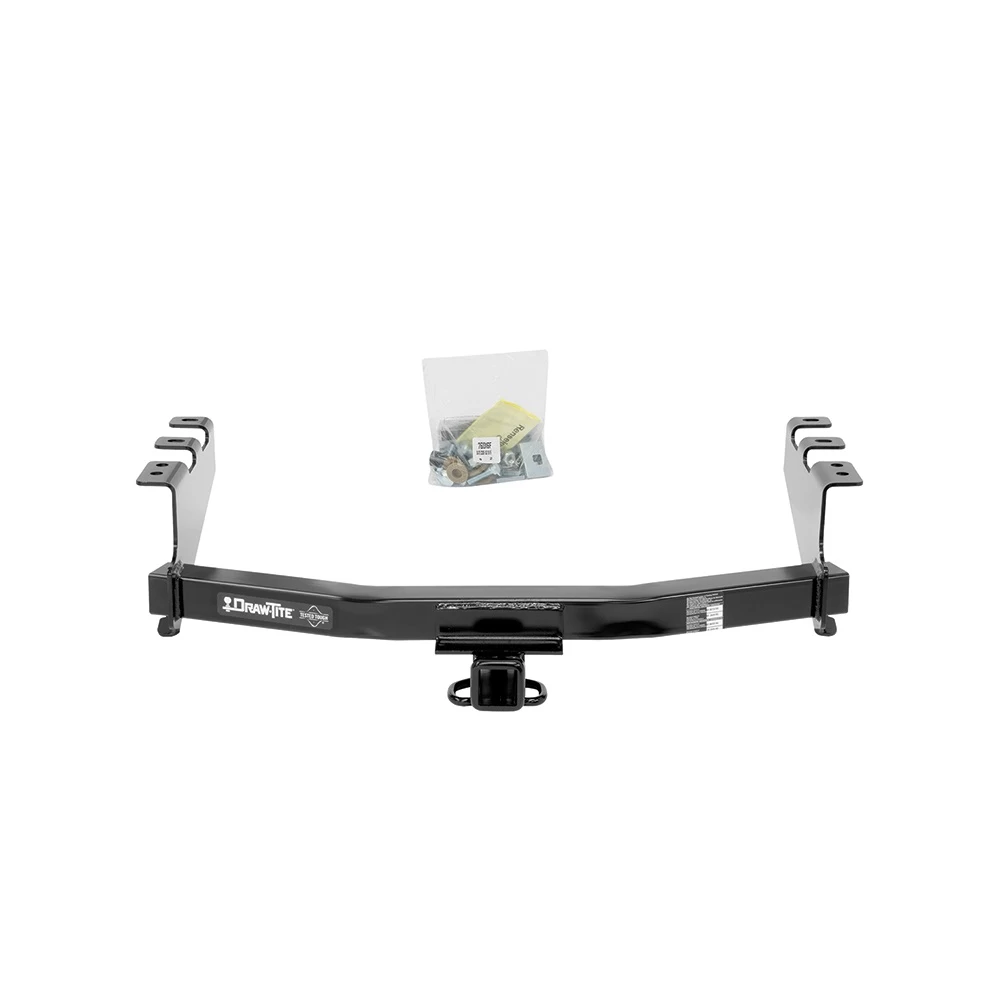

Hardware List:
- (6) 1/2"-13 x 1.75" Grade 5 Carriage Bolts
- (6) 1/4" x 1.5" x 2" Spacer Blocks
- (6) 1/2" Conical Toothed Washers
- (6) 1/2"-13 Grade 5 Hex Nuts
- (2) 9/16" Flat Washers
- (2) 9/16" Plated Lock Washers
- (2) M14 x 2.00 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,722 kg), Max Tongue Weight 900 lbs (408 kg).
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 25 minutes for a professional installer.
- If you are uncomfortable performing this installation, consult a professional installer.
Installation Instructions for Vehicle (2014-Current)
Part Numbers:
- 76016
- 84016
- CQT76016
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4”, 22mm
- 6” Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Lower or Remove the Spare Tire:
- Lowering or removing the spare tire will provide easier access during the installation process.
-
Remove Existing M14 Bolts:
- Remove the factory-installed M14 bolts from the rear frame rail on each side of the vehicle.
- Return these bolts to the vehicle owner.
-
Install the Hitch:
- Raise the hitch into position.
- Insert one (1) supplied M14 bolt with a 9/16" lock washer and 9/16" flat washer into the rear-most weldnut on each side of the frame. Loosely secure the hitch.
-
Install Remaining Fasteners:
- Insert three (3) 1/2"-13 carriage bolts and three (3) 1/4" blocks inside each frame rail.
- Secure the hitch using three (3) 1/2" conical washers and three (3) 1/2"-13 hex nuts below the hitch on each side of the frame.
-
Tighten Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N·m).
- Torque all M14 CL10.9 fasteners to 148 lb-ft (201 N·m).
-
Re-Tighten or Re-Stow the Spare Tire:
- Reinstall the spare tire, ensuring that it is securely fastened.
Hardware List:
- (6) 1/2"-13 x 1.75" Grade 5 Carriage Bolts
- (6) 1/4" x 1.5" x 2" Spacer Blocks
- (6) 1/2" Conical Toothed Washers
- (6) 1/2"-13 Grade 5 Hex Nuts
- (2) 9/16" Flat Washers
- (2) 9/16" Plated Lock Washers
- (2) M14 x 2.00 x 40mm CL10.9 Hex Bolts
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs (2,722 kg), Max Tongue Weight 900 lbs (408 kg).
- Weight Distributing: Max Trailer Weight 10,000 lbs (4,536 kg), Max Tongue Weight 1,000 lbs (454 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 25 minutes for a professional installer.
- If you are uncomfortable performing this installation, consult a professional installer.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the tow vehicle’s trailer harness connector (A).
- This is located under the vehicle, behind the bumper, on the driver’s side.
-
Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure the mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector adapter end (B) to the vehicle’s connector (A).
- Ensure the T-Connector is fully inserted with locking tabs in place.
-
Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way attached to the hitch on the driver’s side.
-
Separate the factory socket (A) and the 7-Way (C).
-
Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Protective cap.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the Trailer Harness Connector:
- Find the vehicle’s trailer harness connector (A) under the vehicle, behind the bumper, on the driver’s side.
-
Remove Protective Cap:
- Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure all mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector:
- Attach the T-Connector adapter end (B) to the vehicle’s connector (A).
- Make sure the T-Connector is fully inserted with locking tabs secured.
-
Replace the Protective Cap:
- Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way:
- The Factory 7-Way is attached to the hitch on the driver’s side.
-
Separate the Factory Socket and 7-Way:
- Disconnect the factory socket (A) from the 7-Way (C).
-
Install the T-Connector:
- Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
- Test the Installation:
- Use a test light or trailer to verify the functionality of the installed T-Connector.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Protective cap
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
