Front Mount Trailer Tow Hitch For 87‑06 Jeep Wrangler YJ/TJ
Model: 650481987 - 2006 Jeep, Wrangler, All Styles
1987 - 1995 Jeep, YJ, (Canada Only)
1997 - 2006 Jeep, TJ, (Canada Only)
Trailer Hitch Specs:
| Part Number | 65048 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 300 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
$183 39 $286.36 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$286.36 $183 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 65048
- UPC: 742512650488

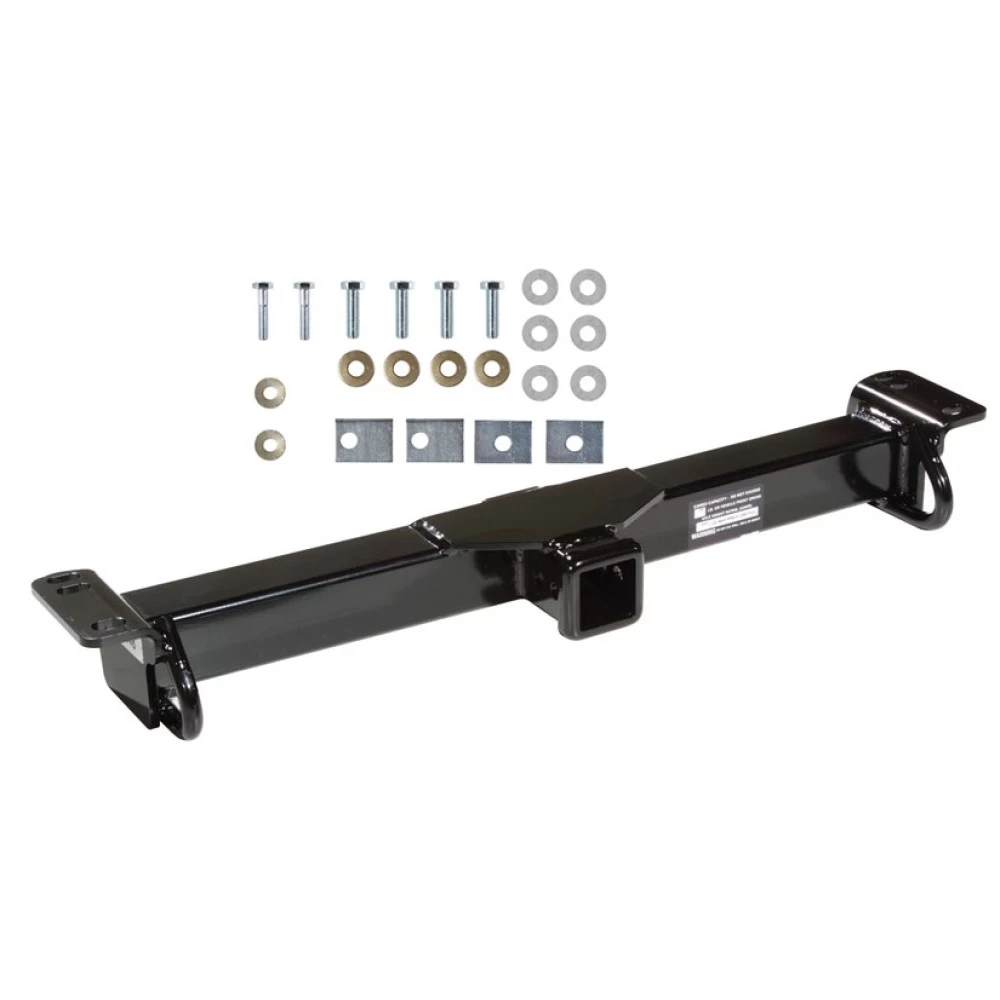

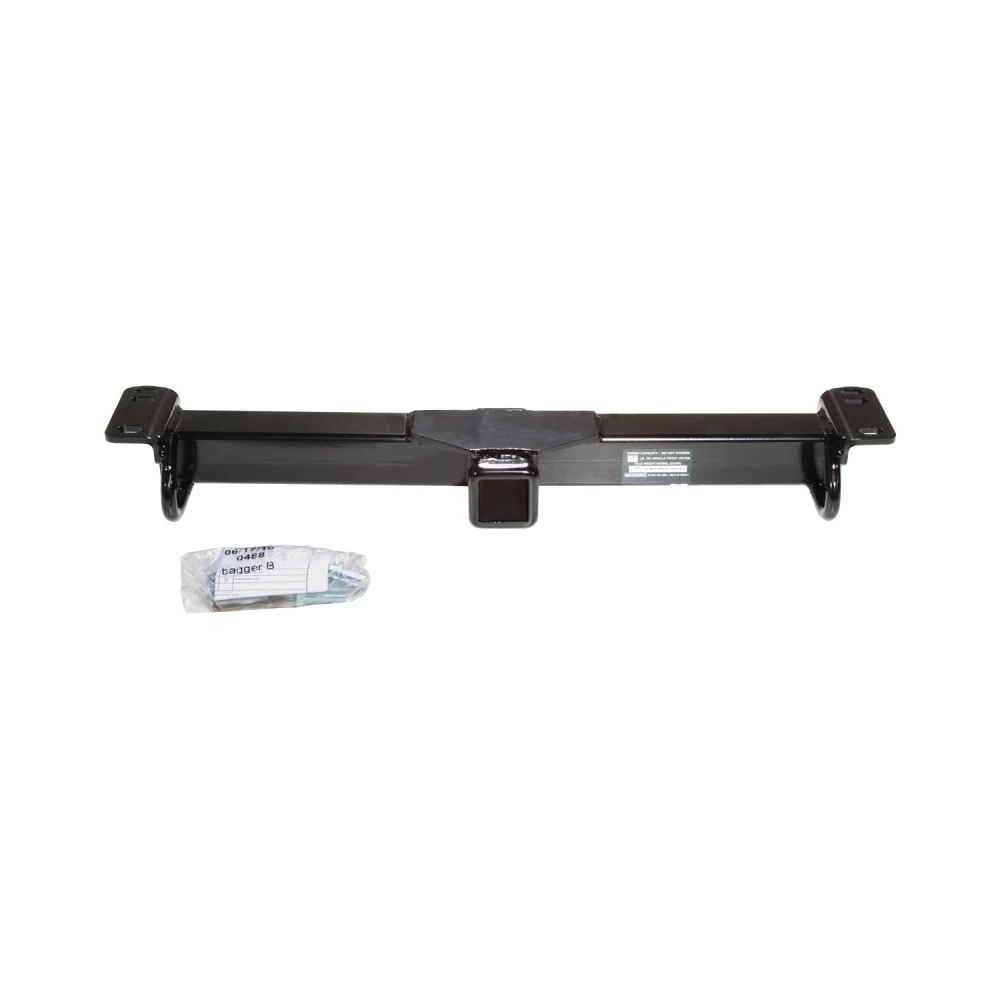

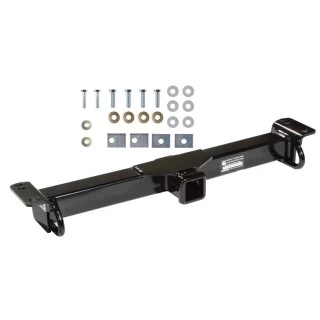

- Includes: Front Mount Hitch Receiver
Compatibility Chart
1987 - 2006 Jeep, Wrangler, All Styles
1987 - 1995 Jeep, YJ, (Canada Only)
1997 - 2006 Jeep, TJ, (Canada Only)
Trailer Hitch Specs:
| Part Number | 65048 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Tongue Weight | 300 lbs |
| Weight Distributing | 9,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Front Mount Trailer Hithes are perfect for winches spare tires and other accessories. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 87 88 89 90 91 92 93 94 95 96 97 98 99 00 01 02 03 04 05 06 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006
Get Expert Help
Front Mount Trailer Tow Hitch For 87-06 Jeep Wrangler YJ/TJ Install Notes
Installation Instructions for Jeep Wrangler (Front Mounted Receiver)
Part Numbers:
- 65048
Tools Required:
- 10mm Wrench
- 15mm Wrench
- T-45 or T-55 Torx® Driver
- Torque Wrench
Step-by-Step Instructions:
-
Remove Existing Components:
- If present, remove the plastic shield, OEM tow hooks, and the upper bumper bolts.
-
Position the Receiver:
- Refer to the appropriate figure for proper fastener installation:
- Figure 1: For 1997 and later models.
- Figure 2: For 1987 through 1996 models.
- Refer to the appropriate figure for proper fastener installation:
-
Optional Trimming of Plastic Shield:
- If desired, trim and reinstall the plastic shield to allow proper clearance.
- Consult the vehicle owner before trimming.
-
Torque Fasteners:
- Tighten all M10 CL10.9 fasteners to 50 lb-ft (68 N-m).
- Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N-m) using a torque wrench.

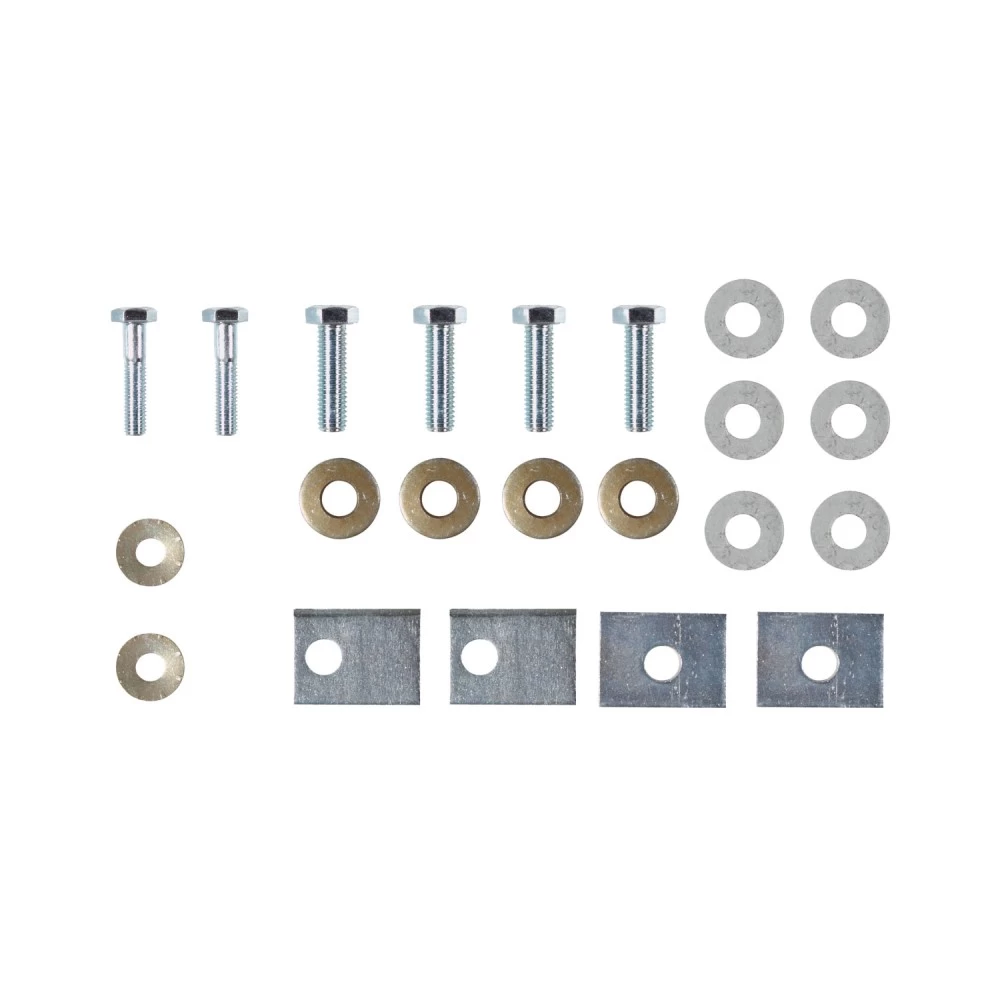

Hardware List:
- (4) 1/2"-13 x 1-3/4" Hex Bolts
- (2) M10 x 1.50 x 45 Hex Bolts
- (4) 1/2" Conical Washers
- (2) 3/8" Conical Washers
- (6) 7/16" Flat Washers
- (2) 1-1/2" x 2" x 1/4" Zinc-Plated Spacers
- (2) 1-1/2" x 2" x 1/4" Black-Painted Spacers
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in body panels to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 300 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
- Damaged hitches or hardware must be replaced immediately.
Manufacturer Notes:
- Use eye protection when working beneath the vehicle.
- Do NOT use a torch to cut access holes.
- This product complies with SAE J684 and VESC Regulation V-5 safety standards.
End of Instructions
Installation Instructions for Jeep Wrangler (Front Mounted Receiver)
Part Numbers:
- 65048
Tools Required:
- 10mm Wrench
- 15mm Wrench
- T-45 or T-55 Torx® Driver
- Torque Wrench
Step-by-Step Instructions:
-
Remove Existing Components:
- If present, remove the plastic shield, OEM tow hooks, and the upper bumper bolts.
-
Position the Receiver:
- Refer to the appropriate figure for proper fastener installation:
- Figure 1: For 1997 and later models.
- Figure 2: For 1987 through 1996 models.
- Refer to the appropriate figure for proper fastener installation:
-
Optional Trimming of Plastic Shield:
- If desired, trim and reinstall the plastic shield to allow proper clearance.
- Consult the vehicle owner before trimming.
-
Torque Fasteners:
- Tighten all M10 CL10.9 fasteners to 50 lb-ft (68 N-m).
- Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N-m) using a torque wrench.
Hardware List:
- (4) 1/2"-13 x 1-3/4" Hex Bolts
- (2) M10 x 1.50 x 45 Hex Bolts
- (4) 1/2" Conical Washers
- (2) 3/8" Conical Washers
- (6) 7/16" Flat Washers
- (2) 1-1/2" x 2" x 1/4" Zinc-Plated Spacers
- (2) 1-1/2" x 2" x 1/4" Black-Painted Spacers
Safety Notes:
- Periodically check the hitch to ensure all fasteners are tight and structural components are sound.
- If the hitch is removed, plug all holes in body panels to prevent water and exhaust fumes from entering.
- Warning: Do not exceed the vehicle’s Front Gross Axle Weight Rating (GAWR).
- Maximum Cargo Capacity: 300 lbs.
- Maximum Winch Line Pull: 9,000 lbs.
- Damaged hitches or hardware must be replaced immediately.
Warranty Information:
For warranty coverage and details, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
