Front Mount Trailer Tow Hitch For 88‑00 Chevrolet C1500 C2500 C3500 92‑99 Suburban C1500 C2500 92‑99 Suburban K1500 K2500 88‑00 GMC C1500 C2500 C3500 92‑99 Suburban C1500 C2500 92‑99 Suburban K1500 K2500 2WD only SHRINK WRAPPED NO BOX
Model: 65021 IRThis Front Mount Hitch Fits The Following Vehicles:
1988 - 1999 Chevrolet, C1500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 1999 Chevrolet, C1500, 4 Dr. Crew Cab, 2WD only
1988 - 1999 Chevrolet, C2500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 Chevrolet, C2500, 4. Dr Crew Cab, 2WD only
1988 - 2000 Chevrolet, C3500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 Chevrolet, C3500, 4 Dr. Crew Cab, 2WD only
1992 - 1999 Chevrolet, Suburban C1500, 2WD only
1992 - 1999 Chevrolet, Suburban C2500, 2WD only
1992 - 1999 Chevrolet, Suburban K1500, 2WD only
1992 - 1999 Chevrolet, Suburban K2500, 2WD only
1988 - 1999 GMC, C1500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 1999 GMC, C1500, 4 Dr. Crew Cab, 2WD only
1988 - 2000 GMC, C2500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 GMC, C2500, 4 Dr. Crew Cab, 2WD only
1988 - 2000 GMC, C3500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 GMC, C3500, 4 Dr. Crew Cab, 2WD only
1992 - 1999 GMC, Suburban C1500, 2WD only
1992 - 1999 GMC, Suburban C2500, 2WD only
1992 - 1999 GMC, Suburban K1500, 2WD only
1992 - 1999 GMC, Suburban K2500, 2WD only
| Part Number | 65021 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Line Pull | 9,000 lbs |
| Max Gross Trailer Weight | 5,000 lbs |
| Max Tongue Weight | 500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
T Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
$134 59 $423.91 68% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$423.91 $134 59
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $33.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 65021 IR
- UPC: 742512650211
- Includes: Front Mount Receiver
Compatibility Chart
Description
This Front Mount Hitch Fits The Following Vehicles:
1988 - 1999 Chevrolet, C1500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 1999 Chevrolet, C1500, 4 Dr. Crew Cab, 2WD only
1988 - 1999 Chevrolet, C2500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 Chevrolet, C2500, 4. Dr Crew Cab, 2WD only
1988 - 2000 Chevrolet, C3500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 Chevrolet, C3500, 4 Dr. Crew Cab, 2WD only
1992 - 1999 Chevrolet, Suburban C1500, 2WD only
1992 - 1999 Chevrolet, Suburban C2500, 2WD only
1992 - 1999 Chevrolet, Suburban K1500, 2WD only
1992 - 1999 Chevrolet, Suburban K2500, 2WD only
1988 - 1999 GMC, C1500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 1999 GMC, C1500, 4 Dr. Crew Cab, 2WD only
1988 - 2000 GMC, C2500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 GMC, C2500, 4 Dr. Crew Cab, 2WD only
1988 - 2000 GMC, C3500, 2 Dr. Regular & Extended Cabs, 2WD only
1992 - 2000 GMC, C3500, 4 Dr. Crew Cab, 2WD only
1992 - 1999 GMC, Suburban C1500, 2WD only
1992 - 1999 GMC, Suburban C2500, 2WD only
1992 - 1999 GMC, Suburban K1500, 2WD only
1992 - 1999 GMC, Suburban K2500, 2WD only
| Part Number | 65021 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | 2" |
| Line Pull | 9,000 lbs |
| Max Gross Trailer Weight | 5,000 lbs |
| Max Tongue Weight | 500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
T Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom gooseneck hitches bolt-on easily on your Truck.
Partial list of fitment years: 88 89 90 91 92 93 94 95 96 97 98 99 00 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000
Get Expert Help
Front Mount Trailer Tow Hitch For 88-00 Chevrolet C1500 C2500 C3500 92-99 Suburban C1500 C2500 92-99 Suburban K1500 K2500 88-00 GMC C1500 C2500 C3500 92-99 Suburban C1500 C2500 92-99 Suburban K1500 K2500 2WD only SHRINK WRAPPED NO BOX Install Notes
Installation Instructions for Front Mount Hitch Receiver for Chevy/GMC Pickup & Suburban (2500 & 3500 Series – 2WD Only)
Product Information:
- Part Number: 65021
- Vehicle Compatibility:
- Chevy/GMC Pickup and Suburban 2500 & 3500 Series
- 2WD only
- 8600# GVW and higher (8-lug wheels required)

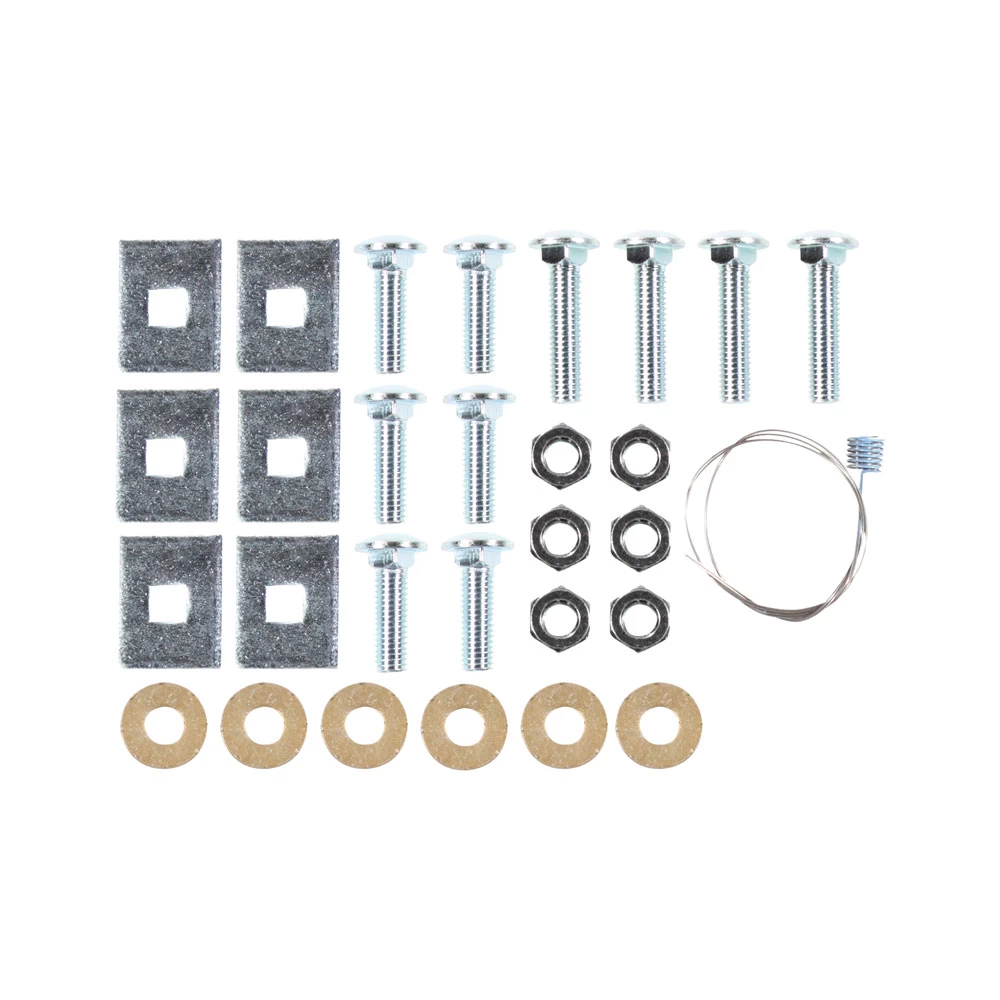

Package Contents:
- Carriage Bolt: 1/2"-13 x 2-1/4" (Qty: 4)
- Carriage Bolt: 1/2"-13 x 1-3/4" (Qty: 6)
- Conical Washer: 1/2" (Qty: 6)
- Spacer: 1-1/2” x 2” x 1/4" (Qty: 6)
- Hex Nut: 1/2" (Qty: 6)
- Pull Wire: 1/2" (Qty: 2)
Tools Required:
- Wrenches: 10mm, 18mm, 7/8”
- Drill with 1/2” drill bit
- Torque Wrench (75 lb-ft or 102 N-m)
Installation Instructions:
-
Remove Lower Fascia (If Present):
- Locate and remove the lower fascia panel under the bumper.
- This step is optional based on vehicle configuration.
-
Remove Tow Hooks (If Present):
- Remove any factory-installed tow hooks from the vehicle frame using a 10mm and 18mm wrench.
-
Insert Fasteners into the Frame:
- Use the pull wire to feed the carriage bolts and spacers into the end of the vehicle frame rails.
- Position them as shown in the included diagrams.
-
Raise the Hitch into Position:
- Lift the hitch into place and align it with the fasteners.
- Attach the hitch using the provided conical washers and hex nuts.
-
Drill Mounting Holes:
- If the large slot is not already present in the vehicle frame, use the hitch as a template to mark and drill a 1/2” hole.
- Ensure the hitch is properly aligned before drilling.
-
Tighten Fasteners:
- Secure all 1/2” GR5 hardware to a torque specification of 75 lb-ft (102 N-m) using a torque wrench.
-
Trim and Reinstall Fascia (Optional):
- If desired, trim the lower fascia panel to accommodate the hitch receiver.
- Reinstall the fascia after trimming. Consult the vehicle owner before making modifications.
Safety Notes:
- Regularly check the hitch to ensure all fasteners are properly tightened.
- Remove and replace any damaged hitch or hardware immediately.
- Do not cut, weld, or modify the hitch.
- Observe proper safety precautions when working under a vehicle, and wear eye protection.
Specifications:
- Cargo Capacity: 500 lbs (227 kg) or the vehicle’s Front Gross Axle Weight Rating (GAWR) (whichever is lower).
- Maximum Winch Line Pull: 9,000 lbs (4,086 kg).
Compliance:
- Complies with VESC Regulation V-5 and SAE J684 towing system safety standards.
Technical Support:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
This product is covered by a warranty for defects in materials and workmanship for the specified duration. For complete warranty instructions, please download the full installation PDF.
Warning: Do not exceed the vehicle’s rated towing or front axle weight capacity. Improper installation may result in personal injury or property damage.
