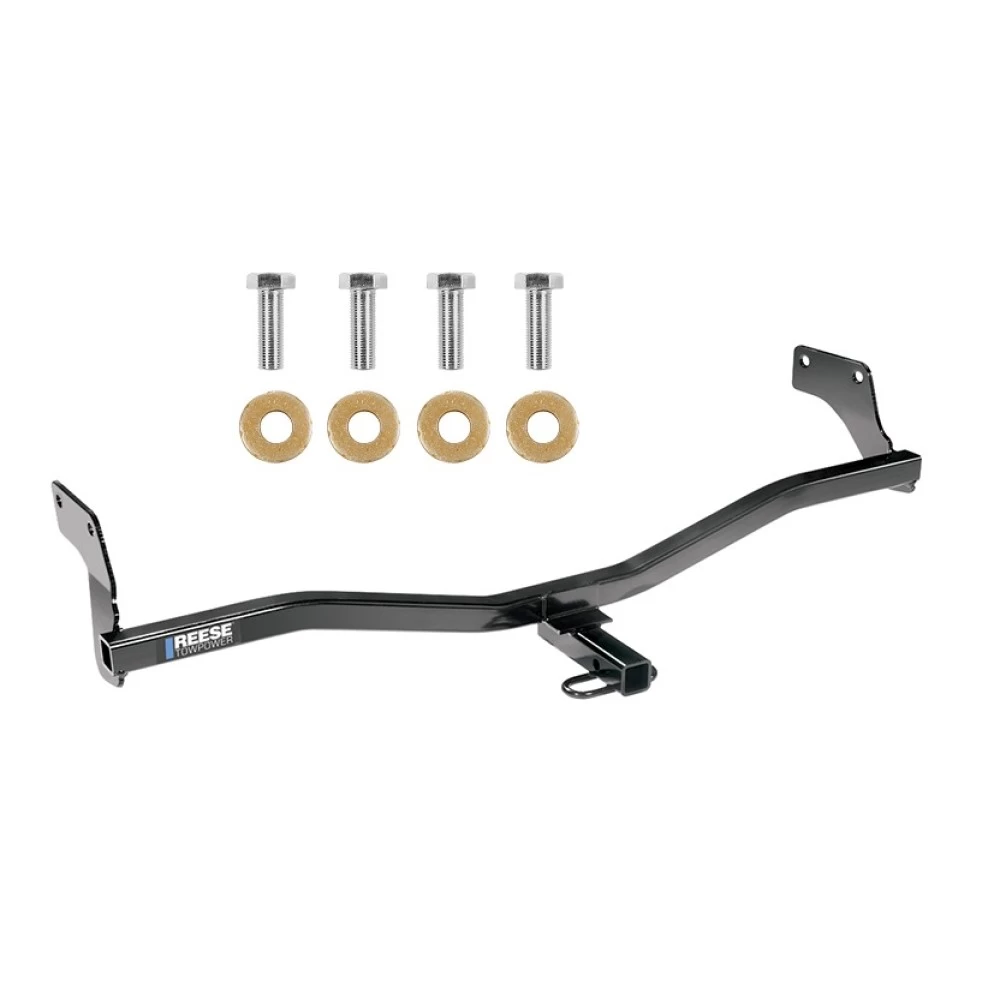

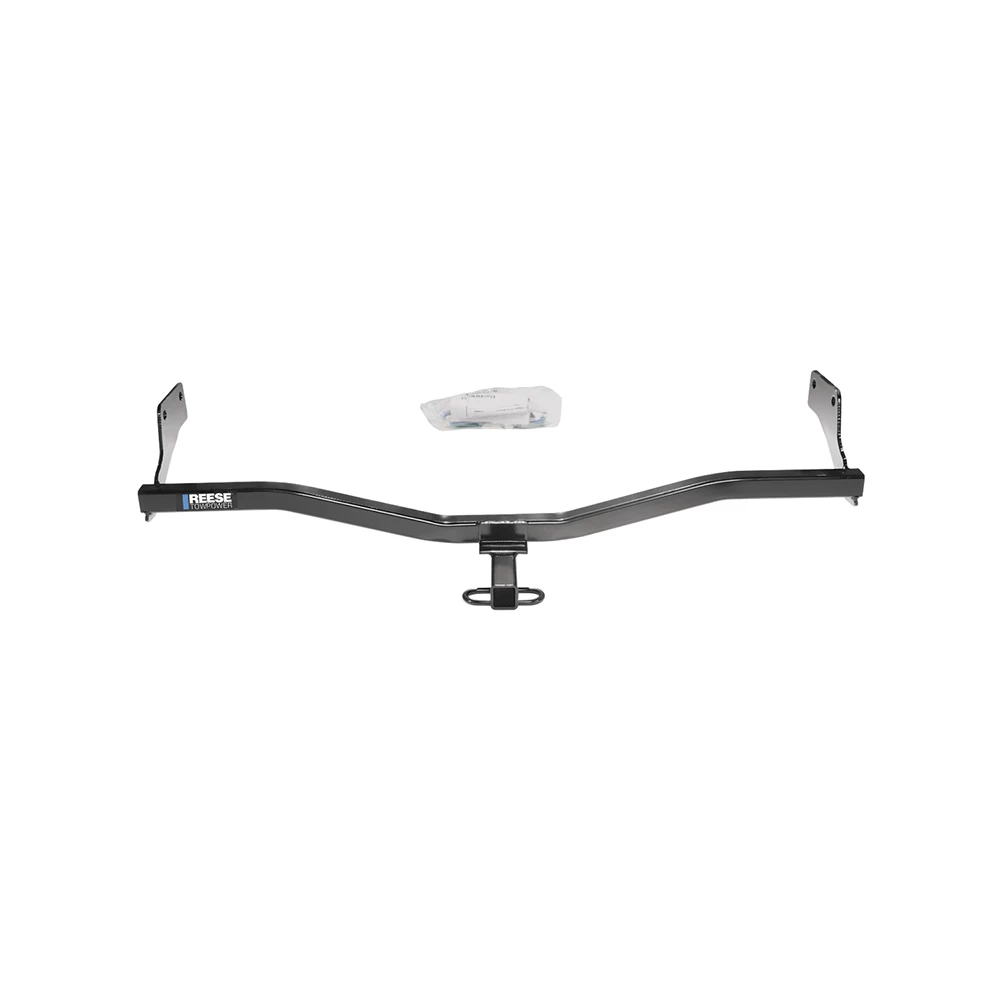

Reese Trailer Tow Hitch For 09‑12 Hyundai Elantra Touring 1‑1/4" Towing Receiver Class 1
Model: 772462009 - 2012 Hyundai, Elantra, Touring, 5 Dr.
Trailer Hitch Specs:
| Part Number | 77246 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 2009 2010 2011 2012
$162 17 $224.50 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$224.50 $162 17
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $40.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77246
- UPC: 042899693277
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
Description
2009 - 2012 Hyundai, Elantra, Touring, 5 Dr.
Trailer Hitch Specs:
| Part Number | 77246 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 09 10 11 12 2009 2010 2011 2012
Get Expert Help
Reese Trailer Tow Hitch For 09-12 Hyundai Elantra Touring 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Hyundai Elantra Touring
Part Numbers:
- 24844
- 60260
- 77246
- 24819 (U-Haul)
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 17mm, 19mm
- Small Phillips Tip Screwdriver
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the appearance panel covering the trunk pan using a Phillips tip screwdriver.
- Unscrew the 10 plastic screws while applying pressure to the opposite end.
- Remove the three (3) M6 nuts and return the panel to the vehicle owner.
-
Lower Exhaust:
- Detach the rubber exhaust hanger to lower the exhaust system.
-
Position Hitch (Driver’s Side First):
- Lift the driver’s side of the hitch into position, placing the crosstube over the tailpipe.
- Rotate the side bracket into position on the outside of the frame rail as far back as possible behind the wheel well.
-
Position Hitch (Passenger Side):
- Raise the passenger side of the hitch into position on the outside of the frame rails in front of the bulkhead.
-
Install Fasteners:
- Attach the provided M10 bolts and conical washers as shown in the diagram. Hand-tighten all fasteners.
-
Secure Hitch:
- Push the hitch rearward to align it properly and tighten all fasteners to the specified torque values.
-
Reattach Exhaust:
- Reinstall the rubber muffler hanger to secure the exhaust system.
Torque Specifications:
- Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N*M).

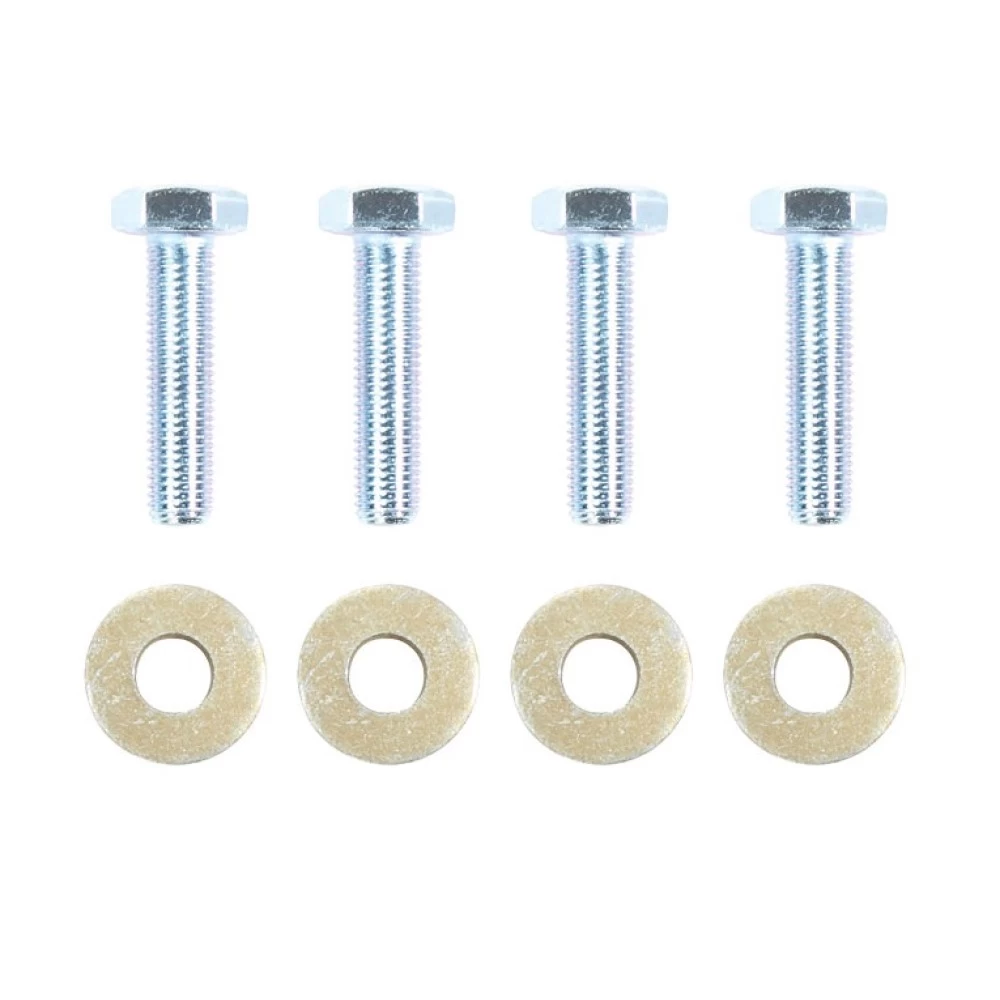

Hardware List:
- (4) M10 x 1.25 x 40mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For clarity, the exhaust system is not shown in the diagrams.
Installation Instructions
Part Numbers:
- 24844
- 60260
- 77246
- 24819 (U-Haul)
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 17mm, 19mm
- Small Phillips Tip Screwdriver
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the appearance panel covering the trunk pan using a Phillips tip screwdriver.
- Unscrew the 10 plastic screws while applying pressure to the opposite end.
- Remove the three (3) M6 nuts and return the panel to the vehicle owner.
-
Lower Exhaust:
- Detach the rubber exhaust hanger to lower the exhaust system.
-
Position Hitch (Driver’s Side First):
- Lift the driver’s side of the hitch into position, placing the crosstube over the tailpipe.
- Rotate the side bracket into position on the outside of the frame rail as far back as possible behind the wheel well.
-
Position Hitch (Passenger Side):
- Raise the passenger side of the hitch into position on the outside of the frame rails in front of the bulkhead.
-
Install Fasteners:
- Attach the provided M10 bolts and conical washers as shown in the diagram. Hand-tighten all fasteners.
-
Secure Hitch:
- Push the hitch rearward to align it properly and tighten all fasteners to the specified torque values.
-
Reattach Exhaust:
- Reinstall the rubber muffler hanger to secure the exhaust system.
Torque Specifications:
- Tighten all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N*M).
Hardware List:
- (4) M10 x 1.25 x 40mm CL8.8 Bolts
- (4) Conical Toothed Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and follow safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3594
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- For clarity, the exhaust system is not shown in the diagrams.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
