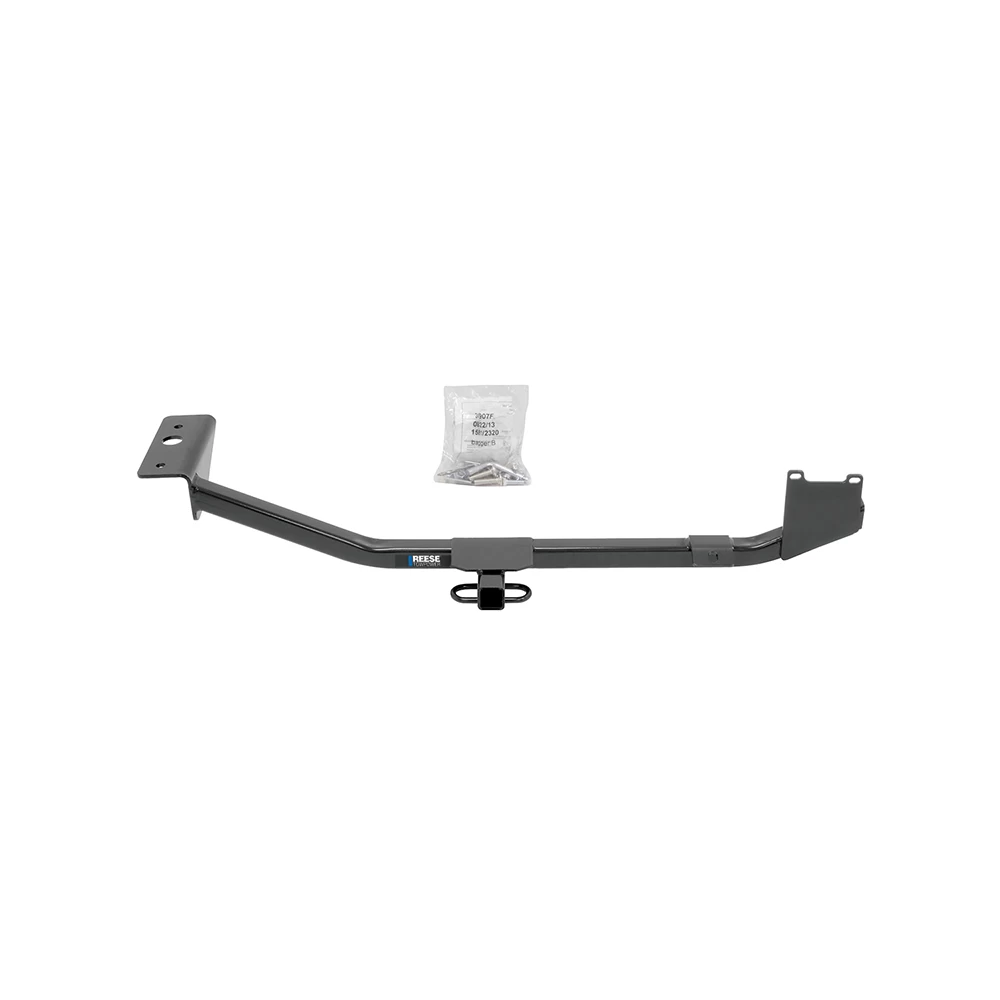

Installation Instructions for Nissan Sentra (Will Not Fit SR Model)

Part Numbers:

• 24907
• 60338
• 77294

Wiring Access Location:

• PC3, PC4

Tools Required:

• Power Drill
• Wrenches: 9/16", 11/16"
• Drill Bits: 1", 7/16"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (907 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Mark and Drill Holes:

   • Hold the hitch in place and use it as a template to mark the holes to be drilled in the driver-side frame rail.
   • If needed, secure the hitch in position using the tow hook mount and the 3/8” bolts. Remove the hitch after marking the holes in the correct locations.

2. Fishwire Bolts and Washers:

   • Use the provided pull wire to guide bolts and square-hole washers through the middle access hole in the frame and out the two attachment holes.

3. Position and Attach Hitch:

   • Raise the hitch into position over the bolts in the frame.
   • Attach the 7/16” conical washers and nuts to secure the frame bolts.
   • Push the 3/8” bolts through the passenger-side end panel holes that align with the hitch at the frame rail.
   • Attach the 3/8” conical washers and nuts using a 9/16” socket and box-end wrench on the panel side.

4. Install Tow Hook Bolt and Block:

   • Insert the 7/16” carriage bolt and block through the vehicle tow hook and hitch bracket.
   • Secure the bolt using an 11/16” socket or box-end wrench.

5. Tighten Fasteners:

   • Torque all 3/8” fasteners to 35 Lb.-Ft. (47 N*M).
   • Torque all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).

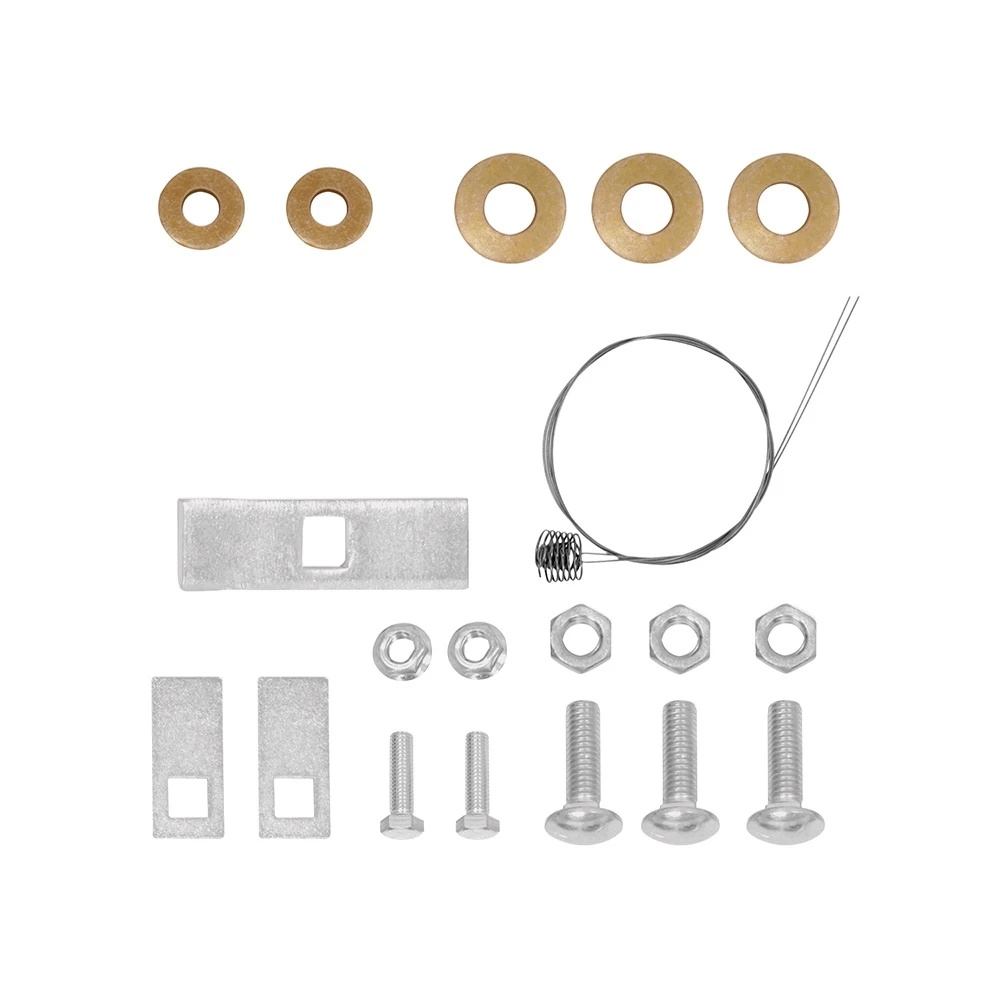

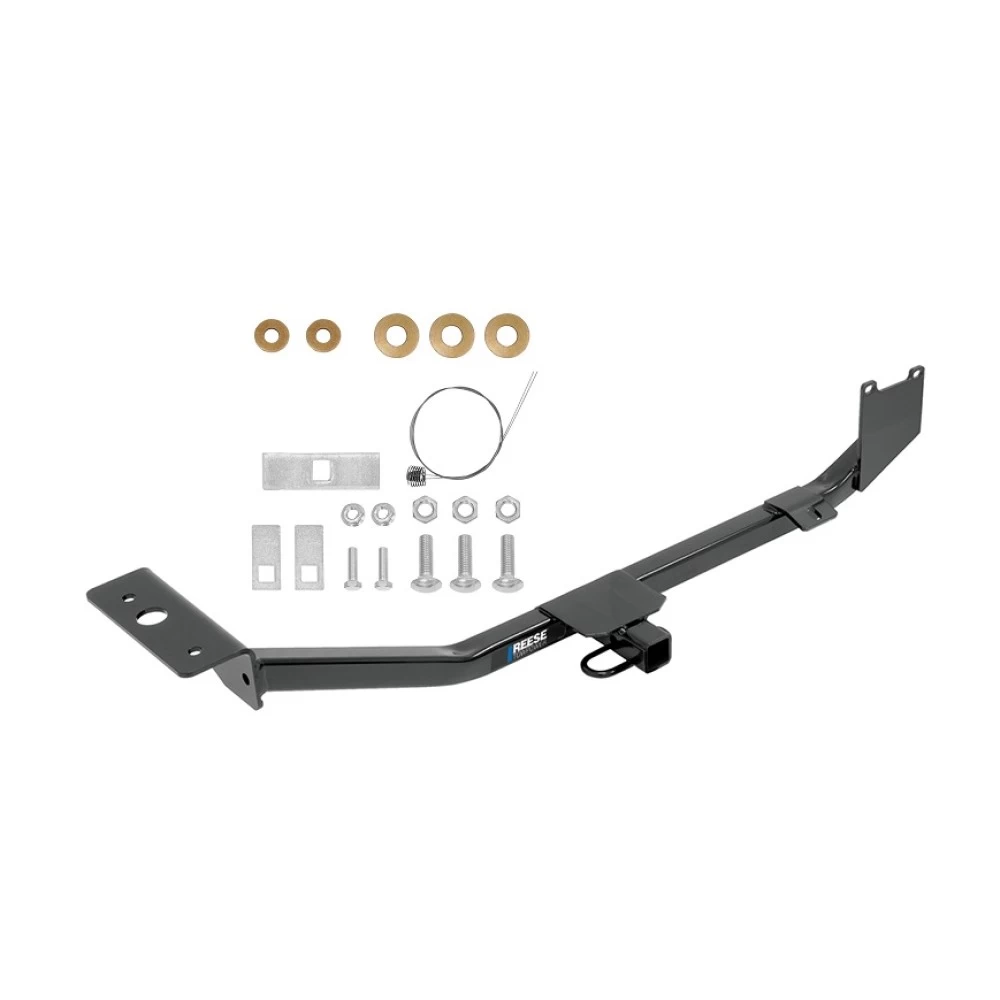

Hardware List:

• (3) Carriage Bolts: 7/16”-14 x 1.75” GR5
• (3) Hex Nuts: 7/16”-14
• (3) Conical Washers: 7/16”
• (2) Square-Hole Washers: 7/16”
• (2) Pull Wires: 7/16”
• (2) Carriage Bolts: 3/8”-16 x 1.25” GR5
• (2) Locknuts: 3/8”-16
• (2) Conical Washers: 3/8”
• (1) Block: 0.25” x 1.00” x 3.00”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Vehicle (All Models)

Note: Does not fit certain models (see specifications for details).

Part Numbers:

• 24907
• 60338
• 77294

Wiring Access Location:

• PC3, PC4

Tools Required:

• Power Drill
• Wrenches: 9/16", 11/16"
• Drill Bits: 1", 7/16"

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (907 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Mark and Drill Holes:

   • Hold the hitch in place and use it as a template to mark the holes to be drilled in the driver-side frame rail.
   • If needed, secure the hitch in position using the tow hook mount and the 3/8” bolts. Remove the hitch after marking the holes in the correct locations.

2. Fishwire Bolts and Washers:

   • Use the provided pull wire to guide bolts and square-hole washers through the middle access hole in the frame and out the two attachment holes.

3. Position and Attach Hitch:

   • Raise the hitch into position over the bolts in the frame.
   • Attach the 7/16” conical washers and nuts to secure the frame bolts.
   • Push the 3/8” bolts through the passenger-side end panel holes that align with the hitch at the frame rail.
   • Attach the 3/8” conical washers and nuts using a 9/16” socket and box-end wrench on the panel side.

4. Install Tow Hook Bolt and Block:

   • Insert the 7/16” carriage bolt and block through the vehicle tow hook and hitch bracket.
   • Secure the bolt using an 11/16” socket or box-end wrench.

5. Tighten Fasteners:

   • Torque all 3/8” fasteners to 35 Lb.-Ft. (47 N*M).
   • Torque all 7/16” fasteners to 50 Lb.-Ft. (68 N*M).

Hardware List:

• (3) Carriage Bolts: 7/16”-14 x 1.75” GR5
• (3) Hex Nuts: 7/16”-14
• (3) Conical Washers: 7/16”
• (2) Square-Hole Washers: 7/16”
• (2) Pull Wires: 7/16”
• (2) Carriage Bolts: 3/8”-16 x 1.25” GR5
• (2) Locknuts: 3/8”-16
• (2) Conical Washers: 3/8”
• (1) Block: 0.25” x 1.00” x 3.00”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
