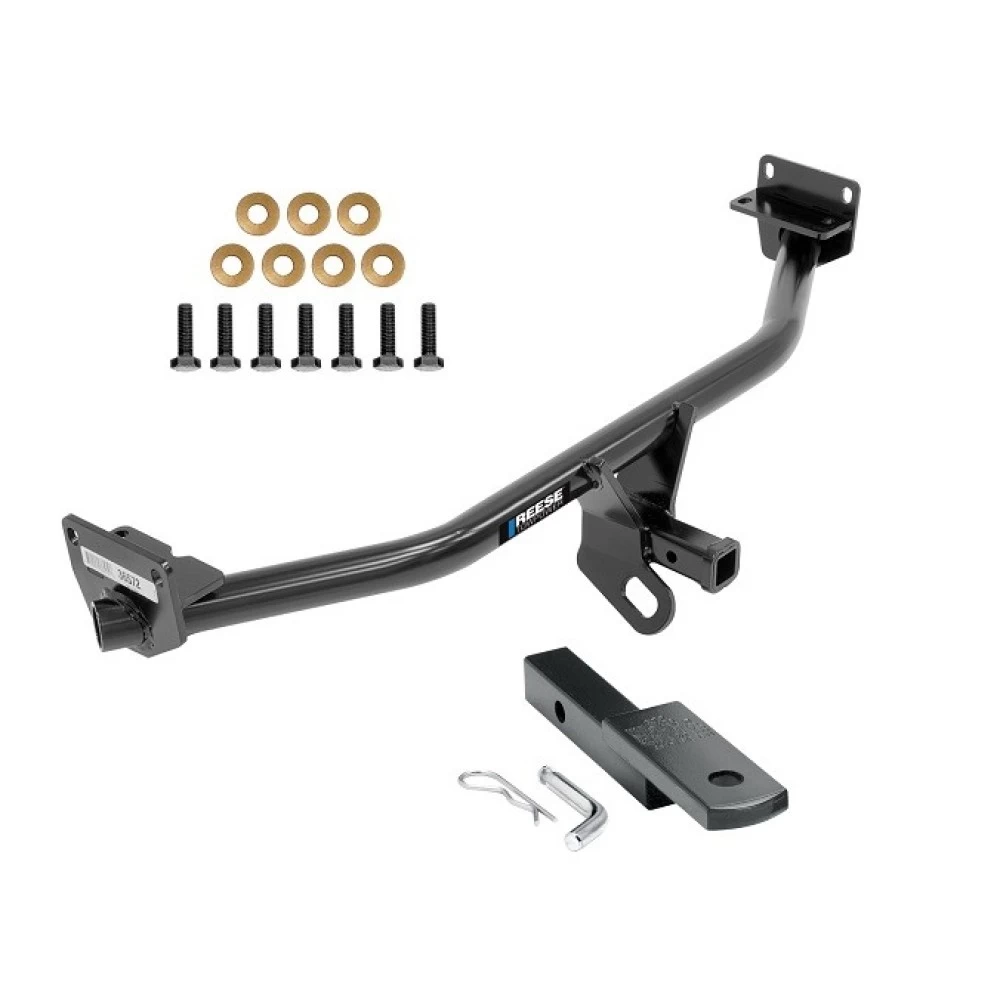

Installation Instructions for Hyundai Tucson

Part Numbers:

• 36572
• 06949
• CQT36572

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 16mm Socket

Installation Time:

• Estimated: 30 minutes (for professional installers)

Step-by-Step Instructions:

Underbody Panel Removal:

1. If equipped, remove two (2) plastic underbody panels (one on each side) located under the rear bumper and behind the rear wheels.
   • Use a flat head screwdriver to remove three (3) plastic expansion fasteners from each panel.
   • Pull down to remove the panels and set them aside for reinstallation later.

Hitch Installation:

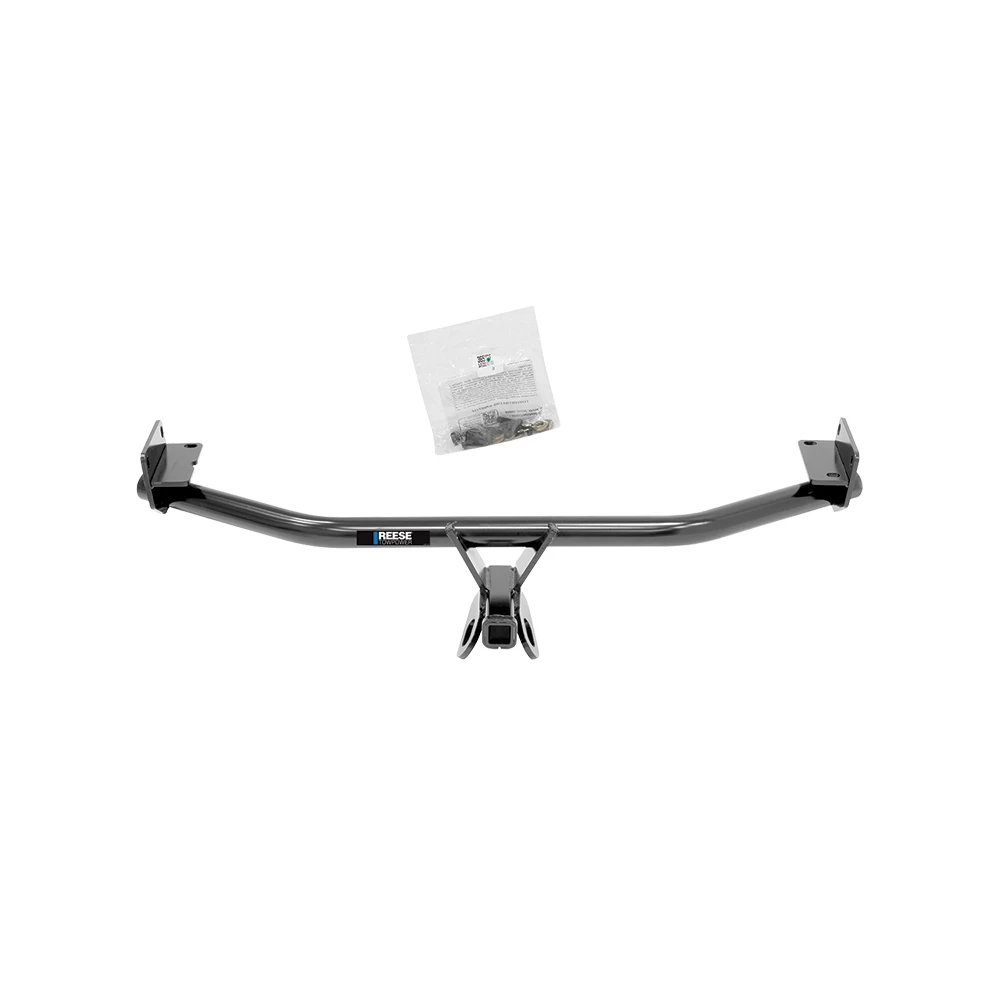

2. Position the Hitch:

   • Insert the hitch over the tailpipe on the passenger side. Removing the rubber isolators and lowering the exhaust may make this step easier.
   • Rotate the hitch and raise it into position.
   • Install four (4) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the passenger side.
   • Install three (3) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the driver side.

3. Tighten the Fasteners:

   • Use a torque wrench to tighten all M10 fasteners to 42 ft-lb (57 N*m).

4. Reinstall Underbody Panels:

   • Reinstall the two (2) plastic panels if they were removed earlier.

Torque Specifications:

• M10-1.25 CL10.9 bolts: 42 ft-lb (57 N*m)

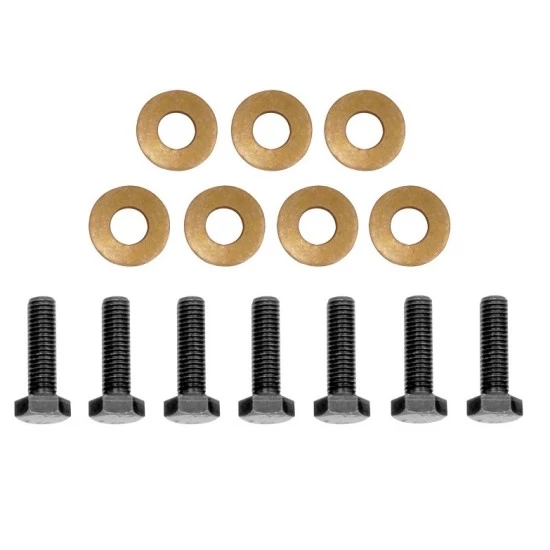

Hardware List:

• (7) M10 x 1.25 x 30mm CL10.9 Bolts
• (7) 3/8" Conical Toothed Washers

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

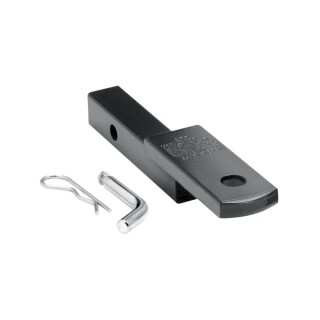

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36572F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 36572
• 06949
• CQT36572

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 16mm Socket

Installation Time:

• Estimated: 30 minutes (for professional installers)

Step-by-Step Instructions:

Underbody Panel Removal:

1. If equipped, remove two (2) plastic underbody panels (one on each side) located under the rear bumper and behind the rear wheels.
   • Use a flat head screwdriver to remove three (3) plastic expansion fasteners from each panel.
   • Pull down to remove the panels and set them aside for reinstallation later.

Hitch Installation:

2. Position the Hitch:

   • Insert the hitch over the tailpipe on the passenger side. Removing the rubber isolators and lowering the exhaust may make this step easier.
   • Rotate the hitch and raise it into position.
   • Install four (4) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the passenger side.
   • Install three (3) M10 x 1.25 x 30mm CL10.9 bolts and conical toothed washers (teeth side against hitch) on the driver side.

3. Tighten the Fasteners:

   • Use a torque wrench to tighten all M10 fasteners to 42 ft-lb (57 N*m).

4. Reinstall Underbody Panels:

   • Reinstall the two (2) plastic panels if they were removed earlier.

Torque Specifications:

• M10-1.25 CL10.9 bolts: 42 ft-lb (57 N*m)

Hardware List:

• (7) M10 x 1.25 x 30mm CL10.9 Bolts
• (7) 3/8" Conical Toothed Washers

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)

Additional Notes:

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36572F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
