Product Details
- Brand: Reese
- Model: 77319 3593 118673 63810

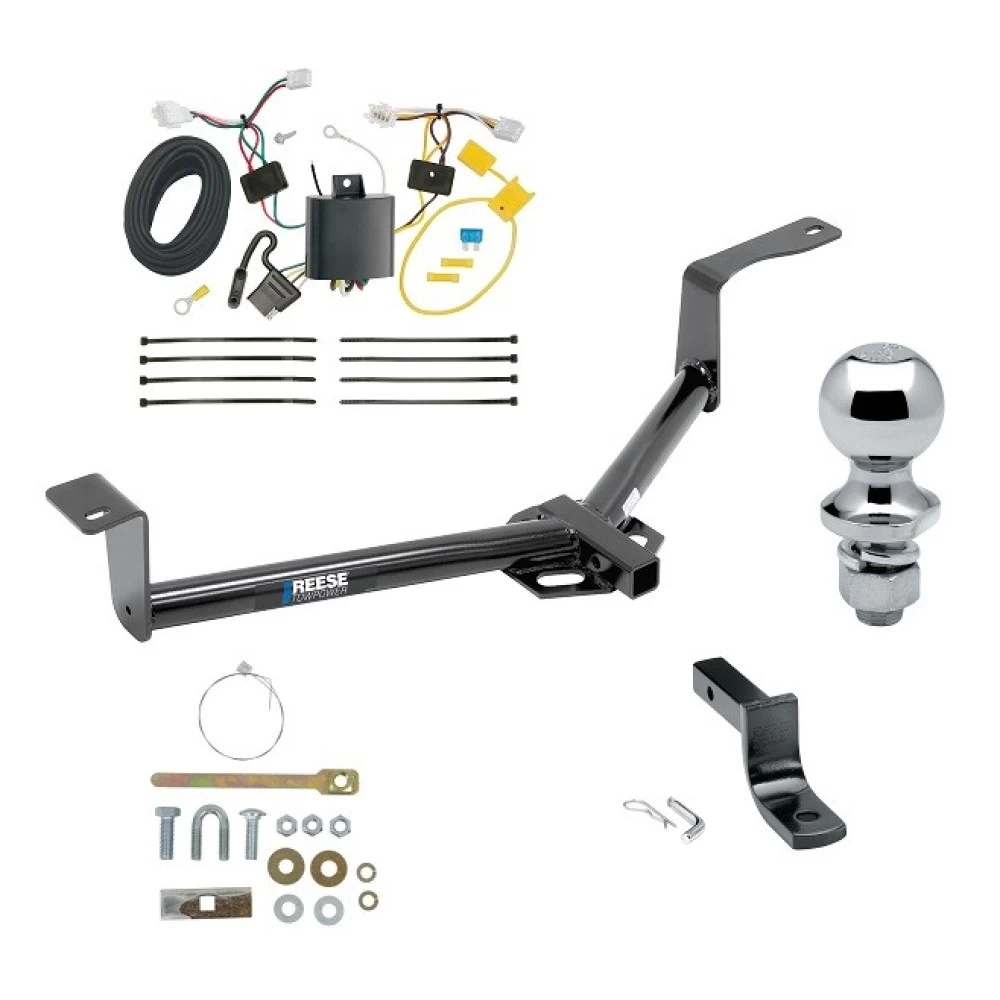

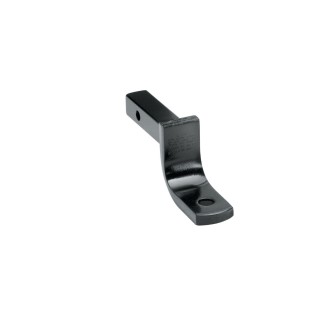

- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Reese Trailer Tow Hitch For 16-22 Honda HR-V Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes

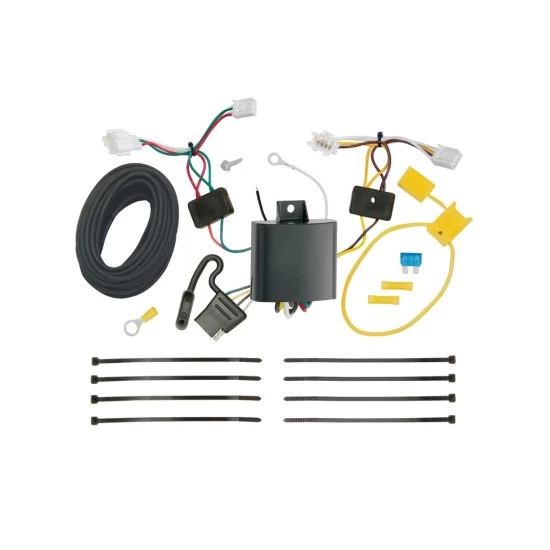

Installation Instructions for T-One® T-Connector for Honda HR-V
Part Numbers:
- 118673
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
- Set aside all removed parts carefully to avoid damage.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on the driver’s side. Be cautious not to damage clips.
-
Locate Taillight Wiring Harness:
- On the driver’s side, locate the taillight wiring harness with a connection point matching the ends of the T-Connector.
- Separate the connector carefully, ensuring not to break the locking tabs. Clean all connector surfaces.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure connectors are fully inserted and the locking tabs are secure.
-
Route and Connect the Passenger-Side T-Connector:
- Route the T-One® T-Connector end with the green wire behind the panels and along the threshold to the passenger side.
- Repeat steps 3 and 4 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to prevent damage or injury.
-
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box to prevent damage or rattling.
-
Connect the Power Wire:
- From inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or existing wiring to the engine compartment.
- Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or other hazardous areas.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
- Warning: Follow all warnings and cautions on the tow vehicle’s battery.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, and other components removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 1 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Honda HR-V
Part Numbers:
- 118673
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
- Set aside all removed parts carefully to avoid damage.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on the driver’s side. Be cautious not to damage clips.
-
Locate Taillight Wiring Harness:
- On the driver’s side, locate the taillight wiring harness with a connection point matching the ends of the T-Connector.
- Separate the connector carefully, ensuring not to break the locking tabs. Clean all connector surfaces.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure connectors are fully inserted and the locking tabs are secure.
-
Route and Connect the Passenger-Side T-Connector:
- Route the T-One® T-Connector end with the green wire behind the panels and along the threshold to the passenger side.
- Repeat steps 3 and 4 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to prevent damage or injury.
-
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box to prevent damage or rattling.
-
Connect the Power Wire:
- From inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or existing wiring to the engine compartment.
- Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or other hazardous areas.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
- Warning: Follow all warnings and cautions on the tow vehicle’s battery.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, and other components removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 1 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
