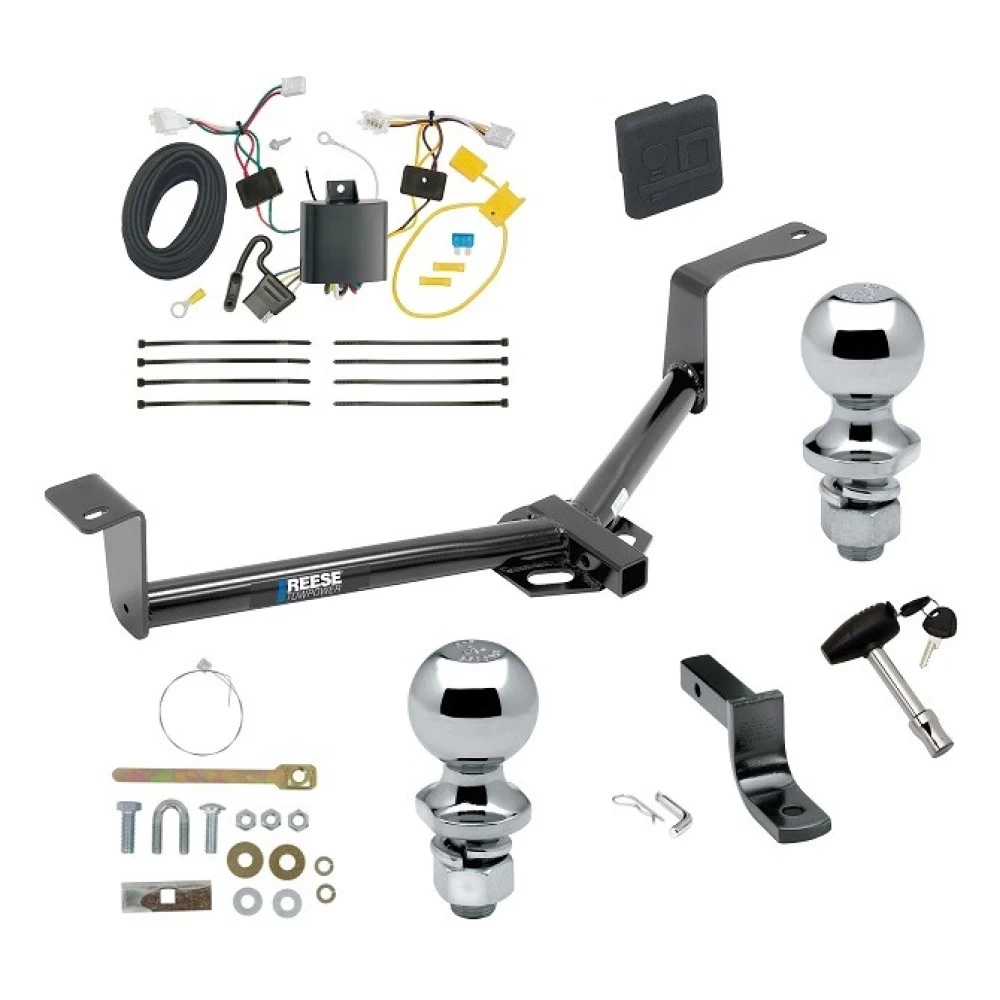

- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Get Expert Help

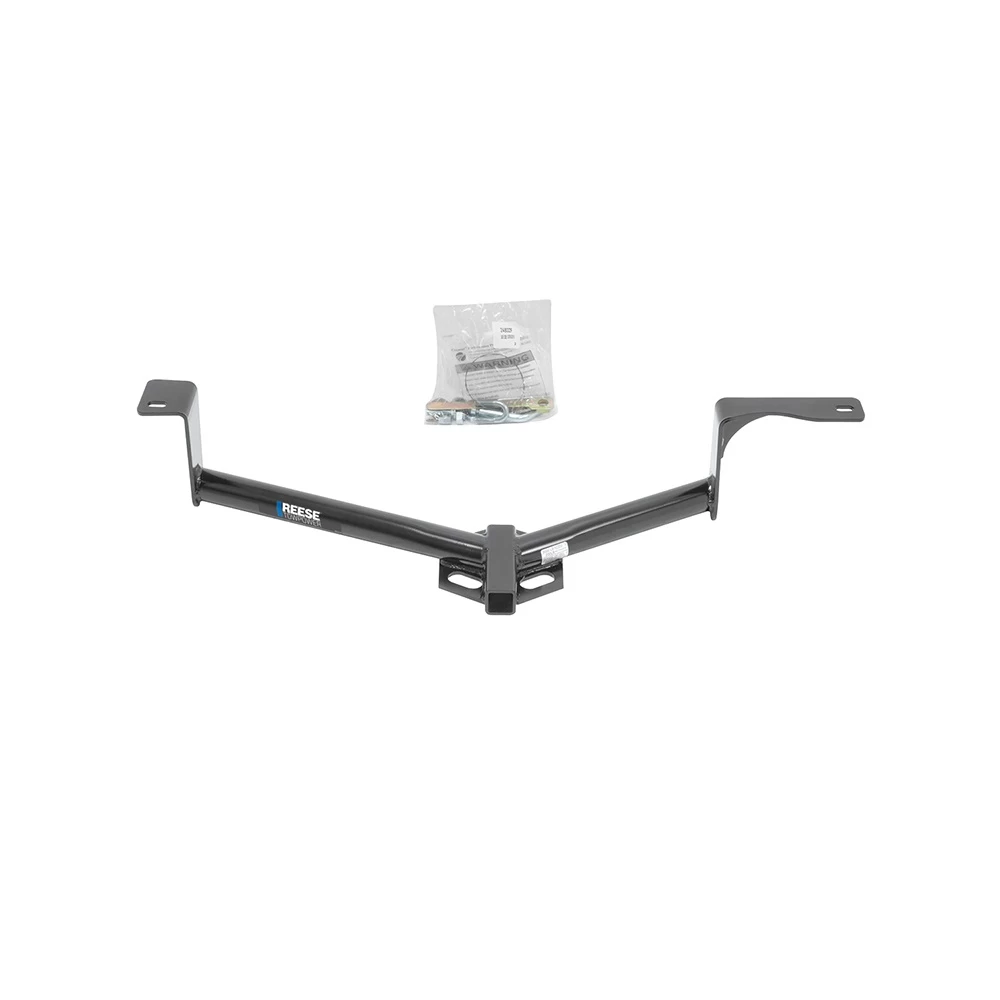

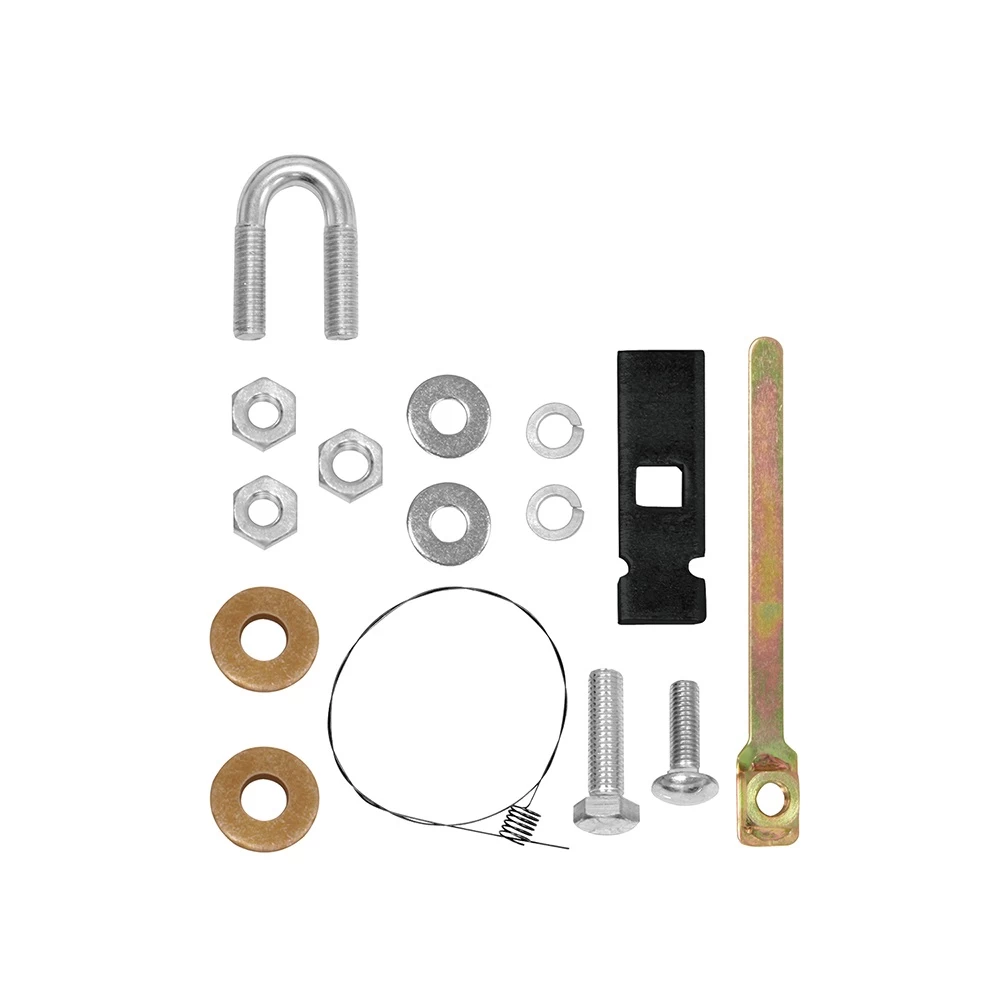

Reese Trailer Tow Hitch For 16-22 Honda HR-V Deluxe Package Wiring 2" and 1-7/8" Ball and Lock Install Notes

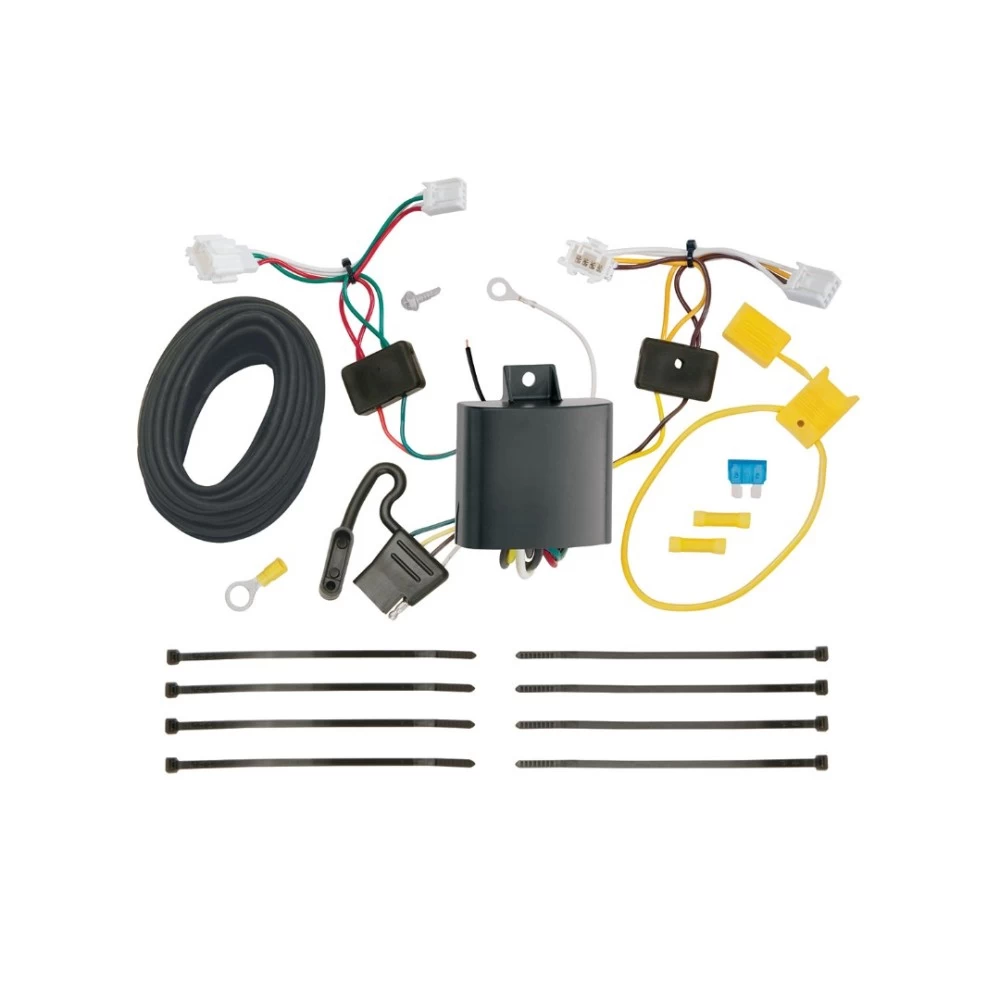

Installation Instructions for T-One® T-Connector for Honda HR-V
Part Numbers:
- 118673
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
- Set aside all removed parts carefully to avoid damage.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on the driver’s side. Be cautious not to damage clips.
-
Locate Taillight Wiring Harness:
- On the driver’s side, locate the taillight wiring harness with a connection point matching the ends of the T-Connector.
- Separate the connector carefully, ensuring not to break the locking tabs. Clean all connector surfaces.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure connectors are fully inserted and the locking tabs are secure.
-
Route and Connect the Passenger-Side T-Connector:
- Route the T-One® T-Connector end with the green wire behind the panels and along the threshold to the passenger side.
- Repeat steps 3 and 4 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to prevent damage or injury.
-
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box to prevent damage or rattling.
-
Connect the Power Wire:
- From inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or existing wiring to the engine compartment.
- Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or other hazardous areas.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
- Warning: Follow all warnings and cautions on the tow vehicle’s battery.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, and other components removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 1 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Honda HR-V
Part Numbers:
- 118673
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove the threshold, trunk floor panels, and trays.
- Set aside all removed parts carefully to avoid damage.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on the driver’s side. Be cautious not to damage clips.
-
Locate Taillight Wiring Harness:
- On the driver’s side, locate the taillight wiring harness with a connection point matching the ends of the T-Connector.
- Separate the connector carefully, ensuring not to break the locking tabs. Clean all connector surfaces.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® T-Connector end with the yellow wire between the vehicle’s wiring connectors.
- Ensure connectors are fully inserted and the locking tabs are secure.
-
Route and Connect the Passenger-Side T-Connector:
- Route the T-One® T-Connector end with the green wire behind the panels and along the threshold to the passenger side.
- Repeat steps 3 and 4 on the passenger side using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point on the driver’s side near the connectors.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to prevent damage or injury.
-
Mount the Black Box Module:
- Locate a flat, out-of-the-way surface and mount the T-One® T-Connector’s black box to prevent damage or rattling.
-
Connect the Power Wire:
- From inside the vehicle, connect the black 12-gauge wire to the black wire from the T-One® T-Connector’s black box using the supplied yellow butt connector.
- Route the black wire through a grommet and along the exterior frame or existing wiring to the engine compartment.
- Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or other hazardous areas.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.
- Warning: Follow all warnings and cautions on the tow vehicle’s battery.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the wiring harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, and other components removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
Specifications:
- Max. stop/turn light: 1 per side (4.2 amps)
- Max. tail lights: 7.5 amps
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
