Installation Instructions for Honda Civic Sedan, Coupe, and Hatchback (2016-Current)

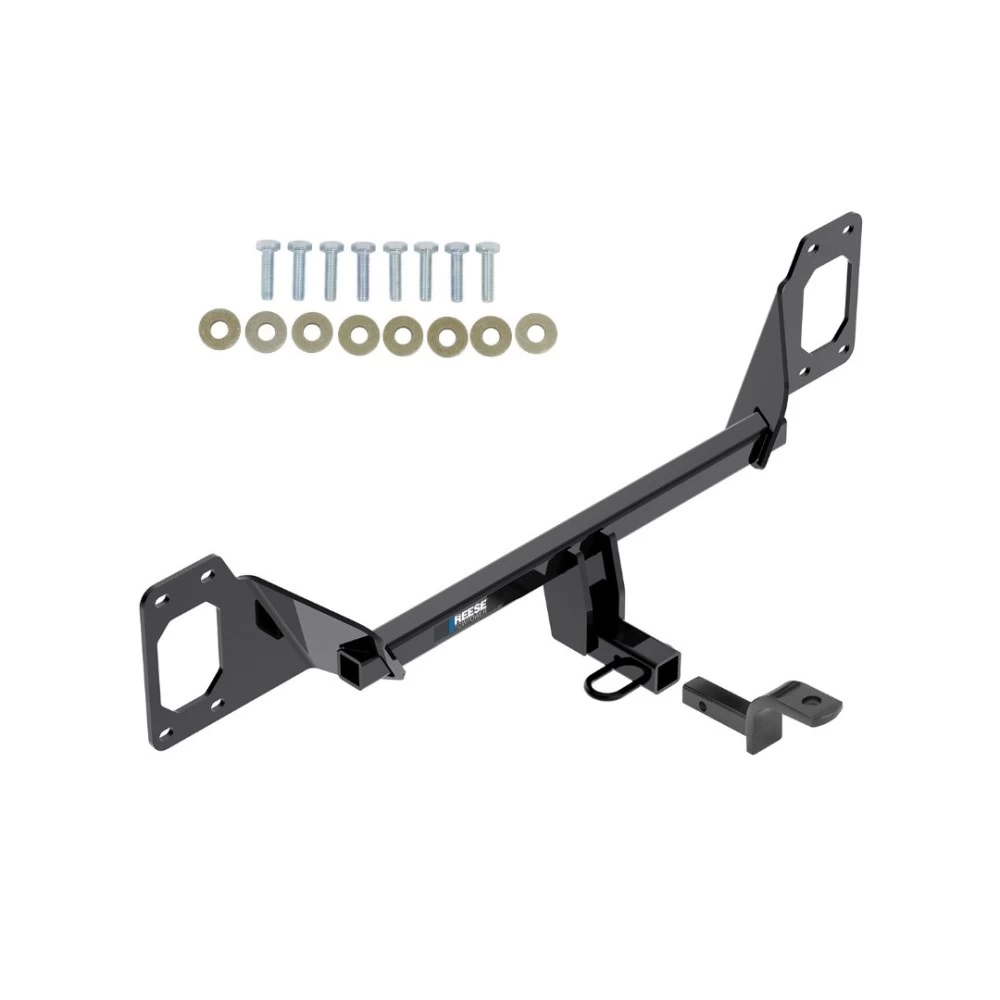

Part Numbers:

• 24954
• 77336
• CQT24954

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 12mm, 13mm
• 5mm Allen Wrench
• Flat-Head Screwdriver
• Small Phillips Screwdriver
• Utility Knife
• Die Grinder
• Drill with Small Drill Bit
• Tape Measure
• Marker
• 6" Socket Extension

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 65 minutes (Professional Installer)

Step-by-Step Instructions:

1. Mark Fascia Centerline:

   • Use a marker or tape to mark the centerline of the fascia for reference.

2. Remove Plastic Rivets and Screws:

   • Remove plastic rivets from the supports on the bottom of the bumper fascia by pulling the center post of the rivet approximately 1/4". Push out the rivet by hand. Remove 3–4 Phillips screws from each wheel well.

3. Remove Trunk Fasteners:

   • Open the trunk and remove two hex screws from under the rear hatch securing the bumper fascia. Repeat for both sides.

4. Remove Bumper Fascia:

   • Loosen tail light bolts to allow additional clearance for fascia removal.
   • Gently pull upward from the rear wheel well trim panel on both sides, unclipping the tabs inside. Work up toward the tail lights, releasing cleats with a small screwdriver as needed. Continue to remove along the bottom to the trunk, detaching any wiring harness if present. Set the fascia aside.

5. Remove Bumper:

   • Remove eight (8) bolts holding the bumper in place. Return the fasteners to the vehicle owner.

6. Trim Bumper (If Necessary):

   • Use a die grinder to remove any material as shown in Figure 2.

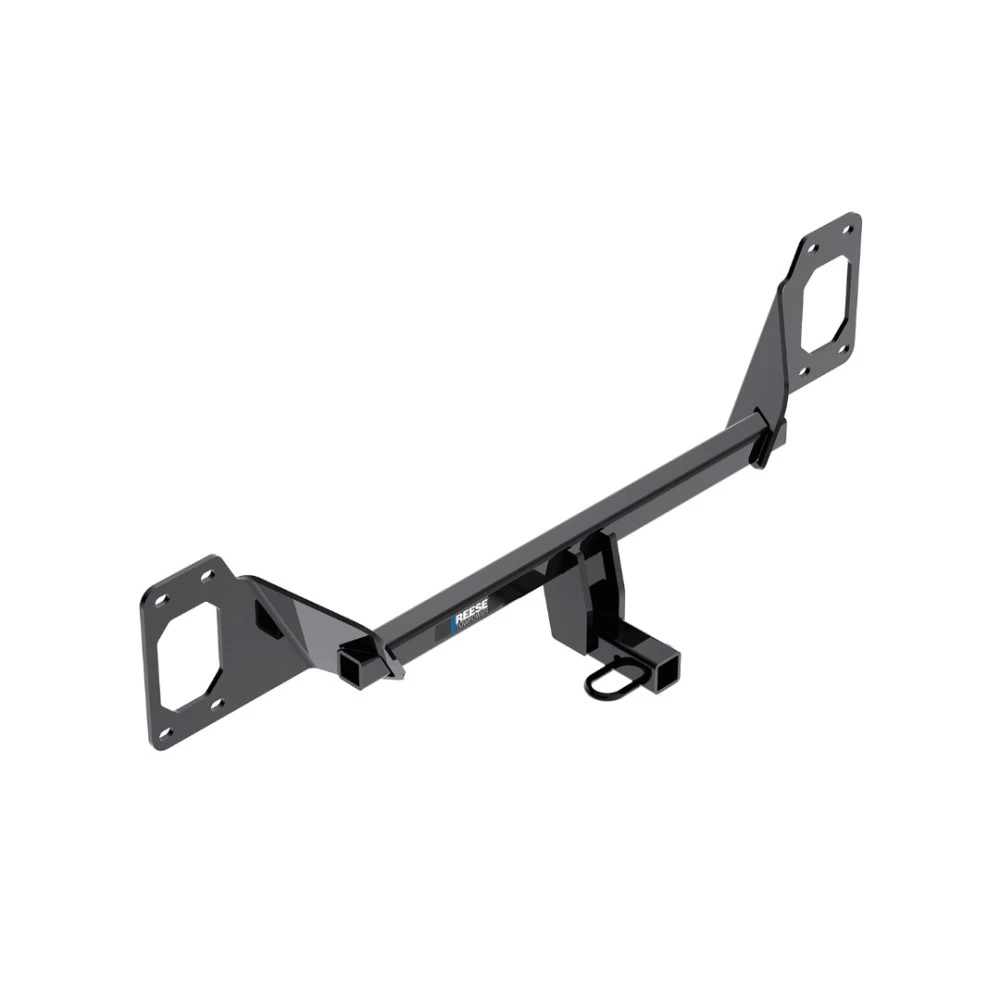

7. Install Hitch and Bumper:

   • Raise the hitch and bumper into position as shown in Figure 1. Secure with the provided fasteners.

8. Tighten Fasteners:

   • Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).

9. Trim Fascia:

   • Using the centerline marked in Step 1, trim a 2.50” x 4.00” section from the fascia as shown in Figure 3. Use a drill to create rounded corners.

10. Reinstall Fascia:

    • Align and reinstall the fascia, ensuring all fasteners and wiring harnesses are reattached in reverse order of removal.

Hardware List:

• (8) Hex Bolts: M8 x 1.25 x 30mm CL8.8
• (8) Conical Washers: 3/8"

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

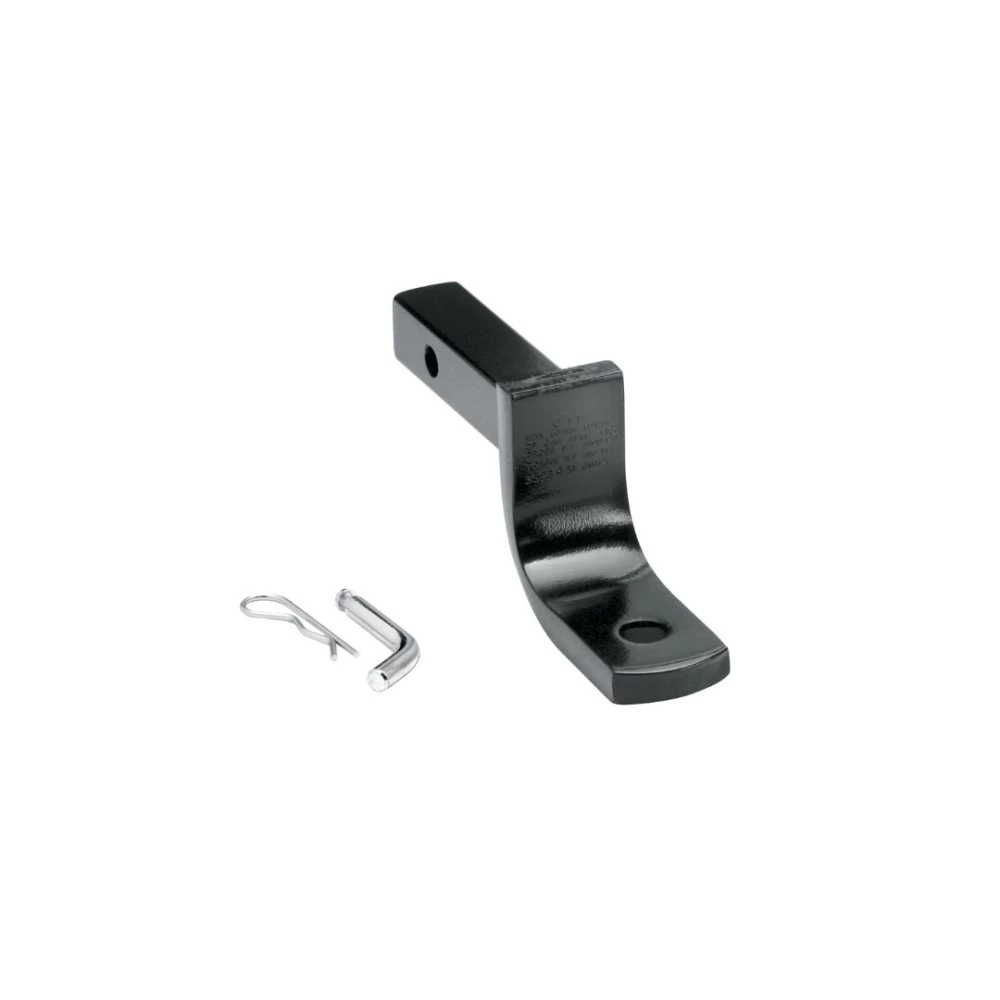

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Frequently check the hitch to ensure all fasteners remain tight.

Installation Instructions for Honda Civic Sedan, Coupe, and Hatchback (2016-Current)

Part Numbers:

• 24954
• 77336
• CQT24954

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 12mm, 13mm
• 5mm Allen Wrench
• Flat-Head Screwdriver
• Small Phillips Screwdriver
• Utility Knife
• Die Grinder
• Drill with Small Drill Bit
• Tape Measure
• Marker
• 6" Socket Extension

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Installation Time:

• Approx. 65 minutes (Professional Installer)

Step-by-Step Instructions:

1. Mark Fascia Centerline:

   • Use a marker or tape to mark the centerline of the fascia for reference.

2. Remove Plastic Rivets and Screws:

   • Remove plastic rivets from the supports on the bottom of the bumper fascia by pulling the center post of the rivet approximately 1/4". Push out the rivet by hand. Remove 3–4 Phillips screws from each wheel well.

3. Remove Trunk Fasteners:

   • Open the trunk and remove two hex screws from under the rear hatch securing the bumper fascia. Repeat for both sides.

4. Remove Bumper Fascia:

   • Loosen tail light bolts to allow additional clearance for fascia removal.
   • Gently pull upward from the rear wheel well trim panel on both sides, unclipping the tabs inside. Work up toward the tail lights, releasing cleats with a small screwdriver as needed. Continue to remove along the bottom to the trunk, detaching any wiring harness if present. Set the fascia aside.

5. Remove Bumper:

   • Remove eight (8) bolts holding the bumper in place. Return the fasteners to the vehicle owner.

6. Trim Bumper (If Necessary):

   • Use a die grinder to remove any material as shown in Figure 2.

7. Install Hitch and Bumper:

   • Raise the hitch and bumper into position as shown in Figure 1. Secure with the provided fasteners.

8. Tighten Fasteners:

   • Torque all M8 CL8.8 fasteners to 20 Lb.-Ft. (27 N*M).

9. Trim Fascia:

   • Using the centerline marked in Step 1, trim a 2.50” x 4.00” section from the fascia as shown in Figure 3. Use a drill to create rounded corners.

10. Reinstall Fascia:

    • Align and reinstall the fascia, ensuring all fasteners and wiring harnesses are reattached in reverse order of removal.

Hardware List:

• (8) Hex Bolts: M8 x 1.25 x 30mm CL8.8
• (8) Conical Washers: 3/8"

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
• Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear eye protection and observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Frequently check the hitch to ensure all fasteners remain tight.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
