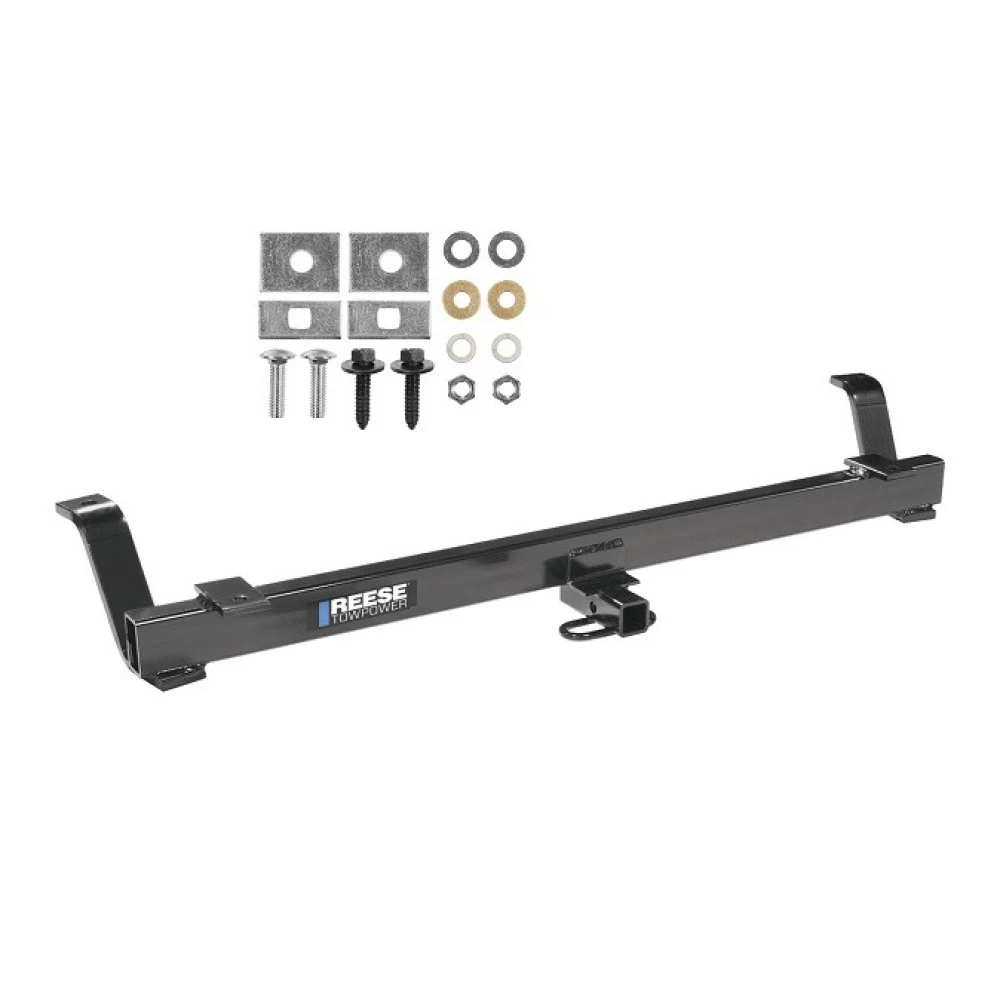

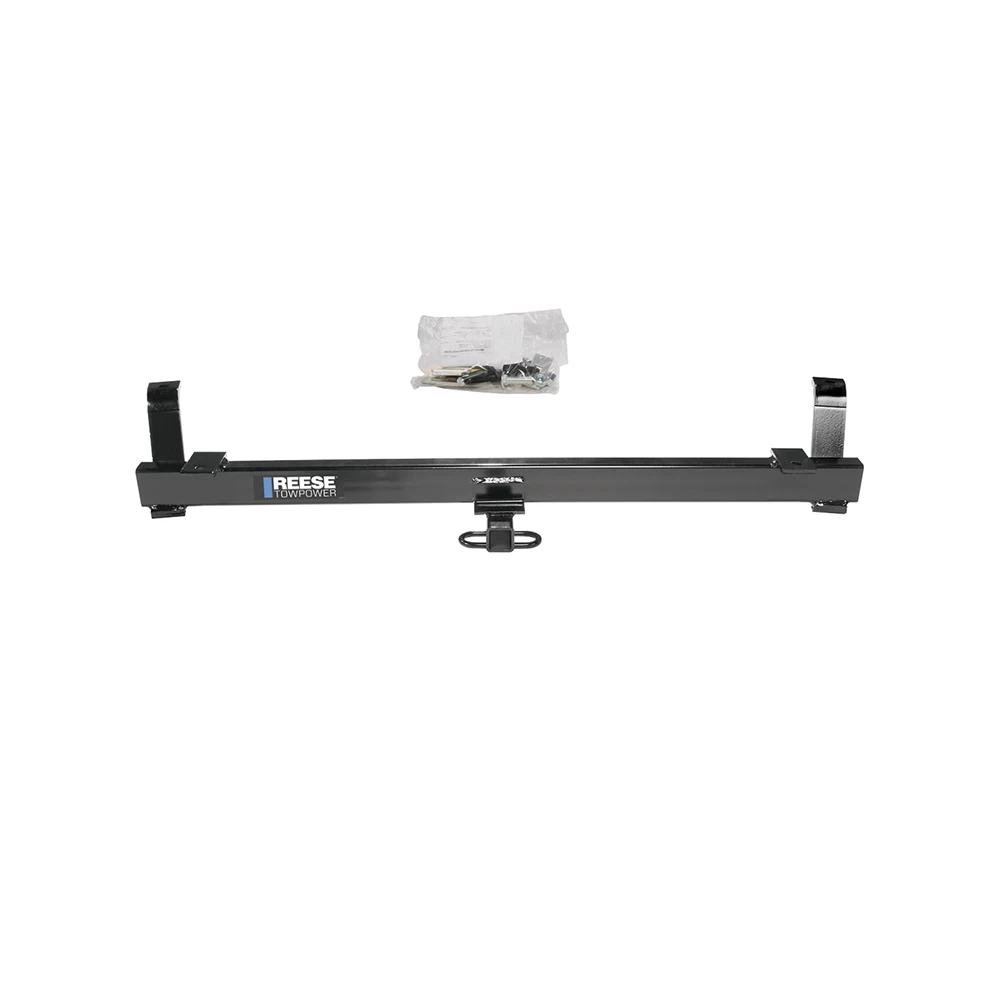

Reese Trailer Tow Hitch For 94‑04 Ford Mustang Except Cobra SVT 1‑1/4" Towing Receiver Class 1
Model: 770291994 - 1998 Ford, Mustang, All Styles
1999 - 2004 Ford, Mustang, Except Cobra SVT
Trailer Hitch Specs:
| Part Number | 77029 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 94 95 96 97 98 99 00 01 02 03 04 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
$220 40 $320.73 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $220 40
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $55.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77029
- UPC: 016118031690
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
1994 - 1998 Ford, Mustang, All Styles
1999 - 2004 Ford, Mustang, Except Cobra SVT
Trailer Hitch Specs:
| Part Number | 77029 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 94 95 96 97 98 99 00 01 02 03 04 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004
Get Expert Help
Reese Trailer Tow Hitch For 94-04 Ford Mustang Except Cobra SVT 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Ford Mustang – All Models
Part Numbers:
- 24687
- 77029
Wiring Access Location:
- PC3, PC4
Tools Required:
- Drill Bits: 1/4", 7/16", 1" Hole Saw
- Wrenches: 13mm, 15mm, 11/16", 17mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Remove Bumper Bracket Bolts:
- Remove the bumper bracket bolts from the bottom of each frame rail. These fasteners will not be reused. Return them to the vehicle owner.
-
Install M10 Bolts:
- Attach M10 bolts and 3/8” conical washers through the hitch into the existing weldnuts on both sides of the vehicle. Leave the fasteners loose for adjustment.
-
Drill Access Hole:
- Drill a 1” hole using a hole saw on the inboard side of the frame rail, approximately 3” forward of the bumper inboard edge (see Figure 2). Use this hole for fishwiring the 7/16” carriage bolt and block.
-
Fishwire Hardware:
- Fishwire the 7/16” x 1.50” carriage bolts and spacer blocks (3837) through the drilled hole and into position.
-
Raise Hitch:
- Position the hitch on the vehicle, supporting it with a jack or additional person. Install 7/16” flat washers and nuts onto the bolts. Do not fully tighten yet.
-
Install Optional Spacers:
- If there are variations in bumper position, install the optional spacer blocks (4833-003) between the hitch tab and bumper to ensure proper alignment. Tighten fasteners as shown.
-
Tighten Fasteners:
- Torque all M10 CL10.9 fasteners to 58 Lb.-Ft.
- Torque all 7/16” GR5 fasteners to 50 Lb.-Ft.

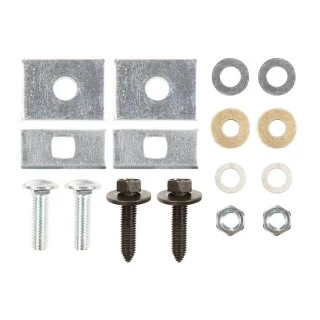

Hardware List:
- (2) M10 x 1.50 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers: 3/8”
- (2) 7/16” x 1.50” GR5 Carriage Bolts
- (2) 3/8” x 1 x 2 Blocks (3837)
- (2) Flat Washers
- (2) 7/16” Nuts
- (2) Optional Spacer Blocks (4833-003)
Drawbar:
- Standard Drawbar: 3592
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan or frame to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Additional Notes:
- Check the hitch regularly to ensure all fasteners remain tight.
- Ensure proper alignment and securement before towing.
Installation Instructions for Ford Mustang – All Models
Part Numbers:
- 24687
- 77029
Wiring Access Location:
- PC3, PC4
Tools Required:
- Drill Bits: 1/4", 7/16", 1" Hole Saw
- Wrenches: 13mm, 15mm, 11/16", 17mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb.
- Max Tongue Weight: 200 lb.
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Remove Bumper Bracket Bolts:
- Remove the bumper bracket bolts from the bottom of each frame rail. These fasteners will not be reused. Return them to the vehicle owner.
-
Install M10 Bolts:
- Attach M10 bolts and 3/8” conical washers through the hitch into the existing weldnuts on both sides of the vehicle. Leave the fasteners loose for adjustment.
-
Drill Access Hole:
- Drill a 1” hole using a hole saw on the inboard side of the frame rail, approximately 3” forward of the bumper inboard edge (see Figure 2). Use this hole for fishwiring the 7/16” carriage bolt and block.
-
Fishwire Hardware:
- Fishwire the 7/16” x 1.50” carriage bolts and spacer blocks (3837) through the drilled hole and into position.
-
Raise Hitch:
- Position the hitch on the vehicle, supporting it with a jack or additional person. Install 7/16” flat washers and nuts onto the bolts. Do not fully tighten yet.
-
Install Optional Spacers:
- If there are variations in bumper position, install the optional spacer blocks (4833-003) between the hitch tab and bumper to ensure proper alignment. Tighten fasteners as shown.
-
Tighten Fasteners:
- Torque all M10 CL10.9 fasteners to 58 Lb.-Ft.
- Torque all 7/16” GR5 fasteners to 50 Lb.-Ft.
Hardware List:
- (2) M10 x 1.50 x 35mm CL10.9 Bolts
- (2) Conical Toothed Washers: 3/8”
- (2) 7/16” x 1.50” GR5 Carriage Bolts
- (2) 3/8” x 1 x 2 Blocks (3837)
- (2) Flat Washers
- (2) 7/16” Nuts
- (2) Optional Spacer Blocks (4833-003)
Drawbar:
- Standard Drawbar: 3592
- Length: 6.62”
- Rise: 2.75”
- Clip: 2209 DT
- Important: Use only the drawbar shown for correct bumper clearance and height. The drawbar must be used in the rise position only.
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan or frame to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working under the vehicle.
- Do not use a torch to cut access or attachment holes.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and New York safety requirements.
Additional Notes:
- Check the hitch regularly to ensure all fasteners remain tight.
- Ensure proper alignment and securement before towing.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24687 Rev. A 6/25/2014
