Reese Trailer Tow Hitch Receiver For 99‑03 Lexus RX300 01‑03 Toyota Highlander w/Tri‑Ball Triple Ball 1‑7/8" 2" 2‑5/16"

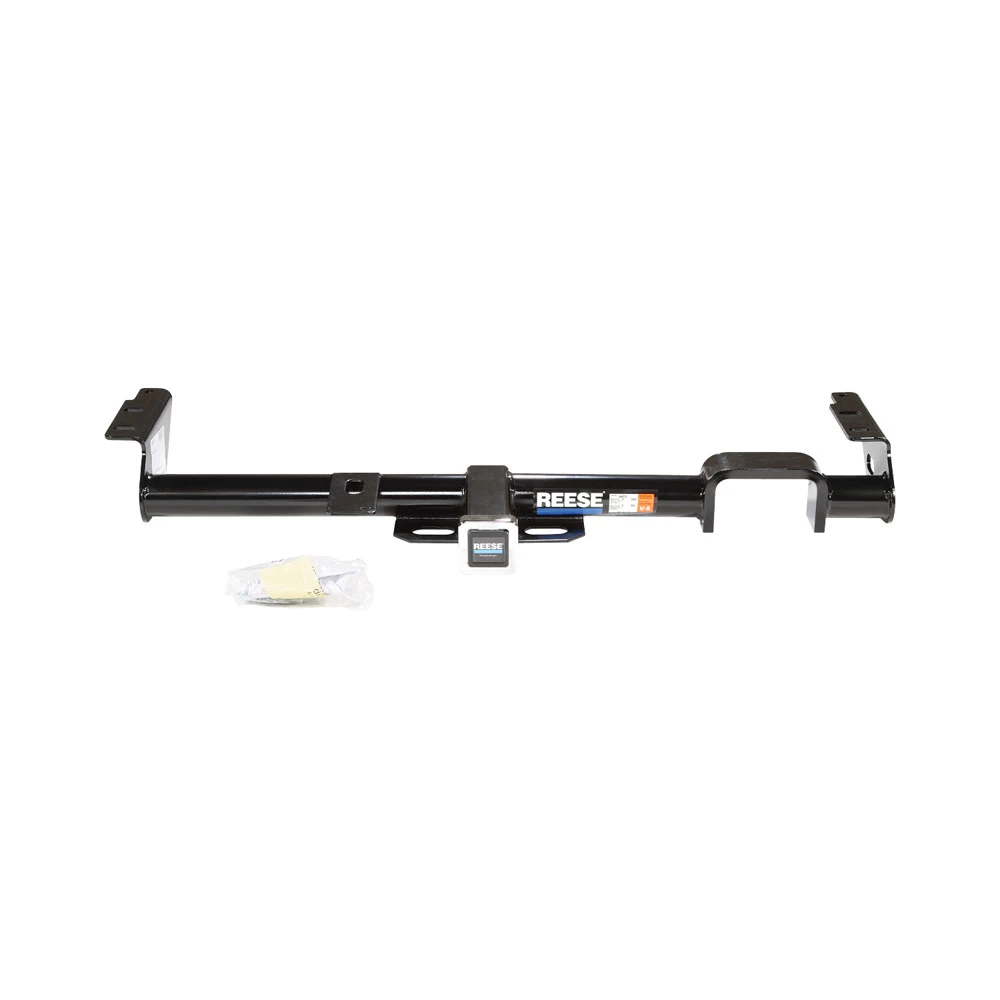

Model: 44076 7031400 63240Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
1999 - 2003 Lexus, RX300, All Styles
2001 - 2003 Toyota, Highlander, All Styles
Trailer Hitch Specs:
| Part Number | 44076 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 1999 200 2001 2002 2003
$290 07 $464.58 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$464.58 $290 07
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $72.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44076 7031400 63240

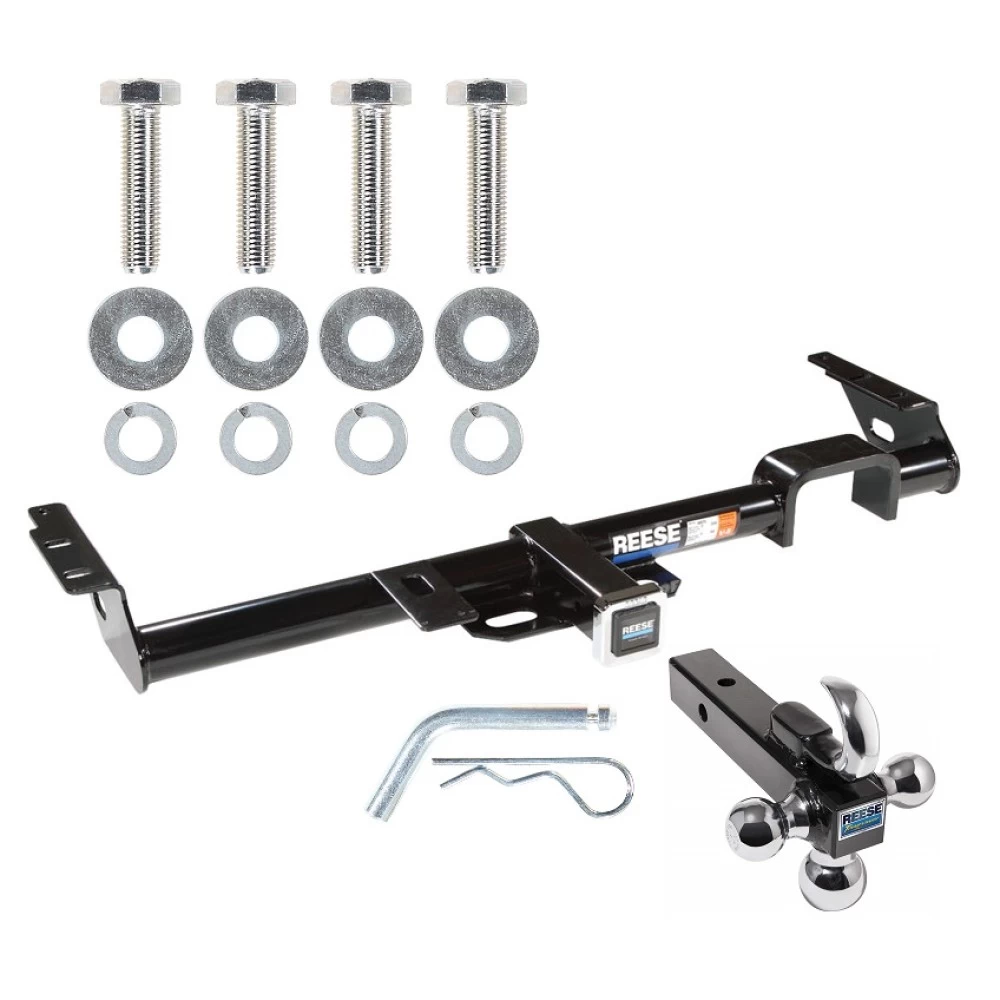

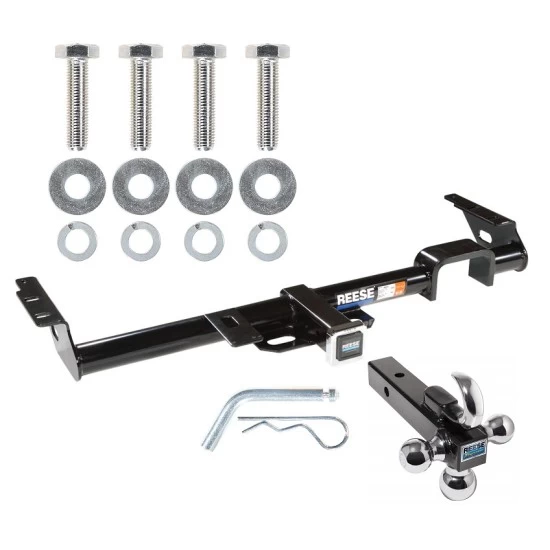

- Includes: Class 3 Trailer Tow Hitch, Tri-Ball Trailer Tow Hitch Ball Mount w/ Chrome Tow Hook, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount w/ Pin/Clip
This Hitch Fits The Following Vehicles:
1999 - 2003 Lexus, RX300, All Styles
2001 - 2003 Toyota, Highlander, All Styles
Trailer Hitch Specs:
| Part Number | 44076 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 7031400 |
| Brand | Reese |
| Fits | 2" x 2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 6,000 Lb. capacity |
| 2 5/16 In. ball | 10,000 Lb. capacity |
| Warranty | Lifetime |
Questions or Comments? Call 702-374-8999
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite, Hidden Hitch and Tekonsha. Our customhitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 99 00 01 02 03 1999 200 2001 2002 2003
Get Expert Help
Reese Trailer Tow Hitch Receiver For 99-03 Lexus RX300 01-03 Toyota Highlander w/Tri-Ball Triple Ball 1-7/8" 2" 2-5/16" Install Notes
Installation Instructions for Lexus RX300 and Toyota Highlander
Part Numbers:
- 41541
- 78229 (U-Haul)
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks from the frame rails and return them to the vehicle owner.
-
Remove Plastic Caps:
- Remove the plastic caps from the forward attaching holes in the frame rails.
-
Position Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided M10 x 1.25 x 30 mm CL10.9 hex bolts and conical toothed washers (teeth side against the hitch).
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
Hardware List:
- (6) Hex Bolt M10 x 1.25 x 30 mm CL10.9
- (6) Conical Toothed Washer 3/8"
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing Capacity:
- Not applicable. Do not use with spring bars.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 20 minutes.
- For more information, refer to the detailed instructions in the manual.
Installation Instructions for SUVs
Part Numbers:
- 41541
- 78229 (U-Haul)
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 14 mm, 17 mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tow Hooks:
- Remove the tow hooks from the frame rails and return them to the vehicle owner.
-
Remove Plastic Caps:
- Remove the plastic caps from the forward attaching holes in the frame rails.
-
Position Hitch:
- Raise the hitch into position and align it with the existing weldnuts in the frame rails.
-
Install Fasteners:
- Secure the hitch using the provided M10 x 1.25 x 30 mm CL10.9 hex bolts and conical toothed washers (teeth side against the hitch).
- Tighten all M10 x 1.25 CL10.9 fasteners to 42 lb-ft (57 N*m) using a torque wrench.
Hardware List:
- (6) Hex Bolt M10 x 1.25 x 30 mm CL10.9
- (6) Conical Toothed Washer 3/8"
Specifications:
- Weight Carrying Capacity:
- Max Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 350 lbs (159 kg)
- Weight Distributing Capacity:
- Not applicable. Do not use with spring bars.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Compliance:
This product complies with safety specifications and requirements for connecting devices and towing systems in the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 20 minutes.
- For more information, refer to the detailed instructions in the manual.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
