Reese Trailer Tow Hitch For 01-09 Volvo S60 01-07 V70 03-07 XC70 Complete Package w/ Wiring Draw Bar Kit and 2" Ball

Reese Trailer Tow Hitch For 01‑09 Volvo S60 01‑07 V70 03‑07 XC70 Complete Package w/ Wiring Draw Bar Kit and 2" Ball

Name: Reese Trailer Tow Hitch For 01-09 Volvo S60 01-07 V70 03-07 XC70 Complete Package w/ Wiring Draw Bar Kit and 2" Ball
Brand: Reese
Price: 360.4 USD
Availability: InStock

Model: 06420 36061 119191 63820

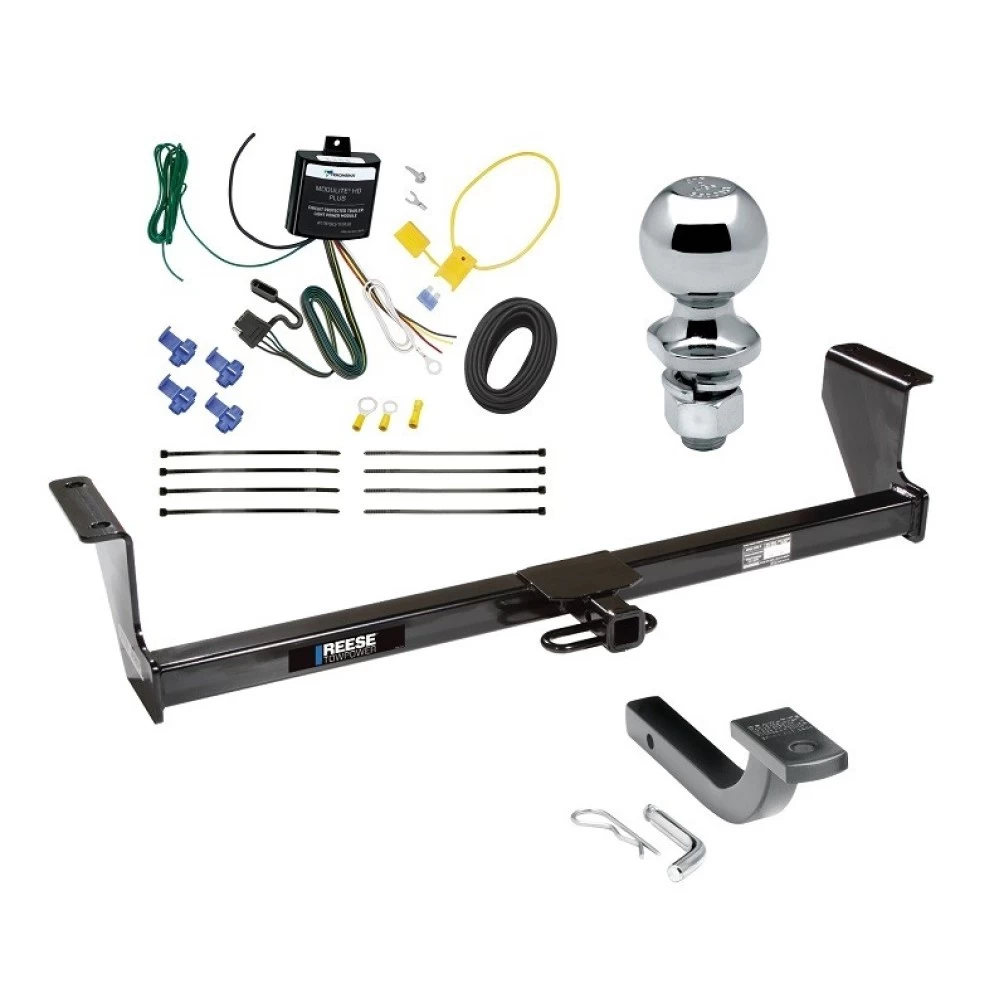

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Requires Splicing)
2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2001 - 2009   Volvo, S60, Sedan
2001 - 2007   Volvo, V70, Wagon
2003 - 2007   Volvo, XC70, Wagon, AWD

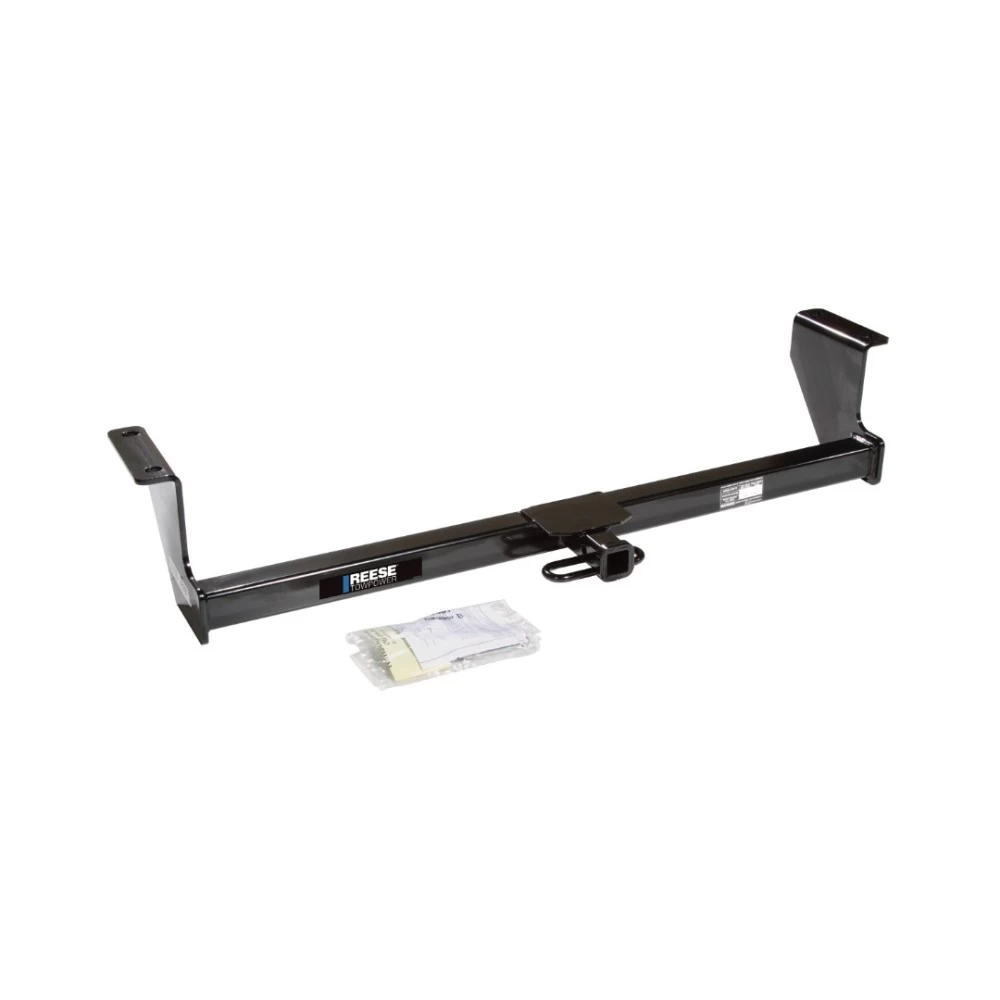

Trailer Hitch Specs:

Part Number	06420
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

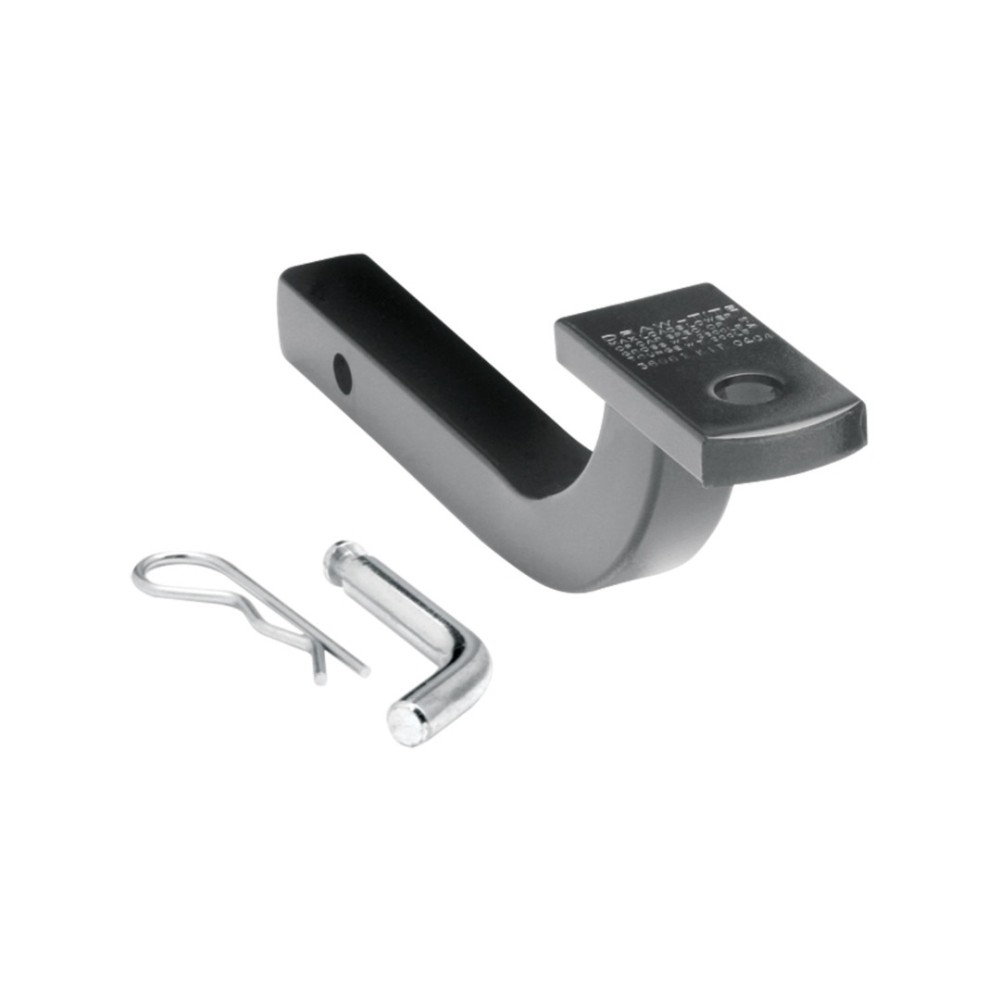

Draw-Tite Ball Mount made out of heavy duty steel can be used in either rise or drop position. Ball mount will allow you to hook up your trailer to your vehicle. Simply slide it inside of your hitch receiver opening and secure it with a pin/clip or lock (pin and clip included)

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9-3/4" From Center of Pin Hole to Center of Ball Hole
Rise	3-1/8" From inside top of hitch opening
Towing Capacity in Rise Position	3,500 lb Gross Towing Weight 300 lb Tongue Weight
Towing Capacity in Drop Position	3,500 lb Gross Towing Weight 300 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	119191
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Questions or Comments? Call 702-374-8999
REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 01 02 03 04 05 06 07 08 09 2001 2002 2003 2004 2005 2006 2007 2008 2009

See Full Description

$360 ⁴⁰ $567.00 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$567.00 $360 ⁴⁰

Pay in 4 interest-free installments of $90.00 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $90.00 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese
Model: 06420 36061 119191 63820
Includes: Class 2 Trailer Tow Hitch, ModuLite HD Plus Protector w/Integrated Circuit & Overload Protection Trailer Light Power Module & Installation Kit, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball

Compatibility Chart

Specification
Attachment Location	Rear
Color	Black
Drawbar Included	Yes
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	II
Material	Steel
Maximum Tongue Weight	300 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	1.25 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

Includes Everything Pictured:
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Requires Splicing)
2" Chrome Ball
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2001 - 2009   Volvo, S60, Sedan
2001 - 2007   Volvo, V70, Wagon
2003 - 2007   Volvo, XC70, Wagon, AWD

Trailer Hitch Specs:

Part Number	06420
Brand	Reese
Finish	Black Powdercoat
Class	1
Receiver size opening	1-1/4"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	300 lbs
Warranty	Lifetime

Specifications:

Fits	1-1/4" x 1-1/4" Trailer Hitch Receiver
Brand	Draw-Tite
Finish	Black Powdercoat
Length	9-3/4" From Center of Pin Hole to Center of Ball Hole
Rise	3-1/8" From inside top of hitch opening
Towing Capacity in Rise Position	3,500 lb Gross Towing Weight 300 lb Tongue Weight
Towing Capacity in Drop Position	3,500 lb Gross Towing Weight 300 lb Tongue Weight
Ball Hole Diameter	3/4"
Pin hole diameter	1/2"
Warranty	Limited Lifetime

Wiring Kit Specs:

Part Number	119191
Brand	Tekonsha
Warranty	1 Year

Hitch Ball Specs:

Part Number	63820
Brand	Draw-Tite
Size	2" x 3/4" x 1-1/2"
Towing Capacity	3,500 lbs. GTW
Material	Chrome
Torque	Torque to 160 ft. lbs
Shank Diameter	3/4"
Warranty	Lifetime

Tags: 06420 , 36061 , 119191 , 63820 , Reese , Trailer , Tow , Hitch , 01-09 , Volvo , S60 , 01-07 , V70 , 03-07 , XC70 , Complete , Package , Wiring , Draw , Bar , Kit , and , 2" , Ball , 01 , 02 , 03 , 04 , 05 , 06 , 07 , 08 , 09 , 2001 , 2002 , 2003 , 2004 , 2005 , 2006 , 2007 , 2008 , 2009

Get Expert Help

Reese Trailer Tow Hitch For 01-09 Volvo S60 01-07 V70 03-07 XC70 Complete Package w/ Wiring Draw Bar Kit and 2" Ball Install Notes

Installation Instructions for Volvo V70 and Volvo S60

Part Numbers:

36297
06420

Wiring Access Location:

PC3, PC4

Tools Required:

Wrench: 17mm
Drill Bits: None

Step-by-Step Instructions:

Remove Tie-Down Bracket:
- Remove the tie-down bracket from the passenger-side frame rail.
- Return the tie-down bracket to the vehicle owner.
Detach Exhaust Hanger Bracket:
- Remove two (2) exhaust hanger bracket bolts from the driver-side frame rail.
- Lower the exhaust hanger bracket and heat shield.
Install Hitch:
- Raise the hitch into position and align it between the frame and the exhaust hanger bracket.
- Use the existing fasteners to secure the hitch to the frame as shown in the illustration.
Tighten Fasteners:
- Tighten all M12 CL9.8 fasteners to 75 ft-lb (102 N*m) using a torque wrench.
Reinstall Components:
- Reattach the exhaust hanger bracket and heat shield using the existing fasteners.
- Ensure all fasteners are properly secured.

Hardware List:

Uses existing fasteners.

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath a vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Complies with V.E.S.C. Regulation V-5 and SAE J684 standards.

Additional Notes:

Drawbar Kit: 36061 (sold separately)
The drawbar must be used in the RISE position only.

Installation Instructions for Volvo V70 and Volvo S60

Part Numbers:

36297
06420

Wiring Access Location:

PC3, PC4

Tools Required:

Wrench: 17mm
Drill Bits: None

Step-by-Step Instructions:

Remove Tie-Down Bracket:
- Remove the tie-down bracket from the passenger-side frame rail.
- Return the tie-down bracket to the vehicle owner.
Detach Exhaust Hanger Bracket:
- Remove two (2) exhaust hanger bracket bolts from the driver-side frame rail.
- Lower the exhaust hanger bracket and heat shield.
Install Hitch:
- Raise the hitch into position and align it between the frame and the exhaust hanger bracket.
- Use the existing fasteners to secure the hitch to the frame as shown in the illustration.
Tighten Fasteners:
- Tighten all M12 CL9.8 fasteners to 75 ft-lb (102 N*m) using a torque wrench.
Reinstall Components:
- Reattach the exhaust hanger bracket and heat shield using the existing fasteners.
- Ensure all fasteners are properly secured.

Hardware List:

Uses existing fasteners.

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Observe safety precautions when working beneath a vehicle and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight: 3,500 lb (1,589 kg)
Max Tongue Weight: 300 lb (136 kg)
Complies with V.E.S.C. Regulation V-5 and SAE J684 standards.

Additional Notes:

Drawbar Kit: 36061 (sold separately)
The drawbar must be used in the RISE position only.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-Connector Adapter

Part Numbers:

119191

Wiring Access Location:

Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.

Tools Required:

Drill with a 3/32" drill bit.
Phillips head #2 screwdriver.
Wire cutters, wire strippers/crimpers.
Tester or volt meter.
Socket and ratchet set.
Double-sided tape (provided).

Step-by-Step Instructions:

Installation of the Module:

Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.

Routing Power to the Battery:

Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.

Finalizing Installation:

Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
Reconnect the vehicle’s negative (-) battery cable.
Insert the 15-amp fuse into the fuse holder and close the cap.
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).

Hardware List:

T-Connector adapter.
15-amp fuse.
Fuse holder.
Eyelet and self-tapping screw.
Double-sided tape.
Cable ties.

Safety Notes:

Handle all components with care to avoid damage.
Ensure all connections are clean and securely fastened.
Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Manufacturer Notes:

Read and follow all vehicle warnings and installation instructions.
Use a test light or trailer to confirm proper installation.
Consult the vehicle owner’s manual for additional details.

Installation Instructions for T-Connector Adapter

Part Numbers:

119191

Wiring Access Location:

Near the rear of the vehicle, behind the bumper, or as indicated for vehicle-specific configurations.

Tools Required:

Drill with a 3/32" drill bit.
Phillips head #2 screwdriver.
Wire cutters, wire strippers/crimpers.
Tester or volt meter.
Socket and ratchet set.
Double-sided tape (provided).

Step-by-Step Instructions:

Installation of the Module:

Determine the mounting location for the module.
- Use the provided double-sided tape to secure the module.
- Ensure the epoxy side of the module faces downward to prevent water buildup.
Connect the module’s black wire to a 12-gauge (or larger) power wire using a yellow butt connector.
Locate a suitable grounding point near the module:
- Drill a 3/32" hole if necessary and secure the white wire using the provided eyelet and self-tapping screw.
- Clean the grounding area of dirt and rustproofing.
Caution: Verify what is behind the surface before drilling to avoid damage or injury.

Routing Power to the Battery:

Route the power wire to the vehicle’s positive battery terminal:
- Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
- Do not insert the 15-amp fuse yet.
Caution: Ensure the module is connected to a constant power source. Avoid using power sources that are interrupted when the vehicle is off.

Finalizing Installation:

Secure the wiring harness with the provided cable ties to prevent damage or rattling.
- Avoid areas where wires may be pinched, cut, or melted.
Reconnect the vehicle’s negative (-) battery cable.
Insert the 15-amp fuse into the fuse holder and close the cap.
Test the installation with a test light or trailer to verify functionality.
- Test each function independently and in combination.
Specifications:
- Max. stop/turn light: 2 per side (4.2 amps).
- Max. tail lights: (7.5 amps).

Hardware List:

T-Connector adapter.
15-amp fuse.
Fuse holder.
Eyelet and self-tapping screw.
Double-sided tape.
Cable ties.

Safety Notes:

Handle all components with care to avoid damage.
Ensure all connections are clean and securely fastened.
Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
