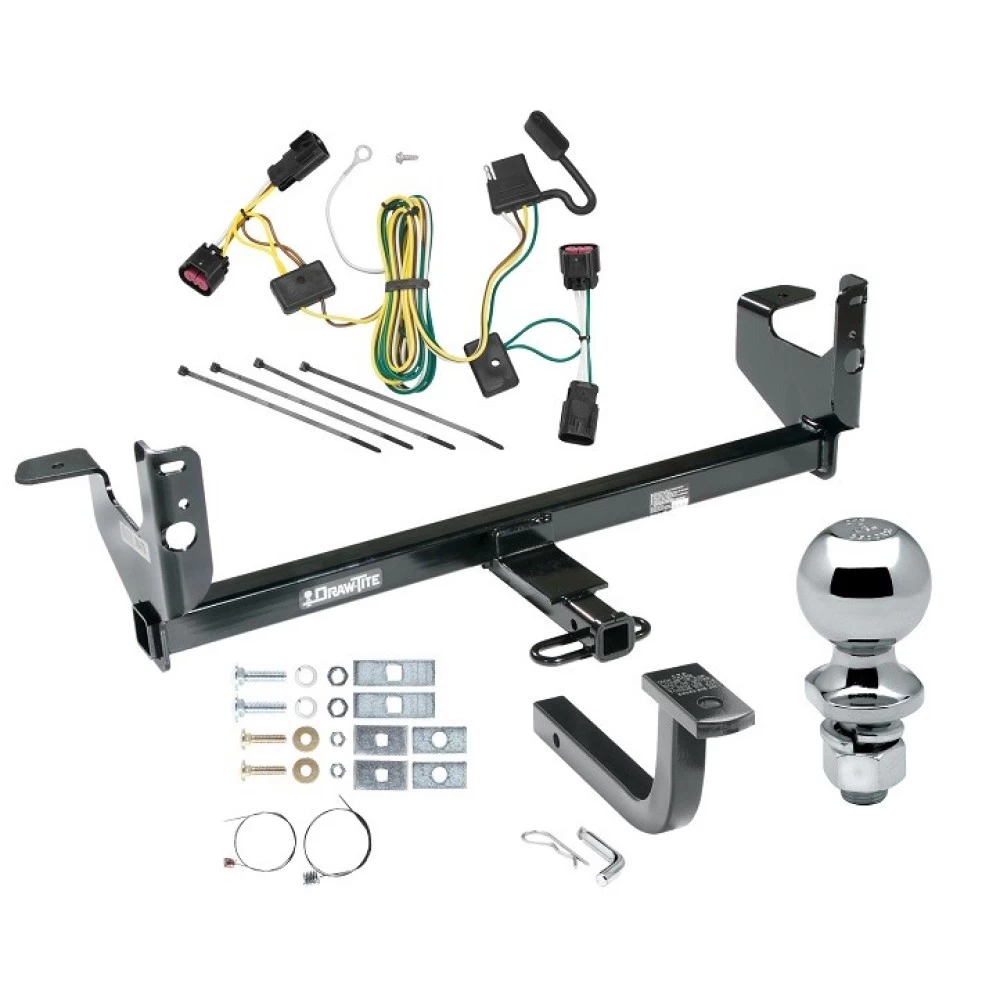

- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 08-12 Chevy Malibu Except LTZ Complete Package w/ Wiring Draw Bar Kit and 2" Ball Install Notes
Installation Instructions for Saturn Aura and Chevrolet Malibu
Part Numbers:
- 36479
- 90194
- 06658
- 36327 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 11/16", 3/4"
- Drill Bits: 1/2", 3/8"
- Pull Wires (Provided)
Step-by-Step Instructions:
For Vehicles Without Existing Holes:
-
Position Hitch:
- Raise the hitch into position and align it over the bumper attachment bolt.
- Ensure the bracket sits flat against the frame rail.
-
Drill Holes:
- Mark and center punch the hole locations using the hitch as a template.
- Drill two 3/8" holes through the end panel. Remove burrs.
-
Install Hardware:
- Tape spacers into position behind the end panel.
- Feed pull wires through the spacers and attach carriage bolts.
- Pull reinforcement plates and carriage bolts into position.
-
Secure Hitch:
- Install conical washers and nuts onto the carriage bolts.
- Tighten all fasteners according to torque specifications.
For Vehicles With Existing Holes:
-
Prepare Hardware:
- Tape spacers into position.
- Feed pull wires through the spacers, attach carriage bolts, and pull into place.
-
Install Hitch:
- Raise the hitch into position.
- Secure with conical washers and nuts.
-
Drill Frame Holes:
- Drill two 1/2" holes through the frame rail using the hitch as a guide.
-
Install Frame Hardware:
- Feed pull wires through the hitch bracket and frame rail.
- Attach spacers and carriage bolts to the pull wires and pull into position.
- Secure with lock washers and nuts.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lbs (47 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 N*m).
Hardware List:
- (2) Carriage Bolt 3/8"-16 x 1.50" GR5
- (2) Carriage Bolt 1/2"-13 x 1.75" GR5
- (2) Spacer 1/4" x 1" x 2" (Square Hole)
- (2) Spacer 1/4" x 1" x 3" (Square Hole)
- (2) Conical Washer 3/8"
- (2) Conical Washer 1/2"
- (2) Lock Washer 1/2"
- (2) Nut 3/8"-16
- (2) Nut 1/2"-13
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Installation Instructions for Saturn Aura and Chevrolet Malibu
Part Numbers:
- 36479
- 90194
- 06658
- 36327 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Wrenches: 11/16", 3/4"
- Drill Bits: 1/2", 3/8"
- Pull Wires (Provided)
Step-by-Step Instructions:
For Vehicles Without Existing Holes:
-
Position Hitch:
- Raise the hitch into position and align it over the bumper attachment bolt.
- Ensure the bracket sits flat against the frame rail.
-
Drill Holes:
- Mark and center punch the hole locations using the hitch as a template.
- Drill two 3/8" holes through the end panel. Remove burrs.
-
Install Hardware:
- Tape spacers into position behind the end panel.
- Feed pull wires through the spacers and attach carriage bolts.
- Pull reinforcement plates and carriage bolts into position.
-
Secure Hitch:
- Install conical washers and nuts onto the carriage bolts.
- Tighten all fasteners according to torque specifications.
For Vehicles With Existing Holes:
-
Prepare Hardware:
- Tape spacers into position.
- Feed pull wires through the spacers, attach carriage bolts, and pull into place.
-
Install Hitch:
- Raise the hitch into position.
- Secure with conical washers and nuts.
-
Drill Frame Holes:
- Drill two 1/2" holes through the frame rail using the hitch as a guide.
-
Install Frame Hardware:
- Feed pull wires through the hitch bracket and frame rail.
- Attach spacers and carriage bolts to the pull wires and pull into position.
- Secure with lock washers and nuts.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 ft-lbs (47 N*m).
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lbs (102 N*m).
Hardware List:
- (2) Carriage Bolt 3/8"-16 x 1.50" GR5
- (2) Carriage Bolt 1/2"-13 x 1.75" GR5
- (2) Spacer 1/4" x 1" x 2" (Square Hole)
- (2) Spacer 1/4" x 1" x 3" (Square Hole)
- (2) Conical Washer 3/8"
- (2) Conical Washer 1/2"
- (2) Lock Washer 1/2"
- (2) Nut 3/8"-16
- (2) Nut 1/2"-13
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,589 kg) trailer weight, 300 lbs (136 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Drawbar must be used in the rise position only.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Additional Notes:
- Installation time for professional installers is approximately 30 minutes.
- For more detailed instructions, refer to the QR code or manual provided.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

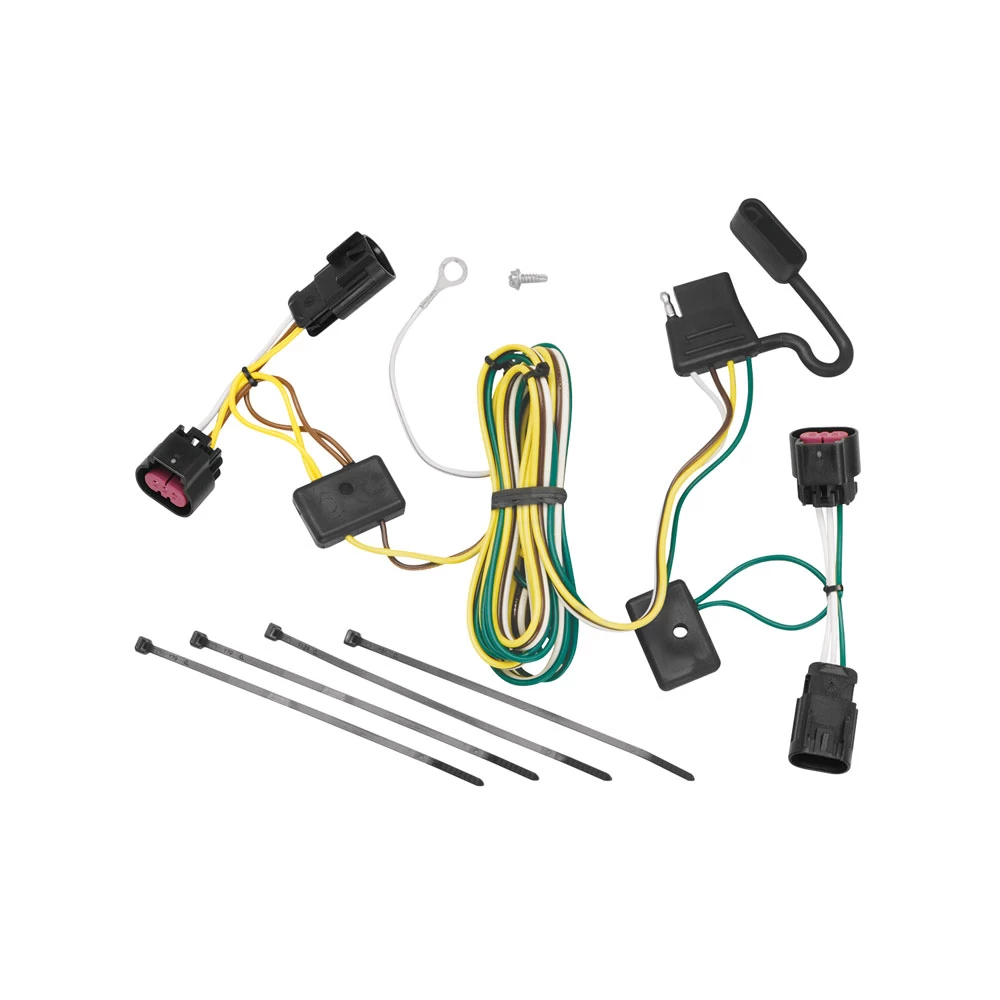

Installation Instructions for T-Connector Adapter for Buick Enclave and Chevrolet Malibu
