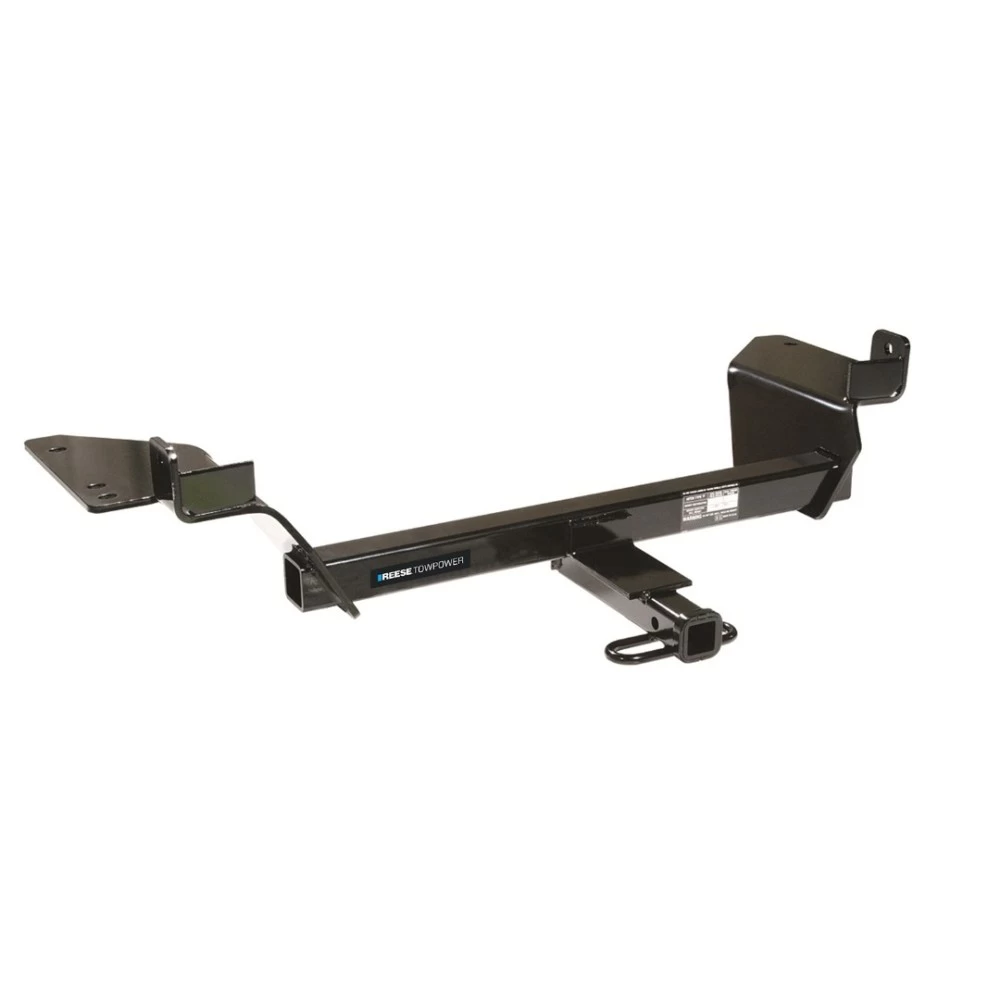

Installation Instructions for Buick LaCrosse, Buick Allure (Canada Only), Buick Century, and Oldsmobile Intrigue

Part Numbers:

• 06384
• 36374
• 90981

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 7/8"
• Drill Bits: 1/2"

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach (5) rubber exhaust hangers and lower the rearward portion of the exhaust system.

2. Insert Fasteners into Frame Rails:

   • Insert carriage bolts and blocks into the frame rails through the access holes shown in Figure 1.

3. Raise Hitch into Position:

   • Raise the hitch into position and check side-to-side clearance with the frame.
   • Tape 1/2" washers to the hitch as necessary to eliminate any gaps (see Figure 2).

4. Secure Hitch:

   • Attach the hitch using the carriage bolts and secure it as shown in Figure 1.

5. Drill Holes:

   • Using the hitch as a template, drill two (2) holes in the sides of the frame rails.

6. Install Side Fasteners:

   • Insert hex bolts and lock washers through the side frame rails and secure with handle nuts inserted through the end of the frame rail.

7. Reinstall Exhaust System:

   • Reattach the exhaust system using the original rubber hangers.

Hardware List:

• (4) Carriage Bolt, 1/2"-13 x 1 1/4"
• (2) Hex Bolt, 1/2"-13 x 1 1/4"
• (4) Spacer Block, 1/4" x 1 1/2" x 2"
• (4) Conical Toothed Washer, 1/2"
• (4) Flat Washer, 1/2"
• (4) Hex Nut, 1/2"-13
• (2) Handle Nut Assembly
• (2) Lock Washer, 1/2"

Torque Specifications:

• Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)
• Drawbar must be used in the RISE position only.

Additional Notes:

• Drawbar Kit: 36061 or 90005 (sold separately)
• Fastener Kit: 36374F or 90981F
• Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Buick LaCrosse, Buick Allure (Canada Only), Buick Century, and Oldsmobile Intrigue

Part Numbers:

• 06384
• 36374
• 90981

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 7/8"
• Drill Bits: 1/2"

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach (5) rubber exhaust hangers and lower the rearward portion of the exhaust system.

2. Insert Fasteners into Frame Rails:

   • Insert carriage bolts and blocks into the frame rails through the access holes shown in Figure 1.

3. Raise Hitch into Position:

   • Raise the hitch into position and check side-to-side clearance with the frame.
   • Tape 1/2" washers to the hitch as necessary to eliminate any gaps (see Figure 2).

4. Secure Hitch:

   • Attach the hitch using the carriage bolts and secure it as shown in Figure 1.

5. Drill Holes:

   • Using the hitch as a template, drill two (2) holes in the sides of the frame rails.

6. Install Side Fasteners:

   • Insert hex bolts and lock washers through the side frame rails and secure with handle nuts inserted through the end of the frame rail.

7. Reinstall Exhaust System:

   • Reattach the exhaust system using the original rubber hangers.

Hardware List:

• (4) Carriage Bolt, 1/2"-13 x 1 1/4"
• (2) Hex Bolt, 1/2"-13 x 1 1/4"
• (4) Spacer Block, 1/4" x 1 1/2" x 2"
• (4) Conical Toothed Washer, 1/2"
• (4) Flat Washer, 1/2"
• (4) Hex Nut, 1/2"-13
• (2) Handle Nut Assembly
• (2) Lock Washer, 1/2"

Torque Specifications:

• Tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 300 lb (136 kg)
• Drawbar must be used in the RISE position only.

Additional Notes:

• Drawbar Kit: 36061 or 90005 (sold separately)
• Fastener Kit: 36374F or 90981F
• Complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

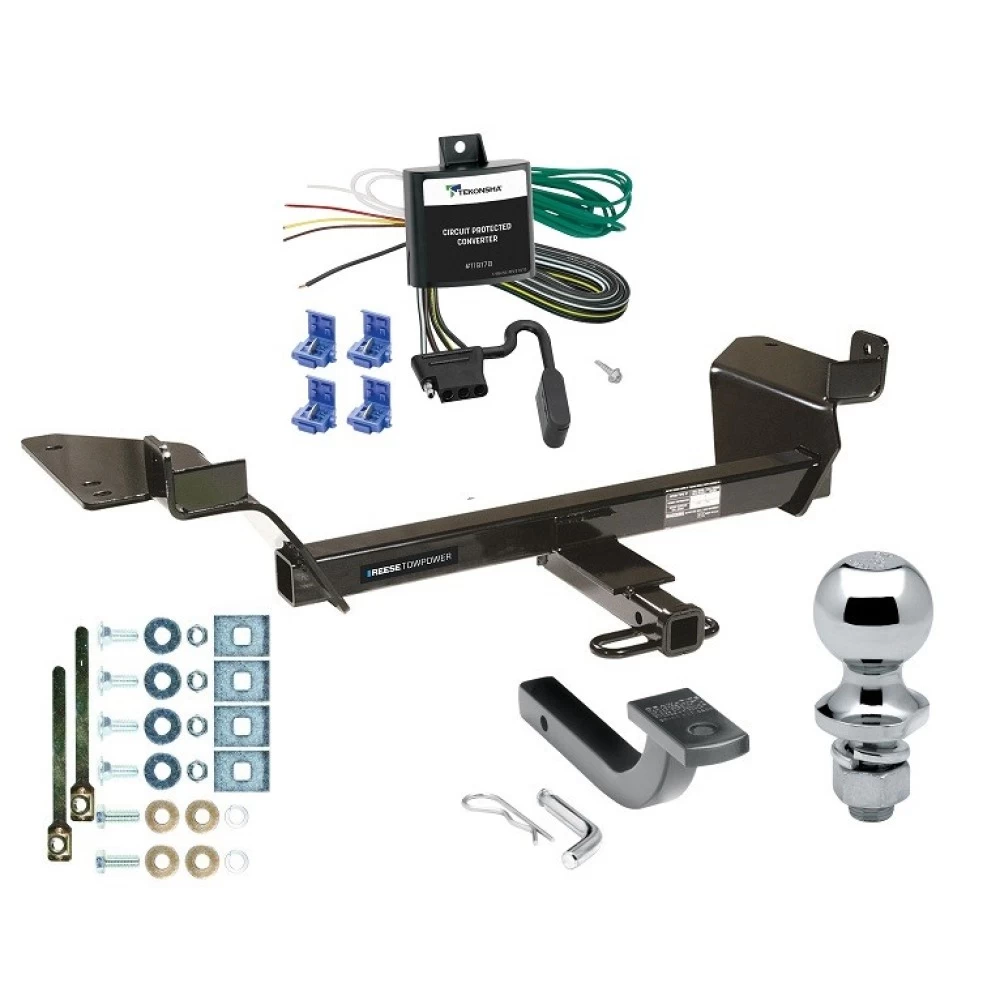

Installation Instructions for Circuit Protected Converter

Part Numbers:

• 119178

Wiring Access Location:

• Not specified in the document.

Tools Required:

• Drill (3/32” Drill Bit)
• Wire Crimpers
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.

   • Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.

2. Disconnect and isolate the vehicle's negative (-) battery terminal.

   • Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.

3. Attach the trailer wiring to the vehicle as shown in the illustration using splices.

4. Locate a suitable grounding point.

   • Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.

   • Mount with the wiring directed downward or sideways if downward is not possible.

6. Reconnect the vehicle's negative (-) battery terminal.

7. Testing Procedure:

   • Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
   • Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
   • Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.

8. Secure all loose wires with cable ties.

   • Warning: Do not overload circuits to prevent fires. Adhere to these limits:
     • Max stop/turn light: 1 per side (2.1 amps)
     • Max tail lights: (7.5 amps)

Hardware List:

• Not detailed in the document.

Safety Notes:

• Wear safety glasses and follow safety precautions.
• Disconnect the negative (-) cable before wiring.
• Securely ground to the vehicle chassis or an existing ground stud.
• Use on 12-volt negative ground systems only.

Specifications:

• Max stop/turn light: 1 per side (2.1 amps)
• Max tail lights: (7.5 amps)
• Secure wiring with cable ties after installation.

Manufacturer Notes:

• Read and follow all vehicle warnings and instructions.
• Refer to the vehicle's owner manual and manufacturer materials for additional guidance.

Installation Instructions for Circuit Protected Converter

Part Numbers:

• 119178

Wiring Access Location:

• Not specified in the document.

Tools Required:

• Drill (3/32” Drill Bit)
• Wire Crimpers
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.

   • Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.

2. Disconnect and isolate the vehicle's negative (-) battery terminal.

   • Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.

3. Attach the trailer wiring to the vehicle as shown in the illustration using splices.

4. Locate a suitable grounding point.

   • Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.

5. Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.

   • Mount with the wiring directed downward or sideways if downward is not possible.

6. Reconnect the vehicle's negative (-) battery terminal.

7. Testing Procedure:

   • Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
   • Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
   • Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.

8. Secure all loose wires with cable ties.

   • Warning: Do not overload circuits to prevent fires. Adhere to these limits:
     • Max stop/turn light: 1 per side (2.1 amps)
     • Max tail lights: (7.5 amps)

Hardware List:

• Not detailed in the document.

Safety Notes:

• Wear safety glasses and follow safety precautions.
• Disconnect the negative (-) cable before wiring.
• Securely ground to the vehicle chassis or an existing ground stud.
• Use on 12-volt negative ground systems only.

Specifications:

• Max stop/turn light: 1 per side (2.1 amps)
• Max tail lights: (7.5 amps)
• Secure wiring with cable ties after installation.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Manufacturer Notes:

• Read and follow all vehicle warnings and instructions.
• Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
