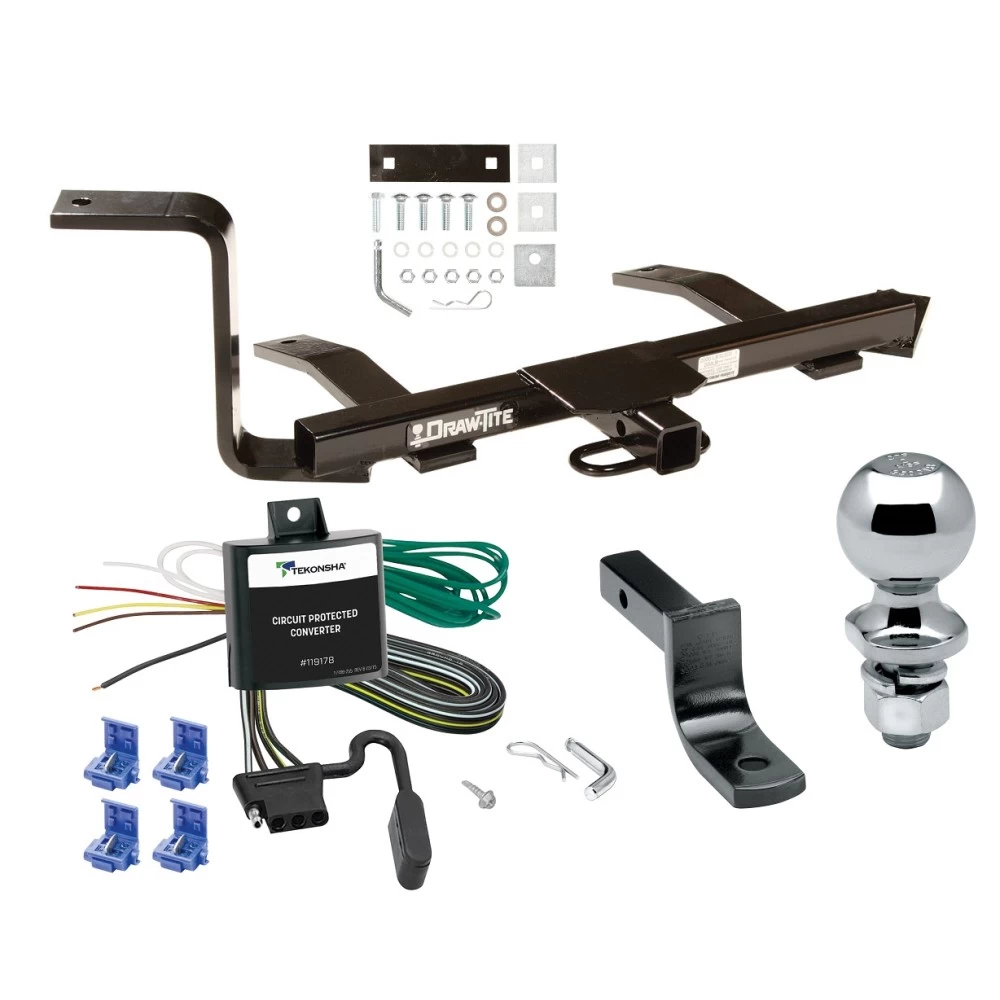

- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, Taillight Converter with Integrated Circuit Protection, Trailer Tow Hitch Ball
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 99-09 Volkswagen Jetta Sedan City Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes
Installation Instructions for VW Jetta Sedan and VW City Jetta (Canada Only)
(Except Turbo and All Wagons)
Part Numbers:
- 77106
- 24748
- 24783
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Vehicle:
- Remove the spare tire from the trunk before drilling.
-
Position Hitch:

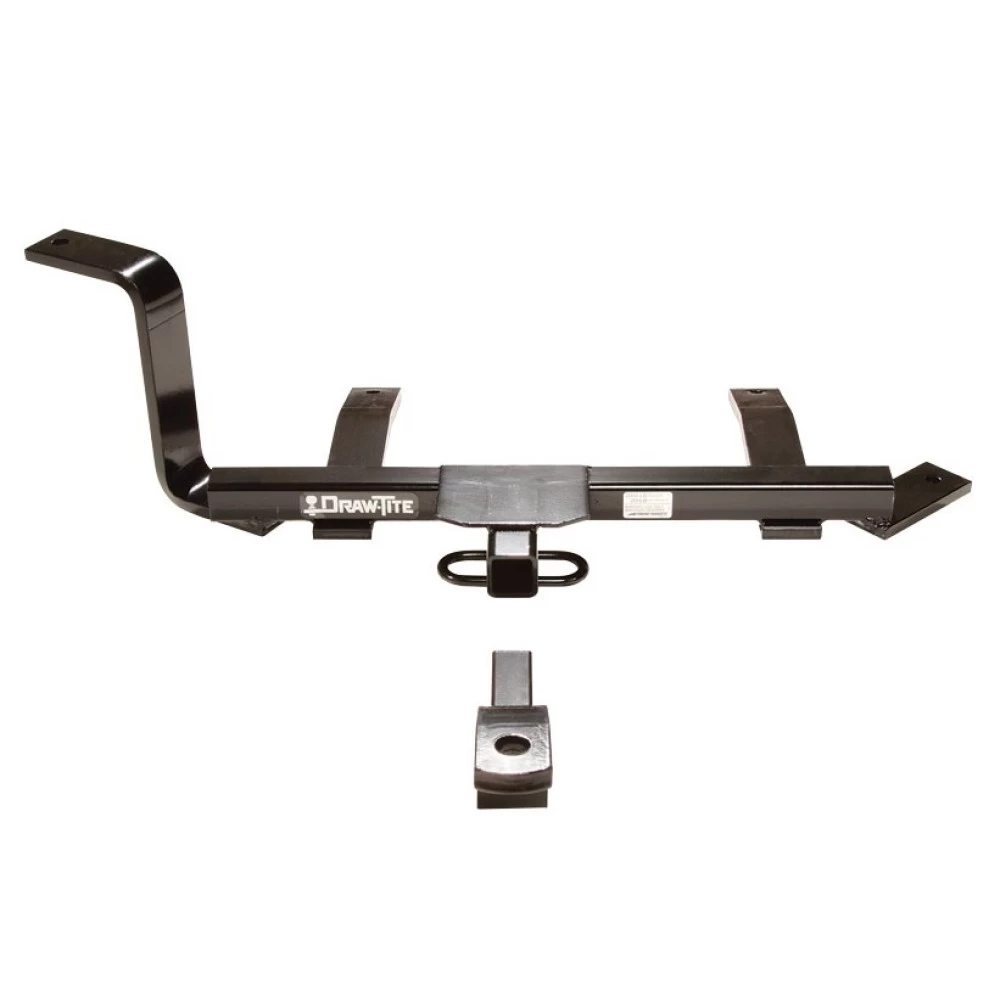

- Raise the hitch into position and install the 1/2”-13 hex bolt at the tow hook location.
-
Drill Holes:
- Using the hitch as a template, drill three (3) 1/2" holes for hitch attachment.
-
Install Carriage Bolts:
- Install three (3) 1/2”-13 carriage bolts into the drilled holes.
-
Install Long Spacer:
- Position the long spacer (with 2 square holes) inside the trunk pan as shown in the diagram.
- Use the spacer as a template to drill the remaining 1/2" hole.
- Install the remaining fasteners.
-
Seal Holes:
- Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.
-
Reinstall Spare Tire:
- Replace the spare tire in the trunk.
-
Tighten Fasteners:
- Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).

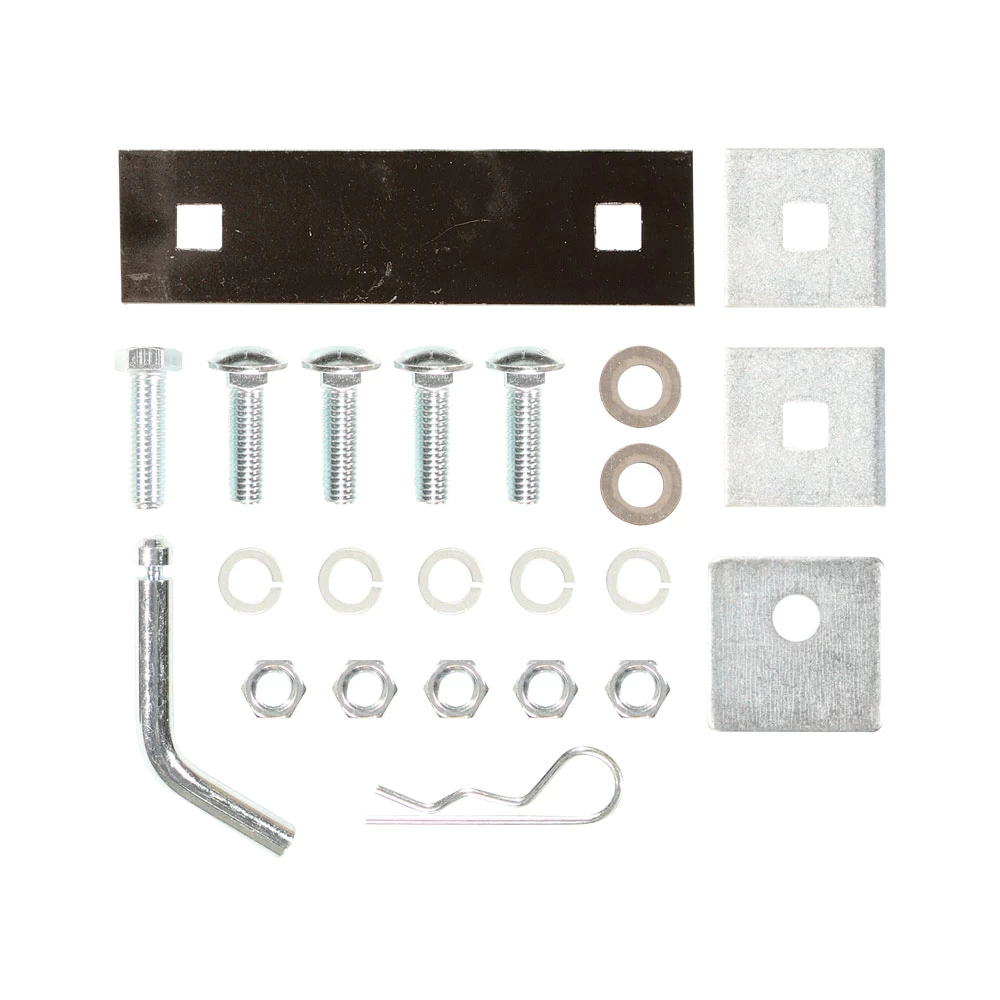

Hardware List:
- (1) 1/2”-13 x 1.75” Hex Bolt
- (5) 1/2”-13 Hex Nuts
- (2) Flat Washers
- (4) 1/2”-13 x 1.75” Carriage Bolts
- (1) Spacer
- (2) Spacers (Square Holes)
- (5) Lock Washers
- (1) Long Spacer Bar
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for VW Jetta Sedan and VW City Jetta (Canada Only)
(Except Turbo and All Wagons)
Part Numbers:
- 77106
- 24748
- 24783
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 3/4", 7/8"
- Drill Bits: 1/2"
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle ratings.
Step-by-Step Instructions:
-
Prepare Vehicle:
- Remove the spare tire from the trunk before drilling.
-
Position Hitch:
- Raise the hitch into position and install the 1/2”-13 hex bolt at the tow hook location.
-
Drill Holes:
- Using the hitch as a template, drill three (3) 1/2" holes for hitch attachment.
-
Install Carriage Bolts:
- Install three (3) 1/2”-13 carriage bolts into the drilled holes.
-
Install Long Spacer:
- Position the long spacer (with 2 square holes) inside the trunk pan as shown in the diagram.
- Use the spacer as a template to drill the remaining 1/2" hole.
- Install the remaining fasteners.
-
Seal Holes:
- Seal all holes drilled in the trunk pan to prevent intrusion of exhaust fumes and water.
-
Reinstall Spare Tire:
- Replace the spare tire in the trunk.
-
Tighten Fasteners:
- Torque all 1/2” GR5 fasteners to 75 Lb.-Ft. (102 N*M).
Hardware List:
- (1) 1/2”-13 x 1.75” Hex Bolt
- (5) 1/2”-13 Hex Nuts
- (2) Flat Washers
- (4) 1/2”-13 x 1.75” Carriage Bolts
- (1) Spacer
- (2) Spacers (Square Holes)
- (5) Lock Washers
- (1) Long Spacer Bar
Safety Notes:
- Regularly check all fasteners and the hitch ball to ensure proper tightening.
- Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
24748 Rev. A 6/25/2014
