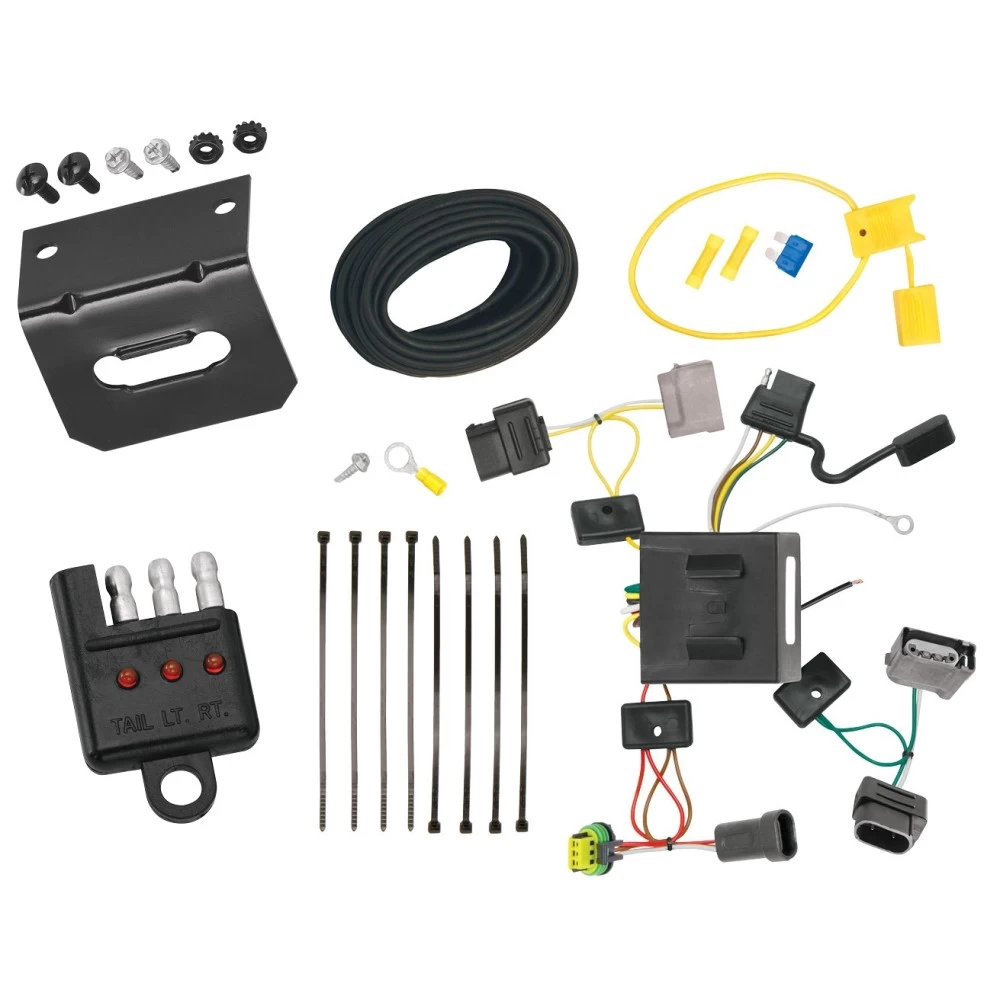

Installation Instructions for T-Connector Adapter for Dodge Journey

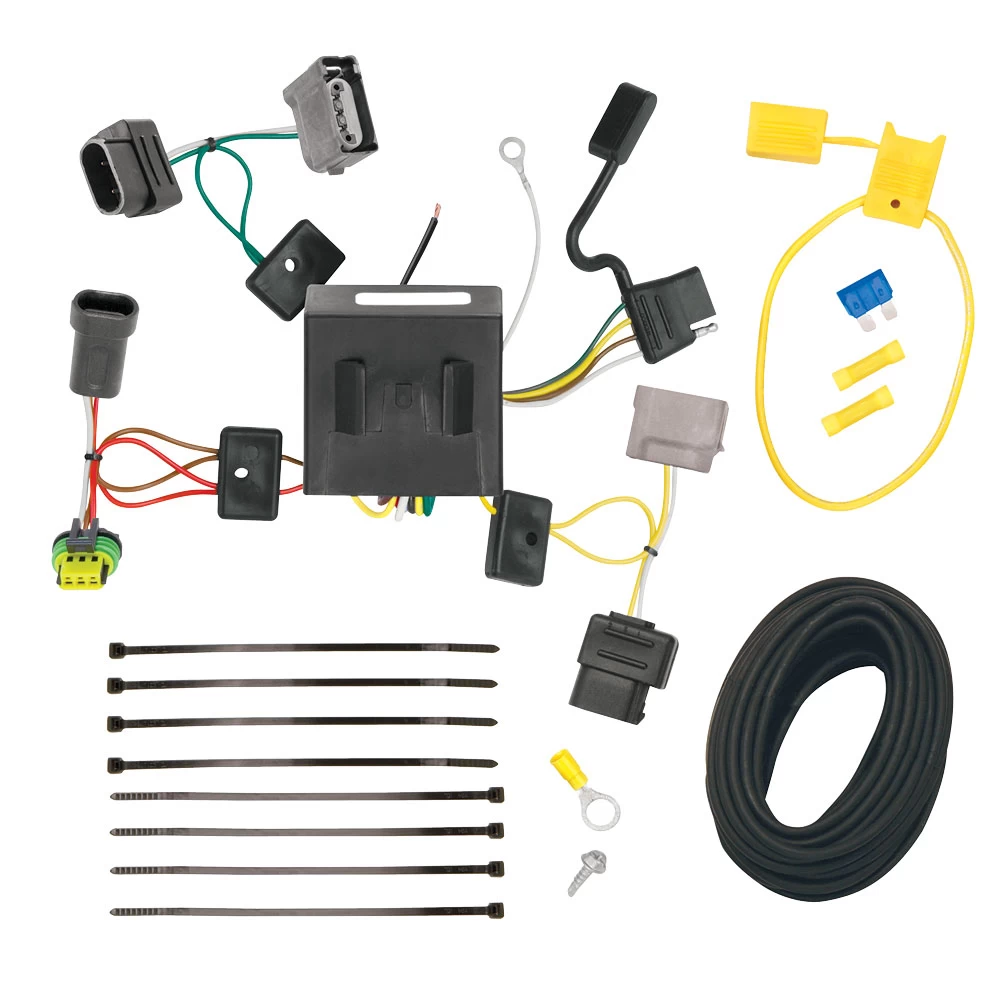

Part Numbers:

• 118536

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove Taillight Assemblies:

   • Open the tailgate and remove the vehicle's taillight assemblies by unscrewing the two clips holding them in place.
   • Carefully pry the housing away from the vehicle, being cautious not to break the alignment tabs.
   • Repeat this process for the passenger side.

2. Disconnect the Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness connectors and separate them.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle’s wiring connectors on the driver’s side.
   • Lock the connectors securely into place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector harness containing the green wire and 4-flat connector down the opening behind the taillight.
   • Run the 4-flat harness underneath the vehicle to the center.
   • Route the green wire to the passenger side and through the opening behind the passenger-side taillight.

5. Install the Passenger-Side T-Connector:

   • Repeat step 3 on the passenger side using the T-Connector with the green wire.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connectors on the driver’s side.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury.

7. Connect the Power Wire:

   • Disconnect the negative (-) battery cable.
   • Attach the provided yellow fuse holder to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

8. Route the Black Wire:

   • Route the black wire from the engine compartment to the rear of the vehicle, avoiding hot pipes, heat shields, or areas where it could be pinched or damaged.
   • Connect the black wire to the red power wire on the T-Connector’s black box using the yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.

10. Mount the Black Box:

    • Mount the T-Connector’s black box on the driver’s side using the provided double-sided tape.
    • Secure the remaining harness with cable ties to prevent damage or rattling.

11. Reassemble the Vehicle:

    • Reinstall the taillight housing assemblies and ensure all wiring is positioned correctly.

12. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
• Always wear safety glasses and follow safety precautions.

Manufacturer Notes:

• Store the 4-flat connector in a safe location when not in use.
• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Installation Instructions for T-Connector Adapter for Generic Vehicle

Part Numbers:

• 118536

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove Taillight Assemblies:

   • Open the tailgate and remove the vehicle's taillight assemblies by unscrewing the two clips holding them in place.
   • Carefully pry the housing away from the vehicle, being cautious not to break the alignment tabs.
   • Repeat this process for the passenger side.

2. Disconnect the Wiring Harness:

   • On both sides of the vehicle, locate the taillight wiring harness connectors and separate them.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the vehicle’s wiring connectors on the driver’s side.
   • Lock the connectors securely into place.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector harness containing the green wire and 4-flat connector down the opening behind the taillight.
   • Run the 4-flat harness underneath the vehicle to the center.
   • Route the green wire to the passenger side and through the opening behind the passenger-side taillight.

5. Install the Passenger-Side T-Connector:

   • Repeat step 3 on the passenger side using the T-Connector with the green wire.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connectors on the driver’s side.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury.

7. Connect the Power Wire:

   • Disconnect the negative (-) battery cable.
   • Attach the provided yellow fuse holder to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the yellow butt connector.

8. Route the Black Wire:

   • Route the black wire from the engine compartment to the rear of the vehicle, avoiding hot pipes, heat shields, or areas where it could be pinched or damaged.
   • Connect the black wire to the red power wire on the T-Connector’s black box using the yellow butt connector.

9. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.

10. Mount the Black Box:

    • Mount the T-Connector’s black box on the driver’s side using the provided double-sided tape.
    • Secure the remaining harness with cable ties to prevent damage or rattling.

11. Reassemble the Vehicle:

    • Reinstall the taillight housing assemblies and ensure all wiring is positioned correctly.

12. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
• Always wear safety glasses and follow safety precautions.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Note: Store the 4-flat connector in a safe location when not in use. Refer to the vehicle owner’s manual and instruction sheet for additional details.
