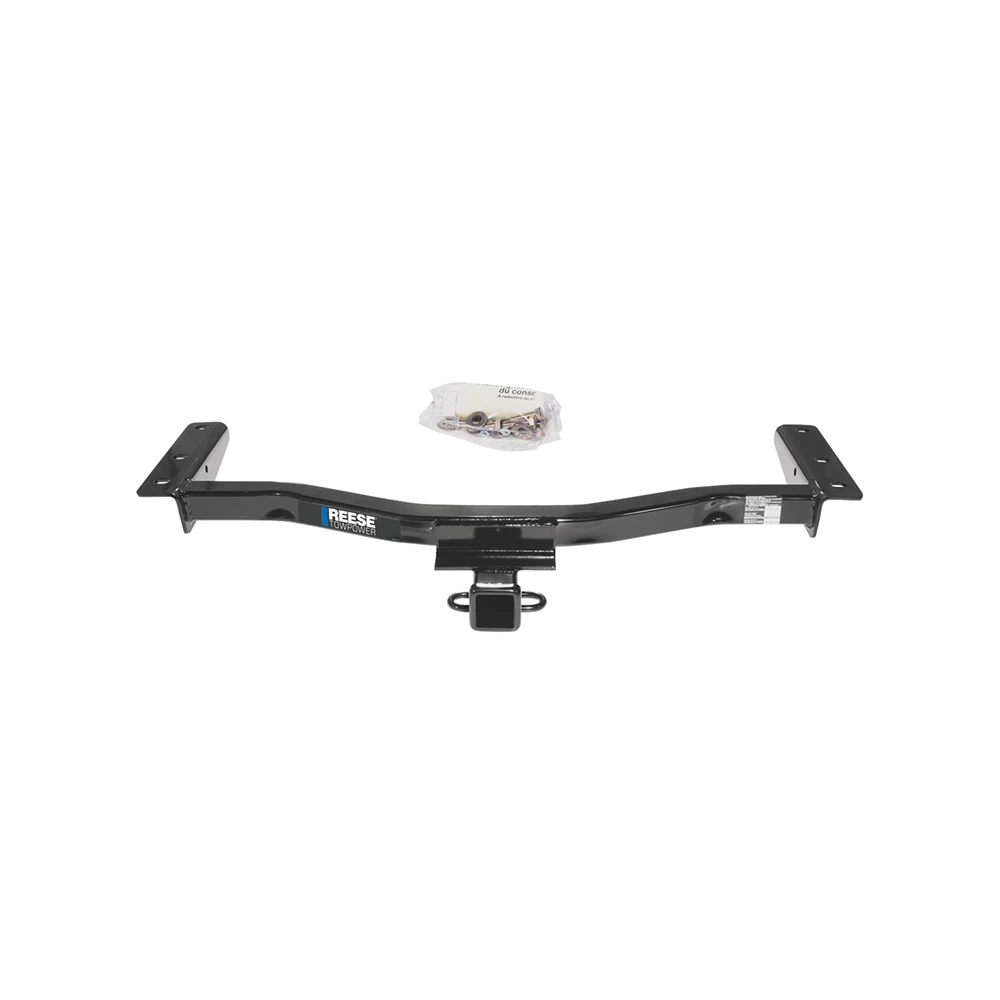

Installation Instructions for Lexus RX 350, RX 450h (RX 350 F Sport Excluded)

Part Numbers:

• 75676
• 87569
• 44633

Tools Required:

• Tape Measure
• Utility Knife
• Wrenches: 10mm, 12mm, 14mm, 17mm, 19mm
• Small Screwdriver
• Large Screwdriver

Wiring Access Location:

• SUV 3 & 4

Step-by-Step Instructions:

1. Remove Appearance Panel:

   • Detach the appearance panel covering the trunk pan by removing eight (8) fasteners using a 10mm socket.
   • Remove three (3) plastic rivets securing the appearance panel. Use a small screwdriver to remove the center of the rivet.
   • Detach the final rivet located behind the wheel well liner using a large screwdriver.

2. Reinstall Appearance Panel After Trimming:

   • The appearance panel will be reinstalled after trimming. Ensure to obtain the vehicle owner's approval before cutting.

3. Remove Plugs and Tie-Downs:

   • Remove the plastic plugs in the frame rails and any tie-downs, if present, on both frame rails. Return these components to the vehicle owner.

4. Detach Exhaust Hanger:

   • Remove the two (2) M8 bolts (using a 12mm socket) holding the exhaust hanger in place. Retain the bolts for reinstallation.

5. Position the Hitch:

   • Raise the hitch over the exhaust and align it with the existing weld nuts in the frame rail.

6. Install M12 Bolts:

   • Attach the hitch using six (6) M12 x 1.25 x 40mm bolts and six (6) conical washers. Hand-tighten the bolts and ensure the hitch is centered on the vehicle.

7. Torque Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m).

8. Reattach Exhaust Hanger:

   • Attach the exhaust hanger to the hitch bracket using the retained M8 bolts and the provided conical washers and nuts.
   • Torque all M8 fasteners to 20 lb-ft (27 N·m).

9. Trim Appearance Panel:

   • Trim the appearance panel in two places as shown in the instructions. Obtain the vehicle owner's approval before cutting.

10. Reinstall Appearance Panel:

    • Reattach the trimmed appearance panel, sliding the rear of the panel in place first for easier installation.

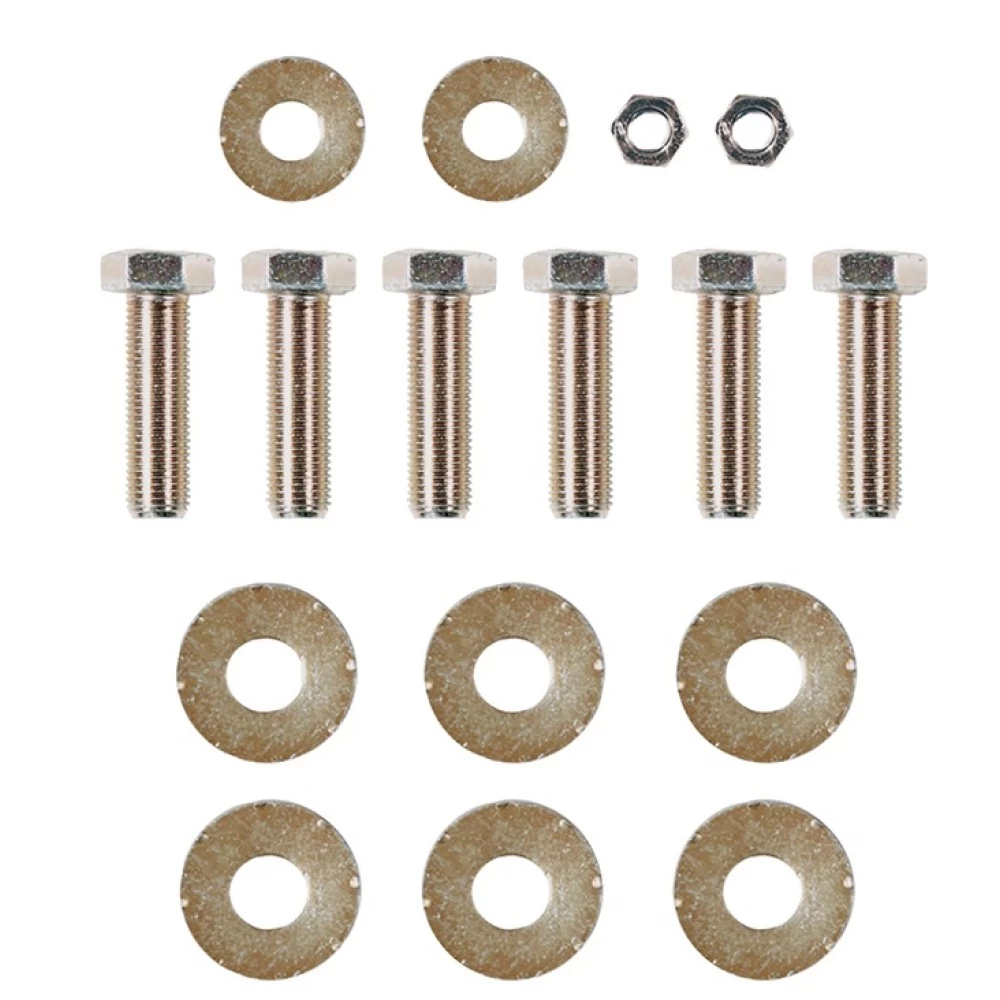

Hardware List:

• (6) Hex Bolts M12 x 1.25 x 40mm CL10.9
• (6) Conical Washers 1/2”
• (2) Hex Nuts M8 x 1.25
• (2) Conical Washers 3/8”

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75676
• 87569
• 44633

Tools Required:

• Tape Measure
• Utility Knife
• Wrenches: 10mm, 12mm, 14mm, 17mm, 19mm
• Small Screwdriver
• Large Screwdriver

Wiring Access Location:

• SUV 3 & 4

Step-by-Step Instructions:

1. Remove Appearance Panel:

   • Detach the appearance panel covering the trunk pan by removing eight (8) fasteners using a 10mm socket.
   • Remove three (3) plastic rivets securing the appearance panel. Use a small screwdriver to remove the center of the rivet.
   • Detach the final rivet located behind the wheel well liner using a large screwdriver.

2. Reinstall Appearance Panel After Trimming:

   • The appearance panel will be reinstalled after trimming. Ensure to obtain the vehicle owner's approval before cutting.

3. Remove Plugs and Tie-Downs:

   • Remove the plastic plugs in the frame rails and any tie-downs, if present, on both frame rails. Return these components to the vehicle owner.

4. Detach Exhaust Hanger:

   • Remove the two (2) M8 bolts (using a 12mm socket) holding the exhaust hanger in place. Retain the bolts for reinstallation.

5. Position the Hitch:

   • Raise the hitch over the exhaust and align it with the existing weld nuts in the frame rail.

6. Install M12 Bolts:

   • Attach the hitch using six (6) M12 x 1.25 x 40mm bolts and six (6) conical washers. Hand-tighten the bolts and ensure the hitch is centered on the vehicle.

7. Torque Fasteners:

   • Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N·m).

8. Reattach Exhaust Hanger:

   • Attach the exhaust hanger to the hitch bracket using the retained M8 bolts and the provided conical washers and nuts.
   • Torque all M8 fasteners to 20 lb-ft (27 N·m).

9. Trim Appearance Panel:

   • Trim the appearance panel in two places as shown in the instructions. Obtain the vehicle owner's approval before cutting.

10. Reinstall Appearance Panel:

    • Reattach the trimmed appearance panel, sliding the rear of the panel in place first for easier installation.

Hardware List:

• (6) Hex Bolts M12 x 1.25 x 40mm CL10.9
• (6) Conical Washers 1/2”
• (2) Hex Nuts M8 x 1.25
• (2) Conical Washers 3/8”

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

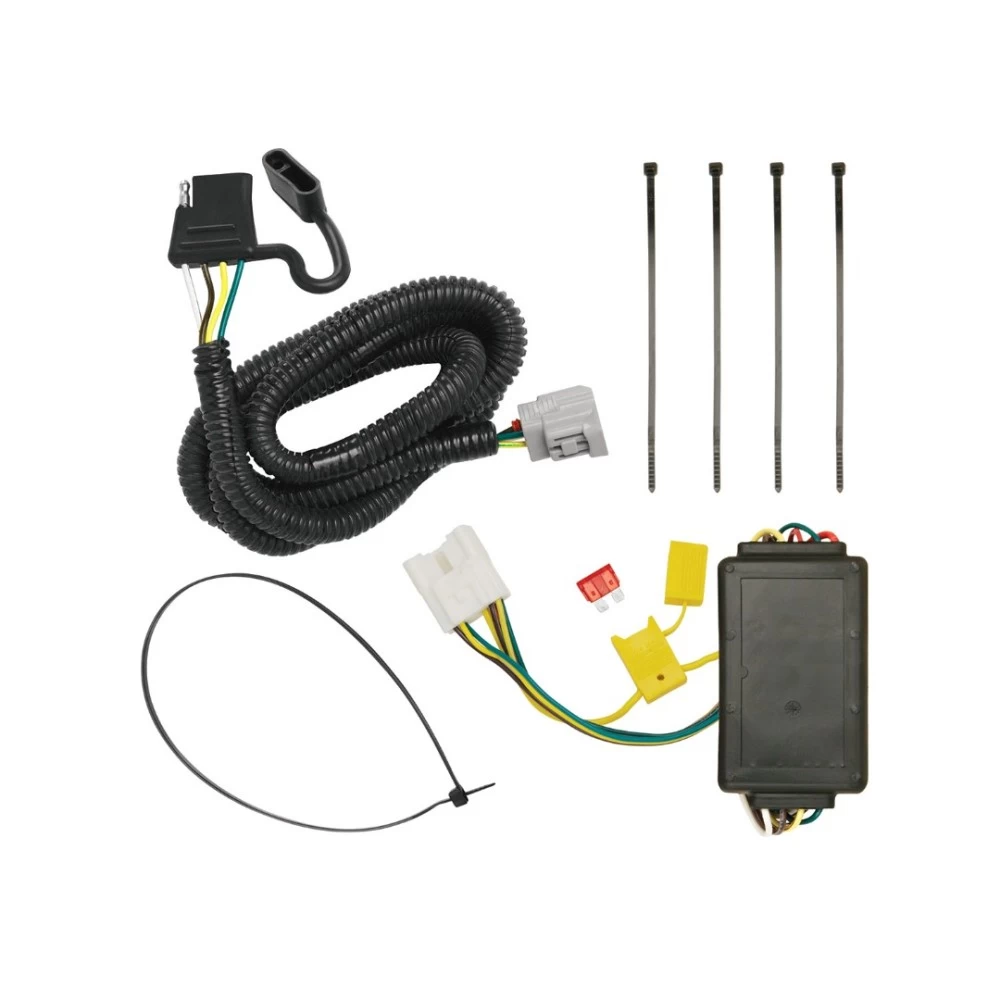

Installation Instructions for T-Connector Adapter for Lexus RX 350 and Lexus RX 450h

Part Numbers:

• 118255

Tools Required:

• Test Probe

Step-by-Step Instructions:

1. Open the Rear Hatch:

   • Temporarily remove the rear threshold plate.
   • On the passenger side, remove the floor covers and storage tray.

2. Partially Remove Interior Trim Panels:

   • On the passenger side, partially remove the rear interior trim panel.
   • Remove the necessary trim panel fasteners and carefully set aside all removed items to avoid damage.

3. Locate the Vehicle’s 10-Pin Connector:

   • Behind the rear interior trim panel, locate the vehicle’s 10-pin connector.
   • Ensure the mating surfaces of the vehicle harness connectors match the 10-pin tow plug adapter ends.

4. Connect the 10-Pin Tow Plug Adapter:

   • Insert the 10-pin tow plug adapter into the mating connector and lock it into place.
   • Ensure the connectors are fully inserted with locking tabs secure.

5. Locate the Vehicle’s Factory Tow Harness Connector:

   • Behind the bumper, locate the factory tow harness connector.
   • This connector will mate with the tow plug.

6. Connect the Tow Plug:

   • Remove the protective cap from the factory tow harness connector.
   • Clean the mating surfaces if necessary.
   • Insert the tow plug into the connector and ensure it is fully inserted with locking tabs secure.

   Warning:

   • All connections must be complete for the T-Connector to function properly.
   • Test the installation with a test light or trailer to ensure functionality.
   • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

7. Secure Loose Wires:

   • Secure all loose wires and mount the Trailer Tow Harness in an accessible location using a bracket or electrical box (not included).
   • Reinstall the plastic trim panels, threshold, storage covers, and floor covering, ensuring no wires are pinched or cut during reassembly.

   Warning:

   • Overloading circuits can cause fires.
   • Do not exceed the towing manufacturer’s ratings or the following specifications:
     • Max. stop/turn light: 1 per side (2.1 amps)
     • Max. tail lights: (5.6 amps)

Safety Notes:

• Follow all warnings and instructions carefully.
• Wear safety glasses and use safety precautions during installation.

Additional Notes:

• Refer to the vehicle owner’s manual for additional information.

Warranty and Technical Support:

• For complete warranty instructions, please download the full installation PDF.
• For technical support, visit www.trailerjacks.com or call 877-869-6690.

Attention: This is a summary of the installation procedure. For complete instructions, including diagrams and detailed information, please download the full installation PDF.

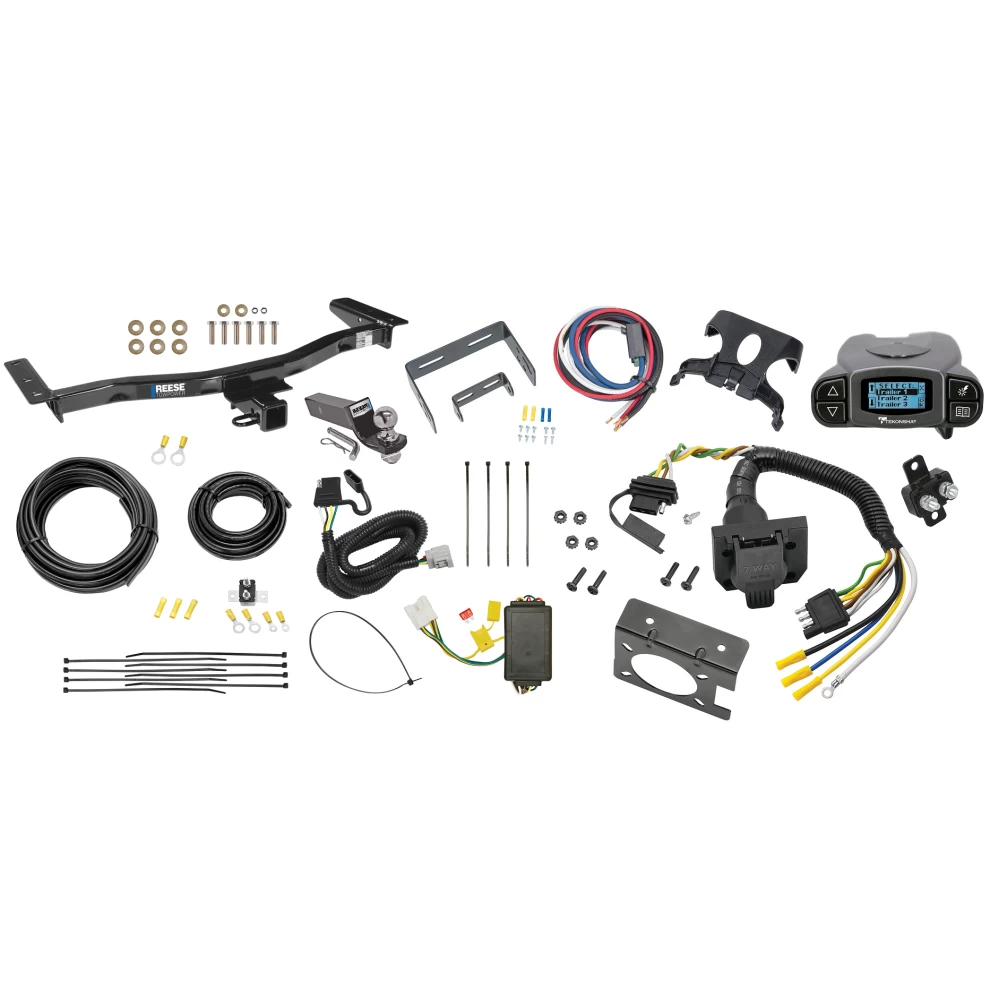

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation and Operation Instructions for the P3 Electronic Brake Control

Specifications:

• Supports 2, 4, 6, and 8 brake applications.
• Utilizes proportional braking with an inertial sensor.

Tools Required:

• Drill with a 1/8" bit.
• Screwdriver or nut driver.
• Wire crimp tool.
• Probe-type circuit tester.

Safety Notes:

1. Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
2. Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
3. Do not use the Boost feature during icy or slippery road conditions.
4. Disconnect the trailer plug before testing a breakaway switch to prevent damage.

Hardware List:

• P3 Brake Control Unit.
• Mounting bracket.
• Wiring harness.
• #8 x 3/8" self-tapping screws.

Installation Instructions:

Mounting the Brake Control:

1. Traditional Bracket Mount:

   • Secure the bracket to a solid surface using the provided screws.
   • Attach the brake control unit and adjust to the desired angle.
   • Tighten screws securely.

2. Under Dash Pocket Mount:

   • Secure the small metal bracket with screws to a flat surface.
   • Attach the T-slot mount to the metal bracket and insert the brake control.

Wiring the Brake Control:

• Option 1: Use the included pigtail wiring harness for a generic installation.
• Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
• Wire Functions:
  • Black: Positive power (+12V).
  • White: Vehicle ground.
  • Red: Cold side of brake pedal switch.
  • Blue: Trailer brakes output.

Setting Up the Control:

1. Connect the trailer to the vehicle.
2. Use the Menu/Options button to access the setup screen.
3. Select the brake type:
   • Electric: For electric brakes.
   • Hydraulic: For electric over hydraulic braking systems.
4. Adjust the power output to ensure effective braking without wheel lock-up.

Boost Feature:

• Provides enhanced braking sensitivity.
• Available in three levels:
  • B1: Light braking boost.
  • B2: Moderate braking boost.
  • B3: Aggressive braking boost.
• Recommended for heavier trailers or varying load conditions.

Reverse Mode:

• Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.

Troubleshooting Guide:

Maintenance:

• Inspect connections and wiring regularly for damage or wear.
• Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
• Clean the brake control unit periodically to maintain optimal performance.

Warranty Information:

• Limited Lifetime Warranty:
  • Covers defects in materials and workmanship under normal use.
  • Excludes damage caused by misuse, improper installation, or external factors.
• Attention: For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
