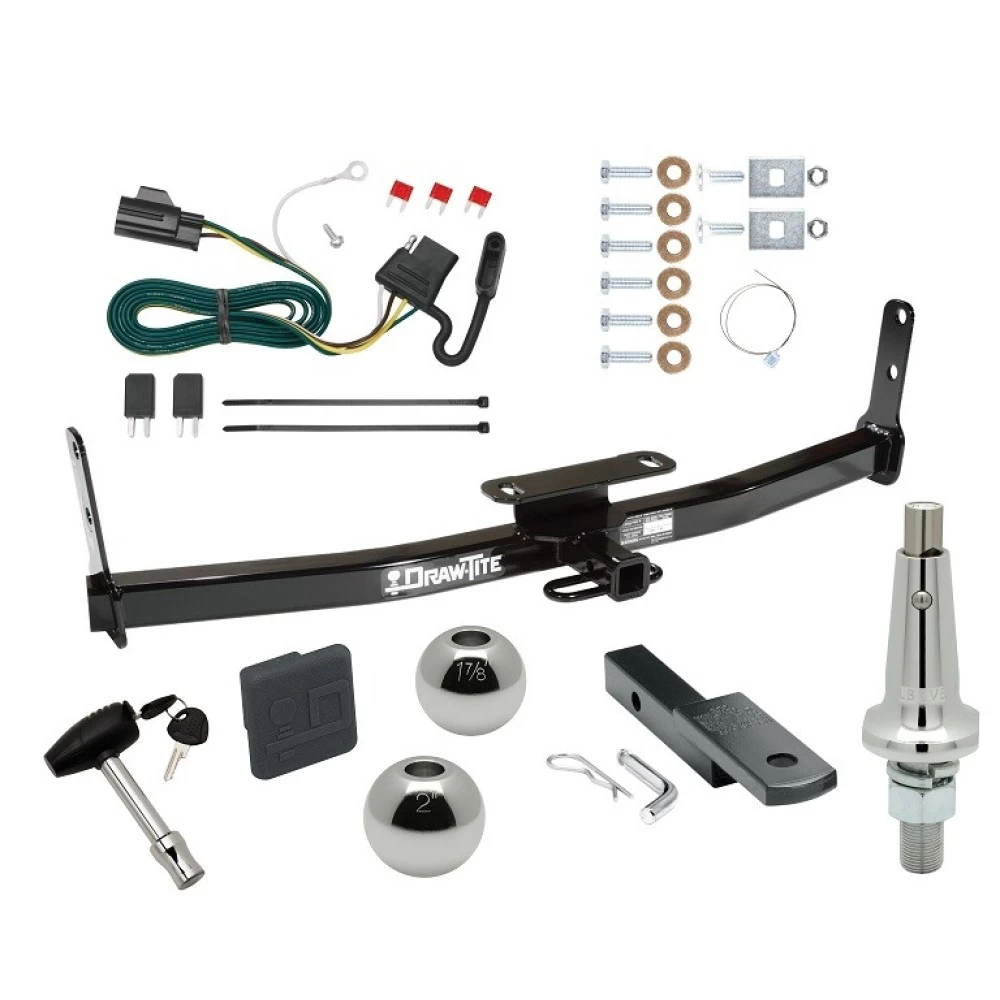

Trailer Tow Hitch For 07‑09 Chevrolet Equinox Pontiac Torrent Ultimate Package w/ Wiring Draw Bar Kit Interchange 2" 1‑7/8" Ball Lock and Cover
Model: 364080 118432 63801 580407 2211Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
Interchangeable 2" & 1-7/8" Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Chevrolet, Equinox, All Styles
2007 - 2009 Pontiac, Torrent, All Styles
Trailer Hitch Specs:
| Part Number | 364080 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118432 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Designed to accommodate towing multiple trailers with ease, Tow Ready Interchangeable Hitch Ball System allows you to change hitch ball sizes in seconds without any tools.
Hitch Ball Specs:
| Part Number | 63801 |
| Brand | Draw-Tite |
| Size | 1-7/8" & 2" |
| Rating | 5,000 lbs |
| Material | Chrome |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 2007 2008 2009
$303 20 $478.96 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$478.96 $303 20
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $75.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 364080 118432 63801 580407 2211
- Includes: Class 2 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount, T-One T-Connector Custom Harness, Interchangeable Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Wiring Harness (Plug & Play)
Interchangeable 2" & 1-7/8" Ball
Security Lock Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2009 Chevrolet, Equinox, All Styles
2007 - 2009 Pontiac, Torrent, All Styles
Trailer Hitch Specs:
| Part Number | 364080 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 2 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 300 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118432 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Designed to accommodate towing multiple trailers with ease, Tow Ready Interchangeable Hitch Ball System allows you to change hitch ball sizes in seconds without any tools.
Hitch Ball Specs:
| Part Number | 63801 |
| Brand | Draw-Tite |
| Size | 1-7/8" & 2" |
| Rating | 5,000 lbs |
| Material | Chrome |
| Shank Diameter | 3/4" |
| Warranty | Lifetime |
Security Lock Pin Specs:
| Part Number | 580407 |
| Fits | 2" and 1-7/8" Tow Receivers |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | Lifetime |
Rubber Hitch Plug Specs:
| Part Number | 2211 |
| Fits | 1-1/4" Receiver |
| Brand | Draw-Tite |
| Attaches to any 1-1/4" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 1-1/4" x 1-1/4" hitch opening Prevents any buildup of dirt and debris |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 2007 2008 2009
Get Expert Help
Trailer Tow Hitch For 07-09 Chevrolet Equinox Pontiac Torrent Ultimate Package w/ Wiring Draw Bar Kit Interchange 2" 1-7/8" Ball Lock and Cover Install Notes
Installation Instructions for Chevrolet Equinox, Pontiac Torrent, Saturn Vue, and GMC Terrain
Part Numbers:
- 06391
- 36408
- 90145
Wiring Access Location:
- Chevrolet: SUV3
- Pontiac: SUV3
- Saturn: SUV1, SUV2
Tools Required:
- Wrenches: 18mm, 19mm, 3/4"
- For Saturn Vue: Open-end 3/4" wrench
- For Equinox: 6" Ratchet Extension
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tie-Down Brackets:
- If present, remove the tie-down brackets from the vehicle frame rail.
- Return bolts and tie-down brackets to the vehicle owner.
-
Remove Fascia Door (Equinox Only):
- Remove the fascia door.
-
Position the Hitch:
- Raise the hitch into position, lifting the bumper mounting bracket over the fascia where needed.
- Secure the hitch using M12 bolts and conical washers into the existing weld nuts.
-
Saturn Vue Specific Step:
- Pull the 1/2"-13 carriage bolts and small blocks through the end of the bumper using the pull wire.
- Feed the bolts through the bumper mounting bracket and secure with conical washers and hex nuts, as shown in Figure 1.
-
Equinox and Torrent Specific Step:
- Install M12 bolts and conical washers through the bumper mounting bracket into the existing weld nuts in the bumper, as shown in Figure 2.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
- Tighten all M12 CL8.8 fasteners to 68 ft-lb (92 N*m).
-
Reinstall Fascia Door (Equinox Only):
- Replace the fascia door.
Hardware List:
- (6) Hex Bolt, M12 x 1.75 CL8.8
- (2) Hex Nut, 1/2"-13
- (6) Conical Washer, M12
- (2) Conical Washer, 1/2"
- (2) Block, 1.5" x 2"
- (2) Carriage Bolt, 1/2"-13 x 2"
- (1) Pull Wire
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 or 90001 (sold separately)
- Fastener Kit: 36408F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Chevrolet Equinox, Pontiac Torrent, Saturn Vue, and GMC Terrain
Part Numbers:
- 06391
- 36408
- 90145
Wiring Access Location:
- Chevrolet: SUV3
- Pontiac: SUV3
- Saturn: SUV1, SUV2
Tools Required:
- Wrenches: 18mm, 19mm, 3/4"
- For Saturn Vue: Open-end 3/4" wrench
- For Equinox: 6" Ratchet Extension
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Tie-Down Brackets:
- If present, remove the tie-down brackets from the vehicle frame rail.
- Return bolts and tie-down brackets to the vehicle owner.
-
Remove Fascia Door (Equinox Only):
- Remove the fascia door.
-
Position the Hitch:
- Raise the hitch into position, lifting the bumper mounting bracket over the fascia where needed.
- Secure the hitch using M12 bolts and conical washers into the existing weld nuts.
-
Saturn Vue Specific Step:
- Pull the 1/2"-13 carriage bolts and small blocks through the end of the bumper using the pull wire.
- Feed the bolts through the bumper mounting bracket and secure with conical washers and hex nuts, as shown in Figure 1.
-
Equinox and Torrent Specific Step:
- Install M12 bolts and conical washers through the bumper mounting bracket into the existing weld nuts in the bumper, as shown in Figure 2.
-
Tighten Fasteners:
- Tighten all 1/2"-13 GR5 fasteners to 75 ft-lb (102 N*m).
- Tighten all M12 CL8.8 fasteners to 68 ft-lb (92 N*m).
-
Reinstall Fascia Door (Equinox Only):
- Replace the fascia door.
Hardware List:
- (6) Hex Bolt, M12 x 1.75 CL8.8
- (2) Hex Nut, 1/2"-13
- (6) Conical Washer, M12
- (2) Conical Washer, 1/2"
- (2) Block, 1.5" x 2"
- (2) Carriage Bolt, 1/2"-13 x 2"
- (1) Pull Wire
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 300 lb (136 kg)
- Drawbar must be used in the RISE position only.
Additional Notes:
- Drawbar Kit: 36051 or 90001 (sold separately)
- Fastener Kit: 36408F
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for T-Connector Trailer Wiring Harness
Product Information:
- Part Number: N118432
- Application: Chevrolet Equinox, Pontiac Torrent, Suzuki XL-7
Tools Required:
- Ratchet
- 10mm Socket or Wrench
Step-by-Step Instructions:
-
Access the Wiring Harness Area:
- Chevrolet Equinox / Pontiac Torrent:
- Open the rear tailgate.
- Locate the jack storage compartment on the driver’s side.
- Remove the panel and tire jack to access the harness area.
- Suzuki XL-7:
- Open the rear tailgate.
- Locate the jack storage compartment on the passenger side.
- Remove the panel and tire jack to access the harness area.
- Chevrolet Equinox / Pontiac Torrent:
-
Locate the Trailer Harness Connector:
- Chevrolet Equinox / Pontiac Torrent:
- The 4-pin connector is attached to the floor of the jack compartment with a plastic clip.
- Suzuki XL-7:
- The 4-pin connector is located on the top-left side of the jack compartment.
- Chevrolet Equinox / Pontiac Torrent:
-
Insert the T-Connector:
- Connect the T-Connector into the vehicle’s trailer plug harness.
- Ensure the T-Connector is fully inserted and the locking tabs engage securely.
-
Ground the White Wire:
- Chevrolet Equinox / Pontiac Torrent:
- Locate the ground stud near the trailer plug connector.
- Use a 10mm socket or wrench to remove the bolt.
- Place the white wire with the eyelet around the bolt and re-tighten it.
- Suzuki XL-7:
- Locate the ground stud on the floor beneath the jack compartment.
- Remove the bolt, attach the white wire eyelet, and re-tighten the bolt.
Warning: Ensure all other ground connections remain secure when reattaching the ground stud.
- Chevrolet Equinox / Pontiac Torrent:
-
Install Relays in Fuse Box:
- Open the vehicle’s hood and locate the fuse/relay box near the driver’s side firewall.
- Carefully remove the cover without damaging the locking tabs.
- Locate relay positions 58 and 59:
- Place one of the provided relays into position 58 to activate the Right Turn/Stop Trailer Light.
- Place the second relay into position 59 to activate the Left Turn/Stop Trailer Light.
Warning: Relays must not exceed 20 amps. Using improper relays may cause damage.
-
Insert Fuses:
- Locate fuse positions 35, 37, and 43 in the fuse box:
- Insert a 10-amp fuse into position 35 to power the Park Lamp Trailer Function.
- Insert a 10-amp fuse into position 37 to power the Left Turn/Stop Function.
- Insert a 10-amp fuse into position 43 to power the Right Turn/Stop Function.
Warning: Replacing fuses exceeding 10 amps may damage the vehicle or trailer.
- Locate fuse positions 35, 37, and 43 in the fuse box:
-
Verify Installation:
- Test the wiring harness installation using a test light or by connecting a trailer.
- To reset the vehicle’s electrical system during the first test, temporarily remove the key from the ignition.
Warnings:
-
Overloaded Circuits:
- Do not exceed the following amperage limits:
- Max Stop/Turn Lights: 7.5 amps
- Max Tail Lights: 7.5 amps
- Refer to the vehicle’s owner’s manual for towing ratings.
- Do not exceed the following amperage limits:
-
Relays and Fuses:
- Ensure all relays and fuses are inserted properly.
- Only use the provided relays and 10-amp fuses.
-
Safety Precautions:
- Wear safety glasses and follow proper safety guidelines when working near electrical systems.
Notes:
- Store the 4-flat connector in the jack storage compartment when not in use.
- Periodically check all connections and wiring for wear or damage.
Technical Support:
For questions or troubleshooting, contact the manufacturer’s technical support team.
Warning: Improper installation or circuit overloads may result in system failure, vehicle damage, or fire.
Installation Instructions for T-Connector Wiring Harness
Product Information:
- Part Number: N118432
- Application: Chevrolet Equinox, Pontiac Torrent, Suzuki XL-7
Tools Required:
- Ratchet
- 10mm Socket or Wrench
Step-by-Step Instructions:
-
Access the Wiring Harness Area:
- Chevrolet Equinox / Pontiac Torrent:
- Open the rear tailgate.
- Locate the jack storage compartment on the driver’s side.
- Remove the panel and tire jack to access the harness area.
- Suzuki XL-7:
- Open the rear tailgate.
- Locate the jack storage compartment on the passenger side.
- Remove the panel and tire jack to access the harness area.
- Chevrolet Equinox / Pontiac Torrent:
-
Locate the Trailer Harness Connector:
- Chevrolet Equinox / Pontiac Torrent:
- The 4-pin connector is attached to the floor of the jack compartment with a plastic clip.
- Suzuki XL-7:
- The 4-pin connector is located on the top-left side of the jack compartment.
- Chevrolet Equinox / Pontiac Torrent:
-
Insert the T-Connector:
- Connect the T-Connector into the vehicle’s trailer plug harness.
- Ensure the T-Connector is fully inserted and the locking tabs engage securely.
-
Ground the White Wire:
- Chevrolet Equinox / Pontiac Torrent:
- Locate the ground stud near the trailer plug connector.
- Use a 10mm socket or wrench to remove the bolt.
- Place the white wire with the eyelet around the bolt and re-tighten it.
- Suzuki XL-7:
- Locate the ground stud on the floor beneath the jack compartment.
- Remove the bolt, attach the white wire eyelet, and re-tighten the bolt.
Warning: Ensure all other ground connections remain secure when reattaching the ground stud.
- Chevrolet Equinox / Pontiac Torrent:
-
Install Relays in Fuse Box:
- Open the vehicle’s hood and locate the fuse/relay box near the driver’s side firewall.
- Carefully remove the cover without damaging the locking tabs.
- Locate relay positions 58 and 59:
- Place one of the provided relays into position 58 to activate the Right Turn/Stop Trailer Light.
- Place the second relay into position 59 to activate the Left Turn/Stop Trailer Light.
Warning: Relays must not exceed 20 amps. Using improper relays may cause damage.
-
Insert Fuses:
- Locate fuse positions 35, 37, and 43 in the fuse box:
- Insert a 10-amp fuse into position 35 to power the Park Lamp Trailer Function.
- Insert a 10-amp fuse into position 37 to power the Left Turn/Stop Function.
- Insert a 10-amp fuse into position 43 to power the Right Turn/Stop Function.
Warning: Replacing fuses exceeding 10 amps may damage the vehicle or trailer.
- Locate fuse positions 35, 37, and 43 in the fuse box:
-
Verify Installation:
- Test the wiring harness installation using a test light or by connecting a trailer.
- To reset the vehicle’s electrical system during the first test, temporarily remove the key from the ignition.
Warnings:
-
Overloaded Circuits:
- Do not exceed the following amperage limits:
- Max Stop/Turn Lights: 7.5 amps
- Max Tail Lights: 7.5 amps
- Refer to the vehicle’s owner’s manual for towing ratings.
- Do not exceed the following amperage limits:
-
Relays and Fuses:
- Ensure all relays and fuses are inserted properly.
- Only use the provided relays and 10-amp fuses.
-
Safety Precautions:
- Wear safety glasses and follow proper safety guidelines when working near electrical systems.
Notes:
- Store the 4-flat connector in the jack storage compartment when not in use.
- Periodically check all connections and wiring for wear or damage.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Warning: Improper installation or circuit overloads may result in system failure, vehicle damage, or fire.
Related Products
