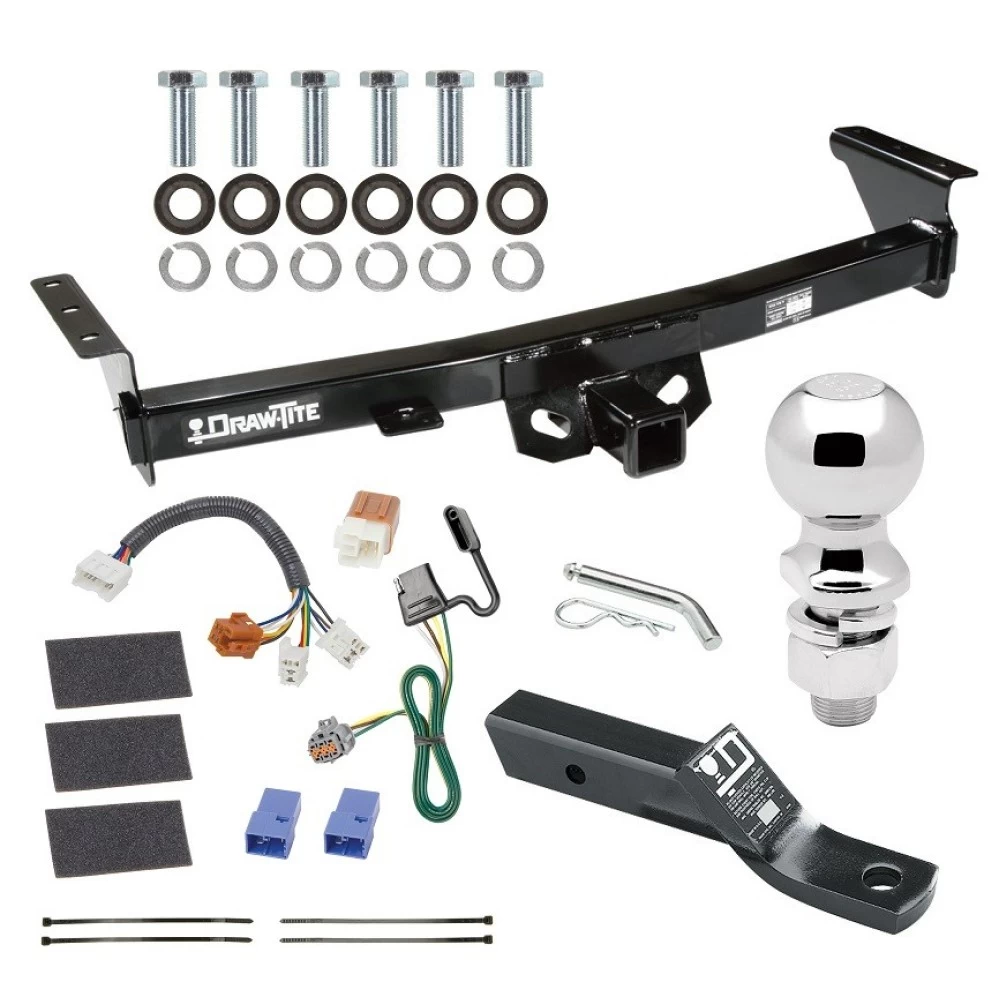

For 2005‑2023 Nissan Frontier Trailer Hitch Tow PKG w/ 4‑Flat Wiring + Ball Mount w/ 2" Drop + 2‑5/16" Ball By Draw‑Tite
Model: 75282 118525 23 63847This Bundle Fits The Following Vehicles:
2005-2023 Nissan, Frontier, All Styles
This Bundle Includes the Following Parts:
Trailer Hitch
4-Flat Wiring
Ball Mount w/ 2 inch Drop
2-5/16 inch Ball
List of fitment years: 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
The hitch is hidden behind your bumper, and does not require drilling
Class 3 Trailer Hitch, 2-Inch Receiver, Black Manufactured by: Draw-Tite
Draw-Tite Class III trailer hitches are the perfect mix of style and strength to get you and your equipment wherever you need to go. Draw-Tite’s expert engineers and designers create each custom hitch with the utmost precision to ensure a superior fit for your specific make and model year vehicle. Draw-Tite receiver hitches are rated for up to 5,000 lbs. gross trailer weight (GTW) and up to 750 lbs. tongue weight (TW). They are also suitable for use with weight distribution up to 8,000 lbs. weight distribution (WD) and 800 lbs. weight distribution tongue weight (WDTW). Draw-Tite hitches are designed to provide top towing performance, with solid-all-welded construction and a black powder coat finish to resist rust and corrosion. Draw-Tite trailer hitches are inspected to ensure the highest quality and workmanship and are tested to exceed V-5 and SAE J684 standards. These durable custom hitches are manufactured for Nissan Frontier and attach to your vehicle’s frame or bumper for a sleek, clean appearance. Each hitch also has a two-inch square receiver tube opening – the most common and versatile on the market - allowing you to attach accessories like a bike rack or cargo carrier, or hook up your pop-up, boat trailer, or utility trailer. The options are endless! Draw-Tite Class III Custom Trailer Hitches come complete with all the mounting hardware needed for installation and are backed by a nationwide lifetime limited warranty. So, whether you are headed out to the campground, the lake, or the bike trails, or you’re tackling a project at home and need to haul the materials home, choose Draw-Tite and travel with confidence knowing your setup is connected with the security only Draw-Tite can provide. Draw-Tite: North America’s Favorite Hitch
• CUSTOM DESIGNS: Draw-Tite Class IV trailer hitches are custom built according to manufacturer specifications for make and model year to ensure a perfect fit and top towing performance. The sleek computer-aided designs are as attractive as they are functional
• STRENGTH: Made of solid, all-welded steel for maximum strength and safety, each hitch is put through rigorous fatigue and stress testing to withstand road abuse (within specified capacities). Each is also protected by a two-part black powder coat finish to resist rust and corrosion
• TESTED: Draw-Tite hitches are inspected for quality and workmanship and are tested to meet and exceed V-5 and SAE J684 standards
• CAPACITY: Rated for up to 5,000 lbs. GTW and up to 750 lbs. TW. Also suitable for use with Weight Distribution systems of up to 8,000 lbs. WD and 800 lbs. WDTW. The two-inch receiver can connect to a ball mount, bike rack, cargo carrier, and more!
• VERSATILE: This Draw-Tite Class IV hitch is designed to fit the following make and model year vehicle(s): Suzuki Equator, Nissan Frontier

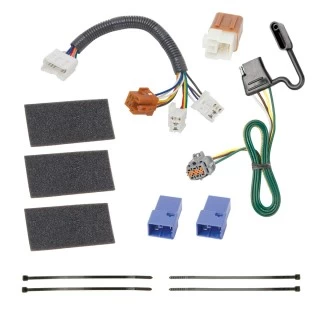

T-One® T-Connector Harness, 4-Way Flat Manufactured by: Tekonsha
Connections are important, be it with your traveling companions or the truck and trailer in which you’re riding. Thankfully, Tekonsha® has everything you need for the perfect connection, no matter your set up. For more than 55 years, Tekonsha has been the leader in T-One Connectors, utilizing advanced engineering and development to design products that allow you the freedom to travel with nearly any vehicle and trailer combination. Tekonsha’s dedication to creating the highest performing trailering electrical components with the broadest coverage ensures your connections are safe and secure. So what are you waiting for? Hit the road with the peace of mind only Tekonsha can provide. Life is a Journey. Stop Often.
• 16 Gauge Bonded Wire With 4-Way Flat Plug & Play
• Stop/Turn Circuit Capacity Of 7.5 Amps
• Solid, Weatherproof, One-Piece Construction
• No Cutting, Splicing, Or Taping Of Vehicle Wires
• Includes Converter Where Needed

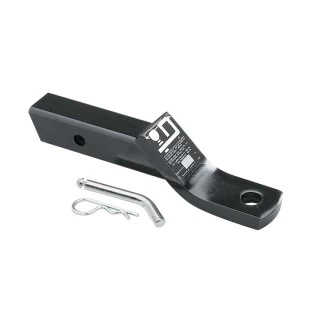

Trailer Hitch Ball Mount, Fits 2 in. Receiver, 2 in. Drop, 0.75 in. Rise, 7,500 lbs. Capacity, Black Manufactured by: Draw-Tite
Whether you tow with a pick-up truck or a cross over SUV, you can be sure that Draw-Tite® has a ball mount to fit your hitch. Ball mounts are an essential piece of the towing puzzle, as they fit into your receiver hitch and connect your tow vehicle with the tongue of your trailer. As the maker of North America’s Favorite Hitch, Draw-Tite has decades of experience in knowing what you need to connect and tow safely, and a big part of that is selecting the right ball mount for your trailer and tow vehicle. Made of solid construction for maximum strength and safety, Draw-Tite ball mounts come in several sizes, shank lengths, and weight capacities. So what are you waiting for? Get your Draw-Tite ball mount today!
• Fits 2 in. Square Receiver Tube Opening
• 7,500 lbs. Capacity
• 2 in. Drop, 3/4 in. Rise
• 1 in. Ball Shank Diameter
• Angle Cut Design
• Black Powder Coat Finish over E-Coat

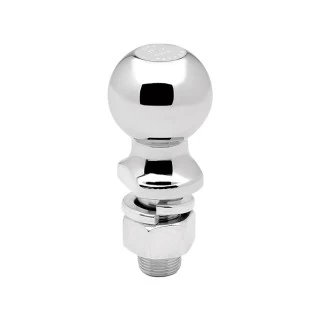

Trailer Hitch Ball, 2-5/16 in. Diameter, 7,500 lbs. Capacity, 1 in. Shank Dia, 2-1/8 in. Shank Length, Chrome Manufactured by: Draw-Tite
Whether you're taking a boat to the lake or a camper across country, you need to have the peace of mind that your trailer and tow vehicle are securely connected. With a Draw-Tite® hitch ball, that is exactly what you get. Our top-quality products set the standard for towing excellence so you can connect and tow, worry-free. From chrome to stainless steel, our hitch balls come in a variety of weight capacities and are tested to meet – and often exceed – industry standards. In just a matter of minutes, you can torque your selected hitch ball onto your ball mount and connect your vehicle and trailer. Then, you’re ready to hit the road! So what are you waiting for? Get your Draw-Tite hitch ball today!
• 2-5/16 in. Ball Diameter
• 1 in. Shank Diameter
• 2-1/8 in. Shank Length
• 7,500 lbs. Capacity
• Chrome Finish
• Torque to 250 ft. pounds
$281 00 $411.07 32% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$411.07 $281 00
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $70.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75282 118525 23 63847
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Get Expert Help
For 2005-2023 Nissan Frontier Trailer Hitch Tow PKG w/ 4-Flat Wiring + Ball Mount w/ 2" Drop + 2-5/16" Ball By Draw-Tite Install Notes
Installation Instructions for Nissan Frontier and Suzuki Equator
Part Numbers:
- 75282
- 44526
- 87539
- 75990 (U-Haul)
Applications:
- Nissan Frontier
- Suzuki Equator
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.
- Secure the hitch using the provided hardware:
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (6) M12 x 1.25 x 35mm Hex Bolts
- (6) 1/2" Flat Washers
- (6) 1/2" Lock Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Nissan Frontier and Suzuki Equator
Part Numbers:
- 75282
- 44526
- 87539
- 75990 (U-Haul)
Applications:
- Nissan Frontier
- Suzuki Equator
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.
- Secure the hitch using the provided hardware:
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (6) M12 x 1.25 x 35mm Hex Bolts
- (6) 1/2" Flat Washers
- (6) 1/2" Lock Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Pathfinder, Xterra and Frontier/Equator
Part Numbers:
- 118525
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation
-
Insert Relays:
- Insert the relays provided with the kit.
- Note: Using relays other than those included may cause the unit to malfunction or damage the vehicle or trailer.
-
Locate the Vehicle's Jumper Plug:
- Find the 12-pin jumper plug located in the vehicle cab on the passenger’s side, behind the kick panel.
-
Remove Passenger Side Floor Sill and Kick Panel:
- Use a trim panel puller to remove the passenger side floor sill by pulling upwards (1) and then outward toward the rear of the vehicle (2). Be careful not to damage the panel fasteners.
- Remove the passenger side kick panel. The 12-pin jumper plug is located behind this panel.
-
Connect the Jumper Harness:
- Insert the jumper harness with relays into the vehicle’s 12-pin harness and lock it into place.
- Secure the remaining jumper harness with the provided cable ties and foam tape to prevent damage or rattling.
- Avoid areas where the wire may be pinched or cut.
-
Reassemble Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation
-
Locate the Trailer Harness Connector:
- Find the gray 6-pin plug located under the vehicle, behind the rear bumper on the driver’s side along the frame rail.
-
Remove the Protective Cap:
- Remove the protective cap from the connector. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Plug the T-Connector into the vehicle’s mating connector.
- Ensure the connectors are fully inserted and the locking tabs are secured.
Testing and Final Steps
-
Test the Installation:
- Use a test light or trailer to verify that the installation is functioning correctly.
- Ensure all connections are complete for the T-Connector to operate properly.
-
Warnings:
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
- Refer to the vehicle owner’s manual for additional information.
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Read and follow all warnings and installation instructions provided.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter for Generic Vehicle
Part Numbers:
- 118525
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation
-
Insert Relays:
- Insert the relays provided with the kit.
- Note: Using relays other than those included may cause the unit to malfunction or damage the vehicle or trailer.
-
Locate the Vehicle's Jumper Plug:
- Find the 12-pin jumper plug located in the vehicle cab on the passenger’s side, behind the kick panel.
-
Remove Passenger Side Floor Sill and Kick Panel:
- Use a trim panel puller to remove the passenger side floor sill by pulling upwards (1) and then outward toward the rear of the vehicle (2). Be careful not to damage the panel fasteners.
- Remove the passenger side kick panel. The 12-pin jumper plug is located behind this panel.
-
Connect the Jumper Harness:
- Insert the jumper harness with relays into the vehicle’s 12-pin harness and lock it into place.
- Secure the remaining jumper harness with the provided cable ties and foam tape to prevent damage or rattling.
- Avoid areas where the wire may be pinched or cut.
-
Reassemble Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation
-
Locate the Trailer Harness Connector:
- Find the gray 6-pin plug located under the vehicle, behind the rear bumper on the driver’s side along the frame rail.
-
Remove the Protective Cap:
- Remove the protective cap from the connector. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Plug the T-Connector into the vehicle’s mating connector.
- Ensure the connectors are fully inserted and the locking tabs are secured.
Testing and Final Steps
-
Test the Installation:
- Use a test light or trailer to verify that the installation is functioning correctly.
- Ensure all connections are complete for the T-Connector to operate properly.
-
Warnings:
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
- Refer to the vehicle owner’s manual for additional information.
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Wear safety glasses and follow safety precautions during installation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Note: Read and follow all warnings and installation instructions provided. Refer to the vehicle owner’s manual for additional details.
