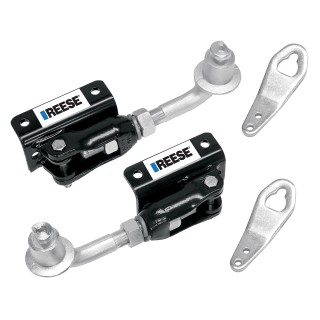

Reese Dual Cam Sway Control for Weight Distribution Hitch Steel Spring Bars Round or Trunnion High Performance
Model: 26002This patented product is Reese Products main technique for controlling trailer sway. Unlike Friction Sway Control, this approach works to control sway from the start rather than just resisting sway once it's begun. And it works only when needed. The advantage of the Dual Cam System is its ability to forestall sway in addition to sway resistance. It works to hold down the start of swaying activity while at the same time allowing free and easy vehicle and trailer interaction. Another advantage of the Dual Cam System is that it is installed on the trailer and thereofre does not require adjustment every time the towing vehicle and trailer are hooked up, unless hitch weight or tow vehicle loading are changed.
Integrated cams into the spring bars reduce noise
No U-bolts to interfere with bottle racks or other A-Frame mounted items
Specific attachment reference points provided
Fits most applications
Improved installation times
Years of extensive field testing
Install Instructions:

WHY CHOOSE REESE SYSTEMS?
$289 12 $399.40 28% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$399.40 $289 12
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $72.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 26002
- UPC: 016118036442

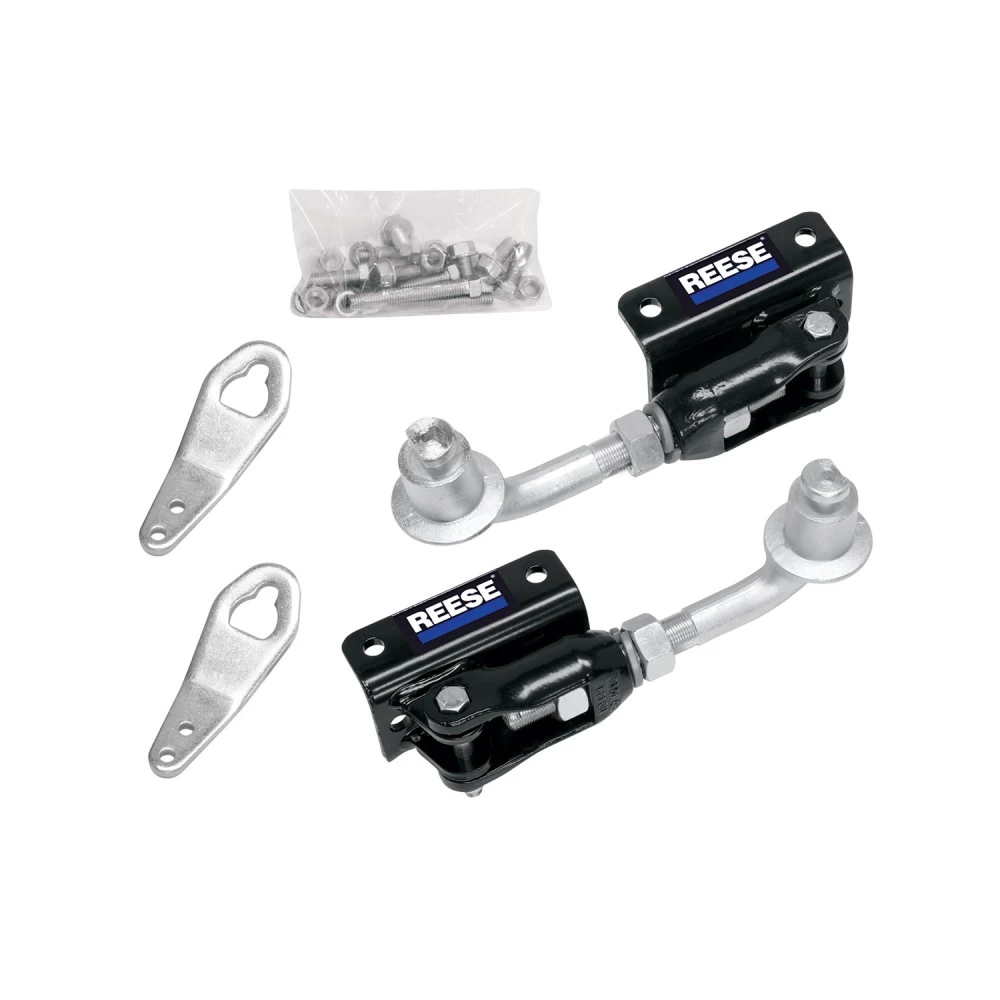

- Includes: Dual Cam Sway Control Kit
Be the first to ask a question.
Description
This patented product is Reese Products main technique for controlling trailer sway. Unlike Friction Sway Control, this approach works to control sway from the start rather than just resisting sway once it's begun. And it works only when needed. The advantage of the Dual Cam System is its ability to forestall sway in addition to sway resistance. It works to hold down the start of swaying activity while at the same time allowing free and easy vehicle and trailer interaction. Another advantage of the Dual Cam System is that it is installed on the trailer and thereofre does not require adjustment every time the towing vehicle and trailer are hooked up, unless hitch weight or tow vehicle loading are changed.
Integrated cams into the spring bars reduce noise
No U-bolts to interfere with bottle racks or other A-Frame mounted items
Specific attachment reference points provided
Fits most applications
Improved installation times
Years of extensive field testing
Install Instructions:

WHY CHOOSE REESE SYSTEMS?
Get Expert Help
Reese Dual Cam Sway Control for Weight Distribution Hitch Steel Spring Bars Round or Trunnion High Performance Install Notes

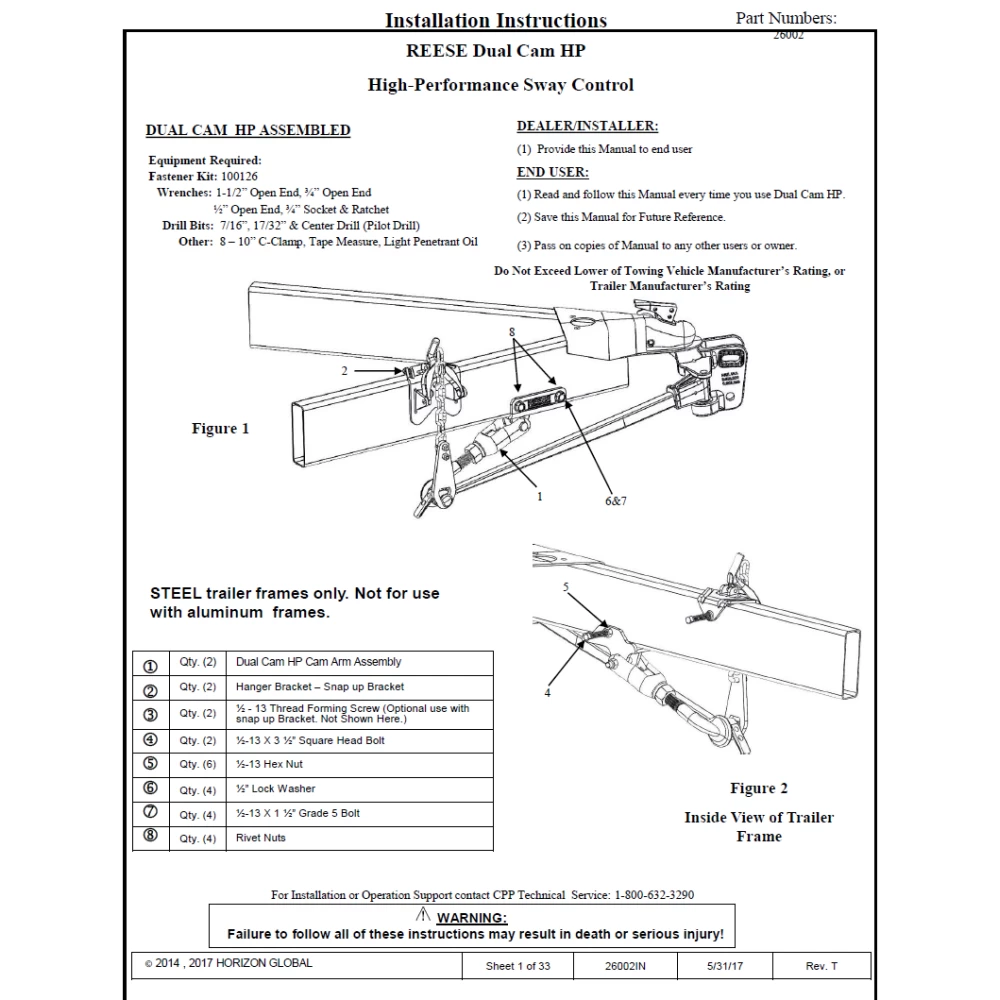

Installation Instructions for Reese Dual Cam HP High-Performance Sway Control
Part Number - 26002
Tools Required
- Wrenches: 1-1/2” Open End, 3/4” Open End
- Drill Bits: 7/16”, 17/32”, and Center Drill (Pilot Drill)
- Fastener Kit: 100126
- 1/2” Open End Wrench
- 3/4” Socket & Ratchet
- Miscellaneous: 8–10” C-Clamp, Tape Measure, Light Penetrant Oil
Hardware List
- Dual Cam HP Cam Arm Assembly – Qty: 2

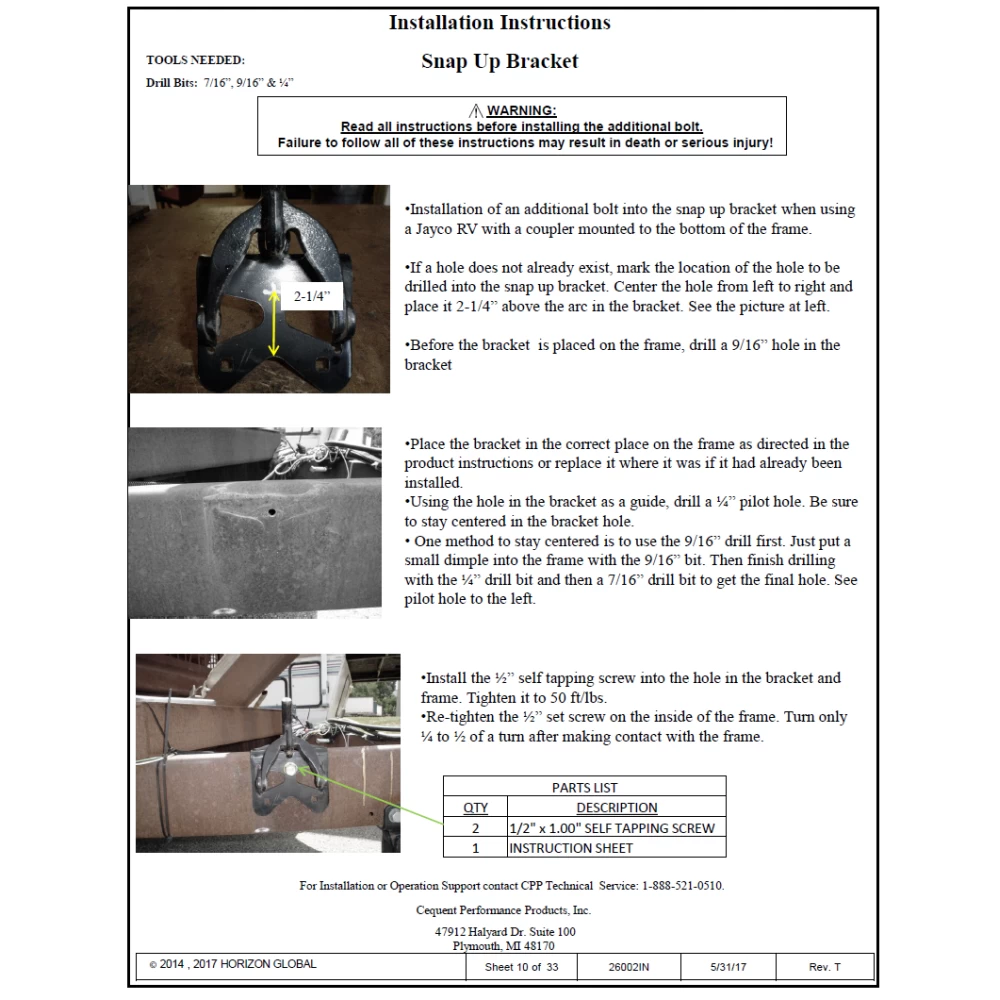

- Hanger Bracket – Snap-Up Bracket – Qty: 2
- 1/2-13 Thread Forming Screw (Optional Use with Snap-Up Bracket) – Qty: 2
- 1/2-13 X 3 1/2” Square Head Bolt – Qty: 2
- 1/2-13 Hex Nut – Qty: 6
- 1/2” Lock Washer – Qty: 4
- 1/2-13 X 1 1/2” Grade 5 Bolt – Qty: 4
- Rivet Nuts – Qty: 4
Safety Notes
- Always ensure proper installation as outlined in the manual.
- Never exceed the lower towing capacity of the vehicle or trailer manufacturer.
- Ensure fasteners are properly torqued before use.
- Never place your body under the trailer or between the truck and trailer during installation or adjustment.
Step-by-Step Installation Instructions
General Installation
-

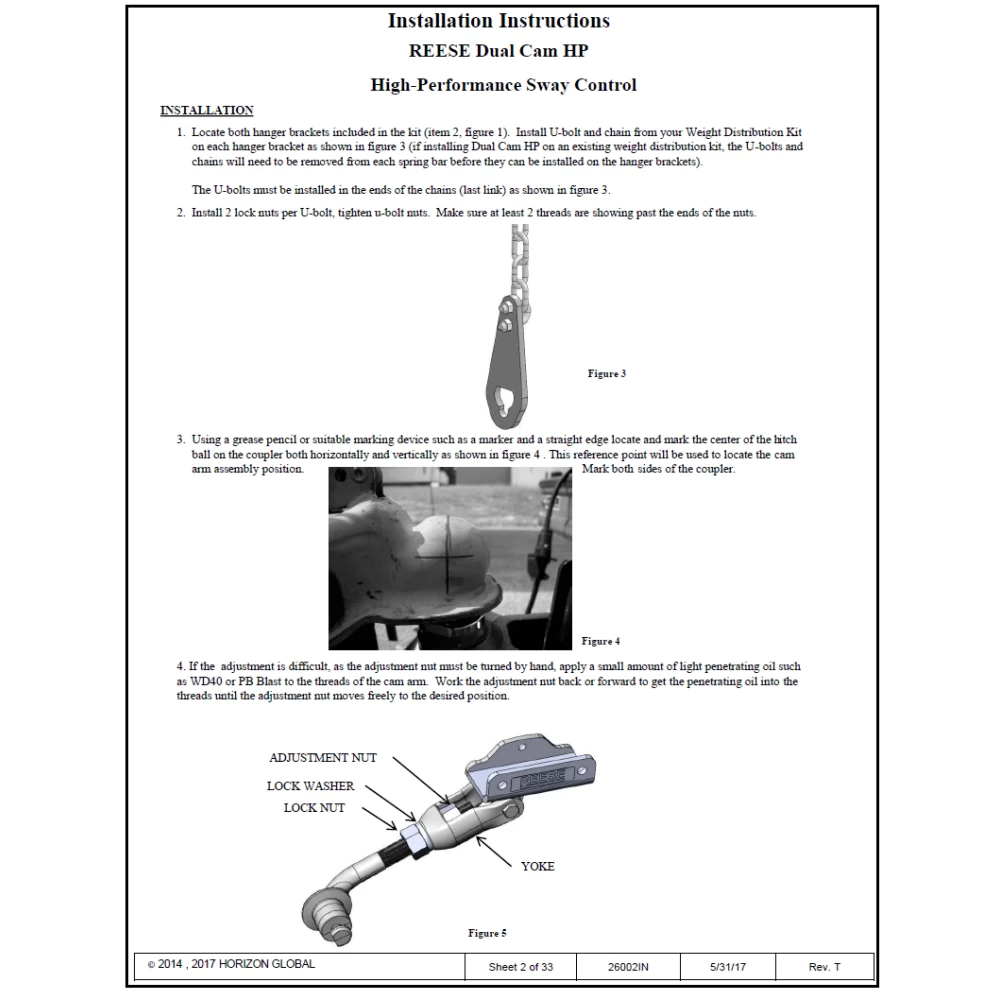

Hanger Brackets:
- Locate both hanger brackets included in the kit.
- Install U-bolts and chains from the weight distribution kit onto each hanger bracket.
- Tighten lock nuts on the U-bolts, ensuring at least 2 threads extend beyond the nuts.
-
Marking Reference Points:
- Use a grease pencil or marker to mark the center of the hitch ball on the coupler.
-

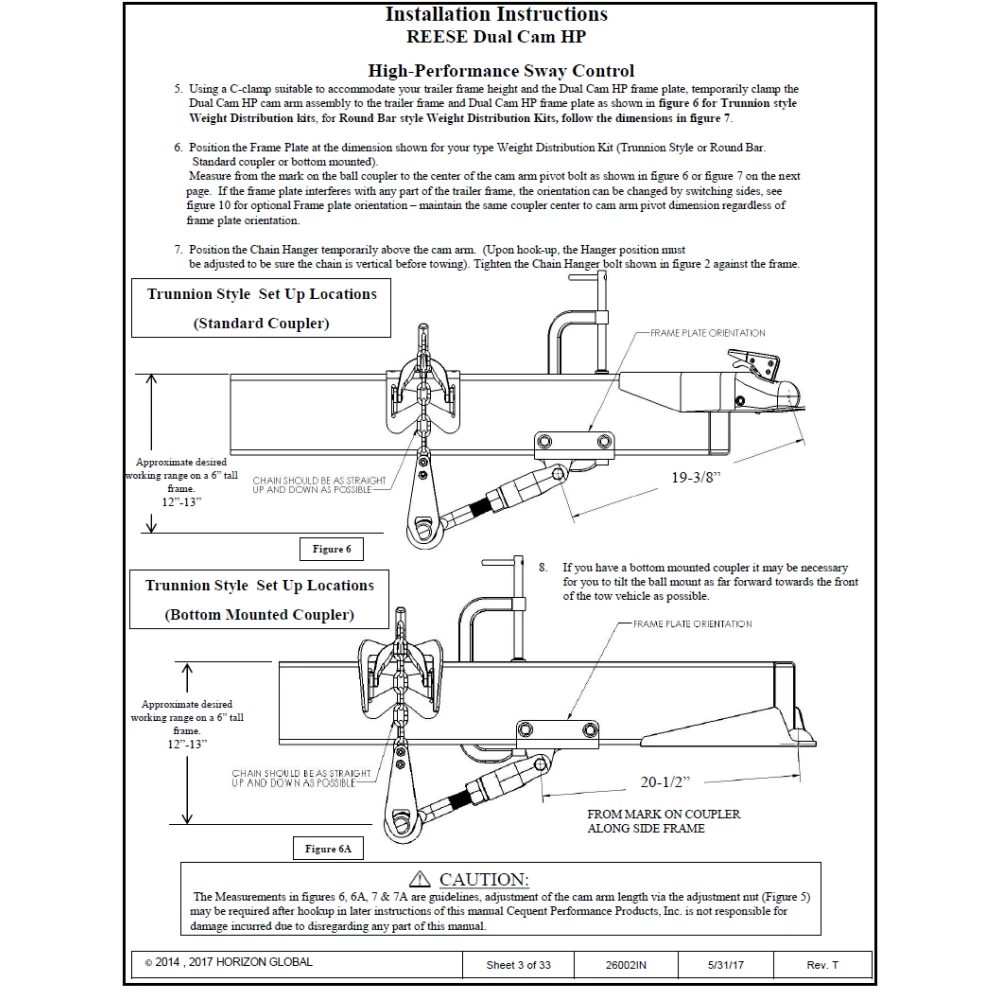

Positioning the Dual Cam HP:
- Temporarily clamp the cam arm assembly to the trailer frame using a C-clamp.

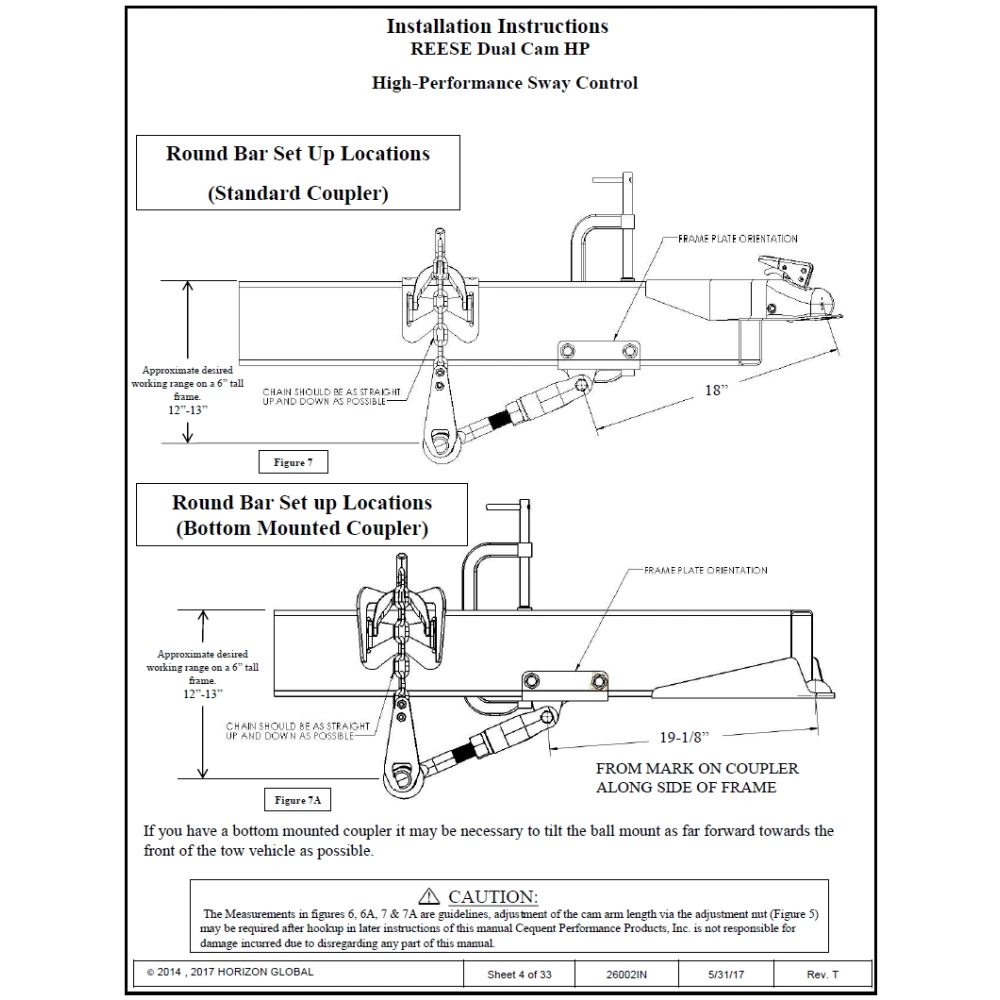

- Adjust the cam arm position based on dimensions in the manual for Trunnion or Round Bar style kits.
-

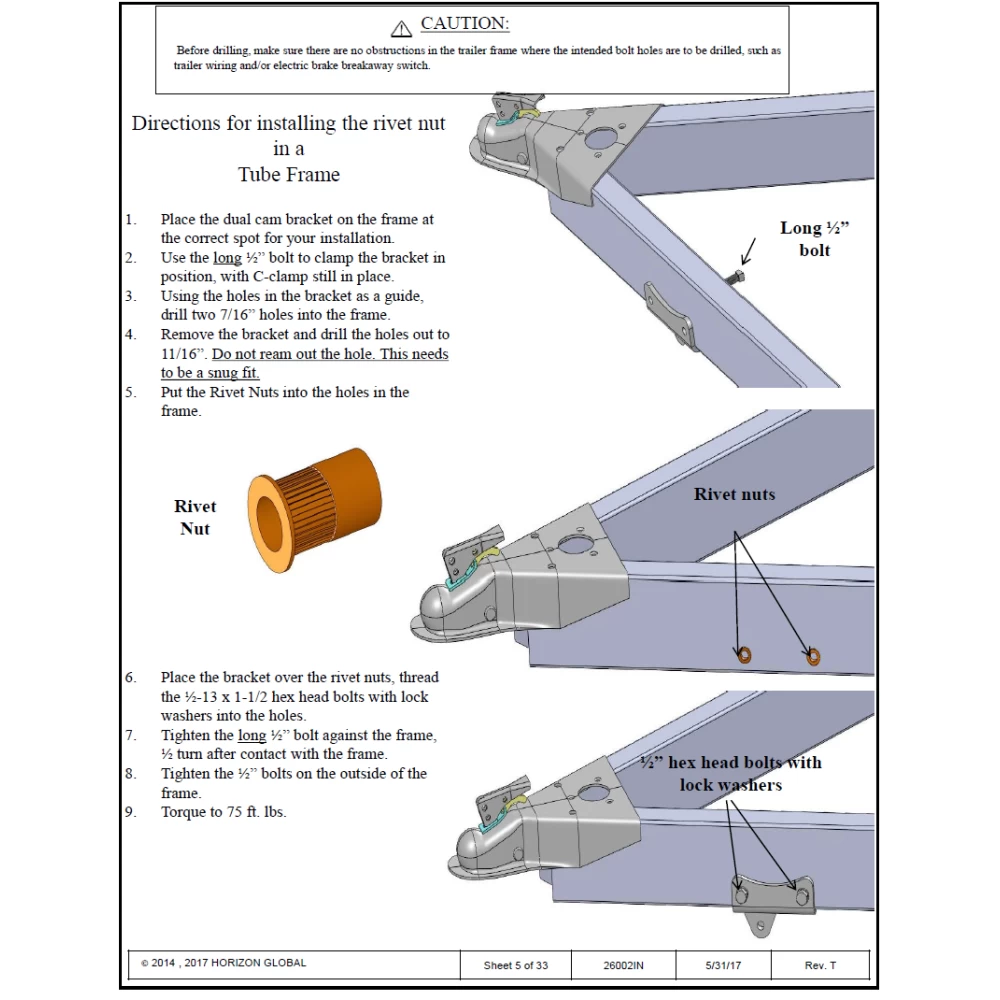

Rivet Nut Installation (For Tube Frames):
- Drill guide holes and install rivet nuts into the trailer frame.
- Secure the Dual Cam HP frame brackets to the frame using bolts and lock washers.
-

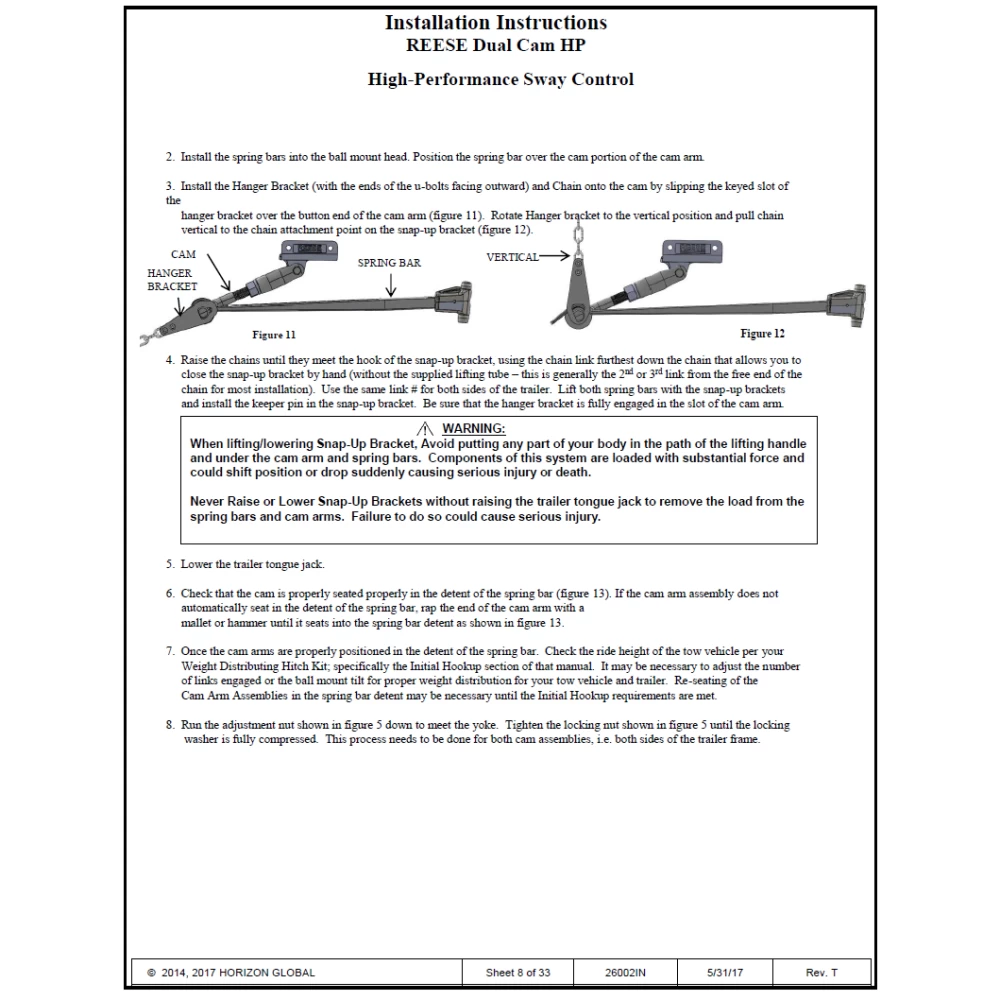

Chain Hanger Adjustment:
- Position the chain hanger above the cam arm and secure it.
- Ensure the chain is vertical before towing.
-

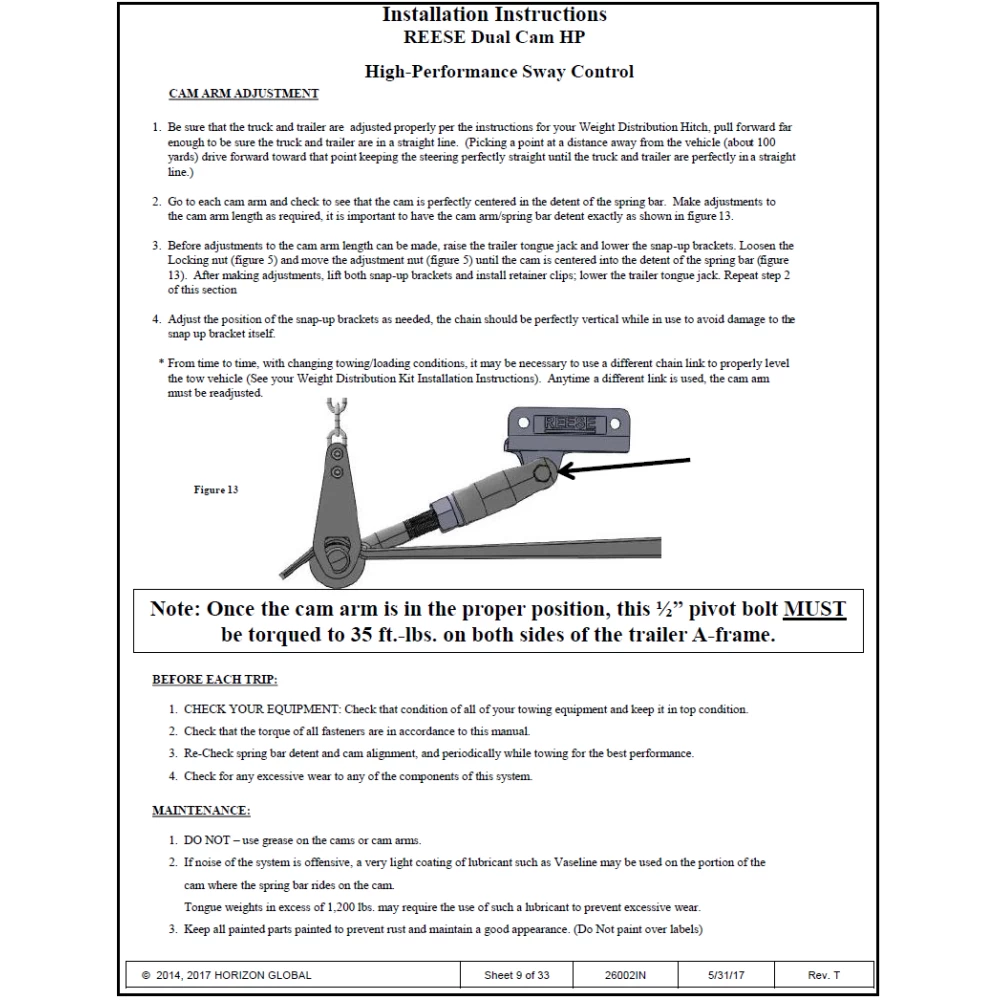

Final Adjustments:
- Adjust the cam arm length using the adjustment nut to align with the detent of the spring bar.
Maintenance
- Regularly inspect all components for wear and proper torque.
- Avoid greasing the cams or cam arms; if necessary, use a light lubricant like Vaseline to reduce noise.
- Ensure painted components are free from rust and damage.
Warranty Information
- Limited Lifetime Warranty: Covers defects in materials and workmanship for the original purchaser.
- Exclusions:
- Normal wear and tear
- Misuse, overloading, improper installation, or maintenance
- For complete warranty instructions, please download the full installation PDF.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
