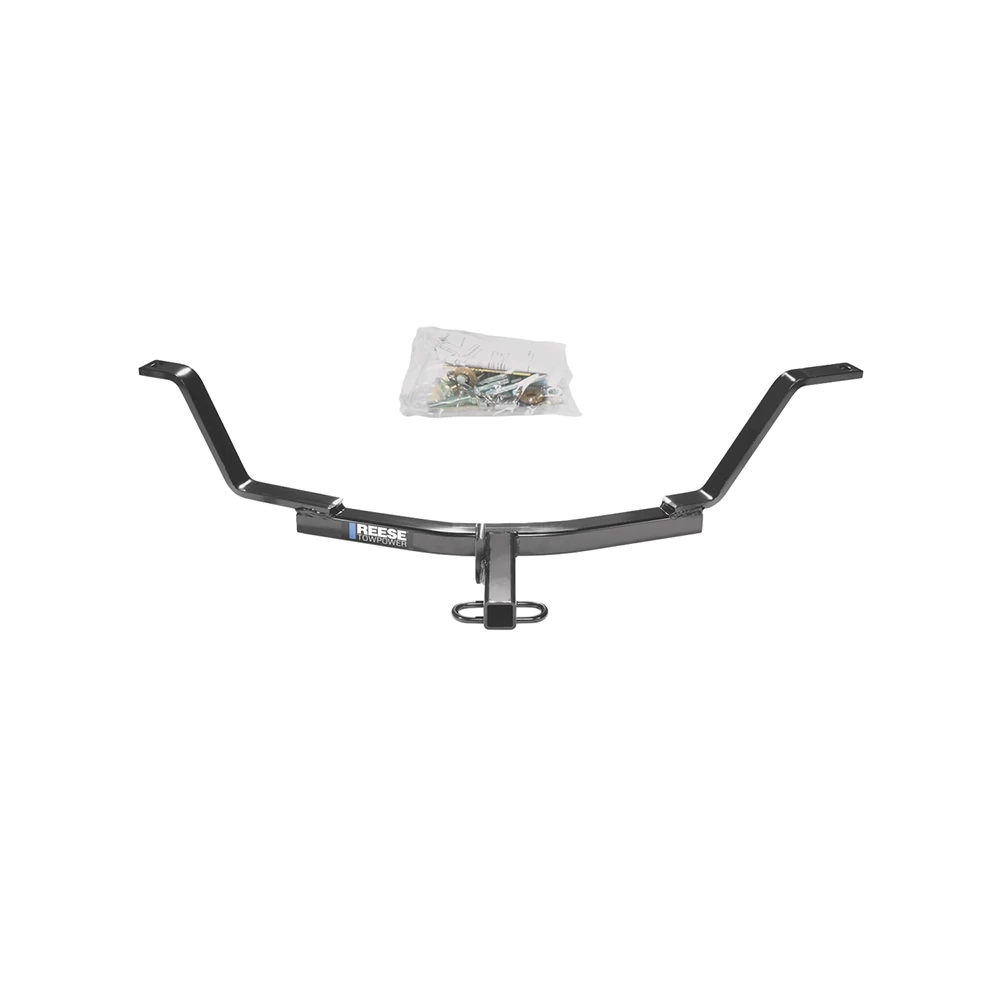

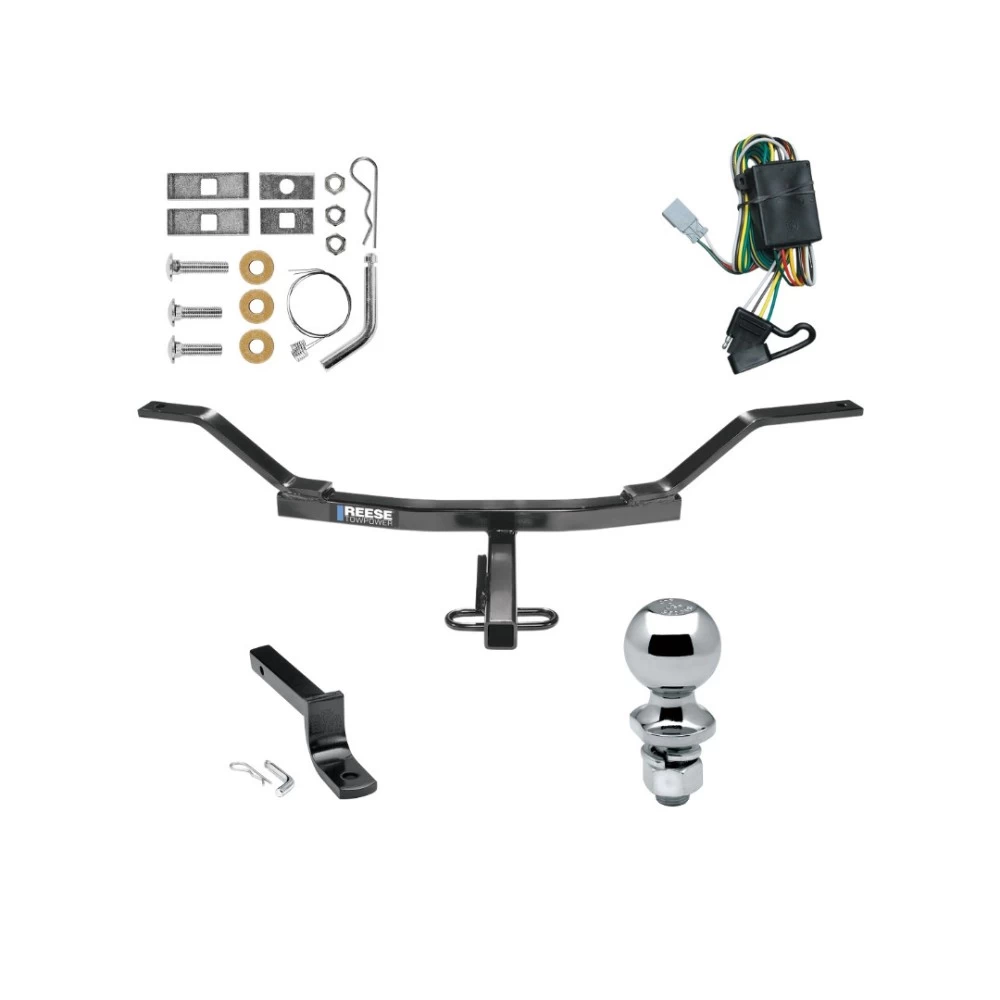

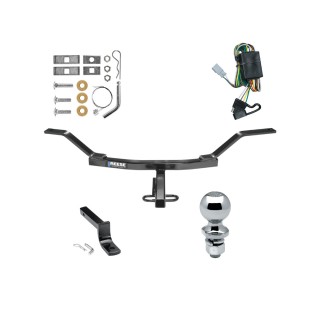

Installation Instructions for Honda Accord Sedan and Acura 3.2 CL & TL

Part Numbers:

• 60913
• 24791
• 77165

Wiring Access Location:

• PC3

Tools Required:

• Wrenches: 3/4”
• Drill Bits: None

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the rubber isolators from the muffler hangers to lower the exhaust.

2. Prepare Bolt and Plate Assembly:

   • Thread the bolt leader onto the 1-1/2” carriage bolt and insert it through the hole in the reinforcing plate.
   • Fishwire the bolt leader and assembly through the access hole in the bottom of the frame and pull it through the proper hole in the frame.
   • Repeat for the other side.

3. Position Hitch:

   • Raise the hitch into position.
   • Insert the 2” carriage bolt along with the square hole spacer, round hole spacer, and hitch's mounting tab through the vehicle's tie-down hook in the order shown in the illustration.
   • Install the conical toothed washer and nut and hand-tighten to hold the hitch in place.

4. Attach Hitch to Frame Straps:

   • Fishwire the bolt leaders through the holes in the frame straps.
   • Carefully remove the bolt leaders without pushing the bolt assemblies back into the frame channels.
   • Install conical toothed washers and nuts.

5. Tighten Fasteners:

   • Use a torque wrench to tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).

6. Reinstall Exhaust:

   • Raise the exhaust back into position and reattach the rubber isolators.

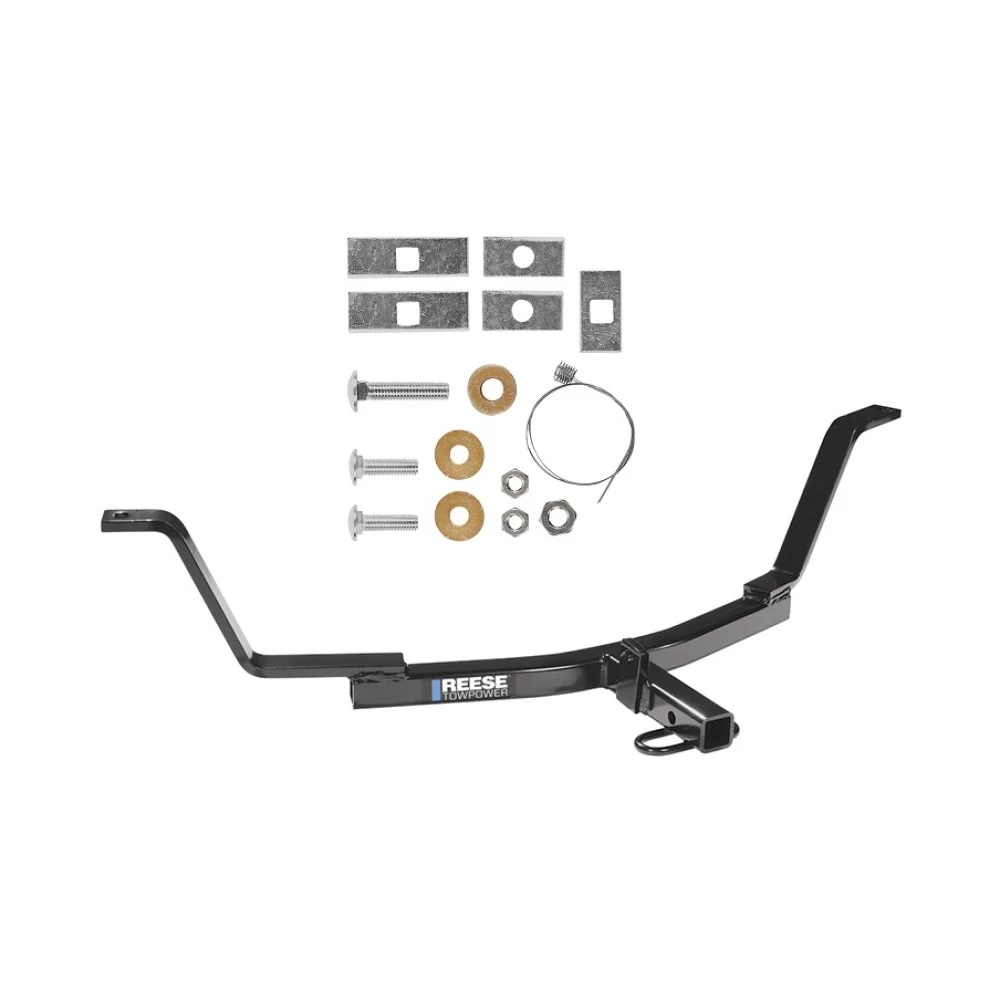

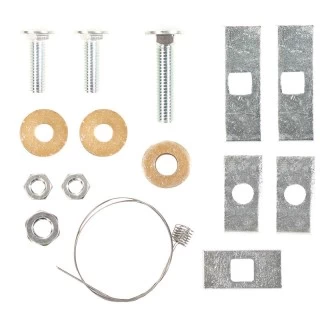

Hardware List:

• (2) Carriage Bolts: 1/2”-13 x 1-1/2” GR5
• (2) Reinforcing Plates: 1” x 3” x 1/4”
• (2) Bolt Leaders
• (3) Conical Toothed Washers: 1/2”
• (3) Nuts: 1/2”-13 GR5
• (1) Carriage Bolt: 1/2”-13 x 2-1/2”
• (1) Square Hole Spacer: 1” x 2” x 1/4”
• (1) Round Hole Spacer: 1” x 2” x 1/4”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

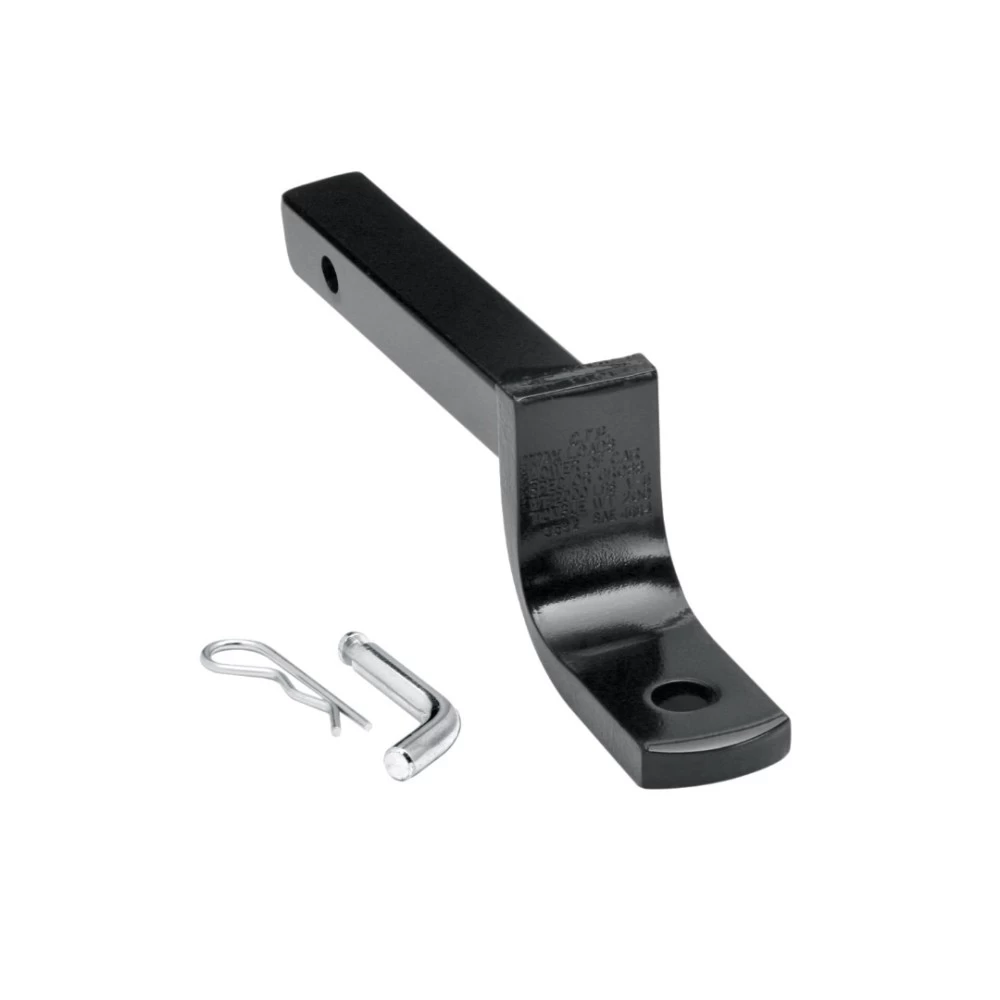

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• If required, modify the frame access hole using the recommended procedures to ensure hardware fits through.

Installation Instructions for Various Vehicles

Part Numbers:

• 60913
• 24791
• 77165

Wiring Access Location:

• PC3

Tools Required:

• Wrenches: 3/4”
• Drill Bits: None

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the rubber isolators from the muffler hangers to lower the exhaust.

2. Prepare Bolt and Plate Assembly:

   • Thread the bolt leader onto the 1-1/2” carriage bolt and insert it through the hole in the reinforcing plate.
   • Fishwire the bolt leader and assembly through the access hole in the bottom of the frame and pull it through the proper hole in the frame.
   • Repeat for the other side.

3. Position Hitch:

   • Raise the hitch into position.
   • Insert the 2” carriage bolt along with the square hole spacer, round hole spacer, and hitch's mounting tab through the vehicle's tie-down hook in the order shown in the illustration.
   • Install the conical toothed washer and nut and hand-tighten to hold the hitch in place.

4. Attach Hitch to Frame Straps:

   • Fishwire the bolt leaders through the holes in the frame straps.
   • Carefully remove the bolt leaders without pushing the bolt assemblies back into the frame channels.
   • Install conical toothed washers and nuts.

5. Tighten Fasteners:

   • Use a torque wrench to tighten all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).

6. Reinstall Exhaust:

   • Raise the exhaust back into position and reattach the rubber isolators.

Hardware List:

• (2) Carriage Bolts: 1/2”-13 x 1-1/2” GR5
• (2) Reinforcing Plates: 1” x 3” x 1/4”
• (2) Bolt Leaders
• (3) Conical Toothed Washers: 1/2”
• (3) Nuts: 1/2”-13 GR5
• (1) Carriage Bolt: 1/2”-13 x 2-1/2”
• (1) Square Hole Spacer: 1” x 2” x 1/4”
• (1) Round Hole Spacer: 1” x 2” x 1/4”

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses when working beneath the vehicle.
• Do not use a torch to cut access or attachment holes.

Drawbar:

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• If required, modify the frame access hole using the recommended procedures to ensure hardware fits through.

Additional Information:

• Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

• For complete warranty instructions, please download the full installation PDF.

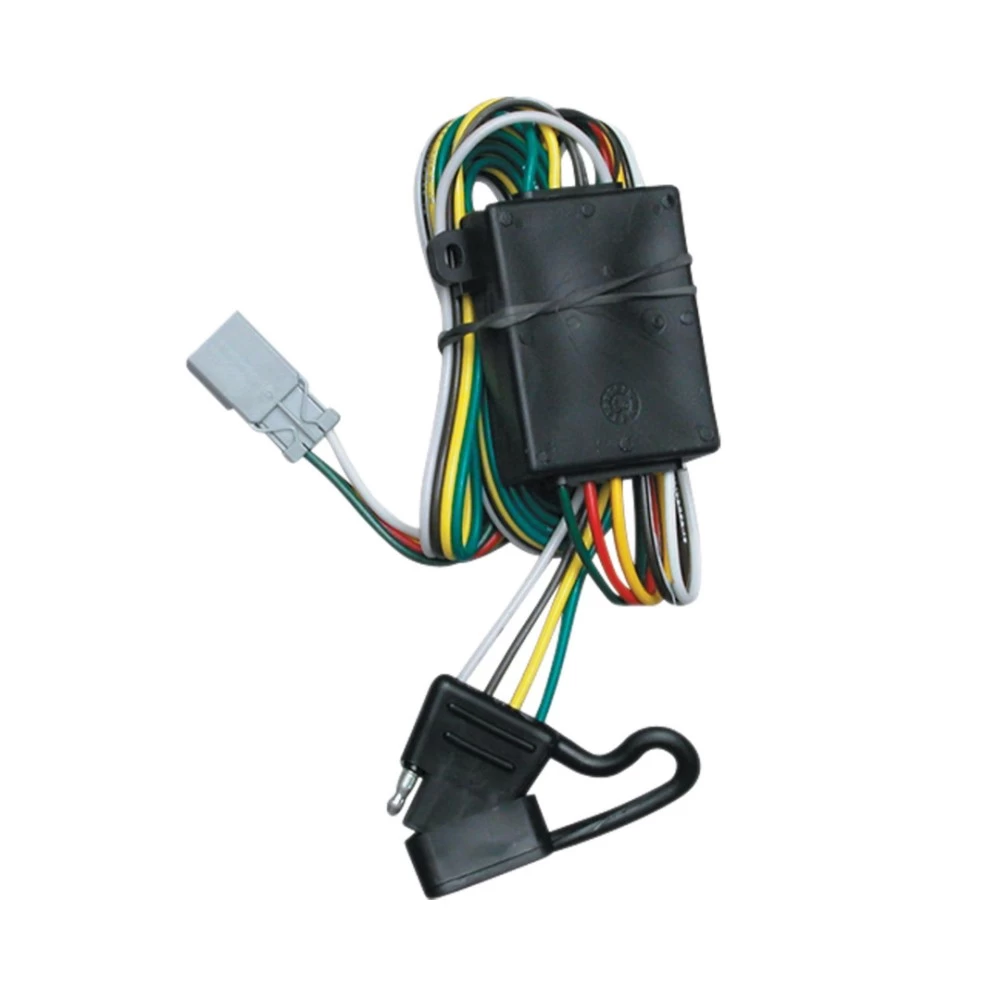

Installation Instructions for T-Connector Adapter for Honda CRV

Part Numbers:

• 118427

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4" Socket

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear door of the vehicle.
   • Temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
   • Note: It may be helpful to fold the rear seat forward.

2. Remove the Trim Panel:

   • Use a trim panel remover tool to carefully pull back the interior trim panel on the driver’s side.

3. Locate the Trailer Tow Plug:

   • Behind the removed trim panel, locate the vehicle’s white trailer tow plug.

4. Check Compatibility:

   • Ensure the mating surfaces of the vehicle wiring connectors match the T-Connector ends.
   • All connector surfaces should be clean and free of dirt.

5. Connect the T-Connector:

   • Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Do not drill into the vehicle floor or bed.
   • Clean the grounding area of dirt and rustproofing.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.

7. Reassemble the Cargo Area:

   • Reinstall the threshold, trim panel, cargo net, and cover.

8. Store the 4-Flat Connector:

   • Store the 4-flat connector in the rear cargo area when not in use.

9. Test the Installation:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Read and follow all vehicle warnings and instructions before beginning installation.
• Refer to the vehicle owner’s manual for additional guidance.

Installation Instructions for T-Connector Adapter for Honda CRV

Part Numbers:

• 118427

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Drill (3/32” Drill Bit)
• 1/4" Socket

Step-by-Step Instructions:

1. Prepare the Rear Cargo Area:

   • Open the rear door of the vehicle.
   • Temporarily remove the rear threshold, cargo net, and cargo cover to allow access to the rear interior trim panel on the driver’s side.
   • Note: It may be helpful to fold the rear seat forward.

2. Remove the Trim Panel:

   • Use a trim panel remover tool to carefully pull back the interior trim panel on the driver’s side.

3. Locate the Trailer Tow Plug:

   • Behind the removed trim panel, locate the vehicle’s white trailer tow plug.

4. Check Compatibility:

   • Ensure the mating surfaces of the vehicle wiring connectors match the T-Connector ends.
   • All connector surfaces should be clean and free of dirt.

5. Connect the T-Connector:

   • Insert the T-Connector harness into the vehicle’s Tow-Plug harness and lock it into place.

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Do not drill into the vehicle floor or bed.
   • Clean the grounding area of dirt and rustproofing.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage to the vehicle or personal injury. Do not drill into any exposed surfaces.

7. Reassemble the Cargo Area:

   • Reinstall the threshold, trim panel, cargo net, and cover.

8. Store the 4-Flat Connector:

   • Store the 4-flat connector in the rear cargo area when not in use.

9. Test the Installation:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
For complete warranty instructions, please download the full installation PDF.
