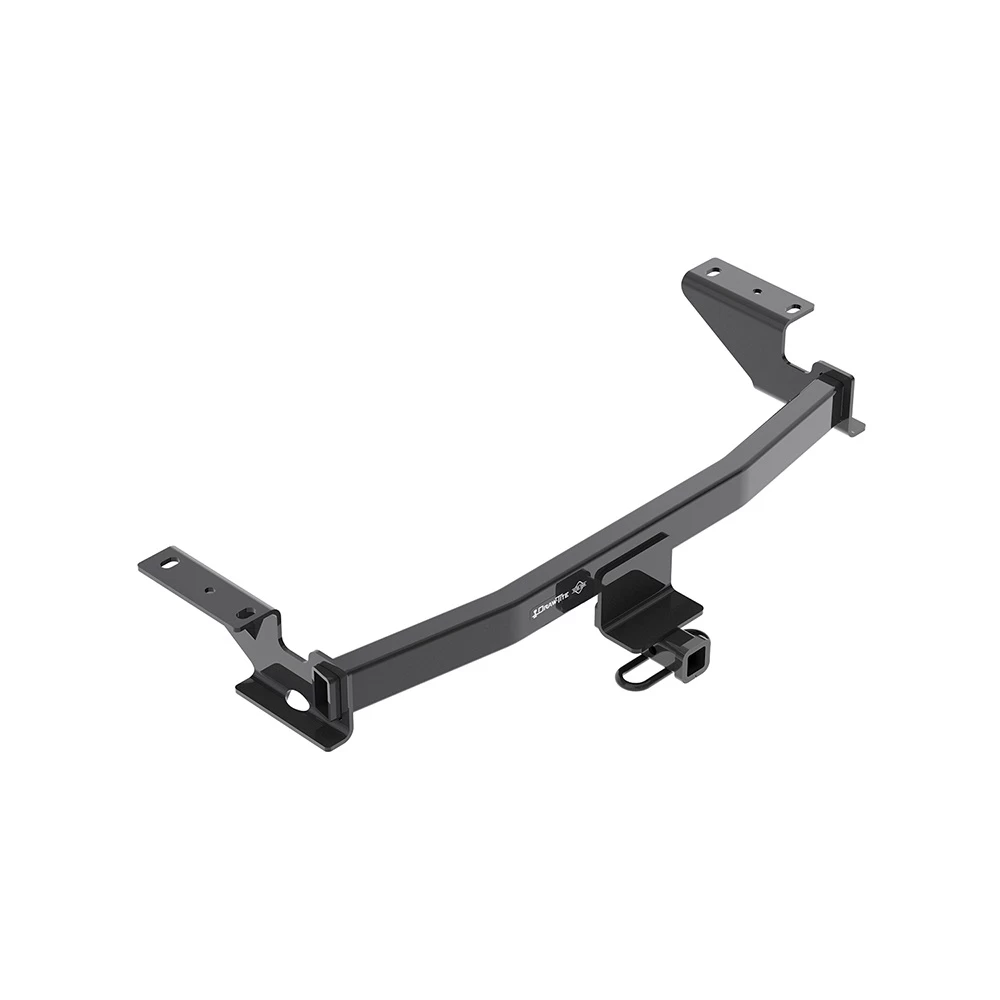

Installation Instructions for Mazda CX-5

Part Numbers:

• 36601
• 06185
• CQT36601

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 3/4" Socket
• Universal Joint Socket (optional)
• Lubricant or Soapy Water

Installation Time:

• Estimated: 20 minutes (for professional installers)

Step-by-Step Instructions:

1. Support and Lower the Exhaust:

   • Remove four (4) rubber hangers from the exhaust system to lower it.
   • Support the exhaust to prevent it from falling under its own weight.
   • Apply lubricant or soapy water to the metal hanger rods and rubber isolators to ease removal.

2. Remove Plastic Rivets:

   • If present, remove plastic rivets fastening the fascia tabs to the vehicle.
   • Use a flat head screwdriver to remove the center of the rivet.
   • Retain the rivets for reinstallation.

3. Install Fasteners:

   • Feed the coiled end of the pull wire through the forward attachment hole in the frame and out the access hole.
   • Place a spacer onto the pull wire and thread a carriage bolt onto it.
   • Pull the wire to position the fasteners through the frame hole.
   • Leave the pull wire attached.
   • Repeat for all required locations on both frame rails.

4. Position the Hitch:

   • Raise the hitch above the exhaust and guide the pull wires through the attachment points on the hitch brackets.
   • Pull the fascia rearward gently if necessary to access between the fascia and the exhaust hanger.

5. Install Remaining Fasteners:

   • Use the conical washers (teeth side facing the hitch) to hold the bolts in place.
   • Remove the pull wires and attach hex nuts to secure the hitch loosely.

6. Tighten All Fasteners:

   • Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
   • A universal joint socket may be needed to tighten the rearward fasteners on both sides.

7. Reinstall the Exhaust:

   • Raise the exhaust back into position and secure it with the rubber hangers.
   • Apply lubricant or soapy water to ease the reinstallation process.

8. Reinstall Plastic Rivets:

   • Replace any plastic rivets removed in Step 2.

Torque Specifications:

• 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

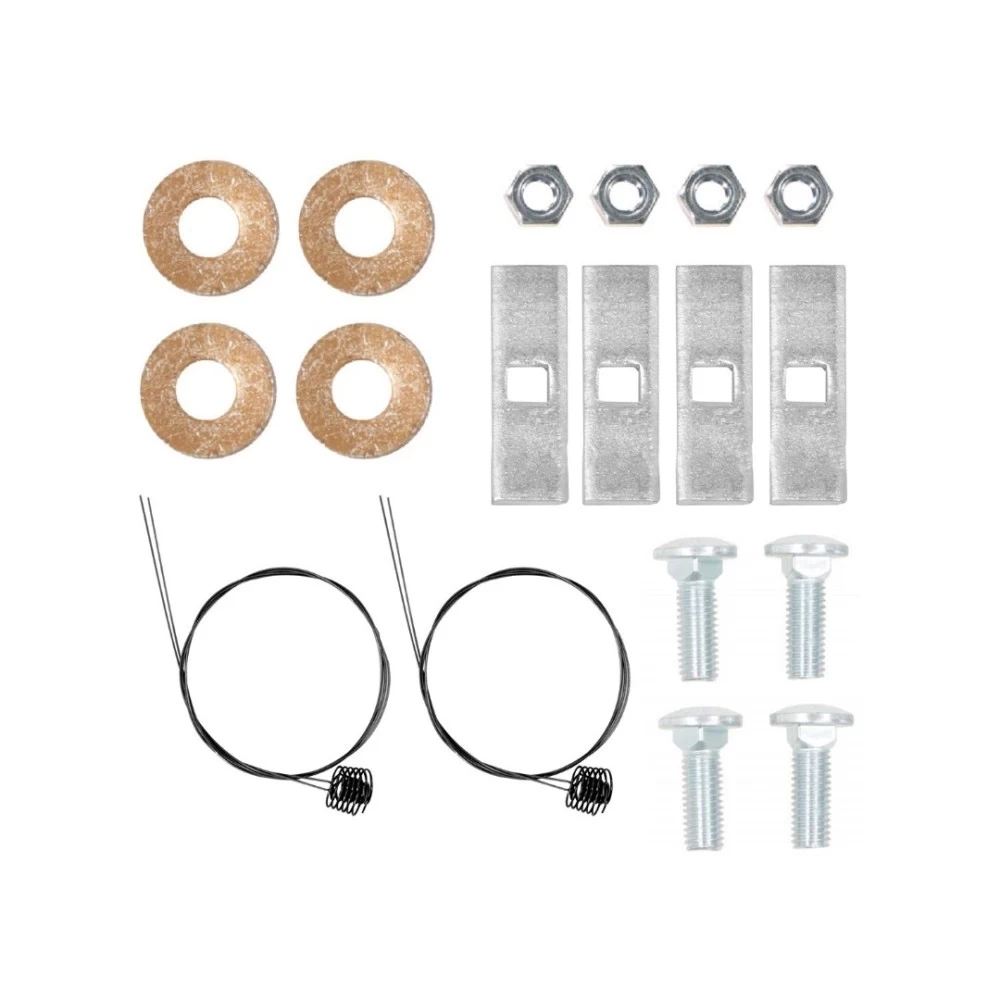

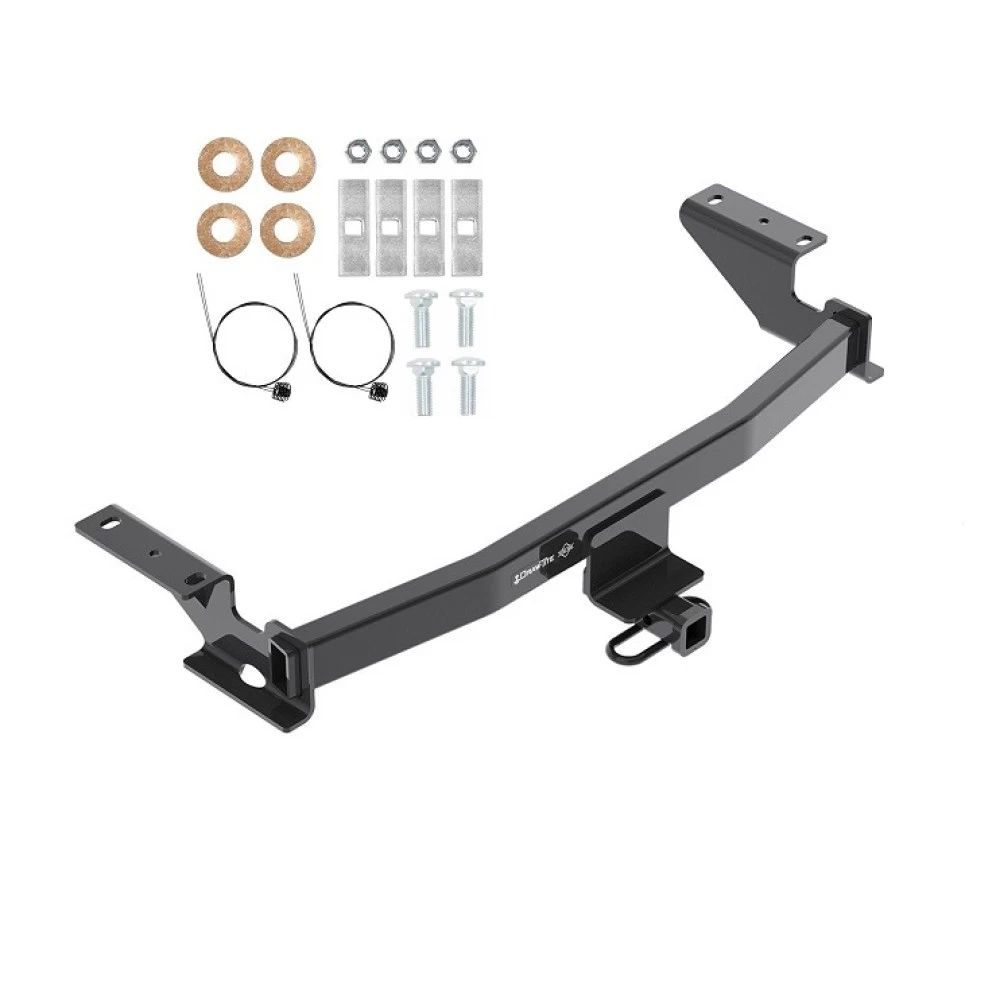

Hardware List:

• (4) Carriage Bolts, 1/2"-13 x 1.50" GR5
• (4) Spacers, 0.250" x 1" x 3"
• (4) Conical Washers, 1/2"
• (4) Hex Nuts, 1/2"-13
• (4) Fish Wires, 1/2"-13

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36601F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 36601
• 06185
• CQT36601

Wiring Access Location:

• PC3, PC4

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 3/4" Socket
• Universal Joint Socket (optional)
• Lubricant or Soapy Water

Installation Time:

• Estimated: 20 minutes (for professional installers)

Step-by-Step Instructions:

1. Support and Lower the Exhaust:

   • Remove four (4) rubber hangers from the exhaust system to lower it.
   • Support the exhaust to prevent it from falling under its own weight.
   • Apply lubricant or soapy water to the metal hanger rods and rubber isolators to ease removal.

2. Remove Plastic Rivets:

   • If present, remove plastic rivets fastening the fascia tabs to the vehicle.
   • Use a flat head screwdriver to remove the center of the rivet.
   • Retain the rivets for reinstallation.

3. Install Fasteners:

   • Feed the coiled end of the pull wire through the forward attachment hole in the frame and out the access hole.
   • Place a spacer onto the pull wire and thread a carriage bolt onto it.
   • Pull the wire to position the fasteners through the frame hole.
   • Leave the pull wire attached.
   • Repeat for all required locations on both frame rails.

4. Position the Hitch:

   • Raise the hitch above the exhaust and guide the pull wires through the attachment points on the hitch brackets.
   • Pull the fascia rearward gently if necessary to access between the fascia and the exhaust hanger.

5. Install Remaining Fasteners:

   • Use the conical washers (teeth side facing the hitch) to hold the bolts in place.
   • Remove the pull wires and attach hex nuts to secure the hitch loosely.

6. Tighten All Fasteners:

   • Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m).
   • A universal joint socket may be needed to tighten the rearward fasteners on both sides.

7. Reinstall the Exhaust:

   • Raise the exhaust back into position and secure it with the rubber hangers.
   • Apply lubricant or soapy water to ease the reinstallation process.

8. Reinstall Plastic Rivets:

   • Replace any plastic rivets removed in Step 2.

Torque Specifications:

• 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)

Hardware List:

• (4) Carriage Bolts, 1/2"-13 x 1.50" GR5
• (4) Spacers, 0.250" x 1" x 3"
• (4) Conical Washers, 1/2"
• (4) Hex Nuts, 1/2"-13
• (4) Fish Wires, 1/2"-13

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

• Authorized Drawbar Kit: 36051 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36601F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.
