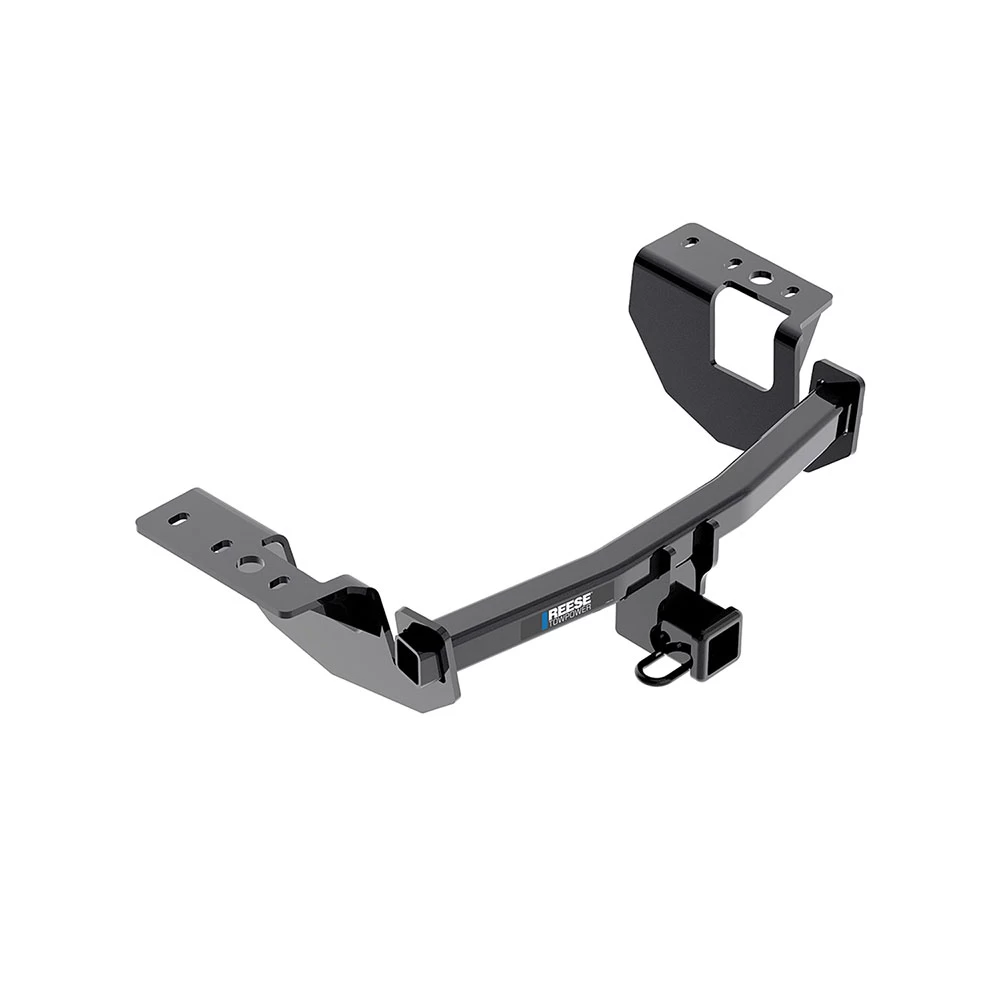

Trailer Tow Hitch For 14-18 Subaru Forester All Styles Class 4 2" Towing Receiver

Trailer Tow Hitch For 14‑18 Subaru Forester All Styles Class 4 2" Towing Receiver

Model: 84182

This Hitch Fits The Following Vehicles:

2014 - 2018 Subaru, Forester, All Styles

Trailer Hitch Specs:

Part Number	84182
Brand	Reese
Finish	Black Powdercoat
Class	4
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	523 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

REESE Towpower custom-fit hitches are built according to manufacturer vehicle weight specifications and model year to ensure a perfect fit and top towing performance. Featuring solid all-welded construction for maximum strength and safety, every hitch meets and exceeds industry standards.

Partial list of fitment years: 14 15 16 17 18 2014 2015 2016 2017 2018

See Full Description

$257 ⁵⁷ $402.24 36% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$402.24 $257 ⁵⁷

Pay in 4 interest-free installments of $64.25 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $64.25 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Reese Towpower
Model: 84182
UPC: 016118115161
Includes: Class 3 Trailer Tow Hitch

Compatibility Chart

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	3,500 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	525 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

This Hitch Fits The Following Vehicles:

2014 - 2018 Subaru, Forester, All Styles

Trailer Hitch Specs:

Part Number	84182
Brand	Reese
Finish	Black Powdercoat
Class	4
Receiver size opening	2"
Max gross trailer weight	3,500 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	523 lbs
Warranty	Lifetime
Installation Instructions

Questions or Comments? Call 702-374-8999

Tags: 84182 , 2014 , 2015 , 2016 , 2017 , 2018 , 14 , 15 , 16 , 17 , 18 , Subaruester , Reese , Towpower , Trailer , Tow , Hitch , Receiver , Bar , Frame

Get Expert Help

Trailer Tow Hitch For 14-18 Subaru Forester All Styles Class 4 2" Towing Receiver Install Notes

Installation Instructions for Trailer Hitch #76182, #84182, and #CQT76182

Part Numbers:

76182
84182
CQT76182

Applications:

Years: 2014–Current
Make and Models:
- Subaru Forester

Visit the manufacturer’s website for the most up-to-date application years and trim levels.

Tools Required:

Ratchet
Torque Wrench
Safety Glasses
Sockets: 8 mm, 10 mm, 11/16"
6" Socket Extension
Flat Head Screwdriver
Phillips Screwdriver
Tin Snips
Exhaust Removal Pliers
Lubricant or Soapy Water

Step-by-Step Instructions:

1. Remove Mud Flaps:

Remove (1) rivet near the wheel well liner and (1) rivet at the bottom of each mud flap using a flat head screwdriver.
Remove (2) screws near the wheel well liner per side using a Phillips screwdriver or 8 mm socket.
Keep the mud flaps for reinstallation.

2. Remove Rear Fascia:

Remove (1) rivet from each wheel well and (3) rivets from the bottom of the fascia using a flat head screwdriver.
Open the hatch and remove (2) screws near the brake light.
Detach the fascia carefully and trim it as needed (refer to Figure 4).

3. Lower Muffler:

Use exhaust removal pliers to detach (4) rubber hangers—(2) per exhaust and (1) in the middle of the car.
Spray lubricant or soapy water on the hangers to ease removal.
Support the exhaust to prevent damage before removing the rubber hangers.

4. Remove Heat Shield:

Remove (4) screws securing the heat shield to the vehicle using a 10 mm socket.
For dual exhaust models, remove both heat shields.

5. Remove Rubber Plugs:

Use a flat head screwdriver to remove (4) rubber plugs from the holes in the bottom of the frame.
Return the plugs to the customer.

6. Trim Heat Shield:

Use tin snips to trim the heat shield as shown in Figure 3.

7. Install Fasteners:

Feed the coiled end of the pull wire through the second attachment hole and out of the forward-most access hole in the frame.
Attach the 7/16" carriage bolt and 1/10" thick spacer block to the pull wire, and pull the fasteners into position.
Ensure the spacer blocks sit flat inside the frame and do not overlap. Repeat for all attachment points on both sides (refer to Figure 2).

8. Reinstall Heat Shield:

Reattach (2) of the (4) screws removed earlier.
Do not replace screws underneath the hitch bracket; the hitch will hold the shield in place.

9. Install Hitch:

Raise the hitch into position, ensuring fasteners do not fall back into the frame.
Loosely install conical washers and hex nuts onto the carriage bolts at all six attachment points.

10. Tighten Fasteners:

Torque all 7/16"-14 GR5 fasteners to 50 lb-ft (68 N·m).

11. Raise Muffler:

Reinstall the muffler by reattaching the rubber hangers (2 per side and 1 in the middle).

12. Reinstall Fascia and Mud Flaps:

Reattach the fascia, mud flaps, and all fasteners removed in Steps 1 and 2.

Hardware List:

6 × Pull Wires (7/16")
6 × Conical Tooth Washers (7/16")
6 × Hex Nuts (7/16"-14)
6 × Spacer Blocks (7/8" × 2")
6 × Carriage Bolts (7/16"-14 × 1.75")

Safety Notes:

Always wear safety glasses during installation.
Check the hitch periodically to ensure all fasteners and the hitch ball are secure.
If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball before use.
Do not cut access or attachment holes with a torch.

Specifications:

Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
Max Tongue Weight (Weight Carrying): 525 lbs (238 kg)
Weight Distribution: Not applicable
Installation Time: Approximately 60 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

Technical Support:

For assistance, visit www.trailerjacks.com or call 877-869-6690.

Attention: This is a summary of the installation procedure. For complete instructions, including diagrams, please download the full installation PDF.
