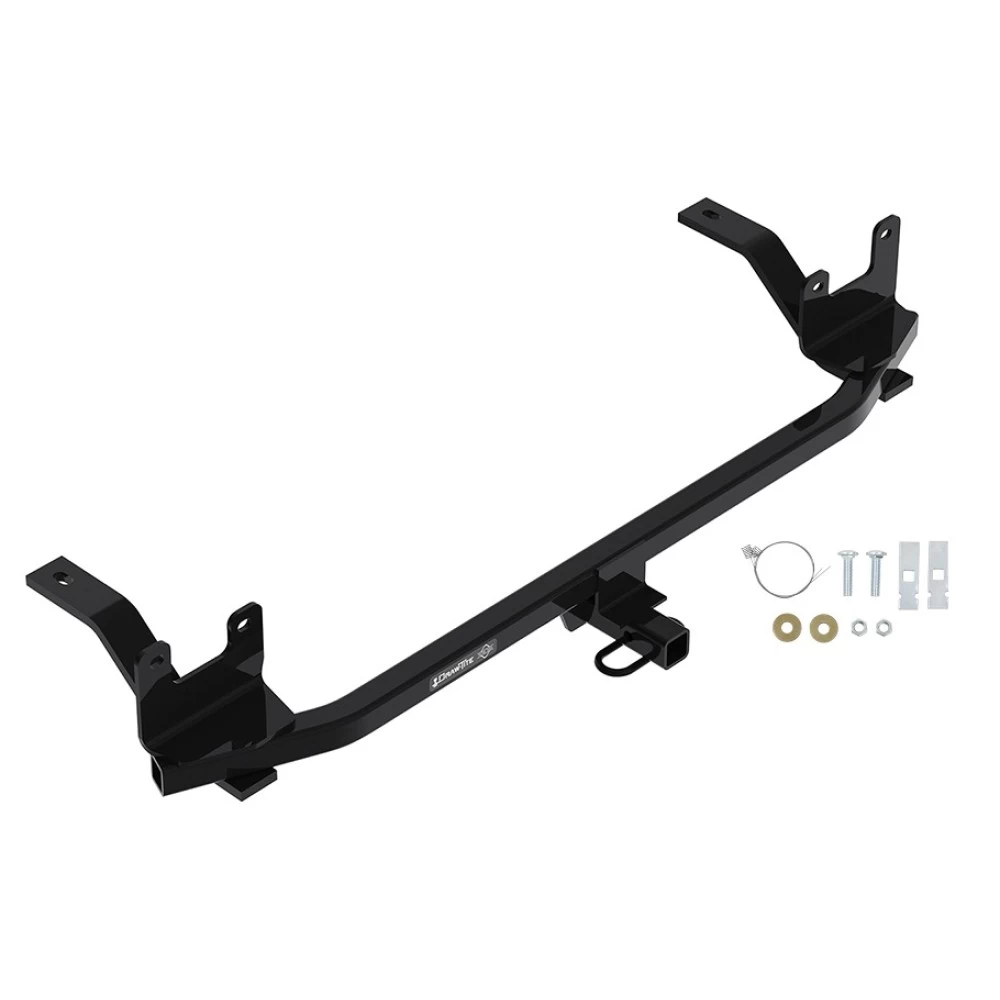

Trailer Tow Hitch For 18‑20 Hyundai Elantra Except GT and Sport 18‑23 KIA Rio 1‑1/4" Receiver
Model: 249642018 - 2020 Hyundai, Elantra, Except GT & Sport
2018 - 2023 KIA, Rio, Sedan
Trailer Hitch Specs:
| Part Number | 24964 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 2018 2019 2020 2021 2022 2023
$183 39 $286.36 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$286.36 $183 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $45.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24964
- UPC: 016118116717
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
2018 - 2020 Hyundai, Elantra, Except GT & Sport
2018 - 2023 KIA, Rio, Sedan
Trailer Hitch Specs:
| Part Number | 24964 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 18 19 20 21 22 23 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch For 18-20 Hyundai Elantra Except GT and Sport 18-23 KIA Rio 1-1/4" Receiver Install Notes
Installation Instructions for Hyundai Elantra (2018-Current) and Kia Rio (2018-Current)
Part Numbers:
- 24964
- 77964
- CQT24964
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8mm, 10mm, 12mm, 13mm, 14mm, 11/16"
- Flat Head Screwdriver
- Phillips Screwdriver
- Exhaust Removal Pliers
- Tape Measure
- Marker
- Tape
- Utility Knife
- Tin Snips
- Plastic Trim Tools
- Drill with ½” and ¼” Bits
Step-by-Step Instructions:
-
Remove Plastic Cover:
- Using a 10mm socket, remove 4 nuts.
- Use a flat head screwdriver to remove 3 plastic push pins.
-
Remove Lower Fascia:
- Remove 2 screws (1 per side) using a Phillips screwdriver.
- Remove 3 push pins using a flat head screwdriver.
- Remove the plastic fascia attachment with 1 Phillips screw per attachment. Return parts to the owner.
-
Lower Exhaust:
- Use an exhaust hanger removal tool to detach rubber isolators from the hanger.
- Support the exhaust before lowering.
-
Modify Heat Shield:
- Cut or bend the area around the rearmost stud for clearance.
- Ensure the hole in the heat shield is left intact to reattach later.
-
Remove Existing Hardware:
- Remove two 10mm bolts from the bulkhead on each side.
-
Fish Wire Installation:
- Attach the bolt and spacer block to the fish wire.
- Insert through the access hole and position hardware as required.
-
Install Hitch:
- Carefully raise the hitch into position without pushing hardware into the frame.
- Secure with provided hardware:
- USA Models: Use M10 bolts and 7/16” conical washers (teeth side towards hitch).
- Korean Models: Use M8 bolts and 3/8” conical washers (teeth side towards hitch).
- Tighten hardware as per torque specifications.
-
Trim Lower Fascia:
- Cut a 3” wide x 5” long section from the center of the lower fascia for receiver tube clearance.
-
Reinstall Components:
- Reattach lower fascia and plastic cover.
- Reinsert screws and push pins.
-
Torque Fasteners:
- M8 Fasteners: 27 lb-ft (37 N*m).
- M10 Fasteners: 42 lb-ft (57 N*m).
- 7/16” Fasteners: 50 lb-ft (68 N*m).
-
Raise Exhaust:
- Reattach rubber isolators to the hanger.
Hardware List:
- (2) Carriage Bolt, 7/16-14 x 1.75 GR5
- (2) Spacer Block, 0.25 x 0.875 x 3.0
- (6) Conical Washer, 7/16"
- (2) Hex Nut, 7/16-14 GR2
- (2) Fish Wire, 7/16"
- (4) Hex Bolt, M10-1.25 x 35mm CL10.9
- (4) Hex Bolt, M8-1.25 x 40mm CL10.9
- (4) Conical Washer, 3/8"
- (4) Spacer, 1.5” x 1.0” x 0.25”
- (2) Cable Ties
Safety Notes:
- Always wear safety glasses during installation.
- Check hitch and fasteners regularly for proper tightness.
- Replace any damaged hitch or ball immediately.
- Do not exceed the vehicle manufacturer’s towing capacity:
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (91 kg)
Specifications:
- Installation Time: 40-60 minutes
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2018-Current)
Part Numbers:
- 24964
- 77964
- CQT24964
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 8mm, 10mm, 12mm, 13mm, 14mm, 11/16"
- Flat Head Screwdriver
- Phillips Screwdriver
- Exhaust Removal Pliers
- Tape Measure
- Marker
- Tape
- Utility Knife
- Tin Snips
- Plastic Trim Tools
- Drill with ½” and ¼” Bits
Step-by-Step Instructions:
-
Remove Plastic Cover:
- Using a 10mm socket, remove 4 nuts.
- Use a flat head screwdriver to remove 3 plastic push pins.
-
Remove Lower Fascia:
- Remove 2 screws (1 per side) using a Phillips screwdriver.
- Remove 3 push pins using a flat head screwdriver.
- Remove the plastic fascia attachment with 1 Phillips screw per attachment. Return parts to the owner.
-
Lower Exhaust:
- Use an exhaust hanger removal tool to detach rubber isolators from the hanger.
- Support the exhaust before lowering.
-
Modify Heat Shield:
- Cut or bend the area around the rearmost stud for clearance.
- Ensure the hole in the heat shield is left intact to reattach later.
-
Remove Existing Hardware:
- Remove two 10mm bolts from the bulkhead on each side.
-
Fish Wire Installation:
- Attach the bolt and spacer block to the fish wire.
- Insert through the access hole and position hardware as required.
-
Install Hitch:
- Carefully raise the hitch into position without pushing hardware into the frame.
- Secure with provided hardware:
- USA Models: Use M10 bolts and 7/16” conical washers (teeth side towards hitch).
- Korean Models: Use M8 bolts and 3/8” conical washers (teeth side towards hitch).
- Tighten hardware as per torque specifications.
-
Trim Lower Fascia:
- Cut a 3” wide x 5” long section from the center of the lower fascia for receiver tube clearance.
-
Reinstall Components:
- Reattach lower fascia and plastic cover.
- Reinsert screws and push pins.
-
Torque Fasteners:
- M8 Fasteners: 27 lb-ft (37 N*m).
- M10 Fasteners: 42 lb-ft (57 N*m).
- 7/16” Fasteners: 50 lb-ft (68 N*m).
-
Raise Exhaust:
- Reattach rubber isolators to the hanger.
Hardware List:
- (2) Carriage Bolt, 7/16-14 x 1.75 GR5
- (2) Spacer Block, 0.25 x 0.875 x 3.0
- (6) Conical Washer, 7/16"
- (2) Hex Nut, 7/16-14 GR2
- (2) Fish Wire, 7/16"
- (4) Hex Bolt, M10-1.25 x 35mm CL10.9
- (4) Hex Bolt, M8-1.25 x 40mm CL10.9
- (4) Conical Washer, 3/8"
- (4) Spacer, 1.5” x 1.0” x 0.25”
- (2) Cable Ties
Safety Notes:
- Always wear safety glasses during installation.
- Check hitch and fasteners regularly for proper tightness.
- Replace any damaged hitch or ball immediately.
- Do not exceed the vehicle manufacturer’s towing capacity:
- Max Gross Trailer Weight: 2,000 lb (907 kg)
- Max Tongue Weight: 200 lb (91 kg)
Specifications:
- Installation Time: 40-60 minutes
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
