Installation Instructions for Subaru Forester (2019-Current)

Part Numbers:

• 36671
• 06191
• CQT36671

Wiring Access Location:

• PC3

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Exhaust Removal Pliers or Prybar
• Tin Snips
• Flat Head Screwdriver
• Sockets: 10mm, 13/16"
• 6" Socket Extension

Installation Time:

• Estimated: 30 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower Underbody Panel:

   • Remove two (2) M6 bolts from the driver-side frame rail.
   • Retain the panel for reinstallation over the hitch.

2. Lower Exhaust:

   • Using exhaust removal pliers or a prybar, detach the rubber exhaust hangers from the front of the muffler, behind the muffler, and near the rear axle.
   • Ensure the exhaust is supported to prevent damage.

3. Trim Heat Shield:

   • Remove four (4) screws holding the heat shield to the vehicle using a 10mm socket.
   • Use tin snips to trim the heat shield as shown in the installation diagram.
   • Reinstall the trimmed heat shield, omitting the rearmost M6 bolt for proper clearance.

4. Fishwire Fasteners:

   • Remove four (4) hole plugs from each frame rail.
   • Use fish wires to pull spacers and 7/16" carriage bolts through the access holes and into position in the frame rails. Refer to the manual's example.

5. Install Hitch:

   • Raise the hitch into position over the muffler and underbody panel.
   • Align the attachment holes in the hitch with the frame rail holes.
   • Loosely install the provided hex nuts and conical washers (teeth side toward the hitch) onto the bolts.

6. Torque Fasteners:

   • Tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.

7. Reinstall Exhaust and Underbody Panel:

   • Raise the exhaust back into position and reattach the hangers removed in Step 2.
   • Reinstall the underbody panel, securing it with the supplied M6 bolts into the weldnuts on the frame rail.

Torque Specifications:

• 7/16"-14 GR5 bolts: 50 lb-ft (68 N*m)

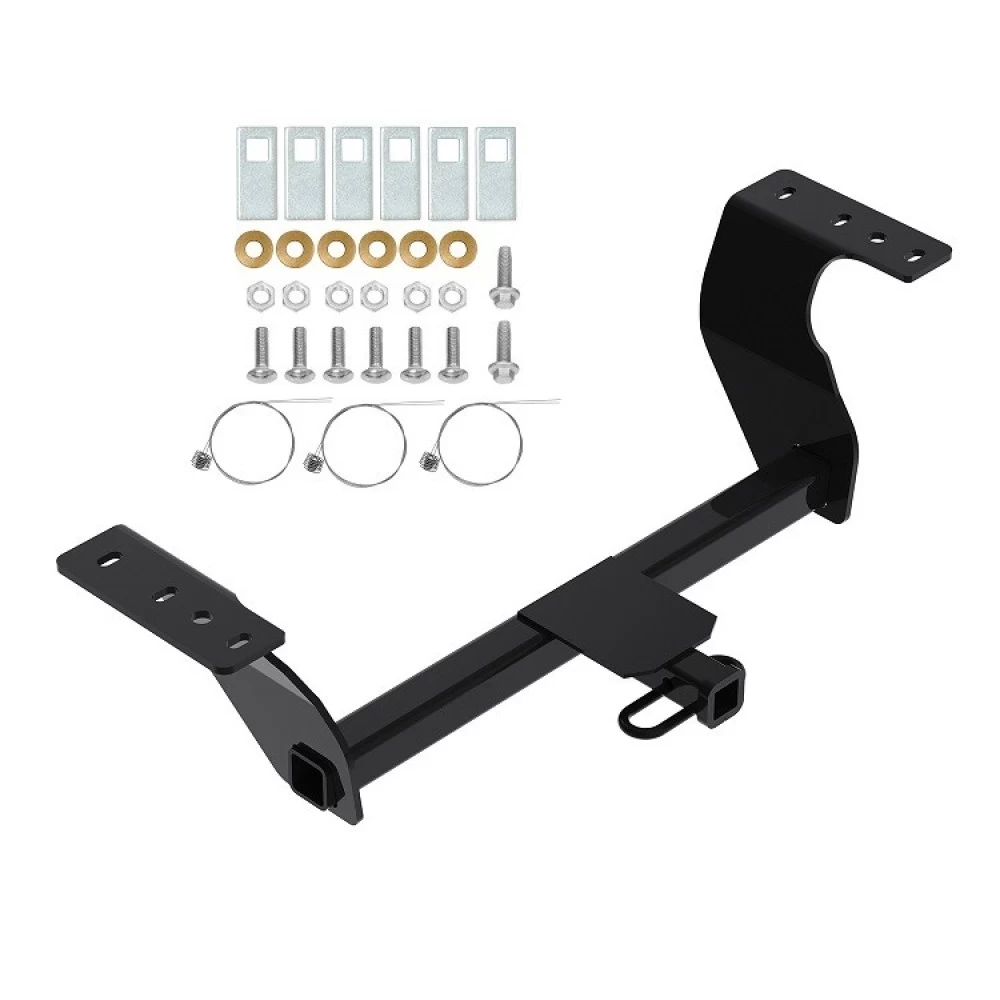

Hardware List:

• (6) Carriage Bolts, 7/16"-14 x 1.50" GR5
• (6) Spacer Blocks
• (6) Conical Washers, 7/16"
• (6) Hex Nuts, 7/16"-14
• (6) Fish Wires, 7/16"
• (2) Flange Hex Bolts, M6 x 1.0 x 35mm

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

• Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
• Fastener Kit: 36671F.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 36671
• 06191
• CQT36671

Wiring Access Location:

• PC3

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Exhaust Removal Pliers or Prybar
• Tin Snips
• Flat Head Screwdriver
• Sockets: 10mm, 13/16"
• 6" Socket Extension

Installation Time:

• Estimated: 30 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower Underbody Panel:

   • Remove two (2) M6 bolts from the driver-side frame rail.
   • Retain the panel for reinstallation over the hitch.

2. Lower Exhaust:

   • Using exhaust removal pliers or a prybar, detach the rubber exhaust hangers from the front of the muffler, behind the muffler, and near the rear axle.
   • Ensure the exhaust is supported to prevent damage.

3. Trim Heat Shield:

   • Remove four (4) screws holding the heat shield to the vehicle using a 10mm socket.
   • Use tin snips to trim the heat shield as shown in the installation diagram.
   • Reinstall the trimmed heat shield, omitting the rearmost M6 bolt for proper clearance.

4. Fishwire Fasteners:

   • Remove four (4) hole plugs from each frame rail.
   • Use fish wires to pull spacers and 7/16" carriage bolts through the access holes and into position in the frame rails. Refer to the manual's example.

5. Install Hitch:

   • Raise the hitch into position over the muffler and underbody panel.
   • Align the attachment holes in the hitch with the frame rail holes.
   • Loosely install the provided hex nuts and conical washers (teeth side toward the hitch) onto the bolts.

6. Torque Fasteners:

   • Tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.

7. Reinstall Exhaust and Underbody Panel:

   • Raise the exhaust back into position and reattach the hangers removed in Step 2.
   • Reinstall the underbody panel, securing it with the supplied M6 bolts into the weldnuts on the frame rail.

Torque Specifications:

• 7/16"-14 GR5 bolts: 50 lb-ft (68 N*m)

Hardware List:

• (6) Carriage Bolts, 7/16"-14 x 1.50" GR5
• (6) Spacer Blocks
• (6) Conical Washers, 7/16"
• (6) Hex Nuts, 7/16"-14
• (6) Fish Wires, 7/16"
• (2) Flange Hex Bolts, M6 x 1.0 x 35mm

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath a vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

• Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
• Fastener Kit: 36671F.
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.
