Trailer Tow Hitch Hardware Fastener Kit For 14‑23 Ford Transit Connect All Styles 2" Receiver
Model: HWKIT3(75852F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2014 - 2023 Ford, Transit Connect, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75852 87651 44702
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
$56 43 $89.21 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$89.21 $56 43
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $14.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT3(75852F)
- Includes: Hardware Kit for Class 3-5 Trailer Tow Hitch
Compatibility Chart
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2014 - 2023 Ford, Transit Connect, All Styles
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 75852 87651 44702
Installation Instructions:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 20 21 22 23 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 14-23 Ford Transit Connect All Styles 2" Receiver Install Notes
Installation Instructions for Ford Transit Connect
Part Numbers:
- 75852
- 87651
- 44702
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Pull Wires (provided)
- Wrenches: 11/16", 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Prepare Fasteners:
- Feed all spacers and carriage bolts into position using the pull wires provided in each frame rail. Leave pull wires attached.
- Tip: It is easier to insert the bolt and spacer separately into the frame rail.
-
Position Hitch:
- Raise the hitch into position, aligning it with the frame rail holes. Feed the pull wires through the adjacent holes on the hitch.
-
Secure Fasteners:
- Carefully remove the pull wires one at a time. Place a washer over the pull wire and use it to hold the bolt in place while carefully removing the pull wire. Attach the hex nut.
-
Torque Fasteners:
- Tighten all fasteners to the required torque specifications:
- 1/2"-13 GR5 fasteners to 75 lb-ft (102 N*m)
- 7/16"-14 GR5 fasteners to 50 lb-ft (68 N*m)
- Tighten all fasteners to the required torque specifications:

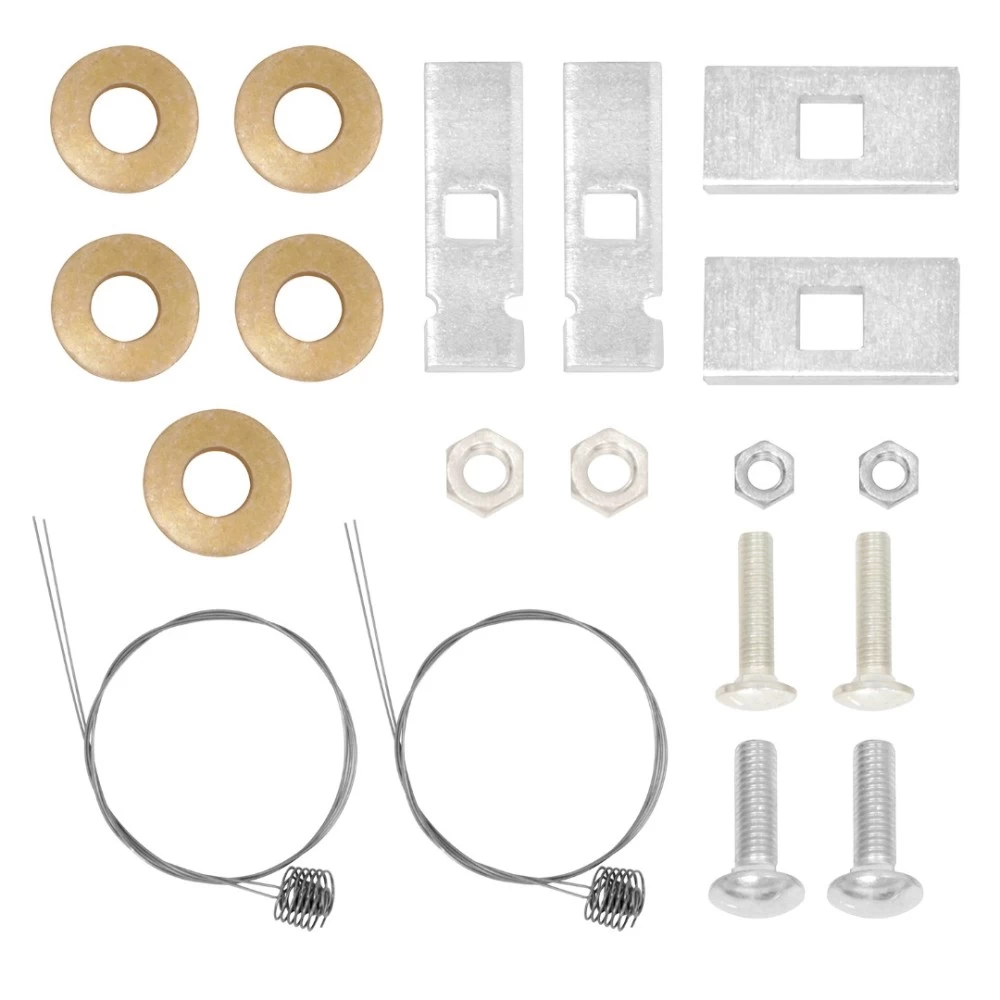

Hardware List:
- Qty (2): Carriage Bolt – 1/2"-13 x 1.75 GR5
- Qty (2): Carriage Bolt – 7/16"-14 x 1.75 GR5
- Qty (2): Spacer – 1/4" x 1-1/2" x 3"
- Qty (2): Spacer – 1/4" x 7/8" x 3"
- Qty (2): Conical Washer – 1/2"
- Qty (2): Conical Washer – 7/16"
- Qty (2): Hex Nut – 1/2"-13
- Qty (2): Hex Nut – 7/16"-14
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 400 lbs (182 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 400 lbs (182 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Installation time: Approximately 30 minutes for a professional installer.
Installation Instructions
Part Numbers:
- 75852
- 87651
- 44702
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Pull Wires (provided)
- Wrenches: 11/16", 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Prepare Fasteners:
- Feed all spacers and carriage bolts into position using the pull wires provided in each frame rail. Leave pull wires attached.
- Tip: It is easier to insert the bolt and spacer separately into the frame rail.
-
Position Hitch:
- Raise the hitch into position, aligning it with the frame rail holes. Feed the pull wires through the adjacent holes on the hitch.
-
Secure Fasteners:
- Carefully remove the pull wires one at a time. Place a washer over the pull wire and use it to hold the bolt in place while carefully removing the pull wire. Attach the hex nut.
-
Torque Fasteners:
- Tighten all fasteners to the required torque specifications:
- 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m)
- 7/16"-14 GR5 fasteners to 50 lb-ft (68 N·m)
- Tighten all fasteners to the required torque specifications:
Hardware List:
- Qty (2): Carriage Bolt – 1/2"-13 x 1.75 GR5
- Qty (2): Carriage Bolt – 7/16"-14 x 1.75 GR5
- Qty (2): Spacer – 1/4" x 1-1/2" x 3"
- Qty (2): Spacer – 1/4" x 7/8" x 3"
- Qty (2): Conical Washer – 1/2"
- Qty (2): Conical Washer – 7/16"
- Qty (2): Hex Nut – 1/2"-13
- Qty (2): Hex Nut – 7/16"-14
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 400 lbs (182 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 400 lbs (182 kg)
Manufacturer Notes:
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
- Installation time: Approximately 30 minutes for a professional installer.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
