Installation Instructions for Jeep Renegade (2015-Current)

Part Numbers:

• 76021
• 84021
• CQT76021

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 13mm, 21mm, 3/4"
• Flat Head Screwdriver
• Phillips Screwdriver
• Utility Knife
• Drill with 1” Holesaw
• 6” Socket Extension

Wiring Access Location:

• [Information not provided]

Step-by-Step Instructions:

1. Loosen Wheel Well Fender:

   • Use a Phillips screwdriver and a 10mm socket to remove (4) bolts and (1) plastic flange nut from the wheel well fender on the passenger side.

2. Remove Rubber Plugs:

   • Use a flat head screwdriver to remove (1) plug from the bottom frame rail and (2) plugs from the outside frame rail on each side.

   Note: For models with a factory tow hook, use a 21mm socket to remove the M14 bolts in these locations. Retain bolts for reinstallation and skip Step 3.

3. Drill Access Holes for Fasteners:

   • Locate the area between the exhaust hanger bracket and the suspension mount on the frame rail.
   • Use a 1” holesaw to drill an access hole on each side.
   • Use pliers to bend the heat shield edge down, if necessary.

4. Lower Exhaust and Clear Caulk:

   • Use a 13mm socket to remove (1) bolt from the exhaust hanger on each side and lower the muffler temporarily.
   • Support the muffler to prevent damage.
   • Use a utility knife to remove caulk near mounting holes and slightly bend the heat shield edge down on each side.

5. Install Hitch:

   • Fishwire the carriage bolts and spacers into the frame through the drilled holes. Leave pull wires attached.
   • Raise the hitch into position and carefully slide it over the exhaust hanger.
   • Feed pull wires through bracket holes, remove pull wires, and loosely install conical washers and hex nuts.
   • For models with a factory tow hook, loosely secure the factory M14 bolts to the hitch attachment holes.

6. Tighten Fasteners:

   • Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
   • Torque all M14 fasteners to 115 lb-ft (156 N·m).

7. Reinstall Components:

   • Reinstall the exhaust hanger and all fasteners removed from the wheel well fender in Steps 1 and 4.

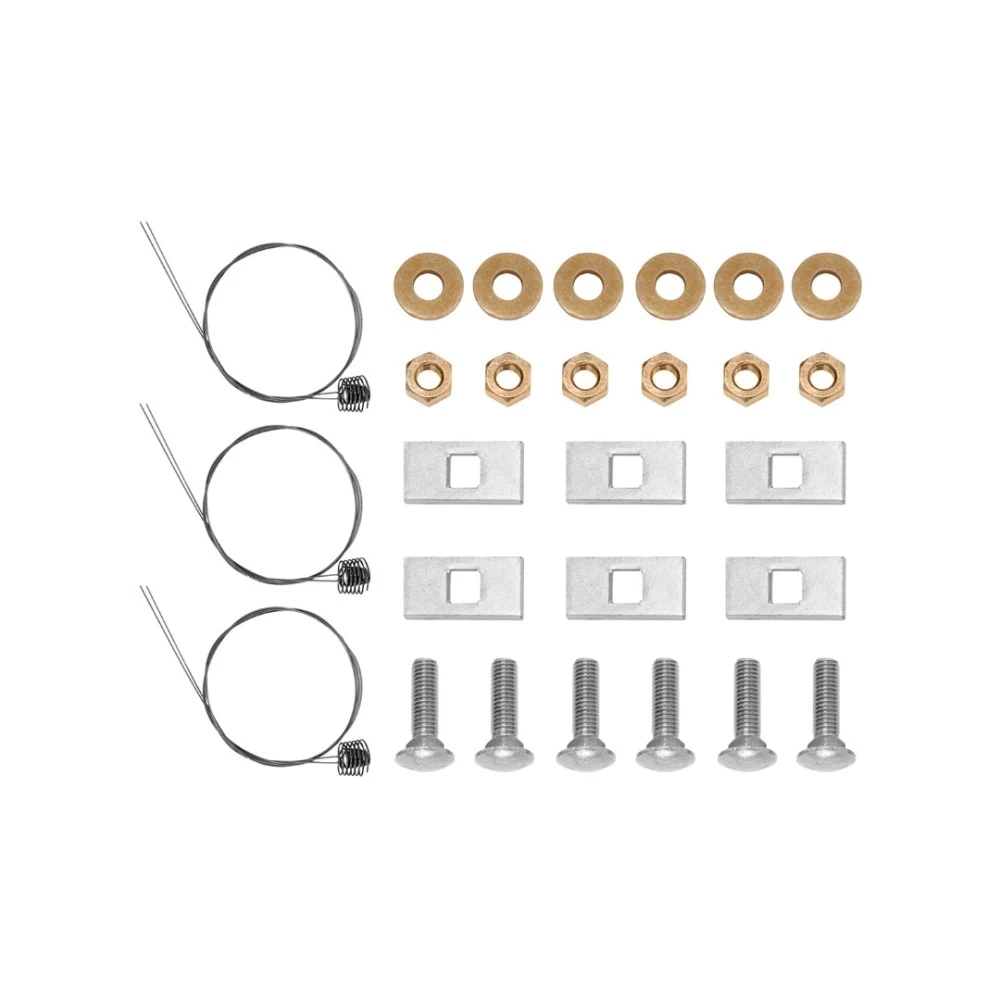

Hardware List:

• (6) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
• (6) .250 x 1.0 x 2.0 Spacer Blocks
• (6) 1/2" Conical Washers
• (6) 1/2”-13 Grade 5 Hex Nuts
• (6) 1/2”-13 Pull Wires

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: [Information not provided].
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 40 minutes for a professional installer.
• Contact a professional installer if you are not comfortable performing the installation.

Installation Instructions for Vehicle (2015-Current)

Part Numbers:

• 76021
• 84021
• CQT76021

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 13mm, 21mm, 3/4"
• Flat Head Screwdriver
• Phillips Screwdriver
• Utility Knife
• Drill with 1” Holesaw
• 6” Socket Extension

Wiring Access Location:

• [Information not provided]

Step-by-Step Instructions:

1. Loosen Wheel Well Fender:

   • Use a Phillips screwdriver and a 10mm socket to remove (4) bolts and (1) plastic flange nut from the wheel well fender on the passenger side.

2. Remove Rubber Plugs:

   • Use a flat head screwdriver to remove (1) plug from the bottom frame rail and (2) plugs from the outside frame rail on each side.

   Note: For models with a factory tow hook, use a 21mm socket to remove the M14 bolts in these locations. Retain bolts for reinstallation and skip Step 3.

3. Drill Access Holes for Fasteners:

   • Locate the area between the exhaust hanger bracket and the suspension mount on the frame rail.
   • Use a 1” holesaw to drill an access hole on each side.
   • Use pliers to bend the heat shield edge down, if necessary.

4. Lower Exhaust and Clear Caulk:

   • Use a 13mm socket to remove (1) bolt from the exhaust hanger on each side and lower the muffler temporarily.
   • Support the muffler to prevent damage.
   • Use a utility knife to remove caulk near mounting holes and slightly bend the heat shield edge down on each side.

5. Install Hitch:

   • Fishwire the carriage bolts and spacers into the frame through the drilled holes. Leave pull wires attached.
   • Raise the hitch into position and carefully slide it over the exhaust hanger.
   • Feed pull wires through bracket holes, remove pull wires, and loosely install conical washers and hex nuts.
   • For models with a factory tow hook, loosely secure the factory M14 bolts to the hitch attachment holes.

6. Tighten Fasteners:

   • Torque all 1/2" fasteners to 75 lb-ft (102 N·m).
   • Torque all M14 fasteners to 115 lb-ft (156 N·m).

7. Reinstall Components:

   • Reinstall the exhaust hanger and all fasteners removed from the wheel well fender in Steps 1 and 4.

Hardware List:

• (6) 1/2”-13 x 1.75” Grade 5 Carriage Bolts
• (6) .250 x 1.0 x 2.0 Spacer Blocks
• (6) 1/2" Conical Washers
• (6) 1/2”-13 Grade 5 Hex Nuts
• (6) 1/2”-13 Pull Wires

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always follow safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
  • Weight Distributing: [Information not provided].
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Additional Notes:

• Installation time is approximately 40 minutes for a professional installer.
• Contact a professional installer if you are not comfortable performing the installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
