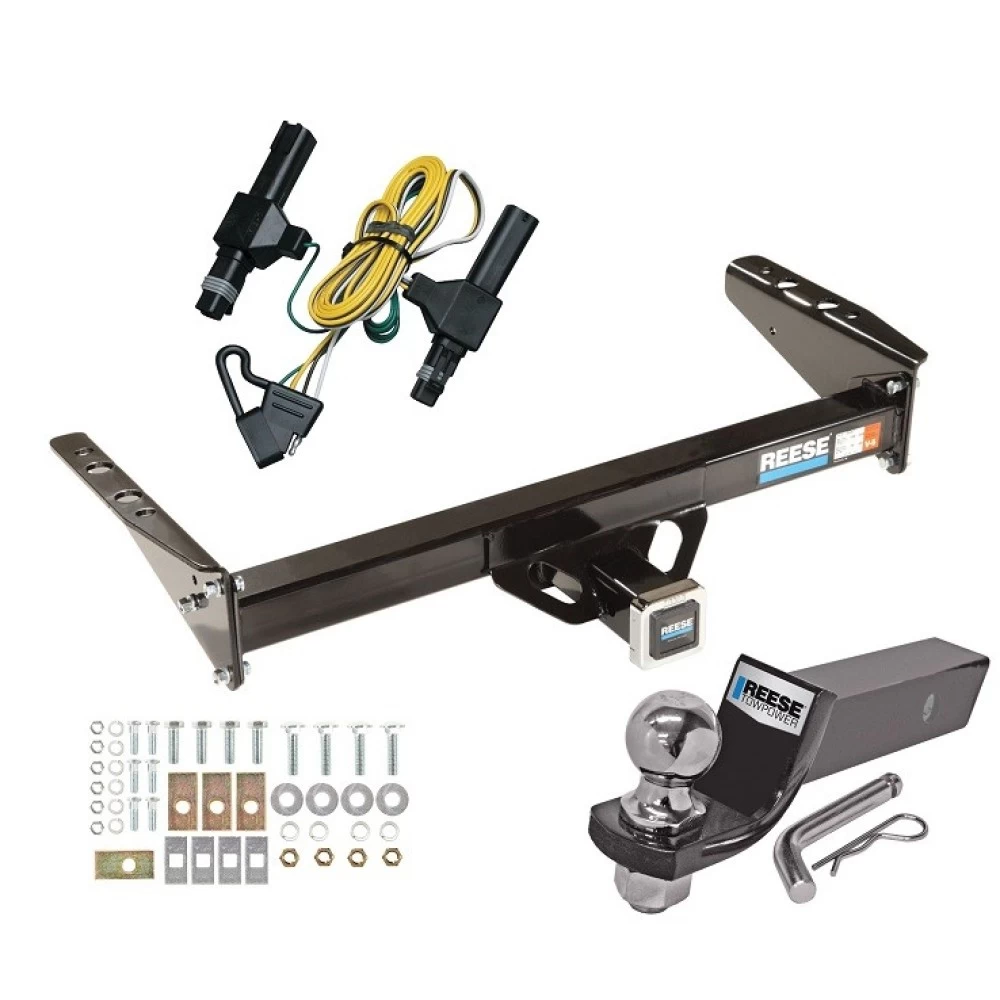

Reese Trailer Tow Hitch For 87‑94 Dodge Dakota Complete Package w/ Wiring and 2" Ball
Model: 36047 118317 21536Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball

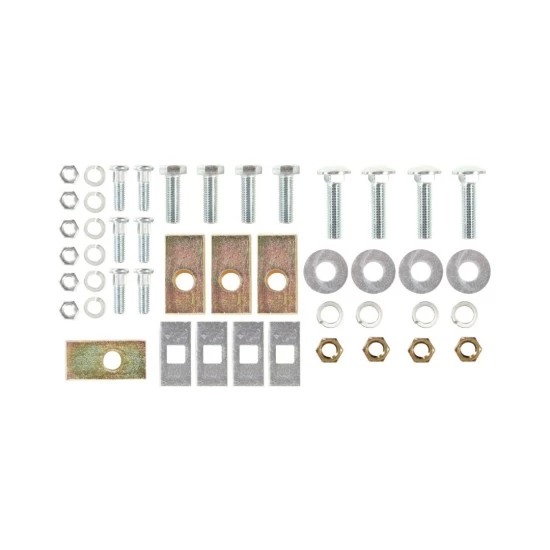

Installation Hardware
Installation Instructions
Fits The Following Vehicles
1987 - 1994 Dodge, Dakota, All Styles

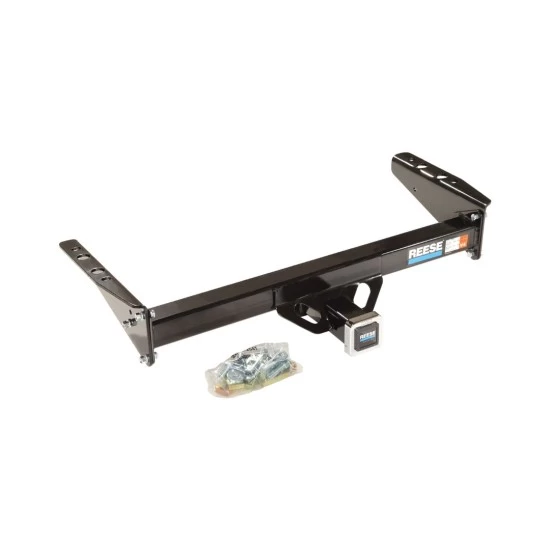

Trailer Hitch Specs:
Part Number | 36047 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 3 |
Receiver size opening | 2" |
Max gross trailer weight | 5,000 lbs |
Max GTW w/ weight distribution | 7,500 lbs |
Max Tongue Weight | 500/750 lbs |
Warranty | Lifetime |
Wiring Kit Specs:
Part Number | 118317 |
Brand | Tekonsha |
Warranty | 1 Year |
Towing Starter Kit Specs:
Part Number | 21536 |
Brand | Reese |
Fits | 2" x 2" Trailer Hitch Receiver |
Ball Size | 2" |
Ball Shank Dia. | 1" |
Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Ball-Mount Finish | Black Powdercoat |
Ball Finish | Chrome (Cold forged for superior strength) |
Warranty | Lifetime |
Partial list of fitment years: 87 88 89 90 91 92 93 94 1987 1988 1989 1990 1991 1992 1993 1994
$301 90 $439.82 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$439.82 $301 90
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $75.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 36047 118317 21536
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Be the first to ask a question.
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
1987 - 1994 Dodge, Dakota, All Styles
Trailer Hitch Specs:
Part Number | 36047 |
Brand | Reese |
Finish | Black Powdercoat |
Class | 3 |
Receiver size opening | 2" |
Max gross trailer weight | 5,000 lbs |
Max GTW w/ weight distribution | 7,500 lbs |
Max Tongue Weight | 500/750 lbs |
Warranty | Lifetime |
Wiring Kit Specs:
Part Number | 118317 |
Brand | Tekonsha |
Warranty | 1 Year |
Towing Starter Kit Specs:
Part Number | 21536 |
Brand | Reese |
Fits | 2" x 2" Trailer Hitch Receiver |
Ball Size | 2" |
Ball Shank Dia. | 1" |
Ball-Mount Length | 9" From Center of Pin Hole to Center of Ball Hole |
Towing Capacity | 6,000 lb Gross Towing Weight 600 lb Tongue Weight |
Drop | 2" From inside top of hitch opening |
Rise | 3/4" from top of inside of hitch opening |
Ball-Mount Finish | Black Powdercoat |
Ball Finish | Chrome (Cold forged for superior strength) |
Warranty | Lifetime |
Partial list of fitment years: 87 88 89 90 91 92 93 94 1987 1988 1989 1990 1991 1992 1993 1994
Get Expert Help
Reese Trailer Tow Hitch For 87-94 Dodge Dakota Complete Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Dodge/Ram Pickup Trucks (Various Models)
Part Numbers:
- N75073
Tools Required:
- Wrenches (sizes not specified)
- Torque Wrench
- Ratchet
Step-by-Step Instructions:
-
Prepare Vehicle:
- Clean the mounting areas on the frame rails to ensure proper contact with the hitch and fasteners.
-
Position Hitch:
- Place the hitch on the frame rails, aligning the attachment holes with existing frame holes.
-
Insert Fasteners:
- Install the carriage bolts, flat washers, and nuts as per the provided diagram.
- Use the pull wire method if applicable to guide bolts through the frame.
-
Align and Center Hitch:
- Adjust the hitch to ensure it is centered and aligned with the frame rails.
-
Tighten Fasteners:
- Torque all fasteners to the specified torque values.
Torque Specifications:
- Refer to standard torque settings for the bolt grades included in the hardware kit.
Hardware List:
- (Details of hardware components, e.g., bolt sizes and quantities, to be added from the provided diagram or list in the manual.)
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug any holes in the frame or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: (Details to be added from manual)
- Max Tongue Weight: (Details to be added from manual)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Follow the provided diagrams closely for correct installation.
Installation Instructions for Pickup Trucks (Various Models)
Part Numbers:
- N75073
Tools Required:
- Wrenches (sizes not specified)
- Torque Wrench
- Ratchet
Step-by-Step Instructions:
-
Prepare Vehicle:
- Clean the mounting areas on the frame rails to ensure proper contact with the hitch and fasteners.
-
Position Hitch:
- Place the hitch on the frame rails, aligning the attachment holes with existing frame holes.
-
Insert Fasteners:
- Install the carriage bolts, flat washers, and nuts as per the provided diagram.
- Use the pull wire method if applicable to guide bolts through the frame.
-
Align and Center Hitch:
- Adjust the hitch to ensure it is centered and aligned with the frame rails.
-
Tighten Fasteners:
- Torque all fasteners to the specified torque values.
Torque Specifications:
- Refer to standard torque settings for the bolt grades included in the hardware kit.
Hardware List:
- (Details of hardware components, e.g., bolt sizes and quantities, to be added from the provided diagram or list in the manual.)
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- Plug any holes in the frame or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: (Details to be added from manual)
- Max Tongue Weight: (Details to be added from manual)
Additional Notes:
- This product complies with SAE J684 safety standards.
- Follow the provided diagrams closely for correct installation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty:
The product comes with a standard warranty. For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118317
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (provided in the kit).
Step-by-Step Instructions:
-
Locate the vehicle’s taillight wiring harness along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the harness connectors on the left (driver’s) side.
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-connector adapter marked "left" between the harness connectors and lock into place.
- Verify that the connectors are fully inserted with locking tabs secure.
- Repeat steps 2 and 3 for the right (passenger’s) side.
-
Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or other mounting point using electrical tape or the provided tie straps.
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-connector adapter
- Electrical tape or tie straps (provided).
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118317
Wiring Access Location:
- Left rear frame rail of the vehicle.
Tools Required:
- Electrical tape or tie straps (provided in the kit)
Step-by-Step Instructions:
-
Locate the Vehicle’s Taillight Wiring Harness:
- The taillight wiring harness is located along the inside of the left rear frame rail.
- This harness will have a connection point with connectors matching the ends of the T-connector adapter.
-
Separate the Harness Connectors on the Left (Driver’s) Side:
- Note: Be careful not to break the locking tabs.
- Ensure that the mating surfaces of the connectors are free of dirt and clean them if necessary.
-
Insert the T-Connector Adapter Marked "Left":
- Insert the T-connector adapter marked "left" between the harness connectors and lock it into place.
- Verify that the connectors are fully inserted with locking tabs secure.
- Repeat steps 2 and 3 for the right (passenger’s) side.
-
Route the T-Connector Harness:
- Route the T-connector harness to the center of the vehicle.
- Secure the wire to the vehicle crossmember or another mounting point using electrical tape or the provided tie straps.
-
Test the Installation:
- Test the installation with a test light or trailer to ensure all connections function properly.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-connector adapter
- Electrical tape or tie straps (provided)
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation.
