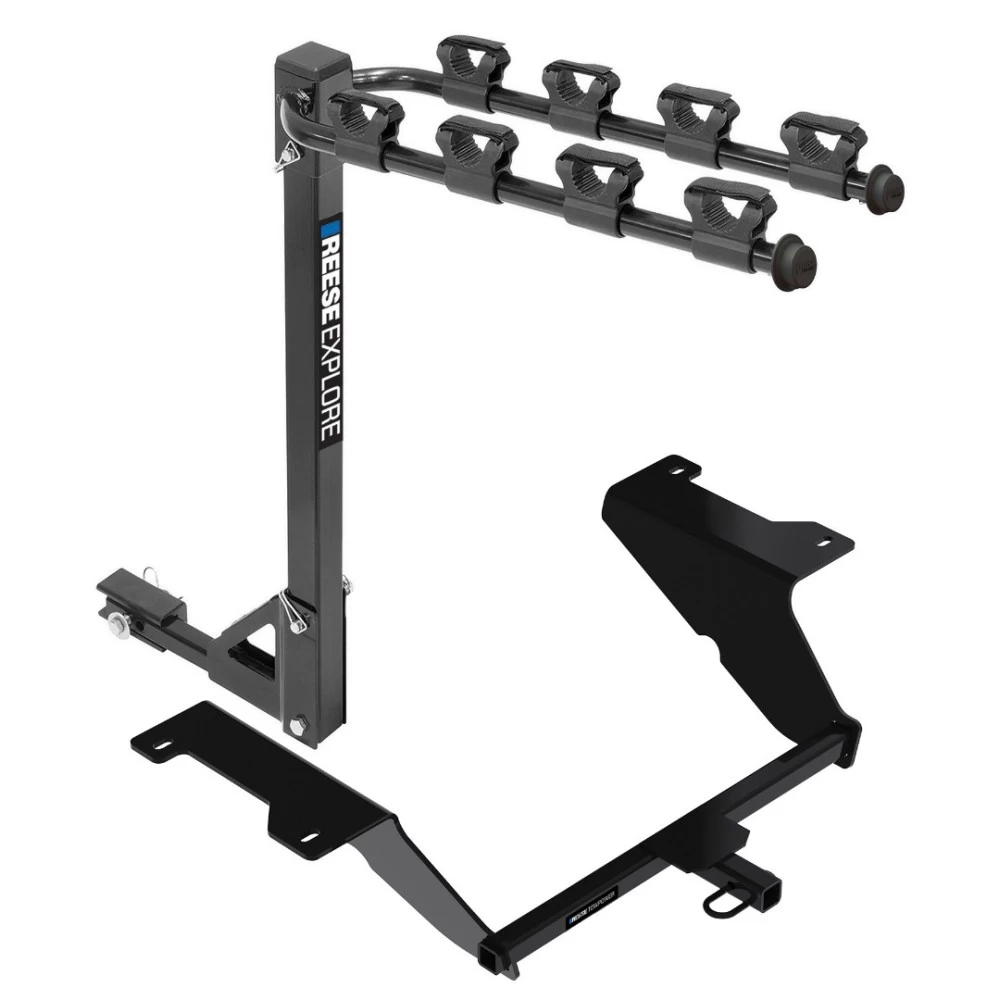

Reese Trailer Tow Hitch For 20‑23 Hyundai Sonata tilt away adult or child arms fold down carrier
Model: 77993 1393100GCustom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2020 – 2023 Hyundai, Sonata, All Styles
Part Number | 1393100G |
Brand | Reese |
Finish | Black Powdercoat |
Number of Bikes | 4 |
Capacity | 120 lbs |
Application | Fits 1-1/4" and 2" receivers |
Weight | 28 lbs. |
Warranty | 90 Day |
Installation Instructions | ![]() |
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 20 21 22 23 2020 2021 2022 2023
$370 80 $553.75 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$553.75 $370 80
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $92.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 77993 1393100G
- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2020 – 2023 Hyundai, Sonata, All Styles
Part Number | 1393100G |
Brand | Reese |
Finish | Black Powdercoat |
Number of Bikes | 4 |
Capacity | 120 lbs |
Application | Fits 1-1/4" and 2" receivers |
Weight | 28 lbs. |
Warranty | 90 Day |
Installation Instructions | ![]() |
Questions or Comments? Call 702-374-8999
Partial list of fitment years: 20 21 22 23 2020 2021 2022 2023
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 2,000 lbs. |
Hitch Class | I |
Material | Steel |
Maximum Tongue Weight | 200 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
Get Expert Help
Reese Trailer Tow Hitch For 20-23 Hyundai Sonata tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Hyundai Sonata (2020-Current)
Part Numbers:
- 24993
- 77993
- CQT24993
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, M12, 11/16"
- Flat Head Screwdriver
- 6" Socket Extension
Step-by-Step Instructions:
-
Remove Trim Panel:
- Using a flat head screwdriver and a 10mm socket, remove (4) pop rivets and (2) M10 flange nuts from the driver-side trim panel.
- Return the trim panel to the owner.
-
Lower Exhaust:
- Using an M12 socket, remove (2) M12 flange nuts to lower the exhaust.
- Ensure the exhaust is supported before removing the nuts.
-
Remove Heat Shield:
- Using a 10mm socket, remove (3) M10 flange nuts from the heat shield.
- Gently pull on the heat shield to remove it and return it to the owner.
-
Install Hitch:
- Using pull wires, install 7/16"-14 x 1.5" carriage bolts and 3/16" x 1" x 2" spacers into the vehicle frame through the access hole.
- Leave the pull wires attached.
- Raise the hitch into position, align the holes in the hitch bracket with the carriage bolts, and guide the pull wire ends through the bracket holes.
- Remove the pull wires and install 7/16" conical washers (teeth side toward the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 Grade 5 fasteners to 50 ft-lb (68 N*m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and secure it with the M12 flange nuts.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.5" GR5
- (4) Spacer, 3/16" x 1" x 2" (Part #: 3837)
- (4) Conical Washer, 7/16" (Part #: 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16"-14 (Part #: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Installation Instructions for Vehicle (2020-Current)
Part Numbers:
- 24993
- 77993
- CQT24993
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, M12, 11/16"
- Flat Head Screwdriver
- 6" Socket Extension
Step-by-Step Instructions:
-
Remove Trim Panel:
- Using a flat head screwdriver and a 10mm socket, remove (4) pop rivets and (2) M10 flange nuts from the driver-side trim panel.
- Return the trim panel to the owner.
-
Lower Exhaust:
- Using an M12 socket, remove (2) M12 flange nuts to lower the exhaust.
- Ensure the exhaust is supported before removing the nuts.
-
Remove Heat Shield:
- Using a 10mm socket, remove (3) M10 flange nuts from the heat shield.
- Gently pull on the heat shield to remove it and return it to the owner.
-
Install Hitch:
- Using pull wires, install 7/16"-14 x 1.5" carriage bolts and 3/16" x 1" x 2" spacers into the vehicle frame through the access hole.
- Leave the pull wires attached.
- Raise the hitch into position, align the holes in the hitch bracket with the carriage bolts, and guide the pull wire ends through the bracket holes.
- Remove the pull wires and install 7/16" conical washers (teeth side toward the hitch) and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 Grade 5 fasteners to 50 ft-lb (68 N*m).
-
Reinstall Exhaust:
- Raise the exhaust back into position and secure it with the M12 flange nuts.
Hardware List:
- (4) Carriage Bolt, 7/16"-14 x 1.5" GR5
- (4) Spacer, 3/16" x 1" x 2" (Part #: 3837)
- (4) Conical Washer, 7/16" (Part #: 01292007)
- (4) Hex Nut, 7/16"-14 GR2
- (4) Pull Wire, 7/16"-14 (Part #: 5481)
Safety Notes:
- Always wear safety glasses during installation.
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Do not cut access or attachment holes with a torch.
Specifications:
- Installation Time: 30 minutes
- Max Gross Trailer Weight: 2,000 lb (908 kg)
- Max Tongue Weight: 200 lb (90.8 kg)
- Complies with SAE J684 and VESC Regulation V-5 standards.
Additional Information:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
- For complete warranty instructions, please download the full installation PDF.
