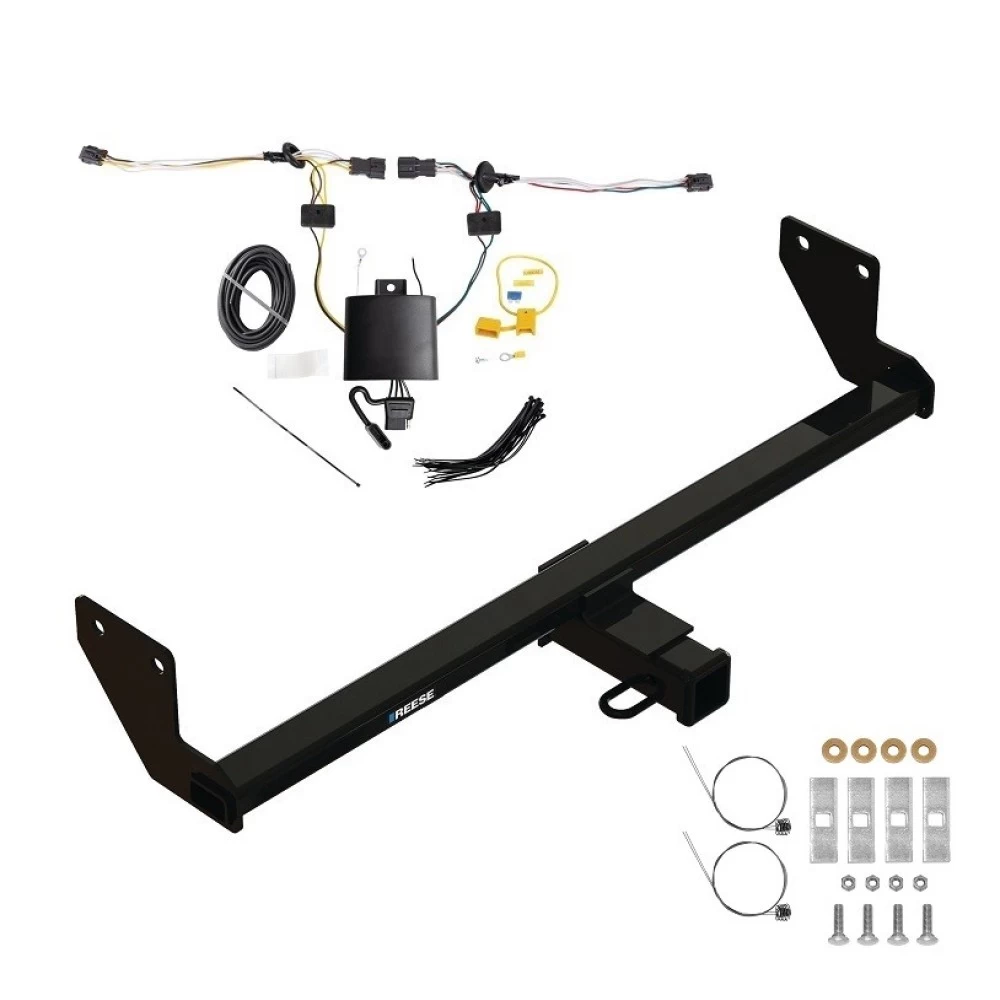

Installation Instructions for 2021-Current Kia Seltos

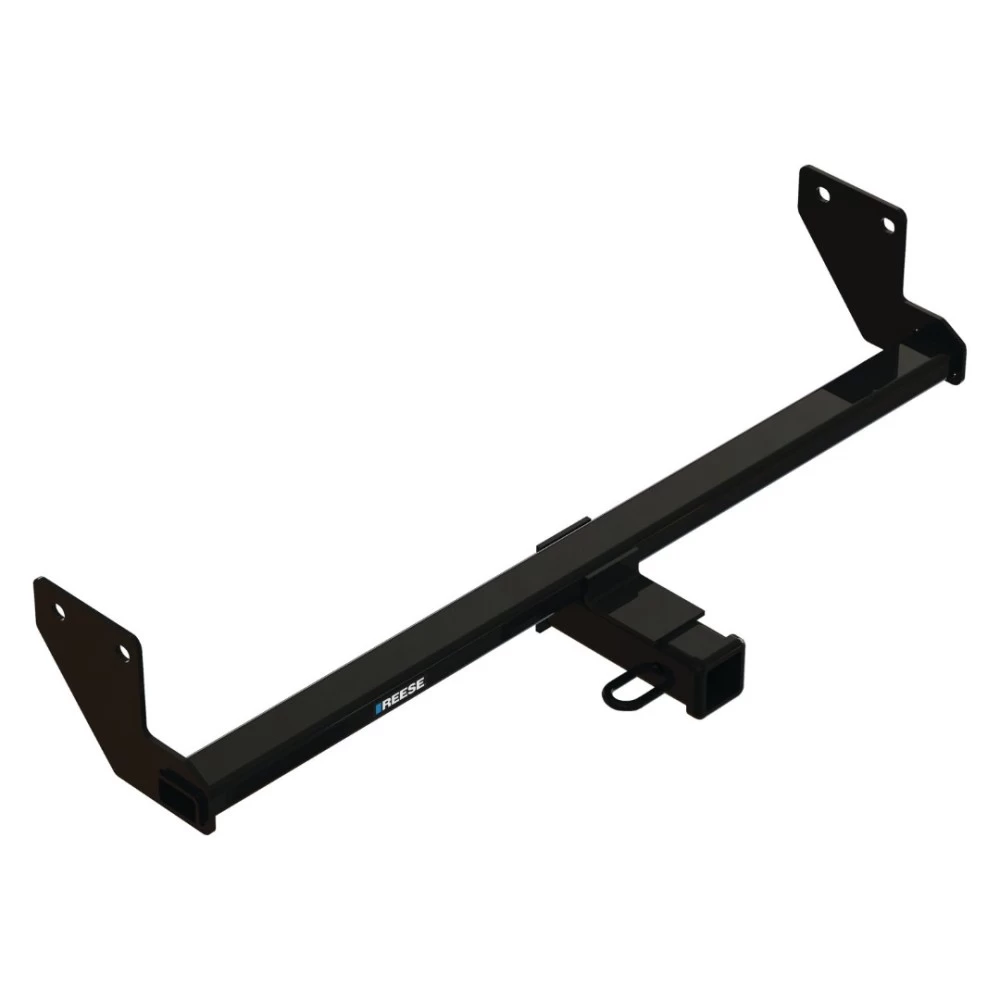

Part Numbers:

• 76587
• 84587
• CQT76587

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 11/16"
• Flat Head Screwdriver
• Utility Knife
• Exhaust Removal Pliers
• Soapy Water
• 6-inch Socket Extension

Step-by-Step Instructions:

1. Remove Bottom Appearance Panel:

   • Use a flat head screwdriver and 10 mm socket to remove 1 flange nut and 2 rivets from the bottom appearance panel on the passenger side.
   • Set the panel aside for later trimming and reinstallation.

2. Lower Exhaust Muffler:

   • Using exhaust removal pliers, detach the rubber hangers at 2 locations.
   • Support the exhaust to prevent damage while removing the hangers.

3. Install Hitch:

   • Remove 1 rubber plug from the chassis on each side to access the holes.
   • Use pull wires to feed carriage bolts and spacers through the access holes and into the frame.
   • Leave pull wires attached while raising the hitch into position.
   • Feed pull wires through the hitch bracket slot, remove the wires, and loosely install conical washers (teeth side toward the hitch) and hex nuts.

4. Tighten Fasteners:

   • Using a torque wrench, tighten all 7/16"-14 fasteners to 50 ft-lbs (68 N*m).

5. Trim Bottom Appearance Panel:

   • Use a utility knife to trim approximately 1 inch from the rearward edge of the panel, as shown in Figure 2 of the manual.

6. Reinstall Components:

   • Reinstall the rubber plugs, exhaust muffler, and trimmed appearance panel.

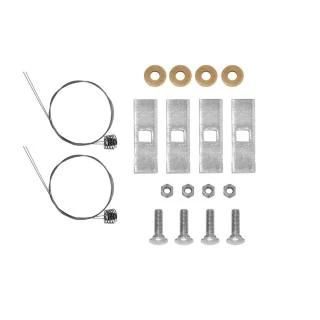

Hardware List:

• (4) Carriage Bolt 7/16"-14 x 1.75" GR5
• (4) Spacer 0.875" x 2.00" x 0.109"
• (4) Conical Washer 7/16"
• (4) Hex Nut 7/16"-14 GR2
• (4) Pull Wire 7/16"

Safety Notes:

• Always wear safety glasses during installation.
• Ensure proper torque to keep the hitch securely mounted.
• Regularly check all fasteners and the ball for tightness.
• Replace any damaged hitch or ball immediately.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent the entry of water or exhaust fumes.
• Observe safety precautions when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Weight Carrying Capacity: 2,000 lbs (908 kg) trailer weight, 300 lbs (136 kg) tongue weight.
• Weight Distributing Capacity: Not applicable.
• Product complies with V.E.S.C. Regulation V-5 and SAE J684.

Additional Notes:

• Installation time for professional installers is approximately 30 minutes.
• For step-by-step photo instructions, scan the QR code provided in the manual or visit the website.
